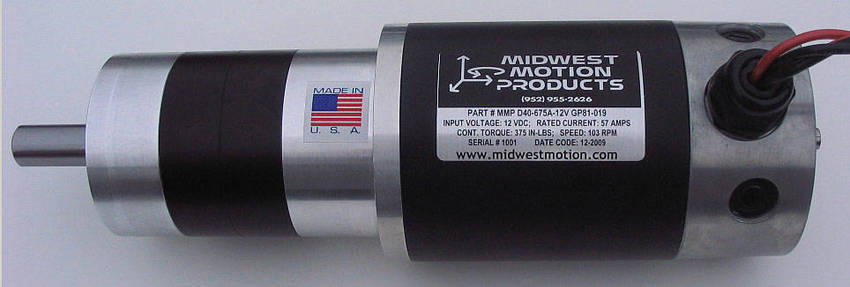

Midwest Motion Products    Watertown, MN 55388
Dec 31, 2009 With dia of 4 in. (max), length of 11.5 in, and weight of approx. 12 lb, Model No. MMP-D40-675A-12V GP81-019 requires just 57 A at 12 Vdc to generate its full load torque. IP54 protected unit has continuous torque output of 1,065 in.-lb at peak. Device features keyed output shaft of 19 mm dia by 40 mm long. Motor windings for 24, 36, 48, 60 and 90 V are available. Other options available are servo motors with integral optical encoders, failsafe brakes, and analog tachometers.

Arc Systems, Inc.    Hauppauge, NY 11788
Dec 28, 2009 Manufactured using squirrel cage rotor that utilizes both aluminum and copper bars, AC Induction Motors can operate in specific and extreme conditions, including intense dryness, moisture, heat, or cold. Speed and torque can be tailored to individual requirements by shifting conductivity of rotor bars. Many models incorporate feedback sensors such as tachometers or brakes, and gear heads can be combined for high-torque actuation systems.

WEG Electric Corp.    Duluth, GA 30097
Dec 24, 2009 Suited for extreme environments with space constraints, WGM Water Jacket Cooled Motor is available in frame sizes from 315-560 IEC and 5,000-8,800 NEMA with 2-8 poles and voltages from 690-6,600 V. Unit features variable frequency drive operation, vertical or horizontal mounting, and minimized thermal dissipation. Through circulation of water over frame construction and endshields, system allows effective thermal exchange between motor and water.

Lin Engineering    Santa Clara, CA 95054
Dec 18, 2009 Available in 2, 2.80, 3.60, and 4.53 in. stack lengths, NEMA 23 BLDC motors suit applications requiring high speed and high dynamic torque. They offer optimal performance speed range of 300-4,000 rpm and provide quiet operation, regardless of speed range. Motors also suit applications requiring velocity control with analog input.

Saia - Johnson Electric    Vandalia, OH 45377
Dec 18, 2009 Designed for use with all heating gases, Saia® Motor EGD 402 Gas Tight Motor and EGD 421 Fail Safe Gas Tight Motors are certified to Gas Appliances Directive 90/396/EEC to perform fail safe gas flow modulation and closing functions. They deliver 500,000 min operating cycles at 25-200 Hz in temperatures of -15 to +85°C. Available with 12 or 24 V unipolar coil, motors offer 10 or 15 mm travel and 21 or 42 μm step resolution; 240 or 720 steps.

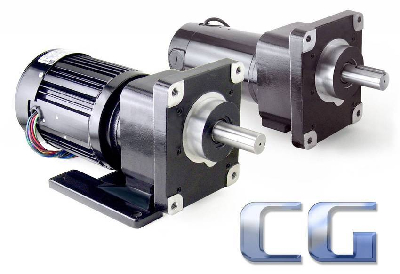

Bodine Electric Company    Northfield, IL 60093
Dec 11, 2009 Featuring solid aluminum cast gearhousing, Type-CG variable speed AC inverter-duty and permanent magnet DC motors can be face-mounted in virtually any position, or mounted with rigid base. Extra heavy-duty bearings and seals maximize life, while 3-stage, selectively hardened gearing and high performance lubricant insure quiet operation. Applications include heavy-duty conveyor systems, medical equipment, food processing, and factory automation.

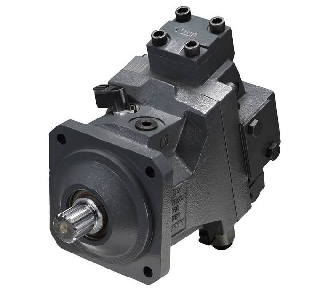

Sauer-Danfoss    Ames, IA 50010
Dec 10, 2009 Designed to complement H1 axial piston pumps, H1 60 cm³ Motors are optimized for electrical control and are fully PLUS+1(TM) compliant, enabling seamless integration with company's electronic control architecture. Variable displacement motors are designed with IP67 and IP69K rating to withstand harsh working environments. Centered on displacement ratio of 32°, motors are suited for rough terrain forklifts, combines, sprayers, road rollers, wheel loaders, and road building equipment.

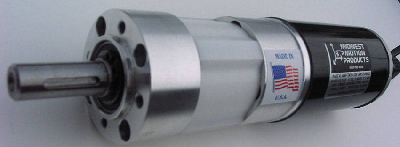

Midwest Motion Products    Watertown, MN 55388
Dec 03, 2009 Accepting any 12 Vdc source, including battery power, Model MMP-TM55-12V GPk52-046-LS measures 2.2 in. diameter x 7.2 in. long with keyed output shaft measuring 0.500 in. dia x 1.5 in. long. Mounting is accomplished with 4 face mount M5 threaded holes, equally spaced on 40 mm dia B.C. Rated at IP54 for operation in harsh environments, reversible unit requires 7.2 A at 12 Vdc to generate full load torque. Motor windings for 24, 36, 48, 60 and 90 V are available.

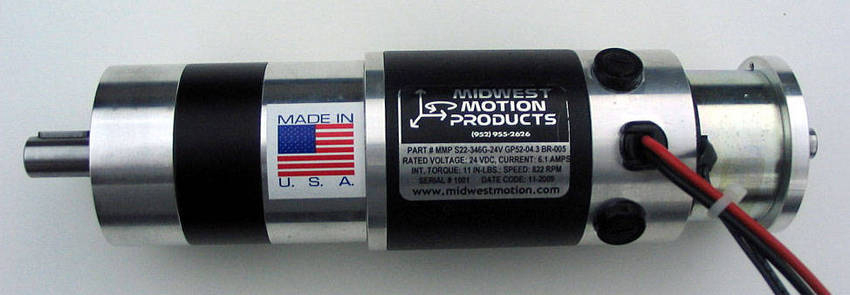

Midwest Motion Products    Watertown, MN 55388
Dec 01, 2009 Supporting 70 lb-in. peak torque, model MMP-S22-346G-24V GP52-04.3 BR-005 accepts any 24 Vdc source, including battery power. Encoder-compatible unit, measuring 2.24 in. in diameter and 7.84 in. long, has keyed output shaft with 12 mm dia and 25 mm length and is equipped with FAILSAFE brake capable of 5 lb-in. holding torque. Device requires 6.1 A at 24 Vdc to generate full load torque and is IP54-rated for operation in harsh environments. It mounts with 4 face-mount M5 threaded holes.

Animatics Corp.    Santa Clara, CA 95054
Dec 01, 2009 Suitable for OEM applications, compact SmartMotor(TM) model SM2337DT incorporates servo motor, amplifier, and motion controller into same integral frame. It delivers up to 200 oz-in. of peak torque while maintaining as much as 60 oz-in. of continuous torque.

Animatics Corp.    Santa Clara, CA 95054
Nov 30, 2009 Model SM3416DT-PLS2(TM) features 8-pole, segmented stator design and includes motor, amplifier, encoder, and motion controller in NEMA 34 frame. Programmable motion control system delivers up to 480 oz-in. peak torque, while maintaining over 200 oz-in. of continuous torque, and is capable of maximum speed of over 5,000 rpm. Registration function suits demanding packaging and labeling applications.

Animatics Corp.    Santa Clara, CA 95054
Nov 30, 2009 Combining controller, amplifier, and encoder into Brushless DC Servo Motor(TM), SmartMotor SM2315 is based on Animatics Motion Control Chip, which handles all processing functions, including PID loop, trajectory generator, user program execution, I/O control, and all communications over 3 serial channels simultaneously. Featuring die-cast aluminum housing, machine wound stator, and molded magnet, system delivers up to 30 oz-in. of continuous torque and operates up to 10,000 rpm.

Animatics Corp.    Santa Clara, CA 95054
Nov 30, 2009 Intended for high-volume motion control applications, OEM Series of SmartMotors(TM) feature NEMA 23 and 34 frame dimensions. Units are based on Animatics Motion Control Chip, which handles all processing functions, including PID loop, trajectory generator, user program, execution, I/O control, and all communication over 3 serial channels simultaneously. Able to stand alone or operate as part of network, systems deliver up to 150 oz-in. continuous torque and nominal speeds in excess of 4,000 rpm.

AMETEK Technical & Industrial Products    Kent, OH 44240
Nov 24, 2009 Rotron® brushless DC motors come in 47 and 64 frame sizes and accept voltage inputs of 12, 24, 37, 74, 90, and 110 Vdc. Applications include fans, blowers, pumps, and compressors from 0.5-2.25 hp. Series 47 Frame motors are available in lengths of 6.08 and 6.68 in. and achieve continuous torque up to 50 oz-in. and speeds up to 4,425 rpm, while 64 Frame series comes in 7.08, 10.125, 10.36, and 13.34 in. lengths and offers 800 oz-in. continuous torque and speeds up to 3,900 rpm.

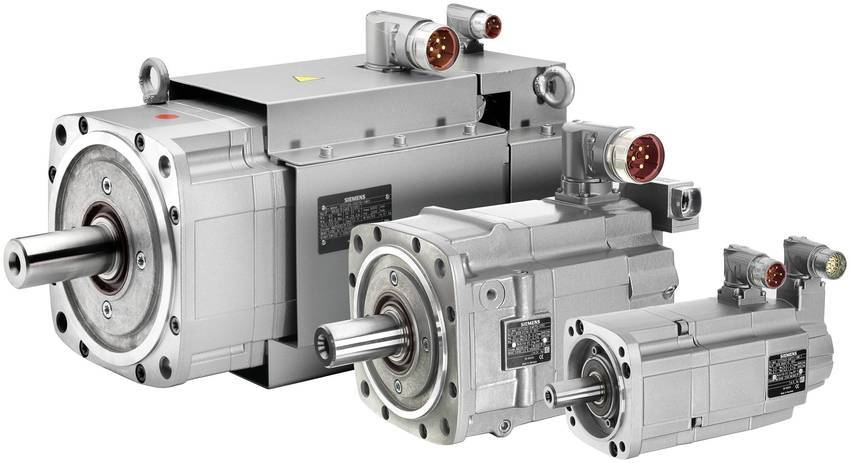

Siemens Industry, Inc.    Elk Grove Village, IL 60007
Nov 23, 2009 Model 1FT7 high-performance servomotors feature encoders up to 22-bit and vibration-insulated encoder mounting which allows user to exchange encoder in field in less than 5 min. They utilize DRIVE-CLiQ electronic nameplate and digital encoder interface, which simplifies start-up or replacement since drive automatically recognizes motor. Servomotors include forced ventilated and water-cooled types, as well as high dynamic design with very low rotor inertia.

Carlo GAVAZZI Automation Components    Buffalo Grove, IL 60089
Nov 17, 2009 Designed for compressors rated up to 32 Arms, RSBS Series Single-phase Plug-and-Play Soft Start limits amperage demand, which peaks when single-phase scroll compressors are starting. Integrated current limit feedback ensures inrush current reduction to less than 40 Arms for compressors rated to 25 Arms and less than 45 Arms for compressors rated to 32 Arms. Complying with EMC Class B requirements, RSBS Series offers optional auxiliary alarm relay output for interfacing alarms to external panel.

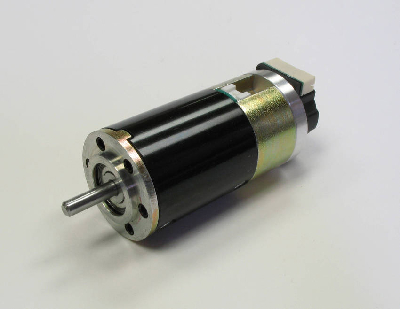

AMETEK Technical & Industrial Products    Kent, OH 44240
Nov 16, 2009 Available in 2.080, 2.552, and 3.025 in. lengths, 30 mm Pittman® Series 8540 achieves continuous torque up to 9.3 oz-in., peak torque up to 78.7 oz-in., speeds to 6,440 rpm at continuous torque, and continuous power up to 43 W, depending on model. DC motors integrate bonded neodymium magnets, 7-slot straight armature, diamond-turned commutator, and copper-graphite brushes. PC board brush card with integral surface mount components incorporates electrical noise suppression.

Applimotion, Inc.    Loomis, CA 95650
Nov 09, 2009 Covering 29-240 mm dia with thin radial length, UTS Series direct drive slotless motors suit direct drive positioning or high speed spindle applications. Frameless feature allows integration of unit into high speed spindles, operate with very low heating. Motors operate from industry standard brushless DC or brushless AC drivers from 12-300 V and can be wound for low speed or high speed applications.

AutomationDirect.com    Cumming, GA 30040-9905
Nov 06, 2009 Available in 45 and 55 mm DIN rail mountable frame sizes, microprocessor-based Stellar(TM) SR22 Series is overcurrent protected and has operating voltage range of 208-460 Vac. Each unit is equipped with 3 potentiometers allowing adjustable start and stop times of up to 30 sec and adjustable start pedestal voltage from 30-100%. Separate 24 Vdc control voltage is required. Starters are suited for applications such as pumps, blowers, and conveyors.

Maxon Precision Motors    Fall River, MA 02720
Nov 06, 2009 Available with footprint of Ø25 x 84 mm, brushless EC 25 is designed for high speed applications of up to 70,000 rpm. Equipped with preloaded ball bearings and 2 pole Neodymium permanent magnet, unit is rated for nominal voltage of 36 Vdc and reaches nominal torque of up to 42.2 mNm, nominal speed 61,600 rpm. Motor-specific speed/torque gradient amounts to 44.9 rpm/mNm. Suitable applications include high speed spindle-driven applications in medical technology or machine tools.
