Maxim Integrated Products    Sunnyvale, CA 94086
Aug 31, 2011 Supplied in 10-pin TDFN and specified from -40 to +125°C, MAX13256 lets engineers design isolated DC-DC converters with efficiency ratings up to 90%. Product drives transformer's primary coil with up to 300 mA of current from 8-36 Vdc supply, which can deliver up to 10 W of isolated power. Users can choose their own transformer winding ratio, which defines output voltage and allows selection of any isolated output voltage. Also, integrated protection features prevent system-level failures.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Aug 31, 2011 Available in 12 models and in TO-220AB, ITO-220AB, and TO-263AB power packages, 45 V TMBS® Trench MOS Barrier Schottky Rectifiers offer current ratings from 10-60 A and low forward voltage drop down to 0.33 V typical at 10 A. Units feature dual chip center-tap configuration and maximum operation junction temperature of 150°C. Devices are compliant to RoHS Directive 2002/95/EC and WEEE 2002/96/EC.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Aug 31, 2011 Offered in 0805, 1206, 2010, and 2512 case sizes, PLTT series operates from -55 to +215°C and features resistance range from 250 ohm to 3 Mohm; non-standard values are available. With stable film and performance characteristics of 500 ppm at +215°C for 2,000 hr, standard TCR of ±5 ppm/°C, and tolerances down to ±0.02%, resistor is optimized for low-noise single-signal processing required to compensate for low offset and temperature drift in high-temperature environments.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Aug 30, 2011 Supplied in 10-pin MSOP, INA226 provides fully programmable measurements for current, voltage, and power across digital I²C interface. Complete 16-bit, single-chip solution has max offset voltage of 10 µV, max gain error of 0.1%, as well as independently programmable conversion times and sample averaging. Other figures include max quiescent current of 420 µA, 140 dB CMRR and 36 V CMV. Product simplifies board design and layout constraints by not requiring any external mux or ADC.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Aug 30, 2011 Fully sealed to IP68, P13SM is designed for applications where electrical parameters need to be set with immersed potentiometer in deep sea salt water conditions up to 100 ft. Heavy-duty construction, featuring stainless steel shaft and bushing, has been tested salt corrosion proof to 960 hr. Eliminating need to design and build sealed protection against sea salt water, product has power rating to 1.5 W at +70°C, TCR of ±75 ppm/°C typ, and operates from -55 to +125°C.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Aug 30, 2011 Available in 6 power packages, 600 V FRED Pt® Hyperfast and Ultrafast Rectifiers are offered with 8, 15, and 30 A forward currents to accommodate 200 W to 3 kW power supplies. Units come in 5 forward voltage classes from 1.07-3.40 V at 8 A and 15 A, and 2.0-2.65 V for 30 A devices. With recovery time from 17 ns and max junction temperature of +175°C, rectifiers are suited for DCM, CRM, and CCM PFC in SMPS applications as well as input booster circuits and freewheeling diodes.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Aug 29, 2011 Available in 11 case sizes, multilayer ceramic chip capacitors (MLCCs) of VJ series offer C0G (NPO) and X7R/X5R dielectrics and feature wet build process as well as Noble Metal Electrode (NME) system. Design minimizes interference and also complies with RoHS as well as IEC (61249-2-21) halogen-free standards. Safety screened for magnetic properties before final packaging, MLCCs offer voltage ratings from 6.3-3,000 Vdc and capacitance from 0.5 pF to 6.8 µF.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Aug 29, 2011 Featuring 3232 case size with 8.26 x 8.79 mm footprint and 3.0 mm profile, Model IHLP-3232CZ-01 offers maximum DCR down to 1.61 mW and frequency range to 5 MHz. Unit features RoHS-compliant, 100% lead-free, shielded composite construction that minimizes buzz noise and offers resistance to thermal shock, moisture, mechanical shock, and vibration. Operating from -55 to +125°C, inductor is suited for voltage regulator module and DC-DC converter applications.

Aven, Inc.    Ann Arbor, MI 48108
Aug 26, 2011 Using array of 40 lights on each side of 5-diopter glass lens measuring 7.5 x 6.2 in., Mighty Mag Magnifying Lamp provides hands-free illumination during assembly and inspection of electronics, small parts checks, and research/medical lab analysis. Lamp has 32 in. adjustable arm and LEDs rated at 20,000 hours and 1,000 lux intensity. Spring-balanced arm allows task-specific height and angle settings, while tension knobs hold lens firmly in any position.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Aug 26, 2011 Available in 3 x 3 mm QFN or 3 x 5 mm MSOP package options, DAC8562 series deliver precision with 0.1 nV-sec glitch energy, max offset error of 4 mV, max integral non-linearity (INL) of 0.75 LSB at 12-bits, and max reference drift of 10 ppm/°C. Integrated precision reference provides 20 mA sink/source capability, eliminating need for external buffer. Consuming 0.1 mA per channel, DACs support different control loops with options for both reset to zero-scale and reset to mid-scale.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Aug 26, 2011 Offered in EIA- and ICE-standard PLCC-2 package, sapphire-based VLMW41XX Series delivers luminous intensity ranging from 180-450 mcd, 60° angle of half-intensity, and ESD-withstand voltage up to 2 kV. By providing narrow color bins and selection type of 4 adjacent color groups, LEDs allow designers to eliminate color differences in variety of lighting applications, including backlighting in automotive dashboards, telecommunications systems, A/V equipment, and LCDs.

Kemet Electronics Corp.    Greenville, SC 29606
Aug 26, 2011 Operating from -55 to 105°C/125°C, depending on model, T521 High Voltage Series includes 16 V model with capacitance values from 220-330 µF and 25 V version with capacitance of 100 µF. Units are RoHS-compliant and halogen-free, as well as lead-free when ordered with 100% tin termination.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Aug 26, 2011 Housed in PowerPAK SC-75 package with 1.6 x 1.6 mm footprint and profile under 0.8 mm, 8 V TrenchFET® SiB437EDKT features on-resistance of 34 mW at 4.5 V, 63 mW at 1.8 V, 84 mW at 1.5 V, and 180 mW at 1.2 V. Device is halogen-free and RoHS-compliant, with typical ESD protection of 2,000 V. Suited for low-voltage gate drives and low bus voltages common in handheld devices, MOSFET helps prevent unwanted undervoltage lockout conditions.

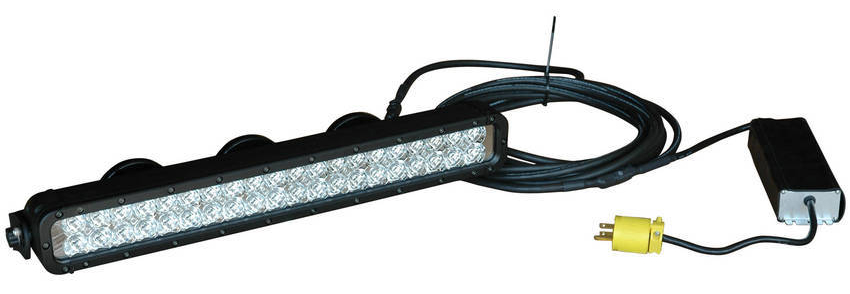

Larson Electronics, LLC    Kemp, TX 75143
Aug 25, 2011 Available in spot or flood configurations, BL40-LED Blasting Light respectively produces 1,200 ft (spot) or 375 x 260 ft (flood), 7,200 lm light capable of cutting through dusty and murky blasting room conditions. IP68-rated, corrosion-resistant construction withstands conditions found in sand, water, and media blasting operations. Waterproof to 3 m, light contains 40 Edixeon® 3 W LED emitters rated at 50,000 hr and has magnetic mounting system for attachment to metallic surfaces.

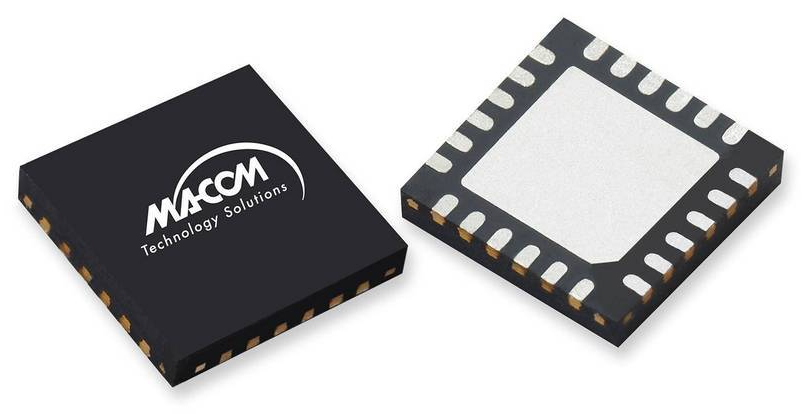

M/A-COM Technology Solutions, Inc.    Lowell, MA 01851
Aug 25, 2011 Controlled with single +5.0 V serial or parallel control line, 4-bit MAPS-010143 and 6-bit MAPS-010163 provide 360° phase shift range with respective step size of 22.5° and 5.625°. Both 4- and 6- bit products come in 4 mm, 24-lead PQFN package but respectively offer insertion loss values of 3.2 and 5.0 dB, with ±0.5 dB and ±0.8 dB attenuation variation as well as ±2.0° and ±4.0° phase accuracy over 1.4-2.4 GHz frequency range.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Aug 25, 2011 Supplied in 0612 package size, WSK0612 is 4-terminal, 1 W Power Metal Strip® Resistor with 0.5-5 mohm resistance range that performs from -65 to +170°C and features solid metal nickel-chrome or manganese-copper alloy resistive element with TCR of less than 20 ppm/°C. RoHS-compliant product, suited for current sensing, voltage division, and pulse applications, features all-welded construction and has thermal EMF of less than 3 µV/°C.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Aug 25, 2011 Available in 2726 and 4026 case sizes measuring 0.272 x 0.260 in. and 0.400 x 0.260 in., respectively, WSLP2726 and WSLP4026 Power Metal Strip® Resistors combine power ratings from 5-7 W with low resistance range of 0.5-2.0 mW. Four-terminal design allows for stable resistance tolerances to 1.0%. Operating from -65 to +170°C, devices incorporate solid metal nickel-chrome or manganese-copper alloy resistive element with low TCR of less than 20 ppm/°C.

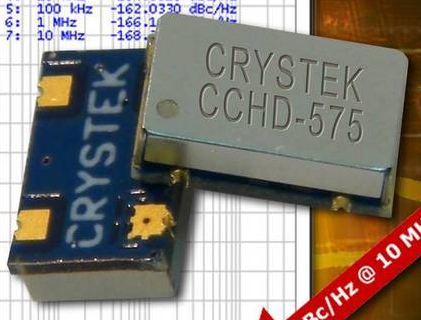

Crystek Crystals Corp.    Fort Myers, FL 33913
Aug 24, 2011 Supplied in 5 x 7.5 mm package, U.S.-manufactured CCHD-575 clock oscillator generates frequencies from 50-130 MHz and has typ phase jitter of 82 fsec RMS at 100 MHz. Close-in phase noise is -90 dBc/Hz @ 10 Hz, while floor is at -168 dBc/Hz. Output driver can drive ±24 mA, translating to rise/fall time of ~600 psec at 100 MHz with 15 pF load. Available with extended operating range of -40 to +85°C, product accommodates 3.3 Vdc supply and consumes 15 mA current.

Ironwood Electronics, Inc.    St. Paul, MN 55121
Aug 24, 2011 Designed to test 0.4 mm pitch, 32-lead QFN devices with center ground pad, Model CBT-QFN-7008 features temperature range of -55 to +155°C. Etched spring pin contactor, with cycle life of 500,000 insertions, provides 0.95 nH self inductance, insertion loss of less than 1 dB at 7 GHz, and 0.097 pF capacitance. Current capacity of each contactor is 4.1 A at 60°C temperature rise. In addition, socket has wave spring with swivel compression plate for vertical force without distorting device position.

Oberon, Inc    State College, PA 16801
Aug 24, 2011 Wall-mount model 1082-00 and ceiling-suspended model 1072-00 accommodate PoE-powered Cisco Catalyst 3560-C and Catalyst 2960-C Compact Series Switches. Measuring 22 x 22 x 4 in., model 1082-00 has plastic door so wireless routers and access points can also be secured. Model 1072-00 mounts into 2 x 2 ft ceiling tile gridwork and is designed to TIA standards for telecommunications enclosures. Both models offer 2U of 19 in. rack mountable components.
