Compensation Unit suits pick-and-place applications.
Morrisville, NC 27560
Sep 22, 2006
With compensation ranges of ±12 mm in X- and Y-direction and ±14 mm in Z-direction, Model AGE-S guarantees compensation beyond positioning accuracy of robot for medium and heavy load applications. It resists bending moments and complies to workpiece positions, minimizing assembly and unloading forces, and protecting robot and assembly line. With payloads from 12-220 lb, unit may be fixed rigidly via integrated pneumatic locking device during handling operation.
Fire Extinguisher Stand helps maximize safety.
Sarasota, FL 34234
Sep 18, 2006
Designed to indicate presence of fire extinguisher within area of person's sight, Fire Extinguisher Stand features heavy base made from solid 1/5 in. powder-coated sheet metal. Aluminum post, measuring 1 9/16 in. diameter, is available in 31 ˝ in. and 63 in. lengths, depending upon extinguisher location. Frame accommodates noticeable graphic that can include items such expiration date of equipment.
Duct Gaskets offer gap-free seal for HVAC applications.
Easthampton, MA 01027
Sep 08, 2006
One-piece pre-cut duct gaskets feature high tack adhesive coated directly on polyethylene foam backing to eliminate risk of delamination. Adhesive coating is available on 1 or 2 sides and paper release liner reduces tearing and is crack resistant. Square and rectangular scissor gaskets can be custom made to fit any specified size opening, and circle gaskets are available from 4-24 in. ID.
Ethernet Cabling suits industrial and military applications.
Clifton Park, NY 12065 0767
Sep 07, 2006
Designed to resist UV, water, and microbial penetration, Kevlar-reinforced CAT5E cable and cordsets are strong yet flexible to facilitate routing, and provide up to 1000BaseT connections. Double shielded RJ45 plugs with gold-plated contacts prevent electro-magnetic interference while providing corrosion resistance. Operating from -40 to +85°C, cabling has low smoke, halogen-free, flame-retardant polyurethane jacket that ensures personnel safety.
Cable is used in commercial and institutional buildings.
Montreal, QC H3A3G2
Sep 06, 2006
Mitigating effects generated by harmonic currents in electrical systems, CSA-approved, multi-conductor armoured N2(TM) NUAL® type ACWU-90 cable with 2 full size neutral conductors is flexible, interlocked aluminum armored, and PVC-jacketed. It has five 90°C wet-rated, cross-linked, polyethylene insulated NUAL conductors and 1 bare NUAL bonding conductor. Cable is factory-assembled, eliminating need for conduit and conduit fittings.
Bellows Coupling uses stainless steel bellows for rigidity.
R + W Coupling Technology
Bensenville, IL 60106
Sep 01, 2006
Suited for precision servo applications, compact Model BKC exhibits high torsional rigidity with zero backlash and flexibility across all 3 axes of possible shaft misalignment. Connection between stainless steel bellows and aluminum clamping hub is buried within fit-length of hub itself. Shaft hubs are custom bored on each side for shaft sizes from 5/16-2.95 in., with or without keyways. Sizes are available for torque capacities from 1,133-4,425 lb-in.
Mounting Pedestals suit outdoor access control equipment.
Safety Technology International
Waterford, MI 48327
Aug 31, 2006
Featuring anti-corrosive powder coat finish, mounting pedestals provide outdoor mounting of security and access control equipment. Model STI-9779 measures 60 in. high and is designed to be anchored, cemented, and buried in ground. Designed with base for mounting to concrete pad, STI-9780 is 42 in. high and features mounting flange cover plate to protect mounting nuts. Heavy gauge steel pedestals can be used for telephone entry, card readers, gate operators, push buttons/switches, and keypads.

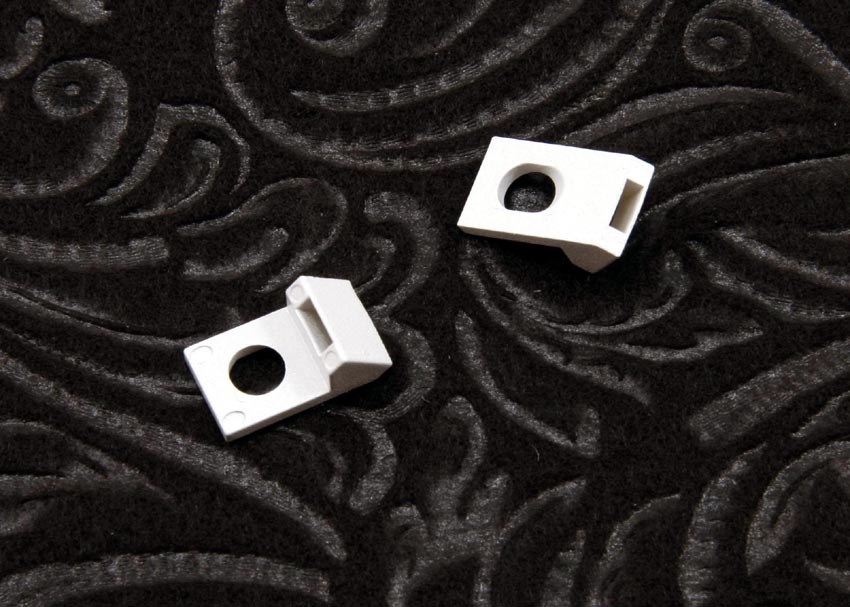

Mounting Brackets suit wire handling applications.
Micro Plastics, Inc.
Flippin, AR 72634
Aug 31, 2006
Designed for limited space requirements, wire tie mounting brackets are offered in 4 sizes accommodating ties to .190 in. wide and .060 in. thick. Brackets cover mounting screw sizes #4 through #10 (metric screw sizes from m3 through m5). Parts are injection molded in natural nylon 6/6.
Cable Management Device helps make workplaces safer.
Dedham, MA 02026
Aug 25, 2006
Designed to keep excess cord lengths neatly contained, Cable Capture helps eliminate potential tripping hazards and allows cords to be identified and removed or added if necessary. Full-sized unit can hold up to 8 ft of standard AC cord, while Cable Capture Jr. holds up to 6 ft of small-diameter cord. Units can be connected together to completely control, organize, and hide multiple cords and cables.

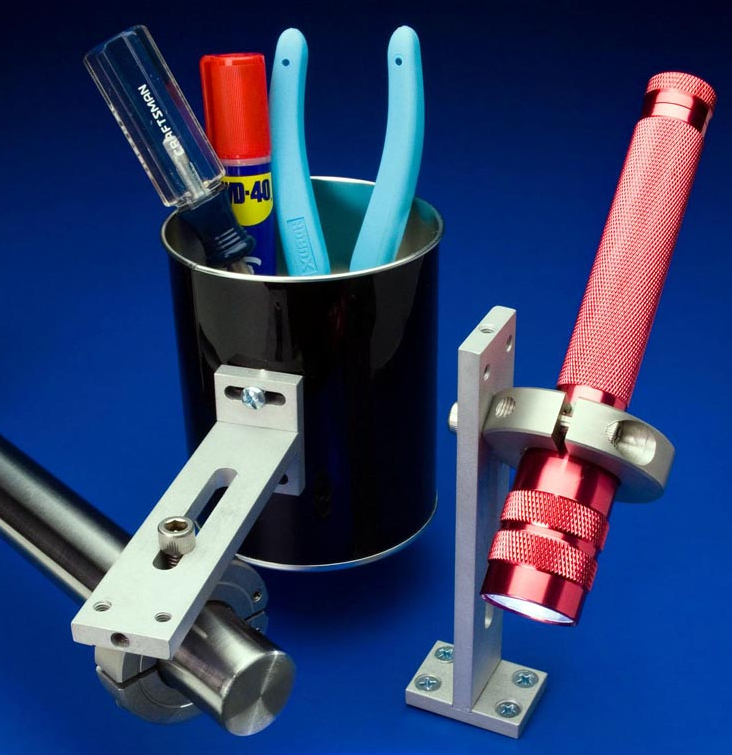

Mounting Assembly offers various installation alternatives.
Stafford Manufacturing Corporation
North Reading, MA 01864-0277
Aug 24, 2006
Two-Way Mounting Assembly features hinged collar and adjustable bracket, either of which can be used as base for mounting and then holding something else. Able to position something and securely lock it in place, rigid assembly comes in aluminum, steel, and stainless steel. System consists of hinged collar from ˝-4 in. ID that attaches to 4 or 6 in. long mounting bracket using cap screw and can slide in slot to permit full rotational as well as back-and-forth adjustability.
Bellows Couplings feature zero backlash.
SDP/SI (Stock Drive Products/Sterling Inst)
New Hyde Park, NY 11042 5416
Aug 23, 2006
Suited for 1/8-3/8 in. and 3-12 mm dia shafts, Series S50FP9 has max torque range of 120-300 oz-in. Couplings accommodate max angular misalignment of 5-6° and parallel offset of .015 in. Featuring phosphor bronze bellows, brass hubs, and tin plate finish, units absorb end play in shafts and dampen vibration and noise levels. Fairloc® hub fastening system eliminates marred shafts while adding positive metal-to-metal fastening strength along both hub sections.
Expansion Joints withstand severe duty applications.
Holz Rubber Co.
Lodi, CA 95240
Aug 17, 2006
Available for wet or dry service, RM-Holz(TM) Fabric Expansion Joints are engineered to help solve air and gas handling problems, such as high acid concentrations, ammonia slip, ash accumulation, and large pipe and duct movements in corrosive and high-temperature environments. Units come in flanged or belt configurations and can withstand operating temperatures from 300-2,000°F. Available compounds include Neoprene, Chlorobutyl, EPDM, FKM, and PTFE and alloy foil barriers.
Rubber Edge Grommet accommodates range of panel thicknesses.
Morton Grove, IL 60680
Aug 15, 2006
Extruded in RoHS-compliant rubber material that meets UL HB requirements, RG Series aids in vibration protection and softens sharp edges to prevent chafing and wearing. Available in 3 sizes, flexible grommet can be used for internal cutouts or straight edges.
Cable Retainer facilitates cable run direction changes.
Solon, OH 44139-2631
Aug 14, 2006
Installed vertically or horizontally on racks, ceilings, and walls, CADDY® CATCR50 plastic, low-voltage cable support is designed for use with CAT 5e and higher, fiberoptic, and coaxial cable. Rounded edges avoid over-bending and kinking of cables, and closure has locking teeth that retain bundled cable in one-piece support. UL®-recognized for air-handling spaces, product requires nail, screw, push pin, or pop rivet for complete installation.
CNF Type Mounts adjust stiffness in response to load.
Advanced Anti-Vibration Components - AAC
New Hyde Park, NY 11040
Aug 10, 2006
Featuring embedded internal gaps and supports, Series V10Z24 constant natural frequency mounts (CNF Type) increase their stiffness proportionally with applied load. This keeps natural frequency of mount constant, irrespective of load change. Model V10Z24M10040LD covers 400-1,000 lb range, while V10Z24M10040HD handles loads from 700-1,900 lb. Model V10Z24-575175 covers ranges up to 8,000 lb for non-impact machinery and 5,000 lb for impact machinery.
Precision Translation Stages come in 48 variations.
Physik Instrumente (PI)
Auburn, MA 01501
Aug 08, 2006
Combined with Mercury(TM) servo motor controller, M-403/M-414 Series Linear Translation Stages form motion control systems. Units provide travel ranges of 1-12 in. with load capacity to 110 lb. Integrated low-friction ball screws combine high duty cycles and velocities with minimum incremental motion of 0.1 µm. All models are equipped with linear guiding rails and recirculating ball bearings, which are maintenance-free and immune to cage migration.
Adapters repair STC system hose assembly connections.
Eden Prairie, MN 55344
Aug 08, 2006
Used in conjunction with STC® (snap-to-connect) system, repair adapters are designed for circumstances where hose assembly with STC male ends needs to be replaced. They convert hose assembly with male pipe, female JIC, or female o-ring face seal (ORFS) hose ends into STC female direct port or STC female adapter. Available in STC sizes 6-16, products have Eaton male STC and threaded end. Threaded ends come in female pipe, male ORFS, and male JIC configurations.
Mounting Accessory facilitates plasma/LCD installation.
FSR Metal Products
West Paterson, NJ 07424
Aug 02, 2006
Measuring 11 in. wide, Model PWB-100 installs in wall behind display, allowing screen to sit flush against wall while providing neat and secure environment for audio, video, control, and power connections. Designed to mount along bottom edge behind plasma or LCD display, box accommodates up to 6 single-space FSR Intelligent Plate Solution plates as well as single-gang gem box for ac power. Connections and cable entry can be on top or bottom based on preference.
Connectors provide interface for power and data lines.
Aug 01, 2006
Metal RJ Industrial Hybrid Connector integrates data lines and power supply into one connector for hybrid Ethernet networks. Connector features 4 power contacts designed with HARAX® rapid termination technology, which allows stranded wires of up to 1.5 mm˛ to be connected. Geometry of device maintains separation between data and power contacts for installation.
Constant Torque Hinges provide position control.
Concordville, PA 19331 0116
Jul 26, 2006
Available in range of sizes, CEMA(TM) ST Series features hardened steel components and can be configured with equal torque in both rotation directions, or with higher torque in one direction. With positioning torques from 0.3-44 lbf-in., units eliminate need for secondary mechanical supports and provide zero-backlash operation. They accommodate handheld electronics, portable computer displays, POS terminals, medical equipment, and automotive video screens.
