Mounting Accessory is suited for intrinsic safety barriers.
Pepperl + Fuchs, Inc.
Twinsburg, OH 44087 2245
Mar 29, 2004
Suited for hazardous and non-hazardous applications, KF-ExDuct optimizes space by mounting up to 90 safety barriers along 1.8 m length. Aluminum extrusion's integrated cable duct allows system and field cables to be routed directly below barriers, with suitable isolation between. Power can also be applied to barriers with Power Rail, which snaps into trough of standard 35mm DIN rail pre-molded into KF-ExDuct.

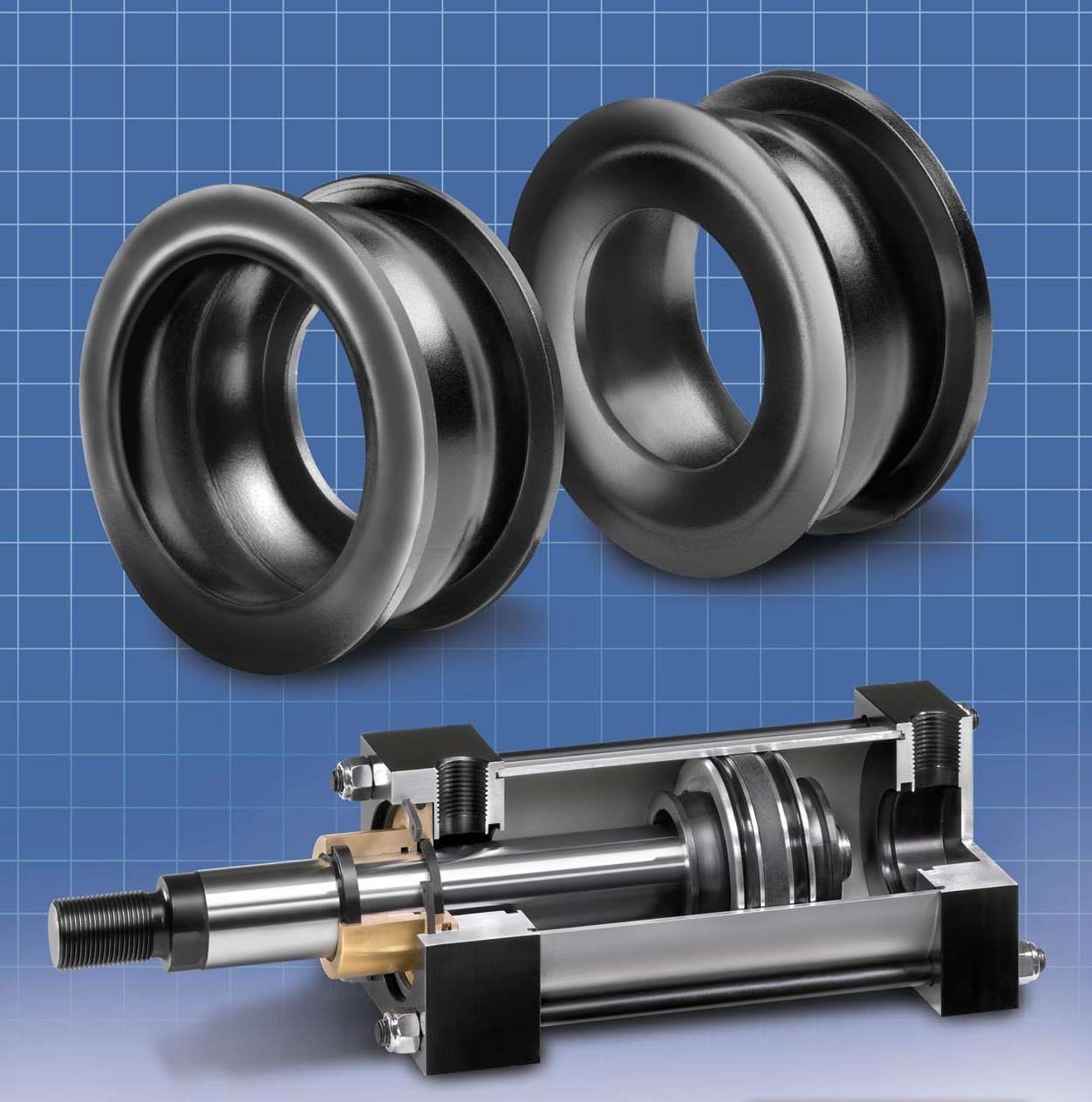

Cylinder Cushions offer alternative to pneumatic cushions.
ACE Controls, Inc.
Farmington, MI 48335
Mar 26, 2004 NuCushions are comprised of elastomer material that adapts to pneumatic cylinder pistons to provide cushioning. They help reduce reaction forces when piston impacts head or cap of cylinder. Metal to metal contact is cushioned and cycle rates are maintained without loss of cycle time. Adding NuCushions eliminates need for bleed needle assembly, cushion spud, and spud seal. NuCushions also compensate for changes in velocity, weight, and pressure.
Cable Handling System offers glow-in-the-dark hooks.
Woudenberg 3931 ER
Mar 25, 2004 Cablesafe® helps eliminate falls caused by tripping over cables and hoses spread over decks and work floors by suspending all cables, extension cords, wires, and hoses away from floor. S-shaped hooks are produced from non-conductive and non-flammable reinforced polyester and can be reused. Glow-in-the-dark properties are suited for storage tanks, legs of drilling rigs, submarines, and underground tunnels.

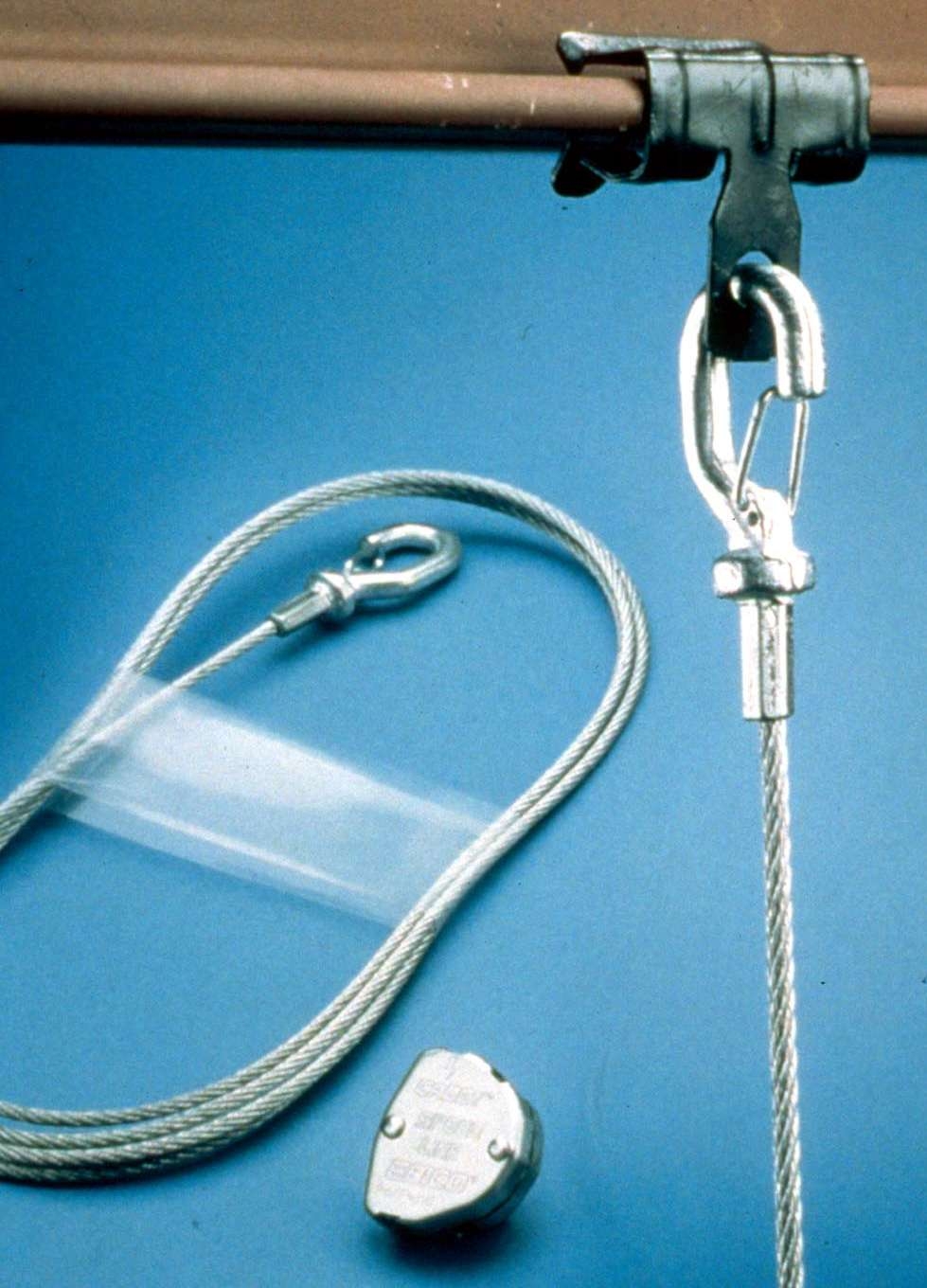

Universal Support System reduces installation time.
Solon, OH 44139-2631
Mar 18, 2004
CADDY® SPEED LINK System helps reduce inventory and storage space. Able to support various suspension applications, system features all-steel construction and employs flexible galvanized steel cable with hook bonded to one end as means of support. Steel locking device ensures stability and allows for adjustment of supported object during and after installation. System allows objects to be hung at various angles, even from sloped ceilings.
Adjustable Arm adds movement to flat panel monitors.
Eagan, MN 55121
Mar 18, 2004 Neo-Flexâ„¢ Arm clamps to back of desk and provides 8 in. of vertical movement for positioning monitor so that top of screen is at, or slightly below, user eye level. It is compatible with VESA-compliant flat panel monitors that weigh 18 lb or less and enables 180° right/left and up/down monitor tilt, 360° monitor portrait/landscape rotation, and 360° arm side-to-side rotation. Safety-stop prevents monitor contact with worksurface.
Reciprocating Saw Adapters plug into brand name saws.
Cazadero, CA 95421
Mar 17, 2004
Suited for automotive bodywork applications, Flush-Cut Adapters for cutting, rasping, and sanding allow users to make cuts in hard-to-reach places. They also permit rasping and sanding from flush surface in tight spots, without bending blades or damaging materials. Tools, able to reach behind trim and framing members, are useful in projects from framing to finishing.

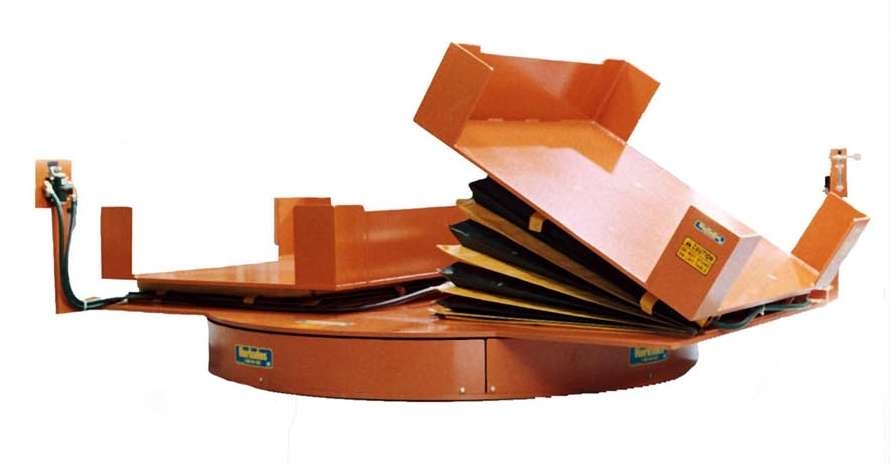

Positioner offers 6000 lb capacity with 25 in. travel.
Herkules Equipment Corp.
Walled Lake, MI 48390 1662
Mar 15, 2004
Power Rotate-Multiple Position System allows assembly workers to retrieve parts continuously by rotating full bin to within operational reach. Rotating base is air powered with spiral gear and equipped with outer ring of support casters for offset loads. Power rotating function is bi-directional and provides 360° operation with zero-effort positioning. Base can support 4 independent lift modules. Tilt or Rotate module attachment is optional.
Flow Control Flange delivers minimal pressure drop.
Bell & Gossett
Morton Grove, IL 60053
Mar 12, 2004 Check-Trol® combines features of flow control valve, isolation valve, and companion flange in single valve. Full port ball valve allows circulator to be removed without draining system. Internal spring check prevents gravity circulation and flow in wrong direction, while free-floating companion flange provides alignment and simplifies installation. Suited for all major circulators, Check-Trol® is available in ¾, 1, and 1¼ in. NPT and Sweat models.
Tilter allows conformal coating of printed circuit boards.
Carlsbad, CA 92008
Mar 12, 2004 Tilt accessory is available on SC-300 Swirl Coatâ„¢ applicator and provides 4 positions: 30° from vertical to left, right, front, or back. Tilt is controlled by company's Easy Coat® for Windows NT® software and can be retrofitted into existing Century conformal coating systems. It operates in bead, monofilament, and swirl modes and is suitable for use with solvent-less formulations, coatings with greater than 100 cps, and low-viscosity film coating materials.

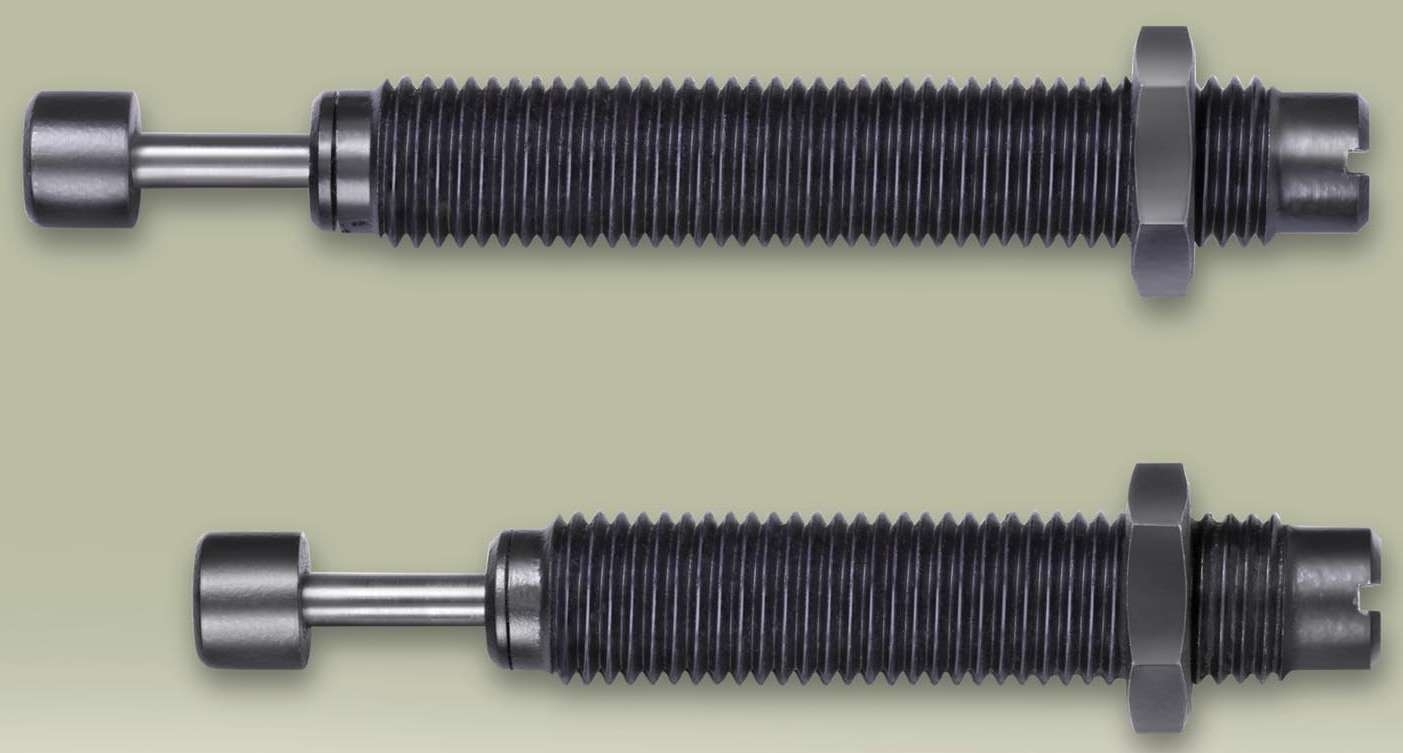

Shock Absorbers are adjustable and self-compensating.
ACE Controls, Inc.
Farmington, MI 48335
Mar 11, 2004 Miniature industrial shock absorber models MA 30M and MC 30M allow for energy absorption in confined spaces. Adjustable MA 30M has weight range of .5â€“31 lb and energy per cycle rating of 31 lb-in. Features include integral mechanical stop and stainless steel piston rod. Available in 3 weight ranges, self-compensating MC 30M handles changing energy conditions without need for adjustment. Applications include linear slides, instrumentation, and robotics.
Flexible Fixture Hangers suit light industrial applications.
Cooper Crouse-Hinds Molded Products
La Grange, NC 28551
Mar 11, 2004 Used in applications where HID high bay and low bay lighting fixtures are used, sheet steel flexible swivel fixture hangers are suited for use ½ or ¾ in. fixture conduit stems. They permit conduit stem of fixture to swing in any direction and attach via 2 screws. Hangers are available in 2 styles: for attachment to octagon or round steel boxes, and for attachment to 4 in. square steel boxes. UL listed products are finished with zinc chromate.

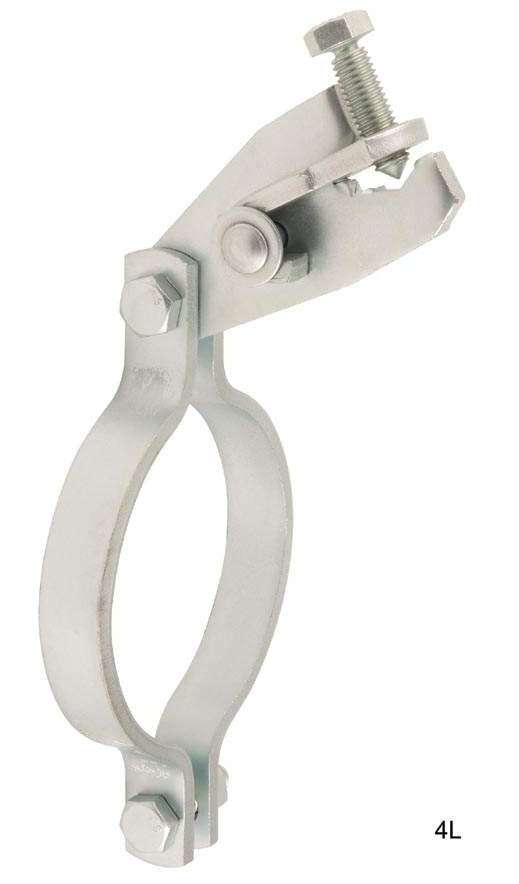

In-Line Sway Brace has one-piece design.
Toledo, OH 43624
Mar 10, 2004 Designed to brace against sway and seismic disturbances, Figure 4L in-line longitudinal sway brace attachment employs one-piece design that permits swivel in only one direction. Break-off head bolt is used to verify proper installation torque. Made of carbon steel, attachment comes with plain, electro-galvanized, or HDG finishes and is rated for 2,015 lb horizontal design load. It is available in sizes from 2½â€“8 in. IPS and is UL and cUL listed.

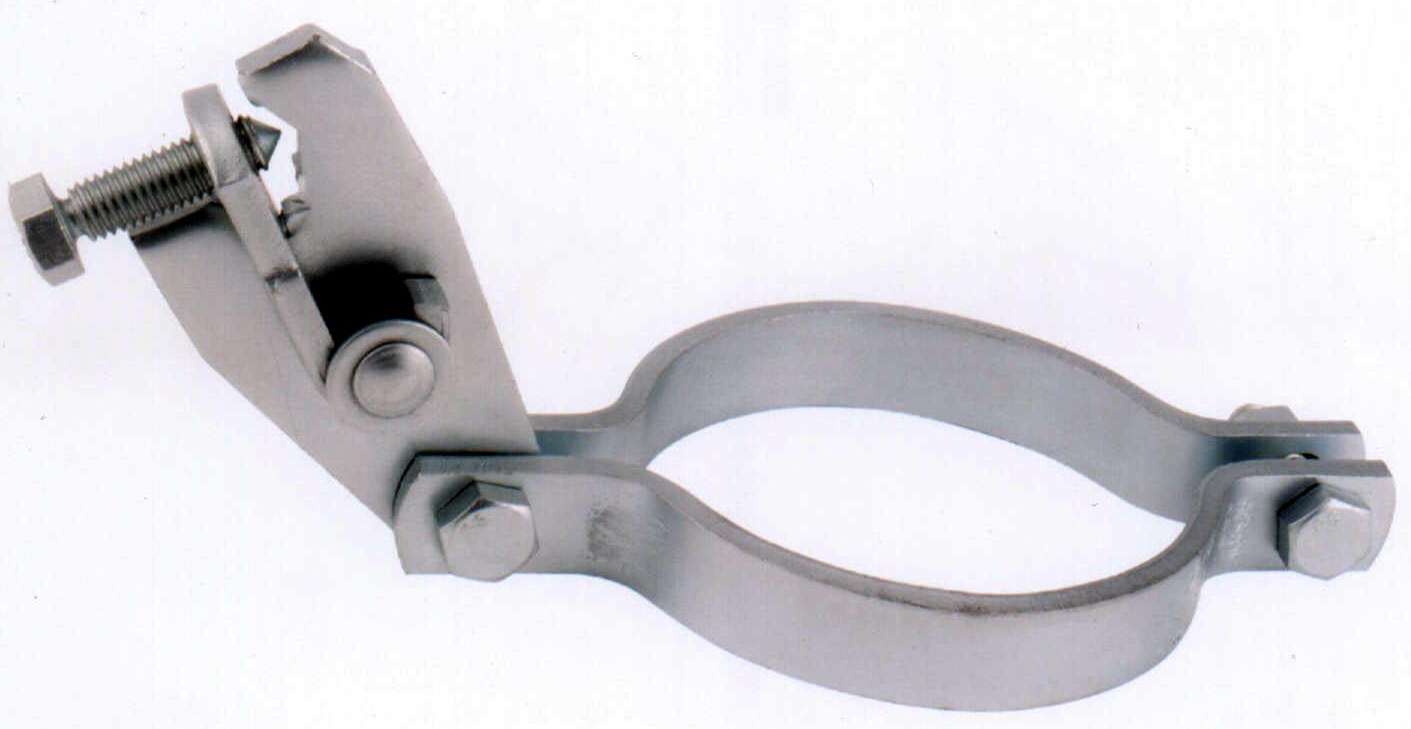

Sway Brace Attachment features one-piece design.
Elkhart, IN 46516 4714
Mar 08, 2004 In-line, longitudinal, Figure 4L braces against sway and seismic disturbances. Break-off head bolt verifies proper installation torque, and one-piece design allows swivel in only one direction. Carbon steel attachment has plain finish, with electro-galvanized or HDG finishes available. It features 2,015 lb horizontal design load and comes in sizes from 2½ through 8 in. IPS. Unit is UL and cUL listed.
Adhesives and Sealants handle temperatures to 200°C.
Somerset, NJ 08873
Mar 08, 2004
Medium-viscosity, anaerobic Permabond HM130 prevents loosening of threaded fasteners and is suited for automated assembly processes. Used for cylindrical parts, Permabond HM162 retaining compound fixtures in 2-5 min. GASKETMAKER® Permabond MH196, non-flammable flange sealant forms instant, low-to-moderate pressure-resistant, leak-free seal and allows for metal-to-metal contact. Thixotropic property prevents migration before and during cure.
Form-In-Place Gasket allows for metal-to-metal contact.
Somerset, NJ 08873
Mar 08, 2004
Permabond® Gasketmaker® HH190 silicone-free anaerobic gasket forms instant, pressure-resistant, leak-free seal and allows for adjustment up to 60 min after assembly. It permits metal-to-metal contact, eliminating re-torquing problems. With 200,000 cPs viscosity, non-flammable, flow-able, purple paste fixtures in 90 min. Full cure is achieved in 24 hr and exhibits steel-to-steel shear strength of 900 psi and seal strength of 5,000+ psi.

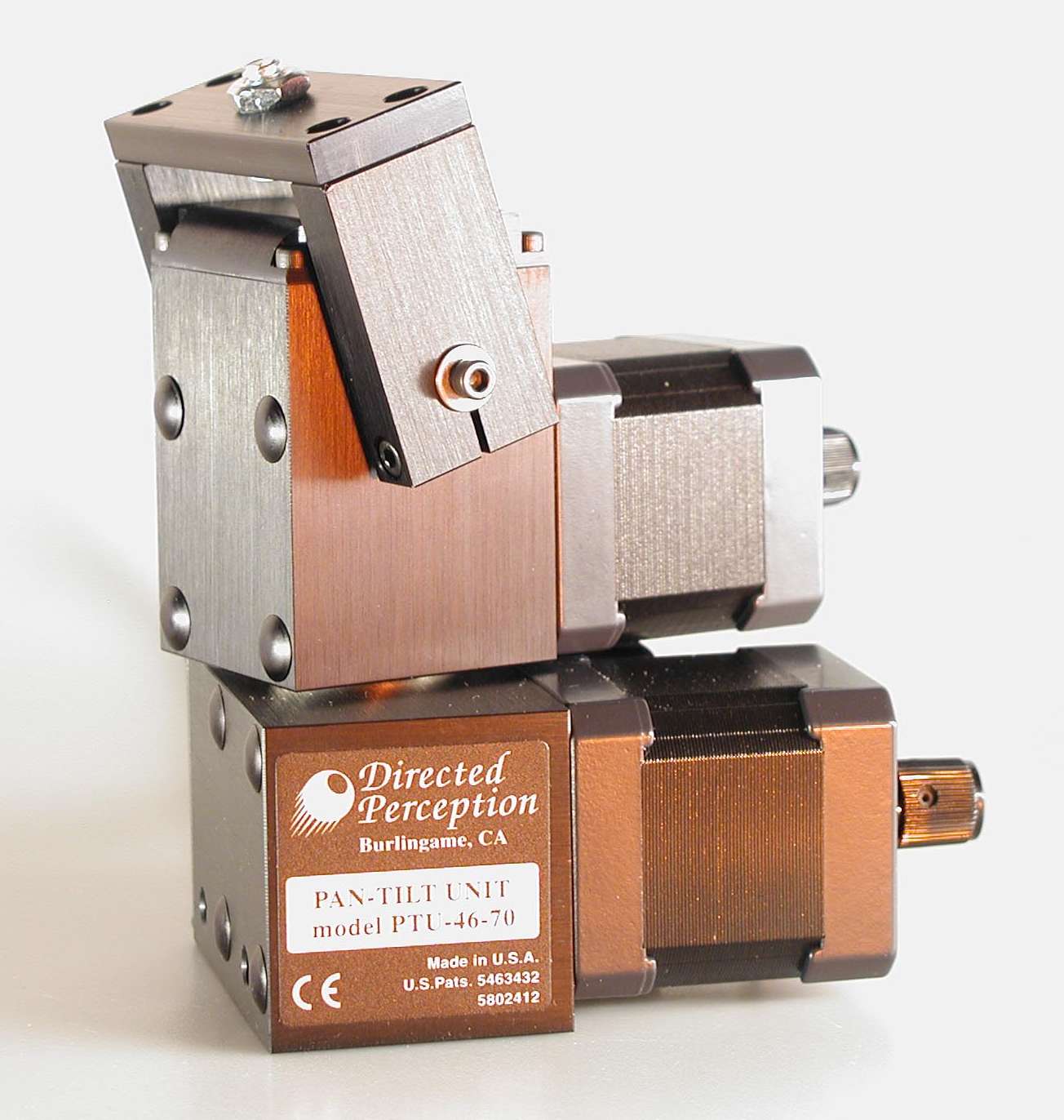

Modular Pan-Tilt Unit offers speeds over 300°/sec.
Directed Perception Inc.
Burlingame, CA 94010
Feb 23, 2004
Computer-controlled Model PTU-D46 provides dynamic position control of 0.012857° resolution. Measuring less than 5.2 x 3.6 in., unit features payload capacity up to 9 lb. and is rated for millions of moves. Direct control of Model PTU-D46 is plug-and-play using RS-232 terminal. Built-in RS-485 multidrop network capabilities allow single host port to control up to 30 pan-tilt devices. Self-calibration upon reset ensures absolute positioning.
Conveyor Belt Splicing Strand simplifies installation.
Wire Belt Company Of America
Londonderry, NH 03053-7449
Feb 12, 2004
EZSplice(TM) provides rapid installation and repair of Flat-Flex® open-mesh, stainless steel wire belting. It eliminates intricate lacing and weaving of wire across width of conveyor belt. Strand links onto Flat-Flex conveyor belts and is available in various configurations to fit specific wire gauge sizes and belt designs. EZSplice Strand Profiling Pliers are required for proper positioning and locking of EZSplice strands.
Column Protector guards against forklift collisions.
Schmidt, W. A., Inc.
Souderton, PA 18964
Feb 06, 2004 Post Protector helps extend life of pallet racks and building columns by protecting against vehicle collisions. It absorbs and distributes shock from sudden impact, preventing potentially hazardous effects. Made of ¼ in. steel plate and brake-formed to protect post on exposed sides, Post Protector comes in 12, 18, or 24 in. heights and can fit around virtually any dimension. Unit bolts to floor in 4 places for installation.
O-Rings meet ISO 6149 metric tube fitting requirements.
Parker Hannifin Corp., Seal Group
Irvine, CA 92612 1073
Feb 05, 2004 O-Rings for metric tube fittings help minimize proliferation and promote leak-free connections. They are available in NBR, EPDM, HNBR, and FKM for all ISO 6149 sizes ranging from 6.1â€“56.6 mm ID. Typical uses include hydraulic lines, fuel and coolant lines in diesel engines, and other applications requiring seals that resist both extrusion forces and hydraulic media.
Roller Track maximizes use of rack space.
Quixxsmart Structures Inc.
Peabody, MA 01960
Feb 04, 2004 Profile Series Roller Track includes Slide-Guideâ„¢ feature to ensure smooth carton flow. Full-length captive T-slots on each side provide secure, tool-free guide attachment. Extruded from solid aluminum with clear anodized finish, modular track is assembled and disassembled without tools and can be cut with carbide blade, band saw, or cold saw. It measures 35 mm x 40 mm and features 33 and 44 mm dia wheels. T-slot nut is provided for mounting accessories.
