Hornell, Inc.    Twinsburg, OH 44087 2340
Jan 31, 2002 Speedglas(R) FlexView has 4.75 x 3.6 in. spring-mounted clear polycarbonate lens that flips up for weld preparation. Auto-darkening lens allows for grinding and cleaning, alignment of electrodes and inspection of newly completed welds, all with eye and face protection. It offers clear view combined with breathable, Speedglas 9000 CO2 reducing helmet. Lens meets ANSI Z87.1 industrial eye and face protection standard.

Springer co-ax Inc.    Penndel, PA 19047

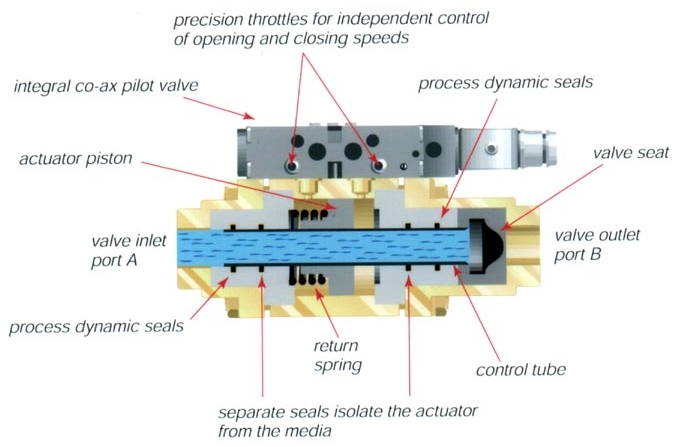

Jan 30, 2002 Co-ax(R) valves are available for pressures up to 7,500 psi, actuation speeds of 30 msec, and in wide range of sizes, seal and construction materials. They handle high pressure applications, such as gas turbine fuel systems, cylinder filling, cryogenic pumps and vacuum furnace quench gas supply systems. Units come in 2/3- and 3/2-way versions, and in normally-opened or normally-closed configurations. Standard orifice sizes range from 2 to 15 mm.

Sonics & Materials, Inc.    Newtown, CT 06470
Jan 14, 2002 Handheld Model H-540 40 kHz, 500 watt welder can be used for staking, inserting and spot welding applications. Microprocessor based programmable timer offers weld times from 0.1 to 9.9 sec. DB9 I/O connector is provided to interface with automated machines via PC or PLC. Autotune circuitry eliminates need to tune system when changing horns. Compact unit is suited for manual operations with low volume.

Lincoln Electric Company, Inc., The    Cleveland, OH 44117

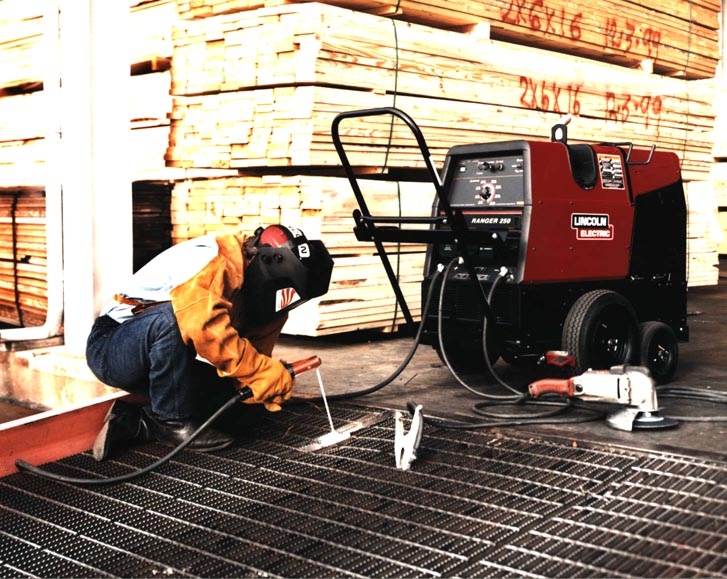

Jan 03, 2002 Ranger 250 Onan OHV can produce up to 275 A, 27V at 60% duty cycle in CV mode for Innershield and MIG welding. It provides 9,000 W of peak and 8,500 W of continuous ac generator power for tools, lights and plasma cutters. DC multi-process gasoline engine driven welder can be used for general purpose stick, pipe mode for stick welding, Touch Start TIG, cored-wire, MIG and arc gouging up to 3/16 in. diameter.

Hornell, Inc.    Twinsburg, OH 44087 2340
Jan 02, 2002 Speedglas 9000 auto-darkening welding lenses have six different protection plate options. For welders using high-amperage processes, High Heat injection-molded protection plates withstand temperatures up to 365 ºF; HD outside protection plate offers additional resiliency to scratches and abuse; Passive Filters come in two shades, #1 and #2, and are used to extend shade range of Utility, 9000F and 9000XF lenses, which have factory-set dark shades.

Eriez Magnetics

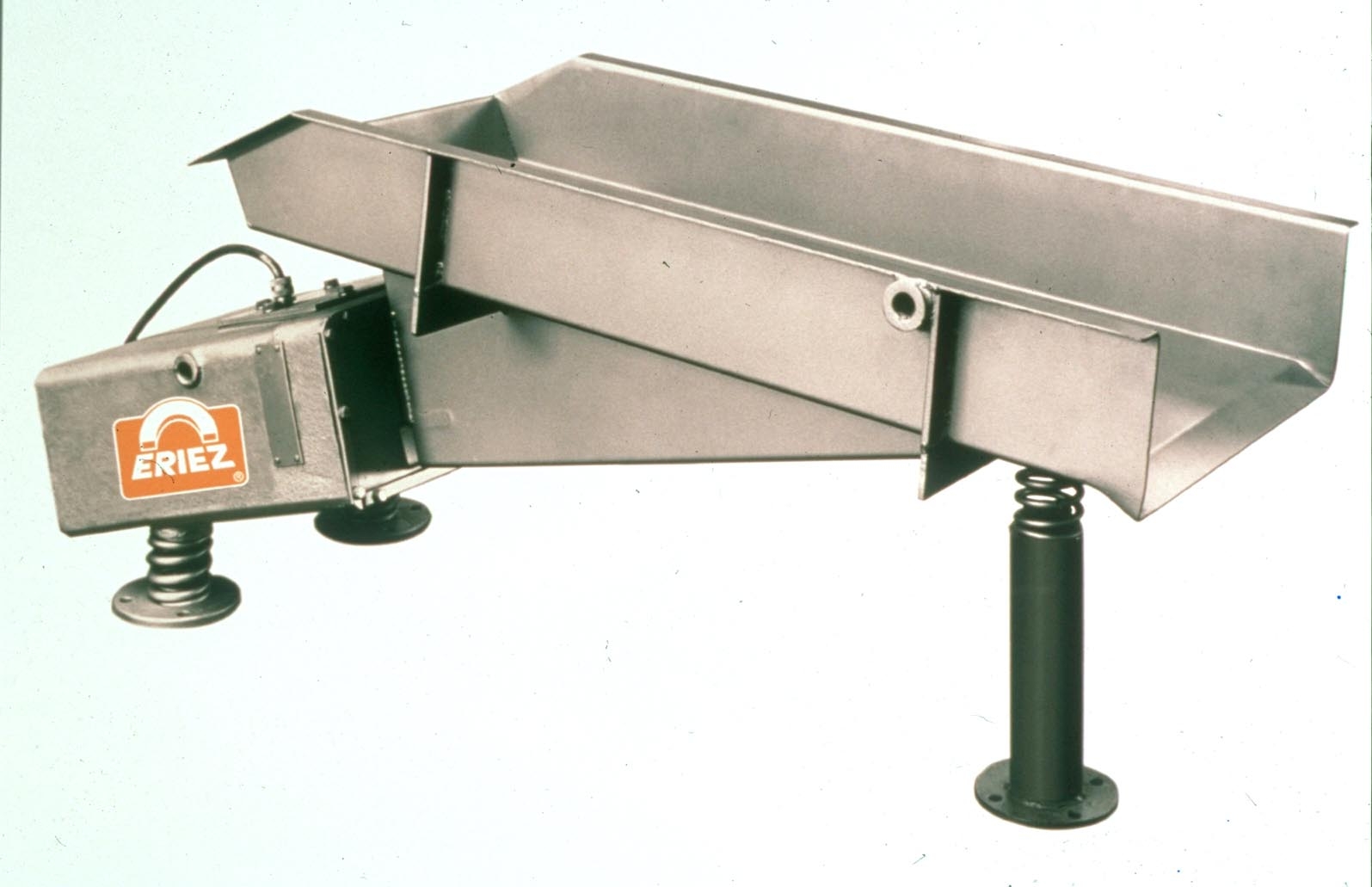

Dec 21, 2001 Model 68B Heavy-Duty Feeder features suspended 24 x 42 in. tray anchored to below-deck drive with rated capacity of 275 tph (when installed at 10º slope). Its dust-tight, epoxy-coated, heavy-duty, electromagnetic AC drive ships with N12 solid-state 100% variable speed control unit. Suitable for handling aggregates, slag, coal, ores, or grains, model 68B is available with open and tubular trays made of stainless or mild steel.

ESAB Welding & Cutting Products    Florence, SC 29501
Dec 18, 2001 DuraDrive4 has 4-roll drive system and grooved-and-driven upper and lower feed rolls to impart maximum feed force to wire. Feed motor handles various torch lengths and wire sizes. Adjustable burnback and run-in start allow operator to select slow start for difficult-to-start wires. Dual-speed switches from low to high-speed without gear or motor changes. Quick-disconnect feed rolls aid in wire changes; no tools are required.

Lincoln Electric Company, Inc., The    Cleveland, OH 44117

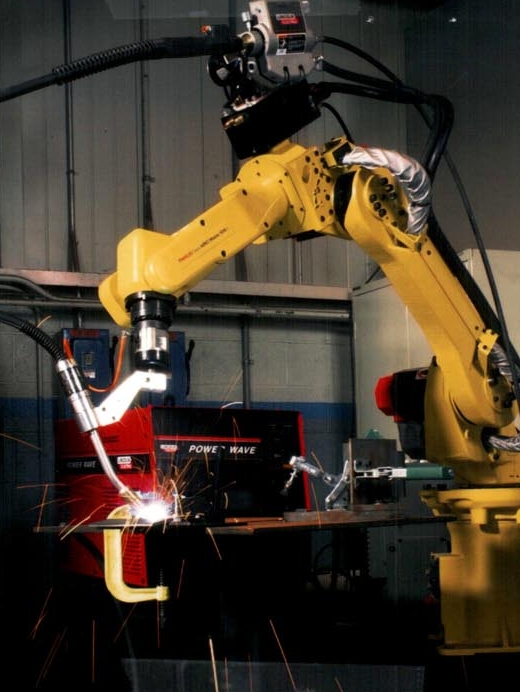

Dec 11, 2001 Suitable for robotic applications, Power Wave 655R has Ethernet, ArcLink and DeviceNet protocols, giving user ability to monitor, control and troubleshoot from remote location. Its digital controls also can connect seamlessly to robot controllers and hard automation PLCs. Inverter has high amperage capabilities for high deposition requirements, Tandem MIG configurations, or heavy gauge materials such as steel, aluminum and stainless steel.

Weldlogic, Inc.    Newbury Park, CA 91320

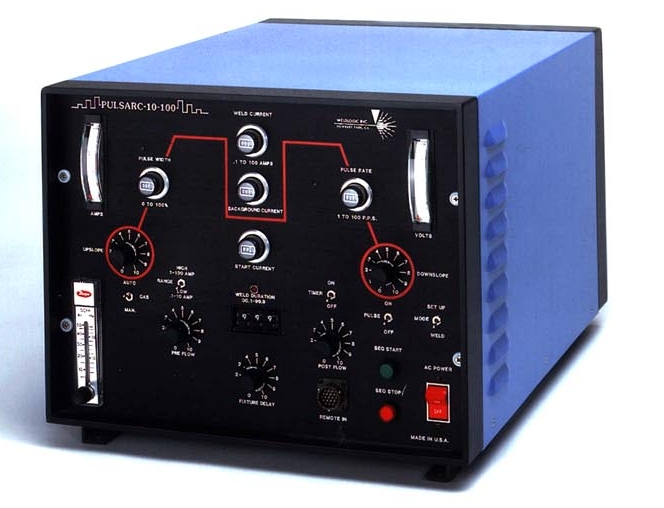

Dec 07, 2001 PA-10/100 makes low temperature weld repairs under microscope. System includes power supply, small diameter weld wire, specialized welding torches, lighting, optics, and accessories. Applications include automatic welding of heat sensitive assemblies, wires, precision instruments, and small areas to be repaired without affecting adjacent material. Welder is available with computer controlled systems, welding lathes, weldheads, and motion devices.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079
Dec 06, 2001 The Maxstar® 200 LX accepts input power ranging from 115 to 460V, single- or three-phase, and 50 or 60 Hz without any manual relinking. It comes with Auto-LineÔ primary power management technology and has a 1 to 200 amp output. This power supply has controls for true pulsing, sequence controls, and trigger functions. Other features include a high-frequency Lift-Arc™ TIG starter, pre- and post-flow gas control, dig control, and international-style 14 pin amphenol connections. Manufactured by Miller Electric Manufacturing Company, the Maxstar 200 LX can be plugged into any type of primary current. A built-in Automation Interface Connector is provided to incorporate the unit into an automated welding system.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079
Dec 06, 2001 The Maxstar® 200 DX accepts input power ranging from 115 to 460V, single- or three-phase, and 50 or 60 Hz without any manual relinking. It comes with Auto-LineÔ primary power management technology and has a 1 to 200 amp output. This power supply has controls for true pulsing, sequence controls, and trigger functions such as trigger hold, spot timer and 4T. Other features include a high-frequency Lift-Arc™ TIG starter, pre- and post-flow gas control, and international-style 14 pin amphenol connections. Dig control is provided for Stick arc starts and welding in tight corners. Manufactured by Miller Electric Manufacturing Company, the Maxstar 200 DX can be plugged into any type of primary current.

ESAB Welding & Cutting Products    Florence, SC 29501
Dec 05, 2001 PREST-O-LITE® PZ-503 self-igniting torch is designed for use with either MAPP (mixture of methyl, acetylene, propane and propadiene), propane gas or FG-2. Torch lights instantly with push-button lighting feature. Constant on/off locking button keeps flame on or off continuously, allowing user to maintain stronger grip on handle. PZ-503's lightweight cast-aluminum body allows for handling and control of soldering and brazing processes.

Wilson Industries, Inc.    Pomona, CA 91768-3278
Nov 21, 2001 Spectra Orange See-Thru Curtain filters welding arc image and all far U.V. radiation and blue light. While transmitting outside light into welding booth to aid welder's vision, curtain also provides safety to surrounding areas. It is suitable for low to high amperages in electric arc welding and may be used for MIG, TIG, ARC, plasma and other high amperage welding arcs. 40 mil curtain provides strength, longevity and abrasion resistance.

Sensotec, Inc.    Columbus, OH 43228

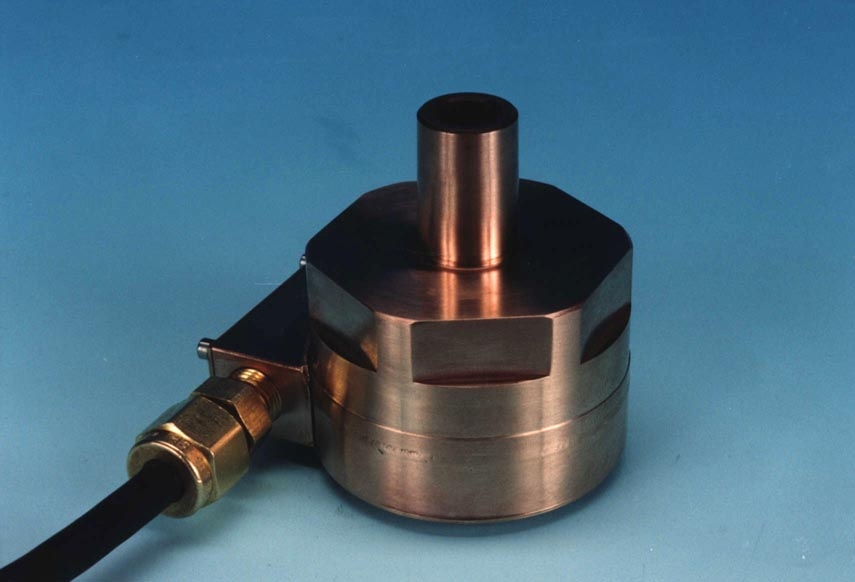

Nov 16, 2001 By combining Model WEL weld-thru load cell with Model WGM Weldmeter, user can control electrode force at time of firing for spot and projections welds. System works in combination with new constant voltage weld controllers to provide economical control system that triggers weld when proper force is reached. System works equally well with differential air or hydraulic pressure sensors.

Process Welding Systems, Inc.    La Vergne, TN 37086

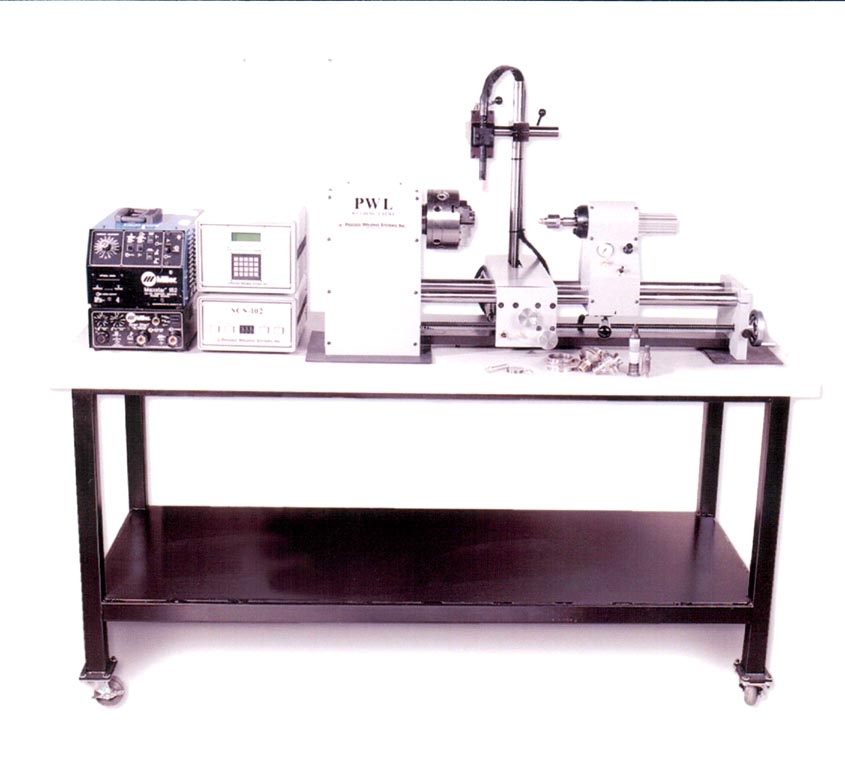

Nov 13, 2001 System with TIG welding power supply, weld programmer, and welding lathe can store and retrieve up to 100 specific weld programs. Semi-automated systems allow operator to load part and initiate start, while system does welding automatically. Applications include medical instruments, sensors, instrumentation, heating elements, bellows, fittings, tubing, and valves.

ESAB Welding & Cutting Products    Florence, SC 29501

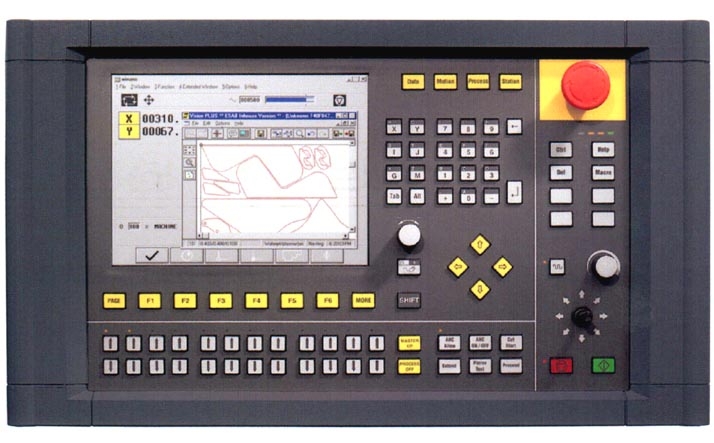

Nov 09, 2001 Vision Plus integrated software supports straight or bevel cutting with oxyfuel, plasma, waterjet and laser, plus all current marking devices, in numerous combinations. Users can cut interior geometry with waterjet, laser or precision plasma, then switch to plasma for outside perimeter cut by selecting icons. It allows bevel parts to be programmed in seconds. Software automatically programs corner routines and tilt and rotate commands.

Jackson Products Inc.    Chesterfield, MO 63017
Nov 09, 2001 NexGen EQC auto-darkening filter uses digital and analog controls with an LCD display telling mode of operation, welding shade and sensitivity adjustment. All controls are protected from interior helmet work environments. Its lens utilizes four-sensor design, and gives steady filtering protection without flickering down to low welds of less than 5 A. NexGen allows users to work in variable shade applications.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079

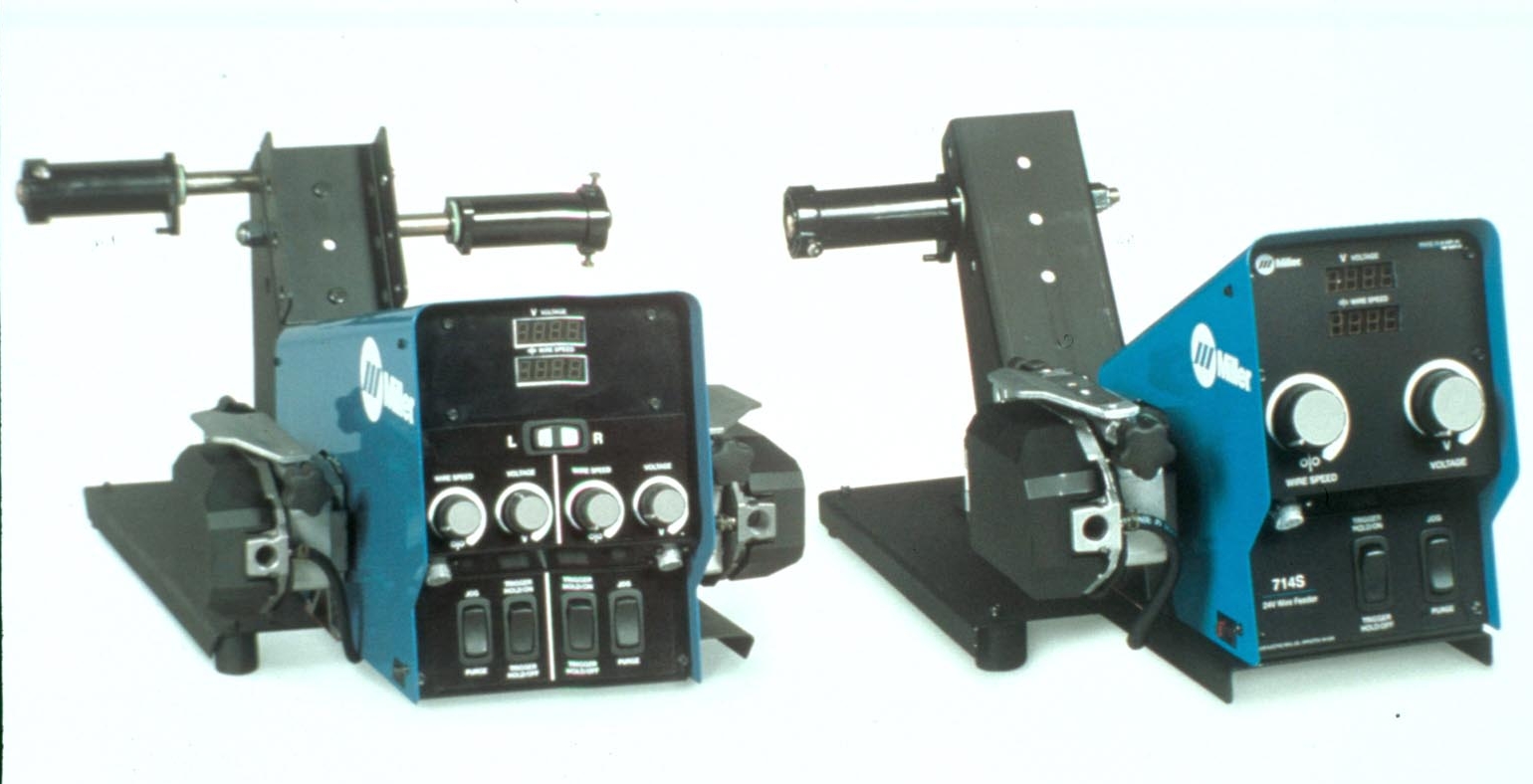

Nov 08, 2001 Model 714S bench style wire feeder features one tool-less, rotatable drive assembly and automatic run-in. Dual tension control provides independent drive roll pressure on front and back rolls, while trigger hold allows extended welds. 714S runs hard and cored wires from 0.023 to 1/8 in. dia at speeds from 50 to 780 ipm. Spool size capacity is 60 lb, and incorporates Posifeedâ„¢ four-drive-roll system that features all-gear-driven-roll carriers.

ORII Corp. Of America    Erlanger, KY 41018
Nov 08, 2001 LCC-HF2 Straightener/Feeder, equipped with HM-type Computer Control System (CCS), handles metals from 1.97 in. to 39.37 in. wide and up to 0.18 in. thick. It accepts maximum coil weights up to 10 tons and maximum coil O.D.s of 60 in. Features include no-loop detector, photo sensor loop control, pilot roll, handwheel adjustment, end-of-stock detector, and pneumatic or hydraulic expansion systems.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079

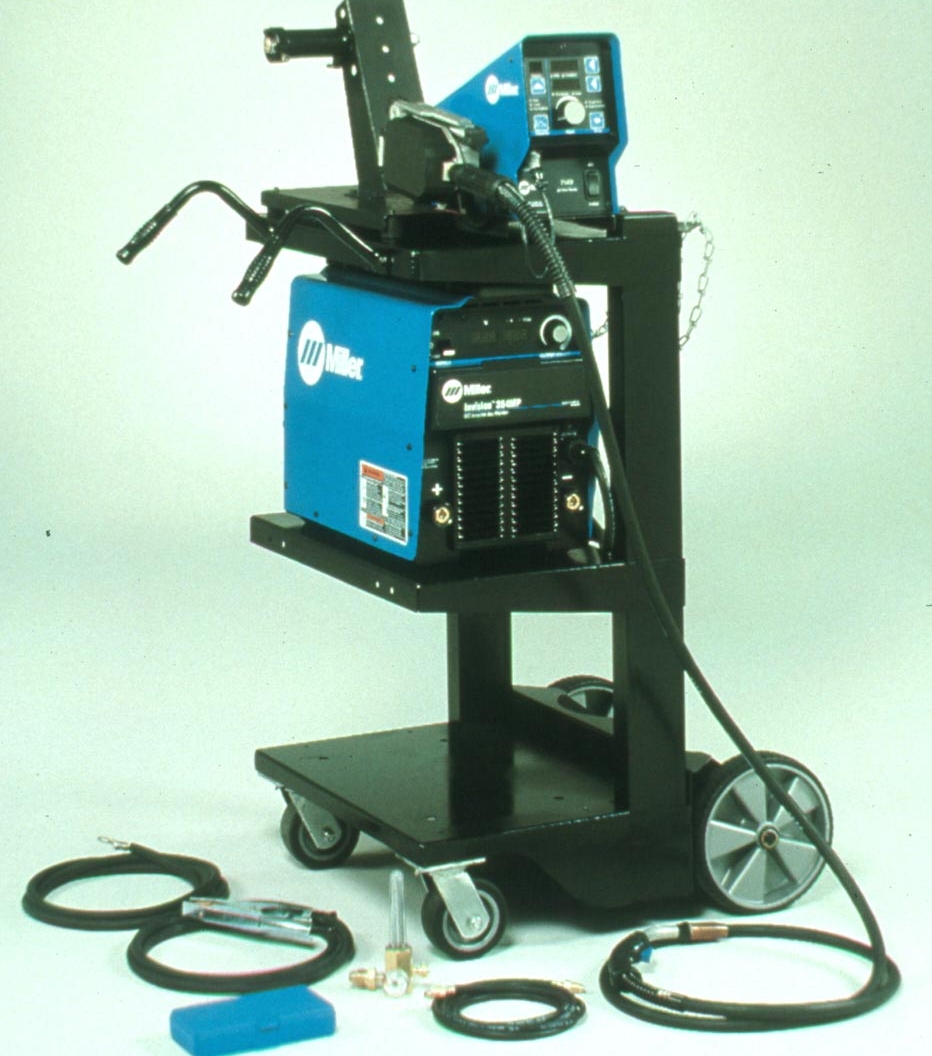

Nov 08, 2001 MIG packages include power source, matching wire feeder and gun, running gear and accessories. Millermatic 210 provides 30 to 210 amp welding range (160 amps at 60 percent duty cycle); Millermatic 251 welds metal 22 gauge to 1/2 in. thick in a single pass and has 30 to 300 amp output range (250 amps at 40 percent duty cycle). Trailblazer 301 G provides 300 amp output and 10,000 watt peak auxiliary power rating at 104° F.
