Lincoln Electric Company, Inc., The    Cleveland, OH 44117
Oct 07, 2003 Rangerâ„¢ 10,000 allows operators to simultaneously weld and use AC generator power. At 100% duty cycle, machine is rated 225 A for AC Stick welding, 210 A for DC Stick welding, and 200 A for CV wire welding. Full KVA 120/240 V outlet allows operators to run high-capacity motors, while four 120 V outlets provide auxiliary power. Unit is available with Kohler® or Honda® 2-cylinder, 4-cycle, OHV air-cooled, gasoline engine.

Lincoln Electric Company, Inc., The    Cleveland, OH 44117
Oct 07, 2003 Digitally-controlled Power Feedâ„¢ 10R, part of modular, multi-process welding system, mounts to robot arm or can be used for hard automation. Four drive roll wire feeder operates on 40 Vdc input power, and features split wire guide that aligns and supports wire through feeding system. Brass-to-brass connections allow optimum connectivity between feeder and gun. Unit is capable of MIG, pulsed MIG, Surface Tension Transfer®, and flux-cored processes.

Lincoln Electric Company, Inc., The    Cleveland, OH 44117
Oct 07, 2003 Pipelinerâ„¢ Welding Consumables are available for stick, MIG, flux-cored, and submerged arc welding. All are lot-controlled and lot-tested with certified test results. Electrodes are packaged in moisture-resistant containers for consistent performance regardless of welding environment.

Unitek Miyachi Lasers    Monrovia, CA 91017 7133

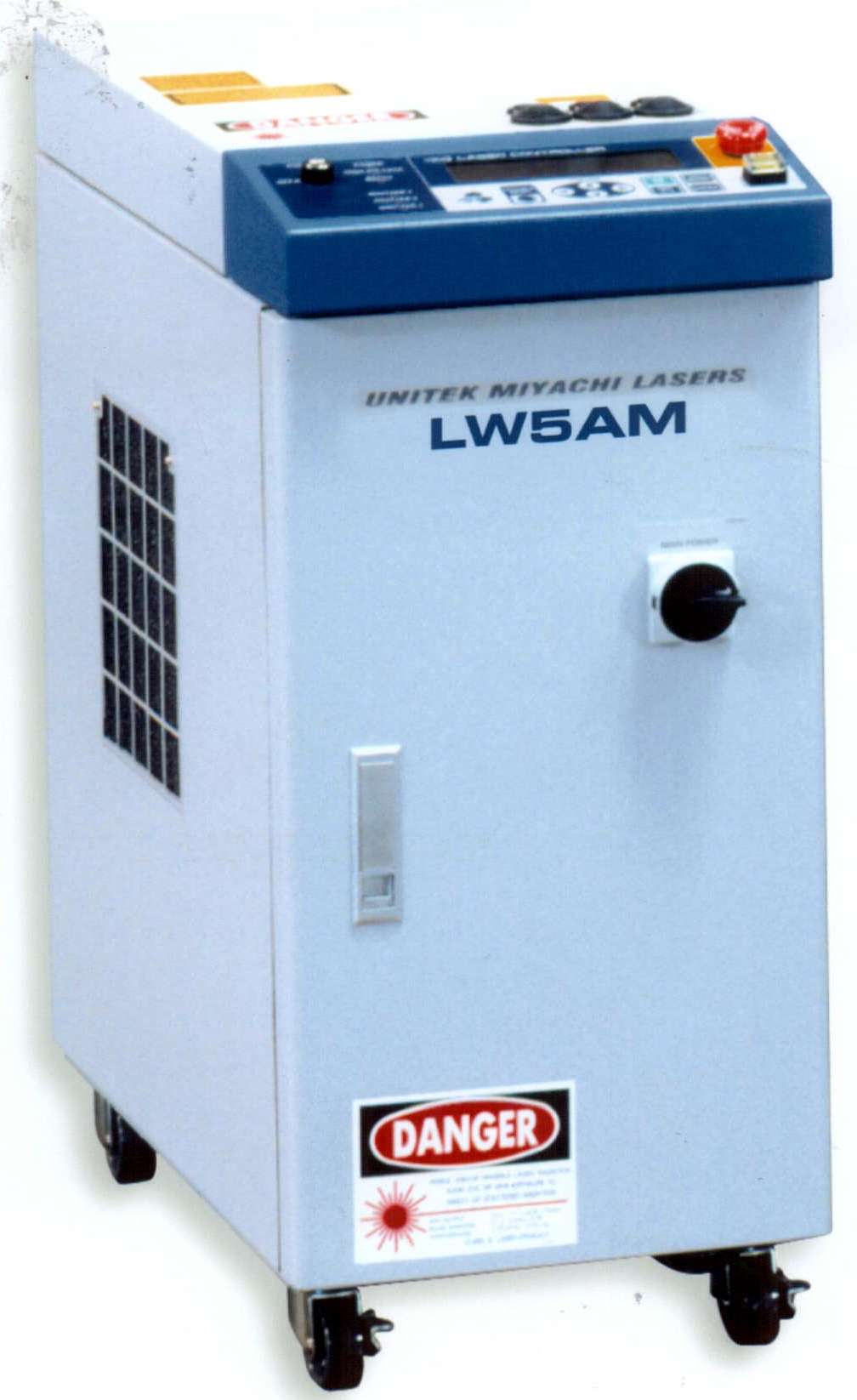

Oct 02, 2003 Pulsed Nd:YAG micro-welder model LW5AM joins mechanically and thermally delicate components found in medical device and photonics manufacturing industries. Air-cooled unit offers energy control and pulse-to-pulse stability. Beam quality of laser allows use of 100 micron core fiber optic delivery cables. Laser features real-time power feedback, 20-segment pulse shaping, time share and energy share modes, and is rated at up to 5 W max power output.

Meese Orbitron Dunne Co. (MOD)    Saddle Brook, NJ 07662
Sep 11, 2003 Custom One-Piece Fuel Tanks have permanently molded-in logos, warnings, serial numbers, and other full color graphics. They retain markings despite exposure to salt water, sunlight, solvents, cold weather, and other severe conditions. As seamless parts of cross-linked polyethylene tank structures, graphics deliver same strength and leak-proof integrity as rest of tank. They are suited for equipment where tanks may be visible and safety is an issue.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079

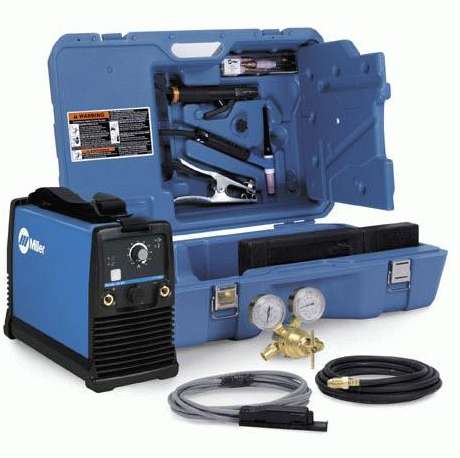

Sep 11, 2003 Maxstar® 150 Series includes Stick only, Stick/TIG Lift-Arc start, and Stick/TIG high frequency or Lift-Arc start models. All have Stick output of 150 A at 30% duty cycle, enabling nearly unlimited welding with 1/8 in. diameter Stick electrode. Auto-Line feature allows units to connect to 115–230 Vac single-phase power, ± 10%, and maintains steady arc if primary power varies. Fast Switch technology enables inverters to weigh just 13.7 lb.

Bell & Gossett    Morton Grove, IL 60053
Sep 03, 2003 Triple Duty® Valve consists of calibrated balance valve, which provides precise flow with 8–9 turns; non-slam check valve, which assures positive shut-off without water hammer or valve chatter; and shut-off valve which includes memory button that allows entire valve to be returned to initial balanced position after shut-off. Triple Duty® Valve comes in straight pattern flange design, and resists harsh operating pressures, high temperatures, and aggressive liquids.

Motoman, Inc.    West Carrollton, OH 45449 2158
Aug 28, 2003 Six-axis Expert Arc EA1400 offers 54.6 in. horizontal reach, 95.35 in. vertical reach, and 0.003 in. repeatability. Cabling design reduces wear against arm, part, or fixture and minimizes motion required for torch reorientation. Torch barrel mounts to arm with integrated shock sensor that minimizes damage in event of crash with part or tooling. Model XRC 2001 controller offers icon-driven menus and can operate up to 4 robots, reducing risk of collision.

Motoman, Inc.    West Carrollton, OH 45449 2158
Aug 28, 2003 Six-axis, Expert Spot Models ES165 and ES200 offer payloads of 36.383 lb and 441 lb, respectively. Both feature 104.3 in. reach and repeatability of ±0.008 in. Internal cabling design routes servo gun cables and utilities through robot's upper arm. XRC control can operate up to 4 robots and 36 axes, reducing risk of collision. With Multiple Robot Control, robots can perform synchronous transfer of large parts using all 4 robots to lift and carry at same time.

Taylor-Winfield Corp., The    Brookfield, OH 44403 0500
Aug 21, 2003 TWINLAP Seam Welder joins materials up to 84 in. wide, 3.5 mm thick full hard, and 4.0 mm thick soft material. User can achieve results of 2-pass operation with single pass of machine. Welder is offered with pneumatic or hydraulics and either single phase AC, or single or 3-phase DC weld control. It is primarily for automotive grade and difficult to weld full hard materials such as DP 600/800, HSLA, Silicon, Stainless, Trip, and other specialty alloy materials.

Unitek Miyachi Lasers    Monrovia, CA 91017 7133
Aug 21, 2003 Pulsed Nd:YAG Laser, Model LW150A provides average output power of 150 W. It features real-time power feedback, 20-segment pulse shaping, power ramp-up and ramp-down, and removable touch-screen controlled pendant. Up to 6 built-in fiber outputs can be configured in Time Share and/or Energy Share modes so applications can be addressed utilizing one or more workstations located up to 30 m apart.

Hornell, Inc.    Twinsburg, OH 44087 2340
Aug 18, 2003 Speedglas® FlexView with Adflo® combines retractable auto-darkening lens with powered air purifying respirator. User lifts up spring-mounted lens assembly for weld prep. Spring holds auto-darkening lens on top of helmet providing clear view behind clear polycarbonate lens, which meets ANSI Z87.1 standard. Adflo respirator creates positive atmosphere of filtered air within helmet that is 25 times cleaner than air outside of helmet. Respirator approval is NIOSH 42 CFR 84.

Mimot - California, LLC    Irvine, CA 92618 2326
Aug 14, 2003 Dip-Flux Feeder picks up component from waffle tray, stick feeder, or tape feeder, then dips component, leads, or BGA balls into rotating flux bath. It then places component or flip chip onto board or substrate. Fixed squeegee in rotating flux bath ensures constant flux wave height. Laser sensors detect approaching components and halt squeegee rotation for duration of dipping process. Feeder is not fixed-mounted and can be added to or removed from pick and place machine.

Unitek Miyachi Lasers    Monrovia, CA 91017 7133
Aug 14, 2003 Mounted on adjustable frame construction, modular Desktop Series Bonders consist of Uniflow® pulsed heat power supply, pneumatic bonding head, and quick connect block with thermo-plane thermode. Basic unit can be upgraded with left-right or front-rear slide as well as manual or pneumatic, 2-position index table. Products are suitable for use in hot bar reflow soldering, ACF bonding, heat-seal bonding, and heat staking.

Lincoln Electric Company, Inc., The    Cleveland, OH 44117
Aug 11, 2003 Suited for construction site/outdoor use, Invertec V275-S is rated at up to 275 A to enable users to weld with up to 7/32 in. stick electrodes. Product employs weather-resistant features and meets IP23S environmental rating. Able to operate on input voltages from 208–575 Vac, single- or 3-phase power, unit does not require derating with single-phase input power. It offers Selectable Hot Start, Variable Arc Force control, and Touch-Start™ TIG capabilities.

Taylor-Winfield Corp., The    Brookfield, OH 44403 0500
Jul 31, 2003 Series INV welder can be used as freestanding machine or incorporated into automated welding cells. It can be supplied with up to 5 in. cylinder that produces approximately 1,600 lb of weld force or 2 in. cylinder that produces 60 lb of force. Welder can be furnished with ac transformers, ranging from 7½ to 50 KVA, or dc inverter power supplies for up to 140 KVA. It has 8 in. throat depth and is available with horns for spot welding or T-slotted platens for mounting tooling.

Master Bond, Inc.    Hackensack, NJ 07601
Jul 30, 2003 Silver conductive epoxy film and preform system, FL901S bonds to both similar and dissimilar substrates. It offers moisture, chemical, vibration, and shock resistance. Product cures quickly at moderately elevated temperatures and can be stored in refrigerator for 6 months. Low level of total ionic impurities of less than 50 ppm makes it suitable for electronic assembly applications. FL901S is available in thicknesses of 2–8 mils and up to 16 in. sq.

Valtra, Inc./Good Hand, Inc.    Pico Rivera, CA 90660
Jul 25, 2003 The 1/2-Clampâ„¢ aligns material ranging from large pipes to flat stock with memories. User tack welds front side of 1½ x 2 in. pipe to lower side of 2 surfaces to be aligned. Clamp slides onto pipe and screw is turned until material comes into alignment. Pipe can be broken off easily, and weld spot can be ground off after weld is completed. For big jobs, welder can remove, rotate, and reuse same piece of pipe at least 20 times, moving it down material as needed.

Lincoln Electric Co. Inc., The    Cleveland, OH 44117
Jul 23, 2003 Innershield NR-233 self-shielded flux-cored wire electrode (AWS E71T-8) incorporates proprietary microflux(TM) technology and is available in 1/16 in. electrode diameter wound on 12.5 and 25 lb spools. Designed for high deposition rate welding, product offers minimized gas marking. Applications include seismic or general structural steel erection and ship and barge fabrication.

Lincoln Electric Company, Inc., The    Cleveland, OH 44117

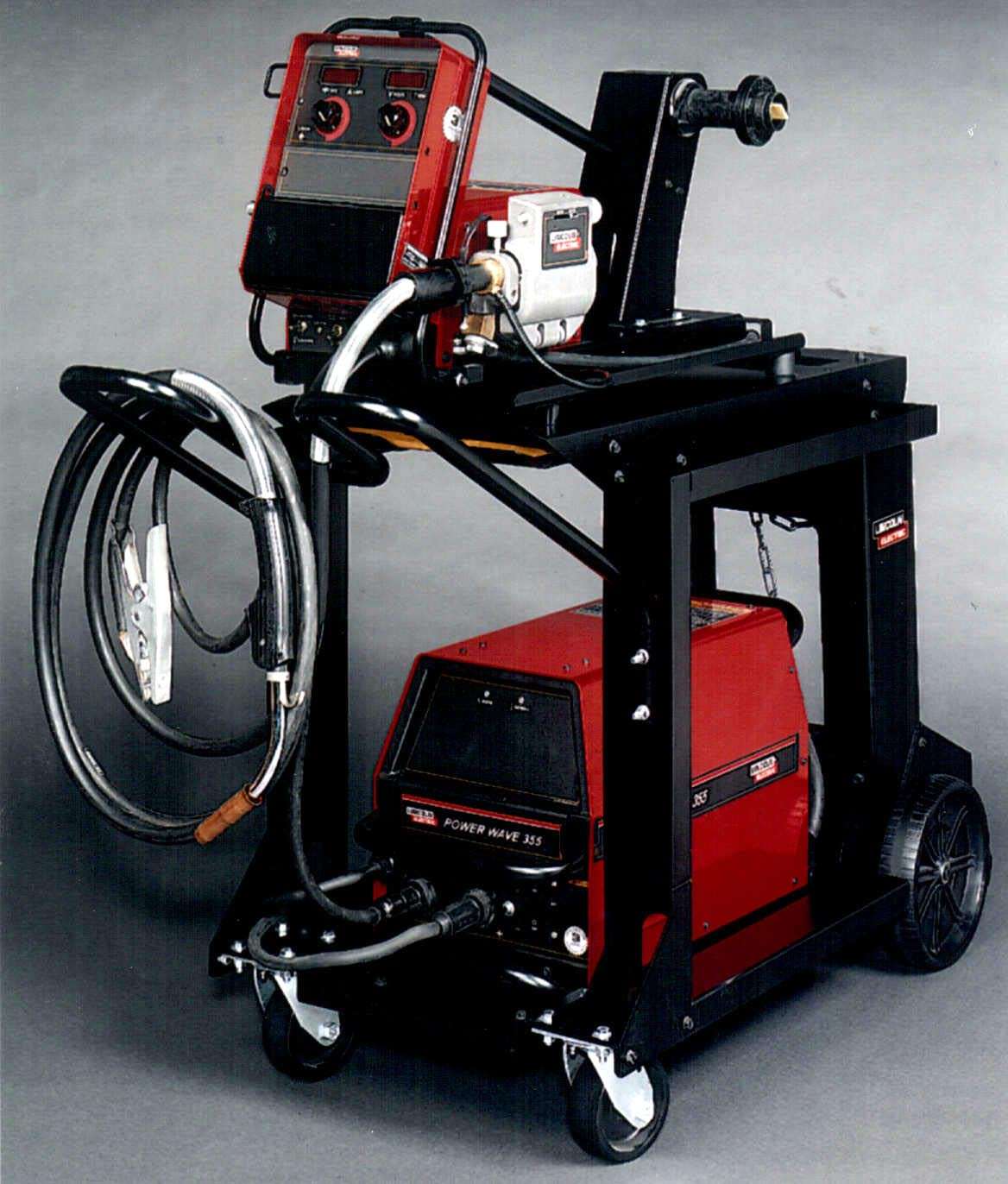

Jul 16, 2003 Rated at 350 A, multi-process Power Waveâ„¢ 355 provides Waveform Control Technologyâ„¢, which controls and shapes output waveform to produce optimal arc characteristics for MIG, Pulsed MIG, and flux-cored welding applications. Package supplies all components for operation, including Power Wave 355 inverter power source; Power Feedâ„¢ 10 wire feeder, with one-piece, split wire-guide system; MSP2 interface panel; and Magnum® 400 gun and cable kit.
