IAI America, Inc.
Torrance, CA 90505
Jun 26, 2006 Available in 2- and 3-axis specifications, TT Table Top robot's rigid, extruded aluminum base; ball screw; and servo control motor allow for positioning repeatability of ±0.02 mm. Its 3-axis configuration comes with Z-axis brake and lets users perform 3D arc interpolation and path movement. Available as Gate Type with fixed Y axis or as Cantilever Type with open work surface, robot stores up to 64 programs and runs up to 16 programs simultaneously.

ESAB Welding & Cutting Products
Florence, SC 29501
Jun 22, 2006 SCR-controlled rectifier, LHF 405 Pipemaster, is designed for heavy-duty MMA welding with coated electrodes, basic TIG welding, and air-arc gouging. Vertical static characteristics keep constant current, regardless of cable length or arc voltage, while dynamic characteristics ensure stable arc and control of molten weld pool. Equipped with hot start, arc force, and automatic anti-stick functions, rectifier enables parameters to be adjusted during operation.

techMatrix, LLC
Eden Prairie, MN 55346
Jun 12, 2006 Integrated with gantry robot and rotary indexer, RSX100 Series features resurfacing tool to refinish and clean electrodes at predefined intervals. System uses Windows application interface that stores weld recipe configurations and locations. All process data is stored to MS SQL Server database for report generation and analysis. Available vision system can be used to weld parts with small features or perform visual inspection.

American Torch Tip Co., The
Bradenton, FL 34203 5304
Jun 09, 2006 Available in various materials, MIG Welding Contact Tips minimize wear characteristics, extending life beyond that of standard copper alloys. Series incorporates Ag alloy tip that offers conductivity rates up to 98%, minimizing arc start failure and spatter at work area.

Wilson Industries, Inc.
Pomona, CA 91768-3278
Jun 08, 2006 Featuring wrap-around curtain design, Stur-D-Screen includes bracket with self-strengthening capability, as well as hinge and wrap-around gusset for flexibility of singular modules. Hinge system allows single panels to be assembled into multi-panel configurations. Feet can be painted yellow for safety.

WeldComputer Corp.
Troy, NY 12180
Jun 08, 2006 Upgrade Kit contains replacement driver boards, main board with processor, cables, 24 Vdc power supply, control software, and hardware. Users can choose L-Series control, which provides msec-by-msec programmability in open loop, current feedback, voltage feedback, and power feedback modes. Adaptive Control provides all functionality of L-Series plus ability to monitor current, voltage, conductance, power, force and/or pressure, workpiece thickness, and displacement.

Hobart Brothers Co.
Troy, OH 45373-2900
Jun 02, 2006 Designed for A514, A710, and similar HSLA and Q and T steels, Tri-Mark TM-101 gas-shielded wire offers tensile strengths in 105,000-115,000 psi range. It is available in .045 and 1/16 in. diameters and features smooth, stable arc, low spatter, and flat bead profile. Quick freezing slag also makes wire suited for high deposition welding on either single or multiple pass applications.

Thermadyne Industries, Inc.
St. Louis, MO 63017
May 30, 2006 Air Acetylene Deluxe Tote Kits provide everything needed for brazing ¾ in. with MC Tank or soldering 2 in. tubing with B tank. Both feature Extreme® self-lighting tip and Extreme® standard tip in addition to ergonomic handle with quick disconnect and tank tote that stores hose as well as additional tips. MC Extreme Air Acetylene Kit, constructed of steel, fits MC tank or MT-1 Mapp® tank, while B-Tote Extreme Air Acetylene Kit features composite construction and fits B tanks.

TRUMPF Power Tools
Farmington, CT 06032
May 30, 2006 Based on Cartesian machine with 1,000 mm range in all 3 axes, PowerWeld multiflex is designed for build-up welding on large workpieces. Length of stroke and adjustable welding head allow for diverse processing capabilities. Movement of axes can be adapted to needs of welding area using teach function, and product can also be programmed to weld several parts in same manner using spline functions. Welding head, mounted at one end of Y axis, can be tilted in 2 planes.

Select-Arc, Inc.
Fort Loramie, OH 45845-0259

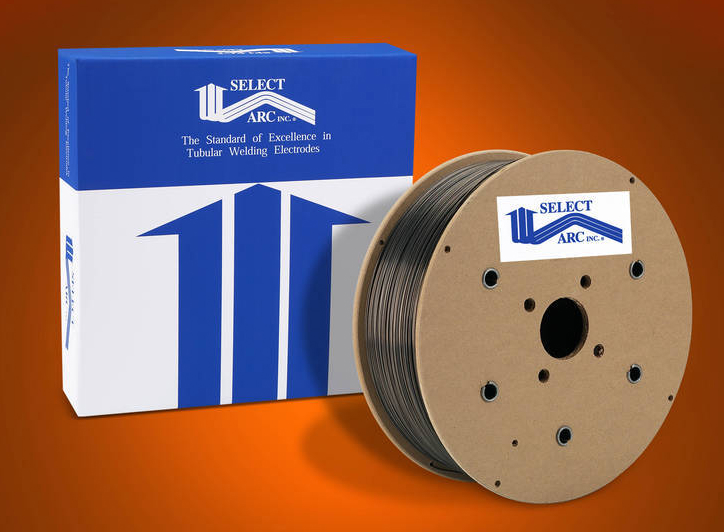

May 18, 2006 Providing stable arc transfer, metal-cored SelectAlloy 307C bridges gaps and poor fit-up areas while delivering consistent deposit composition due to even distribution of core ingredients. Weld deposit is nearly fully austenitic, but with 8% manganese, resists hot cracking. Electrode is suited for welding automotive exhaust systems, armor plate, austenitic manganese steels, and high carbon steels. It may also be used as buffer layer in hardsurfacing applications.

ESAB Welding & Cutting Products
Florence, SC 29501
May 17, 2006 Copper-coated OK Autrod 13.20SC welds creep-resistant steel of 2.5% Cr to 1% Mo type. When combined with OK Flux 10.63, wire produces clean weld deposit with X-factor less than 15 and J-factor less than 120, fulfilling impact toughness after step-cooling treatment of weld metal. Wire can also be used with other fluxes for applications not requiring step cooling. OK Autrod 13.20SC is suited for process piping, heat exchangers, and pressure vessel fabrication.

TRUMPF Power Tools
Farmington, CT 06032
May 16, 2006 Able to handle parts up to 500 kg, Model TLC 1000 Hybrid 5-axis laser offers cutting and welding capability for 3D and 2D parts. Unit has moving table in X-axis, and cantilever Y-axis. Offered with 5 or 7.5 in. cutting head, work envelope is 118 in. on X-axis, 65 in. on Y-axis, and 30 in. on Z-axis. B-axis is ± 120 degrees, and continuous rotation is possible on C-axis. Accuracy and repeatability are less than or equal to 0.1 mm and 0.03 mm, respectively.

Miller Electric Mfg. Co.
Appleton, WI 54912 1079
May 12, 2006 Included in Big Window Elite(TM) Series, Inferno has 4 independent arc sensors that provide continuous arc-sensing capability for welding applications. Its No. 4 ultra-clear light-state facilitates setup and repositioning of hands and parts while providing continuous UV and IR protection. Along with Performance Series(TM) lenses, helmet includes replaceable batteries with solar assist for 3,000 hr life (MIG) without recharge. Inferno also handles DC Inverter and TIG applications up to 5 A.

Miller Electric Mfg. Co.
Appleton, WI 54912 1079
May 12, 2006 Part of Big Window Elite(TM) Series, '29 Roadster employs 4 independent arc sensors for continuous arc-sensing in welding applications. Its No. 4 ultra-clear light-state facilitates setup and repositioning of hands and parts while providing continuous UV and IR protection. Helmet features Performance Series Lens technology, including replaceable batteries with solar assist for 3,000 hr life (MIG) without recharge. Product also handles DC Inverter and TIG applications up to 5 A.

Miller Electric Mfg. Co.
Appleton, WI 54912 1079
May 12, 2006 Offered in Joker and Camouflage styles, Elite(TM) welding helmets utilize 4 independent arc sensors for continuous arc-sensing capability in demanding applications. No. 4 ultra-clear light-state facilitates setup and repositioning of hands and parts while providing continuous UV and IR protection. Performance Series Lens technology includes replaceable batteries with solar assist for 3,000 hr life (MIG) without recharge. Helmets also handle DC Inverter and TIG applications up to 5 A.

TRUMPF Power Tools
Farmington, CT 06032
May 12, 2006 Designed for laser welding of powertrain and gear components, TRUMPF LASERCELL 1000 Powertrain is offered with CO2 lasers from 2,000-15,000 W and optional press-rotary station as well as pre-heating and filler wire feeder. Laser, control cabinet, and beam guidance component create standardized, expandable processing system. Automatic loading/unloading unit can be integrated with machine to feed 1, 2, or 3 workstations. All components are housed on 100 sq ft base plate.

Hobart Brothers Co.
Troy, OH 45373-2900
May 08, 2006 Made to exceed US Navy welding standards, gas-shielded Tri-Mark TM-71HYN produces X-ray quality welds with diffusible hydrogen below 5 ml/100 g. Impact values exceed requirement of 30 ft-lb at -20°F under high and low cooling rates, and welds provide yield strengths of 60-90 ksi. All-position wire, suited for use with shielding gas mixture of 75% CO2 and 25%, comes in .045 in. dia and is hermetically sealed to eliminate moisture contamination.

PHD, Inc.
Fort Wayne, IN 46899
May 04, 2006 Series PLM, available in pin sizes 13, 16, 20, and 25 mm, is pneumatically powered actuator that locates, clamps, and supports parts in welding applications. Clamp mounts to robots and is fully enclosed to provide protection against weld slag and other contaminants. Built-in locking mechanism holds panel in place and standard manual unlock allows part retrieval if air pressure is lost or removed. Part support height adjusts with NAAMS(TM) shims.

Diamond Ground Products Inc.
Newbury Park, CA 91320
May 03, 2006 Cryo-T Thoriated Tungsten Electrodes are cooled with nitrogen gas to -300°, then slowly reheated back to room temperature, producing dense structure and increased surface area that provides stress relief and dimensional stability. They offer long tip life and consistent welds resulting from crisp starts.

Coxreels
Tempe, AZ 85283-4323
Apr 25, 2006 Featuring all steel construction sealed with CPC® powder coat finish, 100W Series compact hand crank welding hose reels store 100 ft of ¼ in. twin-line oxy-acetylene or t-grade welding hose. Dual ported brass swivel offers both connections from one side of reel. Brake assemblies incorporate adjustable friction brake that can be tightened to lock drum, while composite bearings offer smooth rotation.
