Select-Arc, Inc.
Fort Loramie, OH 45845
Oct 20, 2006 Designed to weld duplex stainless steels, flux cored Select 2209-AP delivers corrosion resistance, especially to pitting from chlorides in seawater. Electrode provides stable arc with low spatter. Slag is easily removed, and weld bead is shiny, smooth, and silvery. Suitable for chemical and fertilizer industry, offshore pipelines, and sour gas lines, Select-2209-AP can weld stainless steels such as 22% chromium, 5% nickel, and 2% molybdenum-nitrogen types.

Miyachi Unitek Corporation
Monrovia, CA 91016
Oct 10, 2006 For each weld pulse, Model MML-100 A records time and magnitude data on actual incident and reflected IR energy in real-time. Material threshold is clearly evident and can be correlated to weld penetration and other weld quality characteristics for many materials and weldment geometries. Whether spot or seam welding, monitor is suited for process control in medical, aerospace, automotive, computer peripheral, and other specialty devices.

Miyachi Unitek Corporation
Monrovia, CA 91016
Oct 10, 2006 Combining laser diode pumping and fiber laser resonator technology, Models ML-6300 and ML-6500 deliver 100 and 300 W CW output power, respectively. They offer built-in time and energy-sharing beam distribution options, customer-replaceable output fibers, and visible aiming laser output, as well as built-in integration with scanning weld heads, and fixed focus heads.

Weldcraft
Appleton, WI 54911
Oct 09, 2006 Four air-cooled TIG torch packages are available with rubber cables for applications from 150-200 A, while 2 water-cooled TIG torch packages are offered for applications up to 250 or 350 A. Each package contains 25 ft power cable and cable cover, power cable adapter, and 15 ft ground cable. Water and gas hoses are also provided, as required, along with Smith Equipment flow meter regulator and welding accessory kit with nozzles, collets, collet bodies, and tungsten.

TRUMPF Power Tools
Farmington, CT 06032
Oct 09, 2006 Along with removable touch-screen control panel and real-time power control, TruPulse series offers burst function that lets average power be briefly exceeded and increase pulse frequency to reduce welding cycle. Maximum mean power and pulse energy, focusability, and beam quality are adjustable to meet application area requirements. While featuring modular power supply structure, average power ranges from 20-150 W at max pulse power of 10 kW.

PSI Peripheral Solutions Inc.
Mississauga, ON L5L 5Z4  Canada
Oct 06, 2006 Accommodating different sizes and thicknesses of materials, Large Capacity In-Feeder 3000 allows large range of items to be fed into boxes or totes along existing conveyor lines. Dual separation technology helps keep belt wear to minimum, enabling months of operation without changing belt. Able to handle up to 4,000 sheets of paper and feed 60 products/min, feeder handles everything from small reply cards to DVDs to full product catalogs.

MSA
Pittsburgh, PA 15230 0426
Oct 06, 2006 Made of lightweight polyethylene, SmoothDome Slotted Cap with Fas-Trac® Suspension is compatible with most welding helmet shells and accepts full line of attachable accessories. Cap meets or exceeds applicable requirements for Type I Helmet (top-impact) as outlined in ANSI Z89.1-2003, Class E (electrical high voltage).

Smith Equipment
Watertown, SD 57201-5636
Oct 04, 2006 Featuring 2-stage, anti-surge design, Optimizer(TM) Flowmeter Regulator helps prevent gas flow surges that normally occur when welding operator activates MIG gun or TIG torch. High-flow capacity offers delivery range up to 70 scfh and is suited for use with either straight Argon shielding gas or Argon/CO₂ mixture. Designed with CGA 580 inlet connection and 5/8 in., 18 RH internal outlet connection, Optimizer provides max pressure inlet of 3,000 psig.

Lincoln Electric Co. Inc., The
Cleveland, OH 44117
Sep 29, 2006 With Deutz D2008L4 4-cylinder, water-cooled diesel engine, Vantage® 300 delivers dc welding output of 300 A at 32 V, 100% duty cycle. Engine runs at 1,800 rpm and is rated at 24 hp. It generates 12.5 kW peak, 3-phase, 240 Vac auxiliary power and 11.5 kW peak, single-phase ac auxiliary power. Fuel tank capacity of 15 gal enables Vantage 300 to run all day. Four process modes include CC-Stick, Downhill Pipe for stick, Touch-Start, and CV-Wire.

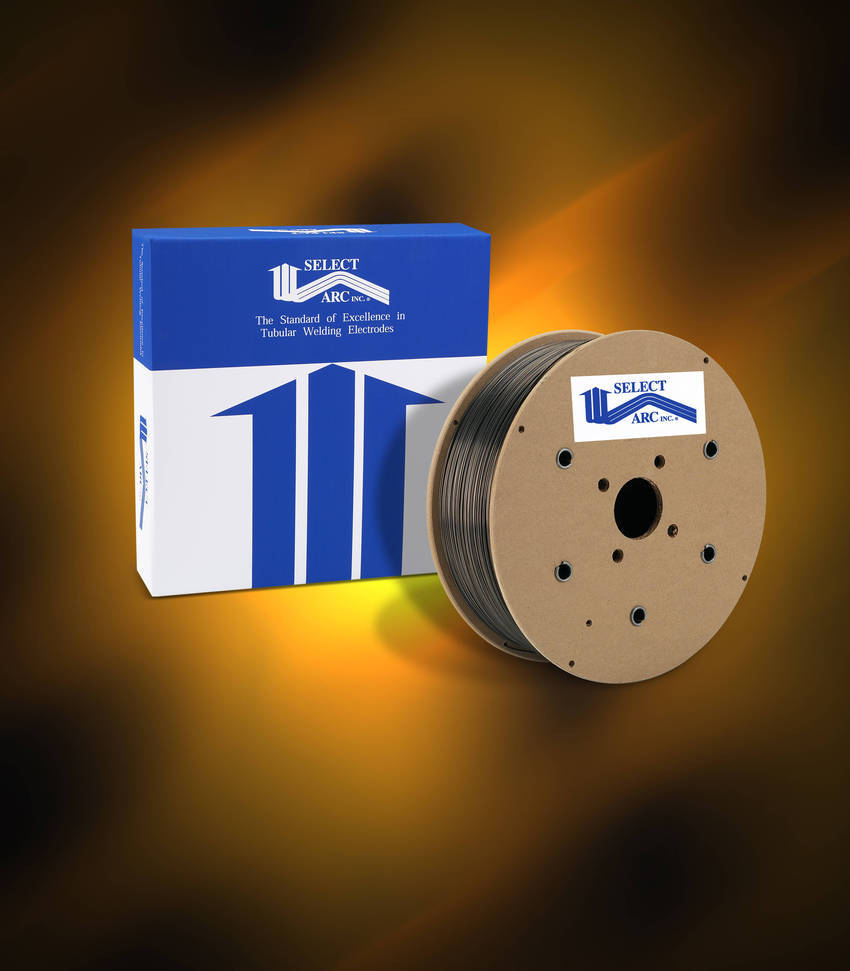

Select-Arc, Inc.
Fort Loramie, OH 45845-0259
Sep 25, 2006 Able to be welded without shielding gas, Select 700GS exhibits smooth and stable arc transfer with minimal spatter. Carbon steel, self-shielded, flux cored electrode comes in .030, .035, and .045 in. diameters for single pass, high-speed welds on sheet metal up to 3/16 in. thick, especially galvanized, aluminized, or other coated steels. Product minimizes burn-through on thin gauge material, and slag system enables electrode to weld in all positions.

Orbitform
Jackson, MI 49204
Sep 20, 2006 Available in 16, 32, and 48 in. widths with 16 in. upper and lower platen depth, M-Series welds various materials, including steel and stainless steel, and can incorporate multiple guns for custom resistance, spot, or projection welding. Small footprint offers mobility via forklift pockets and accessibility for tooling changeover. Features include X-Y servo driven fixtures and light curtains and palm buttons for operator safety.

Lincoln Electric Co. Inc., The
Cleveland, OH 44117
Sep 19, 2006 Designed for intermittent and continuous removal of welding dust, smoke, and fumes, Mobiflex(TM) securely filters contaminated air and re-circulates it into work area. Rear wheels and front casters promote portability, while 10 or 13 ft long extraction arms lend to application flexibility. Mobiflex(TM) 200-M captures welding fumes inside LongLife® filter, which is changed out by hand. Mobiflex(TM) 400-MS uses RotaPulse® self-cleaning filter process.

Liekki Oy
Lohja FIN-08500  Finland
Sep 15, 2006 Utilizing Direct Nanoparticle Deposition process, custom manufacturing service provides single-step deposition of highly doped core preforms. DND's nanoparticles mitigate onset of clustering and related effects such as photodarkening in ytterbium fibers. Process is suitable for large mode area fibers requiring flat refractive index profiles and/or radially doped profiles. Each preform is delivered fully characterized with refractive index profile and absorption data.

3M Company / Bonding Systems Division
St. Paul, MN 55144
Sep 13, 2006 Constructed with multiple-layer liquid-crystal filters, 3M(TM) Speedglas(TM) Model 9002D is suggested for MIG, Stick, and TIG welding at more than 20 A. It offers dual shade selection of 10-11 with light state shade 3 for visibility during welding preparation, cleaning, and inspection. Low or normal sensitivity setting is used with most types of welding, while high position provides arc detection for most TIG processes at amperages down to 20 A.

ESAB Welding & Cutting Products
Florence, SC 29501
Sep 12, 2006 Hybrid Laser Arc Welding combines deep weld penetration and low heat input of laser welding with power efficiency and gap tolerance of GMAW (gas metal arc welding). Adding GMAW in tandem with laser and filler metal creates wider weld bead and enhances metallurgical stability. Mechanized system utilizes laser only, laser with cold wire fill, or hybrid laser arc welding in 2D gantry, 3D robotic, or custom mechanized solution with closed-loop weld process control.

ESAB Welding & Cutting Products
Florence, SC 29501
Sep 12, 2006 Column & Boom (CaB) series is offered in 3 models, each with different profile and working range from 2 x 2 m up to 10 x 8 m. Column is capable of ±180° rotation and travel speeds are pre-programmable. A2 or A6 welding heads are mounted to boom with swiveling mounting bracket, enabling external and internal longitudinal and circumferential welding. Equipped with different components and accessories, CaB system provides flexibility and customization.

Thermadyne Industries, Inc.
St. Louis, MO 63017
Sep 08, 2006 MIG gun front end conversion kits, available for Miller®, Bernard®, OXO®, ESAB®, Tregaskiss®, and other makes, enable welders with non-Tweco guns to use Genuine Tweco consumable parts. Each kit contains assortment of consumables to complete conversion: 2 diffusers, 3 extended life contact tips, and one heavy duty brass nozzle. Also included, insert card has tip diagram as well as contact tip, nozzle, and diffuser part numbers.

Induction Atmospheres LLC
Rochester, NY 14624
Aug 25, 2006 Designed for open-air brazing and soldering in lean manufacturing environment, AB-1 occupies 5 x 6 ft footprint and includes 4- or 6-position indexing table. It can be configured with up to 3 brazing stations as well as robotic part loading and unloading. Front panel start/stop push buttons place system in PLC-controlled auto run mode, with full manual control available for process development. Typical brazing cycle times are under 20 sec/part and can be as fast as 3 sec/part.

Illinois Tool Works, Inc.
Appleton, WI 54914
Aug 24, 2006 Suited for limited access joints, air-cooled Model WP-50 is rated at 60% duty cycle up to 50 A and offers pen-like control in tight quarters and on paper-thin material. Entire torch is 8½ in. long and ¾ in. diameter at widest point, with 5/8 in. long x 3/8 in. dia torch head. Compatible tungsten sizes include .020, .040, and 1/16 in. diameters. Torch can be ordered with 12.5 or 25 ft power cable, and is available with built-in gas control valve.

techMatrix, LLC
Eden Prairie, MN 55346
Aug 21, 2006 Designed to work with RSX Series automated weld platform or with stand-alone weld controllers, WeldWorks(TM) Software Suite enables manufacturers to control resistance spot weld process by monitoring ever weld's key process parameters, and tracking this information against individual parts or lots. Microsoft SQL Server database stores weld recipes and all runtime electronic records, which helps ensure compliance with FDA, ISO 9001, and military regulations.
