KLA-Tencor Corp.    San Jose, CA 95134
Sep 10, 2012 Designed to address complex overlay challenges associated with single- and multi-patterning lithography techniques at advanced sub-28 nm design nodes, Archer(TM) 500 accurately measures and characterizes overlay error. Measurement speed and precision enable thorough overlay characterization on wafers after patterning to help verify that pattern features have been correctly aligned to previously-patterned features, located on either same layer or prior process layer.

Esco Tool    Medfield, MA 02052
Sep 10, 2012 Available to fit MILLHOG® end prep tools covering tube range from 7/8-3 in. OD, ESCO Membrane and Overlay Removal Head features proprietary inserts shaped like golf tees, rather than screws, that tap into place and can be rotated to utilize 360° cutting edge. As head rotates, holding forces of inserts are multiplied, which minimizes vibration and heat. Head can also hold beveling blade.

Rex-Cut Products, Inc.    Fall River, MA 02720
Sep 07, 2012 Featuring non-woven cotton fiber construction that constantly exposes fresh abrasives as they work, Rex-Cut® Smooth Touch(TM) Blending and Polishing Wheels are suitable for use on stainless steel, exotic metals, and aluminum requiring high finish. Wheels are available in standard coarse, medium, and fine grits for use at speeds up to 30,000 rpm. Incorporating proprietary bond that provides single density, wheels come in 2, 3, 4, and 6 in. diameters, with thicknesses of 1/8, ¼, and ½ in.

Ashby Cross Co., Inc.    Newburyport, MA 01950
Sep 07, 2012 Suitable for low- to mid-volume production, Model 1125 Variable Ratio IDS handles filled or unfilled epoxies, silicones, and urethanes, with ratios from 1:1-6:1 by volume. PLC-based unit has touchscreen interface with menu-selectable shot sizes from 0.30-160 cc, depending upon ratio, and accuracy and repeatability of ±1% by volume. Featuring 18 x 12 in. footprint, Model 1125 operates on 100 Vac and 100 psi air, and handles viscosities up to 100,000 cps.

Nu Flow    San Diego, CA 92121
Sep 07, 2012 Designed for indoor use of commercial, industrial, and high-rise buildings where it is difficult for pneumatic access, Light Duty Electric Micro-Cutter runs at 110 V with variable speeds in variety of pipes from 2-6 in. in diameter. Foot pedal activated unit includes water injection hookup and can negotiate turns of 90°.

Walter USA, Inc.    Waukesha, WI 53188
Sep 06, 2012 Along with high-gloss black finish resistant to wear and corrosion, Blaxx(TM) F5041 and F5141 feature indexable insert pockets that accurately and securely position inserts. Tangential inserts can increase insert area presented to workpiece as well as tool body stability. Precision inserts, manufactured in sizes LNHU0904 and LNHU1306, have 4 cutting edges, while controlled runout and concentricity of body and 90° perpendicularity to workpiece ensure accuracy.

Steinmeyer Inc.    Bedford, MA 01730
Sep 06, 2012 By using balls manufactured from silicon nitride instead of tool or stainless steel, Hybrid Ball Screws eliminate micro-welding in ball nut, minimizing friction and extending lifetime. Units are available in diameters ranging from 6-40 mm with pitches of 1, 3, 5, and 10 mm. Applications include semiconductor production machines, inspection equipment, medical/dental devices, aerospace robotics, and analytical equipment.

Bullet Tools    Hayden, ID 83835
Sep 05, 2012 Magnum Rigid Foam Cutter(TM) provides insulation installers with non-motorized cutting solution for rigid foam insulation sheeting, reducing jobsite noise, electricity requirements, and foam dust. Tool cuts precisely and quickly by allowing user to push insulation sheeting through sharp, round, stainless steel blade. Pressure of foam sliding across cutting table turns blade, eliminating need for motor. Features include aircraft grade aluminum frame, steel tracks, and resin-coated table.

Enerpac (Industrial Tools)    Milwaukee, WI 53201 3241
Aug 31, 2012 With 5 ton push capacity, 70 lb RAT-Series Rail Alignment Tool is used to safely and effectively position track to prevent motor car derailment issues. Integrated ACME extension screw reaches 16 in., achieving max tool extension of 76 in., with collapsed length of 46 in. Hydraulic bladder design reservoir allows use in any position, roll cage protects hydraulic pump, and steel guard covers hydraulic line. High-pressure relief valve and inline release knob are also standard.

Hardinge Workholding Division    Elmira, NY 14902
Aug 31, 2012 Featuring fully integrated 5-axis rotary table, Bridgeport® GX-250 5AX provides X, Y, Z axis travels of 11.8, 15.7, and 16.9 in., respectively. Fanuc 31i control system, equipped with 10.4 in. LCD, offers Simultaneously Controlled 5-axes, Macro Executer, Look Ahead 1000 Blocks, NANO Smoothing, Tilted Working Plane Function, and Polar Coordinate/Cylindrical/Helical Interpolation. C-frame machine meets demanding requirements of die/mold, aerospace, medical, and automotive industries.

Hardinge Workholding Division    Elmira, NY 14902
Aug 31, 2012 Featuring integrated 5-axis rotary table and Fanuc 31i control with 10.4 in. LCD, Bridgeport® GX-250 5AX vertical machining center (VMC) is designed to handle small, complex workpieces of die/mold, aerospace, medical, and automotive industries. This rigid C-frame machine has respective X, Y, and Z axis travels of 11.8, 15.7, and 16.9 in. and offers options such as part probe, tool probe, auto door with light curtain, mist collector, and C-axis encoder.

AIM, Inc.    Addison, IL 60101
Aug 29, 2012 In addition to turret tool changer with 3 satellite mandrel benders, Synchro Bender includes 2-plane straightener, 2000 Kgr automatic payoff unit, servo quad-roller feeder, bender axes, unlimited arm (Z-Axis) rotation, and IPC running Windows® and SmartEditor®. Preloaded graphics animation allows for program/data verification before running production parts, and wire can be fed directly from coil, straightened, bent, and cut using software package that provides flexible programming.

Quaker Chemical Corporation    Conshohocken, PA 19428
Aug 29, 2012 Suitable for use with gray cast iron and alloy steels, QUAKERCOOL® 3511 can operate within range of 125-750 ppm hardness while demonstrating optimal foam control and fines handling. Bio-stable coolant was formulated without any secondary amines, chlorinated or sulfurized compounds, or phenolic ingredients. Product delivers corrosion protection characteristics to ensure rust-free parts, and exhibits optimal tramp oil rejection properties to extend bath life.

Makino Machine Tool Co.    Mason, OH 45040 9695

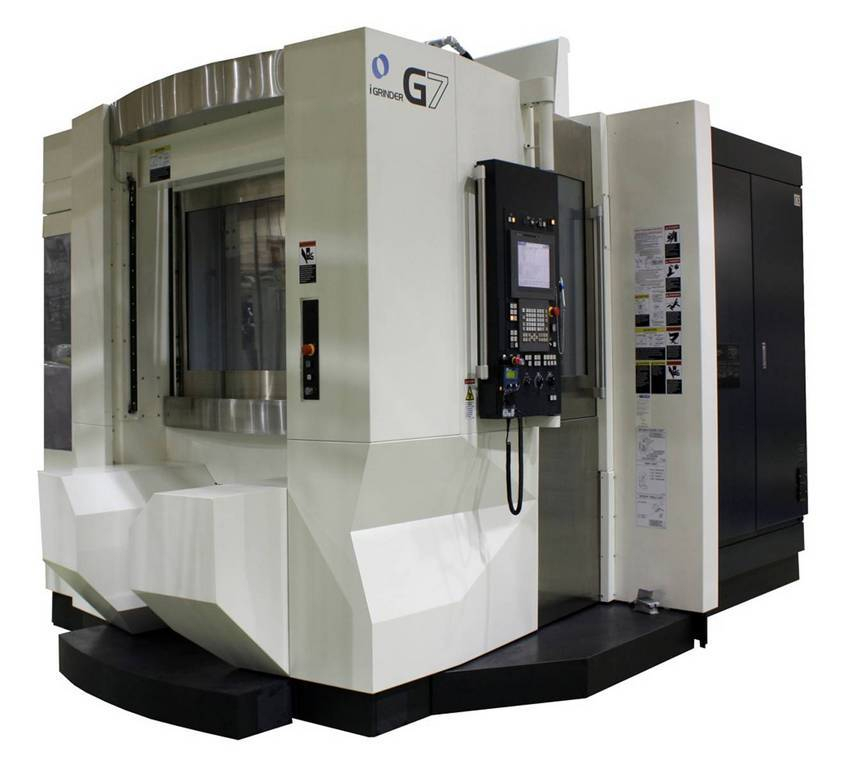

Aug 27, 2012 Capable of grinding, drilling, boring, and milling, G7 i Grinder features NC-controlled intermittent dress and employs 12,000 rpm HSK-63A spindle. Respective X-, Y-, and Z-axis travels of 690, 650, and 730 mm accommodate workpieces with max diameter of 535 mm, while infinite C-axis rotation and max B-axis rotation of 270° offer full access 3D parts for single-setup production capabilities. Two-axis Programmable Coolant Nozzle and 60-tool capacity automatic tool changer are standard.

NBE    Holland, MI 49424

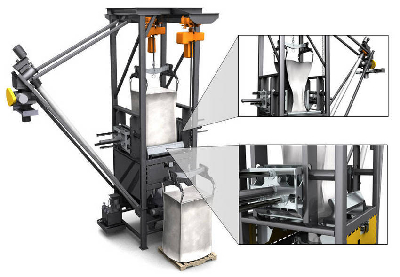

Aug 23, 2012 Using 4-stage material conditioning sequence, Automated Bulk Bag Unloader prepares extremely agglomerated material for supply to downstream liquification process. First conditioning stage uses 2 hydraulic de-blocking rams that deliver 28,000 lb of direct material force each. Next, dual hydraulic massage paddles reduce material to chunk sizes. Bag spout valve, with 1,000 lb of material break-up force, reduces material for supply to final stage where crumbler breaks material into ¼ in. pieces.

Absolute Machine Tools, Inc.    Lorain, OH 44053

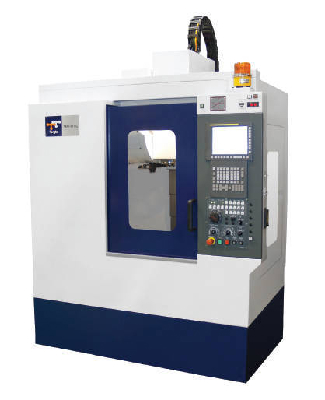

Aug 23, 2012 Featuring fixed column/moving table design, Model TMV-510G is equipped with 20,000 rpm direct drive spindle that is oil cooled for thermal stability, and 20-station arm-type automatic tool changer that produces tool changes in 0.8 sec with chip-to-chip time of 1.9 sec. Machine has 23.6 x 13.6 in. work table area and provides X-Y-Z travels of 20, 14.2, and 11.8 in., respectively. Double-nut preloaded design of 1 in. diameter Class-3 ballscrews permits rapid traverse rate of 1,890 ipm in all axes.

Advanced Sterilization Products    Irvine, CA 92618
Aug 22, 2012 STERRAD® NX® and 100NX® Systems are available with Digital Transfer Interface (DTI), which improves efficiency and productivity in healthcare facilities. Automatically transferring data to be stored on hospital's server, DTI technology helps keep information in one centralized location. DTI technology can also connect STERRAD NX/100NX Systems to key instrument tracking software (ITS), clearly identifying location and reprocessing status of devices.

Northfield Precision Instrument Corp.    Island Park, NY 11558
Aug 21, 2012 Model NF-800 includes set of hardened and ground subjaws and 2 sets of inserts. Subjaws are designed to accept inserts, making chuck capable of holding multiple parts and enabling quick change-over from one part to next. Subjaws were ground in place to allow for optimized accuracy and repeatability with better than .0001 TIR.

ESS Technologies, Inc.    Blacksburg, VA 24060
Aug 21, 2012 Engineered for pharmaceutical, diagnostic, and cosmetic filling/capping applications, Model MB 25 handles up to 60 small bottles, tubes, or micro-vials per min. Gravity chutes allow operator to manually feed containers, caps, and plugs to starwheel for automatic placement. Available in single or dual pitch configurations, system offers filling options for liquids, powders, and creams. It also handles variety of closure types, including screw-on and push-on caps, pumps, dispensers, and stoppers.

Walter USA, Inc.    Waukesha, WI 53188
Aug 21, 2012 Indexable grooving and cutoff inserts are available with Tigerotec® Silver PVD aluminum oxide coating, which offers high-temperature wear resistance to promote tool life. Optimized surface structure lowers friction on cutting surface; sharp, defined cutting edges can be achieved due to coating's thinness; and smooth surface helps prevent build-up on cutting edge while promoting process reliability. Four grades - WSM13S, WSM23S, WSM33S, and WSM43S - accommodate range of applications.
