Edmund Optics    Barrington, NJ 08007
Aug 23, 2011 Suited for high-speed imagery, Multiband Filters have multiple pass bands on single filter. This enhances fluorescence imagery and facilitates setup for various fluorescence applications. Hard coated and mounted in 25 mm dia black anodized housing, filters are optimized for transmission and blocking for maximum brightness and contrast. They are suited for simultaneous viewing of multiple fluorophores and come 2-, 3-, and 4-band variants.

Tecate Industries    Poway, CA 92064
Aug 19, 2011 Housed in case sizes of 8 mm D x 10.5 mm L and 10 x 10.5 mm, MXCPB Series offers 9 capacitance values from 22-560 µF with voltage options of 6.3, 10, and 16 Vdc. MXCPT Series, available in 4 case sizes from 6.3 mm D x 7.7 mm L to 10 x 12.5 mm, provides 15 capacitance values from 10-330 µF with voltages of 25, 35, 40, 50, and 63 Vdc. Capacitance tolerance is ±20% for both. Available in Pb-free and RoHS-compliant versions, devices are suited for consumer, industrial, and automotive electronics.

JKL Components Corp.    Pacoima, CA 91331-2376
Aug 18, 2011 Used where space is limited and brightness is required, ZLP Low Profile Series mounts on flat heat sink and has pitch that produces appearance of solid line of light. Individual bars, available in 1.6 and 3.5 in. lengths, deliver up to 100 lm/W and are offered in shades of cool, neutral, and warm white. Each bar offers dual connection, enabling several to be connected together for use as continuous parallel or planar light source.

Crystek Corp.    Fort Myers, FL 33907

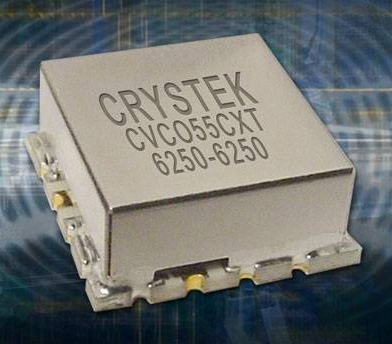

Aug 18, 2011 As coaxial-based VCO with internal proprietary frequency doubler, CVCO55CXT-6250-6250 operates with tuning voltage range of 0.5-4.5 Vdc. Typical phase noise is -100 dBc/Hz @ 10 kHz offset, and typical output power is 2.0 dBm into 50 ohm load with supply of +8.0 Vdc. Consuming 35 mA max, U.S. manufactured VCO comes in 0.5 x 0.5 in. package. Pushing and pulling are minimized to 1.5 MHz/V and 0.5 MHz, respectively, and second harmonic suppression is -30 dBc typ.

ERICSSON INC.    PLANO, TX 75024

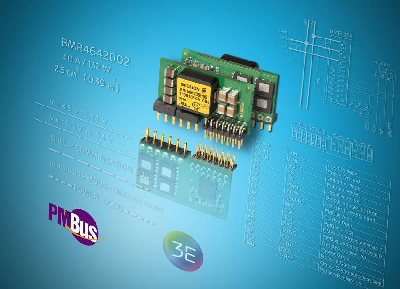

Aug 17, 2011 With single in-line packaging and footprint less than 0.39 in.², 40 A Model BMR4642002 accepts input voltages from 4.5-14 V and has output voltage range of 0.6-3.3 V with typical efficiency of 97.2% at 5 Vin, 3.3 Vout, and 50% load. Digital point-of-load regulator enables vertical mounting and can be configured and monitored via standard PMbus communication protocol and GUI. Primary end-use applications include network routers, data storage, and AdvancedTCA boards.

Key Digital Systems, Inc    Mount Veron, NY 10553
Aug 17, 2011 Designed for commercial and residential A/V applications, Phantom Series(TM) KD-HDDA1X1 supports all SD, HD, and VESA resolutions up to 1080 p. Unit passes 3D and 4K signals, HD Audio, and Audio Return Channel information back from display, and can negotiate handshake with internal EDID library of 10 default HDMI handshakes. Extender offers full audio control for each output, including volume, multi-band equalizer, and lip sync control. Up to 3 extenders may be daisy-chained.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Aug 17, 2011 Supplied in 4 x 4 mm package, DAC161P997 delta-sigma DAC features single-wire interface and 4-20 mA current loop drive. Product helps reduce component count by enabling use of single isolation component to cross isolation boundary and can also interface directly to MCU. While consuming less than 190 µA, IC offers 16-bit accuracy with minimal temperature coefficient of 29 ppm and long-term output current drift of 90 ppm. Loop drive interfaces to HART modulator.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Aug 17, 2011 Able to be used in high- and low-voltage supply applications, OPA2188 comes in 3 x 5 mm MSOP and 5 x 6 mm SOIC packages. Zero drift architecture, at 0.03 µV/°C, minimizes system calibration requirements. In addition to 25 µV initial offset and 8.8 nV/rtHz noise, op amp provides 2 MHz bandwidth while consuming 475 µA quiescent current. Input common mode range extends from negative rail to within 1.5 V of positive rail, saving additional circuitry and enabling 5 V, single-supply operation.

Colder Products Co.    St. Paul, MN 55114
Aug 16, 2011 Mini Hybrid Connector integrates air lines and electronics into single connection point for remote tools on medical devices and equipment. Valved solution, suited for use in low-pressure applications, eliminates need for multiple connections and allows clinicians or therapy patients to change/replace modular tools, umbilicals, or hand pieces that require power, signal, and gases.

M/A-COM Technology Solutions, Inc.    Lowell, MA 01851
Aug 15, 2011 Supplied in 4 x 4 mm, 20-lead, plastic QFN package, MAAM-009455 is configured as pair of cascade structures and features 20.5 dB gain with broadband linear performance. It uses M/A-COM Tech baluns, input and output, to ensure optimal second order performance. Operating from 8 V, this differential amplifier also features external feedback which allows for gain tuning. Characteristics include gain flatness of 0.5 dB typ over 50-1,000 MHz operating band and -70 dBc CSO/CTB.

Toshiba America Electronic Components (TAEC)    Irvine, CA 92618-1811
Aug 15, 2011 Combining trench MOS process with DPAK+ package technology, power MOSFETs improve application performance while reducing noise and PCB real estate. Products include 11 n-channel devices with choice of 40, 60, and 100 V max voltage ratings and 10 p-channel parts with -40 and -60 V max voltage ratings. Depending on device, current ratings range from +8 to +80 A. All MOSFETs operate in environments with channel temperatures up to 175°C, and power dissipation at 25°C is 100 W.

Weidmuller, Inc.    Richmond, VA 23236

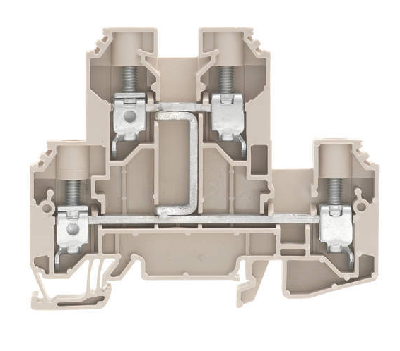

Aug 15, 2011 With 10 mm width, Model WDK 10 offers high wiring density for power distribution applications requiring 6 AWG conductors. Unit integrates 2 independent circuits within 1 terminal and includes corresponding jumpering channels that accommodate connection of screw-down jumpers to adjacent terminals. Featuring vibration-proof and maintenance-free self-locking screw clamp termination, Model WDK 10 is electrically rated for 600 V/64 A/18-6 AWG to UL and CSA standards.

Sonics & Materials, Inc.    Newtown, CT 06470
Aug 12, 2011 MPU-controlled SmartControl series has interface with optimized navigation, command flow, and graphics that highlight multiple menus designed for fully automatic control across 40, 20, and 15 kHz welding frequencies. Generators provide 400-6,000 W for ultrasonic welding presses and actuators. All units offer Digital Time, Energy, and Height-based weld modes; automatic frequency tuning; digital amplitude control; multiple job storage; and digital stack frequency and wattage display.

Crystek Corp.    Fort Myers, FL 33907

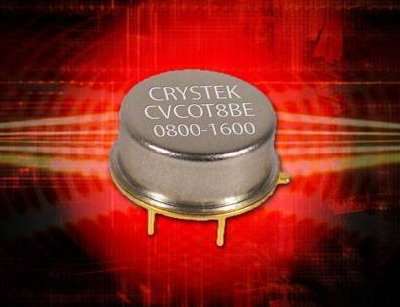

Aug 10, 2011 Housed in hermetically sealed TO-8 package, Model CVCOT8BE-0800-1600 provides frequency control in harsh, demanding environments. Unit features typical phase noise of -92 dBc/Hz at 10 kHz offset and tuning sensitivity of 79 MHz/V. Pulling and pushing are minimized to 20.0 MHz and 4.0 MHz/V, respectively, and second harmonic suppression is -10 dBc typical. With max current consumption of 20 mA and input voltage of 15 V, USA-made VCO features control voltage of 0~20 V and +10 dBm output power.

ETCO South    Bradenton, FL 34203

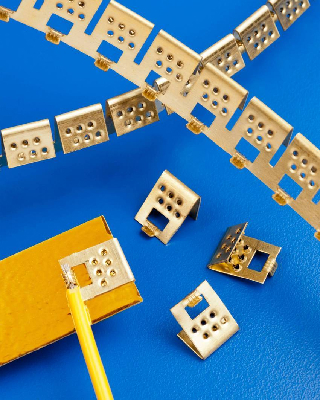

Aug 10, 2011 Supplied in strip form, ETCO FWC Series Connectors attach 8-22 AWG wires to aluminum- and copper-foil or film laminates from 0.001-0.095 in. thick. Units feature ears for wire attachment and 2 faces with lances that securely embed into foil or film when crimped. Available in brass and tinned high brass, connectors can attach multiple layers securely and are suitable for transformers, capacitors, relays, flexible heaters, and electro-luminescent lighting and displays.

STMicroelectronics    Lexington, MA 02421
Aug 10, 2011 Supporting Calypso Rev 3 ticketing open standard, CD21-Rev3 Secure Microcontroller provides secure platform for extra e-purse and mobile-payment services. Equipped with ST23 secure processor core, IC features dual interface for contact or contactless applications and is available with 3 EEPROM density options of 4, 8, or 18 KB. Backward compatibility with legacy readers enables adoption of Calypso Rev 3 in mass-transit networks worldwide.

Mill-Max Mfg. Corp.    Oyster Bay, NY 11771

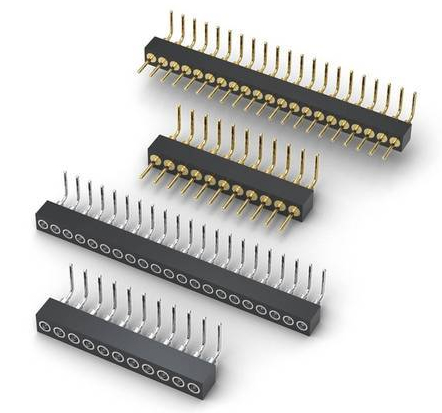

Aug 09, 2011 Single-row, right-angle sockets and headers can be combined with vertical .070 in. pitch connectors for various interconnect configurations. Right-angle header and socket pair suit board edge daisy chain applications or mix-and-match with vertical sockets and headers for perpendicular mating of boards. With 871 series, sockets accept device leads as well as mate with 870 header series. Sockets allow for versatility in orientation of display and imaging chips built on Shrink DIP platform.

Advanced Analogic Technologies Inc.    Sunnyvale, CA 94085
Aug 09, 2011 Operating from 2.7-5.5 V input and providing 2.5 A output current, Model AAT2138 features integrated, ±10% precision current limit load switch designed to safely regulate power in USB peripherals. Single chip device includes PFM/PWM modes, external synch clock up to 3 MHz, switching frequency of 2.8 MHz, and adjustable output voltage and current limit. Housed in 3 x 3 mm, 14-pin TDFN package, converter utilizes 1 µH inductor with no external compensation required.

Kemet Electronics Corp.    Greenville, SC 29606
Aug 09, 2011 With DC leakage at 0.0075 CV, T489 Series is suited for decoupling and filtering in high-end industrial and automotive applications. Units are rated from 6.3-50 Vdc with capacitance values from 0.1-470 µF and tolerances of ±10% and ±20%. Standard terminations are available in 100% matte tin and provide compatibility with surface mount solder systems. Operating from -55 to +125°C, RoHS-compliant capacitors use halogen-free epoxy and meet or exceed EIA standard 535BAAC.

Kemet Electronics Corp.    Greenville, SC 29606
Aug 09, 2011 With capacitance from 1,000 pF to 6.8 µF, FO-CAP MLCC combines open mode chip design and flexible termination. Open Mode component utilizes internal electrode, which minimizes possibility of short circuit condition if mechanically damaged. Flexible Termination component, utilizing conductive silver epoxy, establishes pliability while maintaining terminal strength and solderability. Available in DC voltage ratings of 16, 25, 50, 100, and 200 V, RoHS-compliant device operates from -55 to +125°C.
