Motor & Driver Packages

Controls & Controllers, Mechanical Power Transmission

Integrated Drive-Motor simplifies cabling, frees up panel space.

August 31, 2012

Allen-Bradley Kinetix 6000M lets machine builders reduce control-system enclosure size, wiring time, and cabling complexity. Combining Allen-Bradley MP Series food-grade servo motor and Kinetix 6000 multi-axis servo drive technologies, on-machine package offers hybrid/network cable daisy chain that replaces individual power and feedback cables for panel-mounted servo drives. Drive-motor comes in 3 frame sizes, offering optional holding breaks and SIL2/PLd safe torque-off functionality. Read More

Controls & Controllers, Mechanical Power Transmission

New Motor Models Added To Compact Microstepping Motor and Driver Package

April 10, 2009

Encoder motor models added to CMK lineup<4444>Torrance, CA - April 10, 2009 - ORIENTAL MOTOR USA CORP. announces the expansion of the CMK series of 2-phase microstepping driver and motor packages. The 2.22 in-sq. round shaft frame size version of our PK-P high torque motors has been added to the product lineup. Standard encoder motor models have been added to the 1.38 in sq., 1.65 in sq., 1.97... Read More

Controls & Controllers, Mechanical Power Transmission

WEG Motor/Drive Combo Offers Maximum Efficiency

November 14, 2008

October 26, 2008<4444>AC Induction Motors, Paired with New CFW11 VF Inverters with OptimalFlux(TM) Technology, Reduce Heat Build-Up, Double Service Life<4444>ATLANTA, GEORGIA - October 26, 2008 - WEG Electric Corp. (, a leading global supplier of motors, drives, controls, transformers, and generators, announces a more efficient motor/drive combination that can significantly increase... Read More

Controls & Controllers, Mechanical Power Transmission

Stepping Motor/Driver has 3-phase layout.

January 28, 2008

NEMA size 24 motor has 6 inputs and 3-phase layout that promotes quiet and smooth operation as well as accuracy with step angle of 1.2°. Operating with direct current input of 18-45 V, its P306 driver produces output current of 3.0-5.8 A per phase. Eight microstepping resolutions can be selected with this full bridge, bipolar unit, and smooth operation makes this product suitable for replacing 2-, 4-, or 5-phase stepper motors. Read More

Controls & Controllers, Mechanical Power Transmission

Variable Frequency Motor Drive has compact design.

January 18, 2008

With 0.25-3 hp rating, Model ACS55 VFD is available in 3 widths including 1.77, 2.66, and 2.77 in, depending on power rating. Interface allows basic parameters to be set up using DIP switches and potentiometers, while removable mounting clip allows DIN-rail and wall mounting from rear and side of unit. Optional DriveConfig kit PC tool enables parameter setting and software updating without need for power connection. Drives are suited for high volume manufacturing applications. Read More

Controls & Controllers, Mechanical Power Transmission

Ethernet-Compatible Three-Phase AC Motor Drive Injects New System Building Flexibility into the Large Machinery Sector

April 4, 2007

Fort Smith, AR, November 28, 2006 - Baldor Electric Company is launching a ground-breaking range of three-phase AC motor drives. In addition to introducing the flexibility of Ethernet Powerlink and TCP/IP connectivity into the high-power machine building sector, a focus on modularity, combined with novel design features, provides users with significant potential for saving costs.<4444>The new... Read More

Controls & Controllers, Mechanical Power Transmission

Drive provides distributed motion control.

January 31, 2006

Available for dc brush, brushless dc, and microstepping motors, ION(TM) DC Brush Drive provides network connectivity, power amplification, and distributed control in asynchronous serial network (RS485) or CANBus network. Up to 127 ION modules can be connected on single network. With output of up to 15 A peak, and 500 W at 56 V, it features hardware performance trace, on-the-fly profile changes, and PLC style inputs and outputs. Read More

Controls & Controllers, Mechanical Power Transmission

AC Adjustable-Speed Drive has compact package.

November 7, 2003

Flux-vector SECO(TM) SV3000 provides precise control of speed and torque of ac induction motor. Available from 1-350 hp in open-loop and closed-loop models, it features NEMA 4/12 enclosures, line fuses, and application-specific firmware. Unit starts with press of a button, and security codes limit access to authorized persons only. Programmable I/O and multiple communication formats facilitate integration into process control or manufacturing applications. Read More

Controls & Controllers, Mechanical Power Transmission

Microstepping Motor/Driver offers position accuracy to ±0.17°.

April 8, 2003

Nanostep® CFKII Series miniature 5-phase hybrid motor is 0.79 in. sq and produces 3.2 oz-in. of holding torque. Motor/driver package creates microstepping system with low velocity vibration. Open frame modular driver provides 16 user selectable resolution settings up to 125,000 steps per revolution. Open loop driver has mid-frequency resolution suppression circuit and utilizes 24 Vdc and currents of 1 A per phase to drive and control miniature motor. Read More

Controls & Controllers, Electrical Equipment & Systems, Mechanical Power Transmission

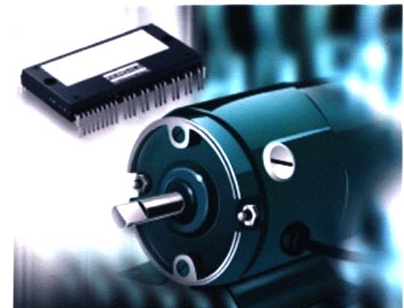

Power Modules control appliance motors.

May 28, 2002

SPM(TM) Smart Power Modules provide adjustable-speed motor drive control and integrated circuit protection for ac motors in appliance applications such as washing machines and air conditioners. Modules come in compact 60 x 31 mm dual in-line packages, require less board space as discrete IGBT solutions, and have high-voltage output stage rated at 10-20 A at 230 Vac. High-speed high voltage control circuit built into module eliminates need for opto-couplers. Read More

Controls & Controllers, Mechanical Power Transmission

Microstepping Motor/Driver provides high-accuracy positioning.

March 30, 2002

Modular, open-framed Nanostep(R) CFKII Series 5-phase microstepping motor and driver is available in high-torque motor frame sizes: 1.1, 1.65, 2.36, and 3.35 in. sq. Holding torques range from 4.6 oz-in. (CFK533AT) to 890 oz-in. (CFK5913HAT), and position accuracy is rated at +/-3 arc-minutes. Unit provides 16 user-selectable resolution settings up to 125,000 steps per revolution. Open-loop driver has mid-frequency resolution suppression circuit. Read More

Controls & Controllers, Mechanical Power Transmission

Motor-Driver Packages are available with size 34 motor.

January 7, 2002

CSK Series features size 34, 2-phase, hybrid stepping motor and compact board level driver. Holding torque values vary from 305 oz-in. for CSK296-ATA to 916 oz-in. for CSK2913-ATA stepping motors. Driver packages produce drive currents of 4.0 and 4.5 A per phase. They include automatic current cutback function. Step angle select switch allows user to select full step (1.8°) or half step (0.9°) operation. Read More
