Mitsubishi Caterpillar Forklift America, Inc.    Houston, TX 77043
Jun 02, 2011 In addition to dual articulating load wheel design, electric Jungheinrich® EJC B14/B16 incorporates proportional lift/lower control, optional electric power steering, and multifunction control tiller head. Precise speed and torque control facilitates maneuvering, even in confined warehouse applications, and tiller head controls may be activated with either hand. Also included, crawl speed button allows travel with handle in upright position.

LVD Group    GULLEGEM 8560  Belgium
Jun 01, 2011 Designed for Strippit V, VT, M, and VX Series punch presses, Model CT-P facilitates unattended operation by providing loading, unloading, and storage of raw materials and finished parts. Available in 6-pallet and 10-pallet configurations, unit handles workpieces up to 98.4 x 48.2 in. and sheet weights up to 198 lb with max load/unload pallet storage capacity of 5,511 lb. Spreading magnet, air knife, and peeling cylinder prevent loading of more than 1 sheet at a time.

Key Technology, Inc.    Walla Walla, WA 99362
Jun 01, 2011 Featuring 2 ejector systems and 2 m wide scan area, Manta® performs high-resolution imaging to detect small defects and foreign material via color and laser sorting. System allows food processors to automatically eject product that can be reworked and recovered separately from material sent to waste. Good product continues though camera/laser sorter unaffected. Capable of handling up to 60,000 lb/hour, Manta can be changed over via touchscreen to achieve 2-way sorting if desired.

Superior Industries Of Morris    Morris, MN 56267
May 31, 2011 Comprised of primary and secondary scrapers with common mounting point, Exterra® SFL Dual Belt Cleaner nearly eliminates material carry-back from top cover of conveyor belting after it passes over head pulley. System's tensioning system creates pressure that is set once, for life of blade, during installation. Primary scraper is made of urethane, while secondary cleaner is available in AR steel or tungsten carbide with segmented blades to withstand vibration and impact from belt splices.

Lincoln Electric Co. Inc., The    Cleveland, OH 44117
May 31, 2011 With dual-range wire feed speeds respectively set at factory to 50-400 and 50-700, LN-25 Pipe and LN-25 Ironworker® handle up to 450 A at 60% duty cycle. Both can feed .023-1/16 in. solid wire, .035-1/16 in. aluminum wire, and .030-5/64 in. cored wire. Extra Torque model, with variable speed from 30-400 ipm, handles wire from .030-3/32 in. Features include gas solenoid and internal contactor, trigger interlock switch, cast aluminum MAXTRAC® Wire Drive system, and polycarbonate case.

Lincoln Electric Co. Inc., The    Cleveland, OH 44117
May 31, 2011 Intended for use with Power Wave® advanced process welding power sources, Power Feed® 25M is push-pull capable for aluminum wire feeding with push-pull gun. Unit utilizes MAXTRAC® wire drive system with dual gear-driven drive rolls, and split wire guide that aligns and supports wire through entire drive path. Five-pin ArcLink® Connector with Spin-Nut(TM) facilitates connection to power source, while UtimArc(TM) Controls gives user ability to adjust arc characteristics to match individual preferences.

Kinetic Systems, Inc.    Boston, MA 02131
May 27, 2011 Offered with up to 4 x 8 ft table and gross load capacities to 2,000 lb, MK52 optical table isolation support system may be used where external vibrations adversely affect operation of sensitive equipment. Horizontal isolation is provided by beam columns connected in series with vertical-motion isolator. When adjusted to ½ Hz natural frequency, system achieves 93% isolation efficiency at 2 Hz, 99% at 5 Hz, and 99.7% at 10 Hz. Tables are constructed with plated-steel honeycomb core.

Bishop-Wisecarver Corporation    Pittsburg, CA 94565 0209
May 27, 2011 Track Support joins MinVee® low-profile, miniature linear slide system track to mounting substrates and ensures clearance for free travel of carriages. Made from extruded 6063-T6 aluminum alloy, support is clear anodized and comes in single-piece lengths to 10 ft. Longer track lengths are possible via multiple, butt-jointed track supports. Continuous, lengthwise contact, along with support for DualVee® track across full mounting surface width, ensures optimal support and rigidity.

Schunk    Morrisville, NC 27560
May 26, 2011 Designed for automated tool and cutter grinding, PRISMO Toolholder is based on precise clamping sleeve with prism guidance. Each of 5 chuck jaws is guided by double prism, while third prism on clamping face directly contacts tool shank. Holder always adjusts itself to individual tool diameter. At overhang length of 2.5 x D with tool diameter of 20 mm, PRISMO provides repeat accuracy of less than 0.005 mm. To avoid contamination, toolholder is rinsed with clean oil during grinding operation.

Essemtec Ag      Switzerland
May 25, 2011 Able to store 336, 13 in. dia reels, Tower-XL offers fully automatic, modular, and secure storage system for SMD components. It helps electronics manufacturers simplify logistics by installing near pick-and-place machines, enabling operators to store components and retrieve them from stock when needed. Access time for each reel is less than 12 sec, and included stock management software features modules for job planning and tracking of MSL-classified components.

CoverMate    Hayward, CA 94545
May 25, 2011 Made from clear FDA-compliant food-grade material, free of BPA and PVC, Extra-Large Stretch-to-Fit Covers fit full and half-size hotel and catering pans, cafeteria trays, large serving bowls, and platters. Covers help eliminate spoilage and prevent odor migration where food ingredients and prepared items are stored in walk-in coolers and freezers. FlexBand® creates secure seal over any size or shape container while enabling covers to stretch freely, even after repeated use.

Applied Energy Systems, Inc.    Malvern, PA 19355
May 25, 2011 Conforming to Semi S2 and International Fire Code, 3-cylinder Centurion(TM) gas cabinet safely stores and handles hazardous, ultra-high purity process gases. It performs purging and cylinder switch-over automatically, enabling 24/7 operation while also promoting operator safety during cylinder changes. Measuring 40 x 23 x 86 in., cabinet is constructed of welded 11 Ga steel and offers fluid components of ultra-high purity construction with 10 Ra max surface finish.

Master Magnetics, Inc    Castle Rock, CO 80104
May 24, 2011 Rated at 65 lb pull, industrial-strength Neodymium Rotating Magnetic Hook is suited for hanging heavy equipment. Unit can swivel 360° and swing 180°, adapting to any position without repositioning. Hook securely holds cables, tools, wires, and other equipment in workshops, garages, warehouses, and contractor vans.

FlexLink Systems, Inc.    Allentown, PA 18106
May 24, 2011 Available in 3 widths of 85, 180, and 300 mm, respectively, Models X85X, X180X, and X300X are suited for handling products in production and packaging lines within fast moving consumer goods and healthcare industry segments. Model X85X has upper speed level of 120 m/min, while wider versions can run up to 80 m/min. Powered by IP65 rated drive units with food-grade oil, conveyors come in wash down, wipe off, and covered return chain versions.

Haeco    Loveland, OH 45140

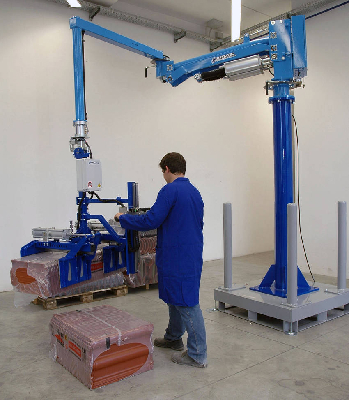

May 23, 2011 Designed to precisely balance heavy loads, pneumatically powered Famatec Friendly Manipulator enables operator to effortlessly suspend, rotate, tilt, and transfer products, eliminating back strain and repetitive motion injury. Three models are available with load capacities of 330, 550, and 880 lb, and working radius of 20 ft. Suspended product can be rotated ±90° under power, or rotated continuously by hand, with powered tilting range of 0-93°.

Anver Corp. - Anver.Com    Hudson, MA 01749
May 20, 2011 Incorporating dual function pick-up head, VT-Series uses 2 suction pads for lifting boxes and hook for attaching pails and similar loads. Unit has ergonomic curved handle and built-in up/down controls that adjust to user's hand strength. Available in air- or electric-powered models, VT-Series swivels full 360° under vacuum and provides 100% continuous duty cycle. Lifter includes vacuum gauge and wire-reinforced tube with protective cover.

Ondrives Ltd.    Chesterfield, Derbyshire S41 9RN  United Kingdom
May 19, 2011 Cast iron wormwheels, available in 2.5 and 3.0 Module, are designed to be run together with 817M40T or 303 stainless steel worms or worm shafts as standard. Cast iron GG25 material was chosen for engineering properties such as melting point, fluidity, castability, machinability, resistance to deformation, and wear resistance. Available with 1, 2, 3, or 4 starts and 15-48 teeth as standard, wheels may be ordered with different bore sizes, keyways, tapped, and pin holes.

Northfield Precision Instrument Corp.    Island Park, NY 11558
May 19, 2011 Measuring 6 in. dia, Model DPH-600W employs special jaws and stop to grip plasma welding nozzle. Stop has six .040 in. dia air detect holes for part seating confirmation, and chuck is counterbalanced to maintain exact jaw for up to 6,500 rpm. Along with respective radial and axial accuracies of 0.000020 and 0.000010 in. TIR, product offers max speed of 10,000 rpm, standard chucking range of 0-4.8 in., and 0.060 in. jaw stroke with pull-down action (1.5 in. top jaws).

SEER Technology    Salt Lake City, UT 84109
May 18, 2011 NAViSEER® Precision Personnel Tracking System delivers intercontinental, real-time tracking capabilities, even in GPS-denied environments. Worn by personnel indoors or outdoors, NAViSEER unit generates geo-position data in seconds for display on 2D and 3D visualization software. Wireframe diagram of any building or facility in world can be constructed in seconds without prior knowledge or information, letting viewers determine location of personnel at all times.

Stakrak Ltd    West Sussex RH11 9SH  United Kingdom

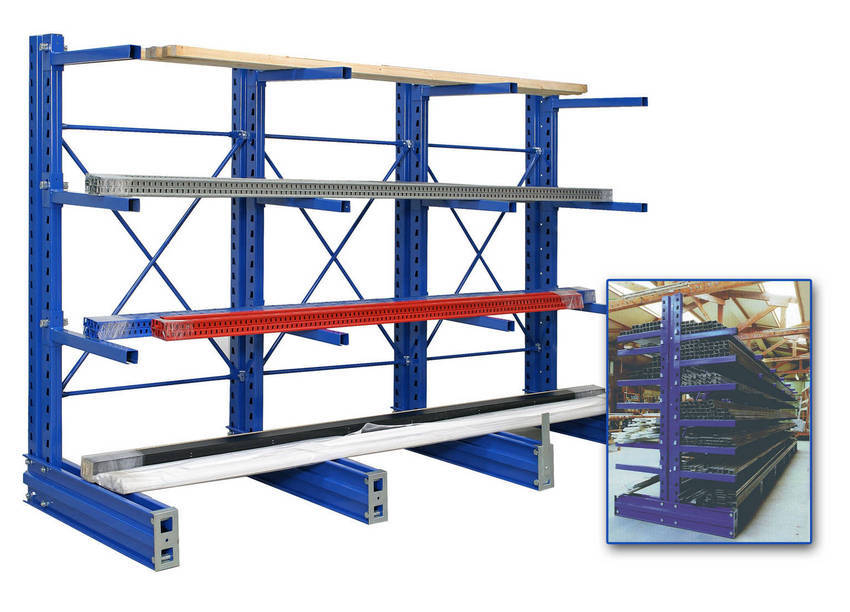

May 17, 2011 Light-duty cantilever storage racking is available in 3 heights and 2 depths in both single- and double-sided configurations. Each bay is supplied with 3 arms/frame, but user can add or deduct levels based on requirements, with one base/bay along with necessary bracing and fixing plates. Lightweight frame with durable epoxy finish in blue RAL5010 offers storage capacities of up to 1,750 kg, while arms, which can be adjusted every 70 mm, carry loads up to 185 kg.
