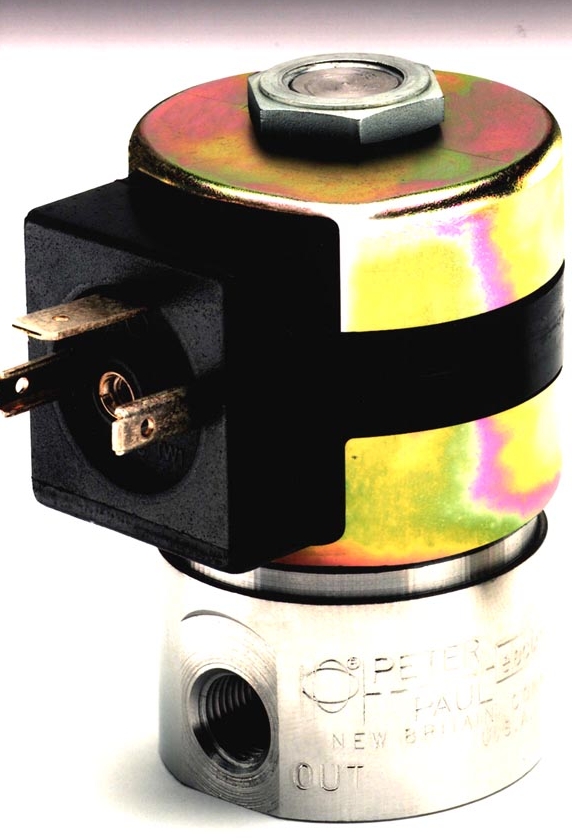

Peter Paul Electronics Co., Inc.    New Britain, CT 06050
Apr 17, 2002 Magnetic latching valve is offered in 6, 12, and 24 Vdc, each drawing 10 W when energized. It consists of coil/magnet assembly encapsulated into single package with integral Form A DIN connection. Valve requires 100 msec of power application to latch or unlatch. Latching component is external to valve for adaptation to Series 20 or Series 80 valves with internal spring change.

EagleBurgmann Industries    Houston, TX 77040
Apr 16, 2002 M7iM seal utilizes 1-piece Super-Sinus spring to provide uniform axial force. Designed for ANSI pumps, seal offers interchangeable parts, self-cleaning open drive collar, and cold-formed material structure. Sizes range from 1.000 to 4.000 in. Model M7iM operates in temperatures from -58 feg F to 430 deg F, and its operating pressure limit is 360 psi. It is capable of operation at shaft speeds up to 66 ft/sec.

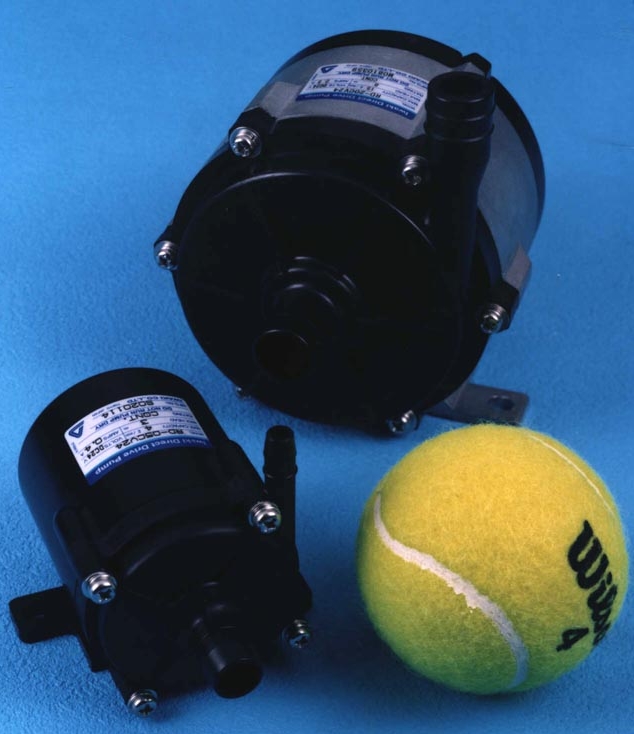

Iwaki Walchem Corp.    Holliston, MA 01746
Apr 15, 2002 Sealless RD Series provides constant flow over wide range of pressures up to 15 psi. It has brushless 24 Vdc motor and can be located close to fluid reservoir. Quiet running, and rated for over 25,000 hours operation, canned-motor pump directly drives rotor magnet incorporating impeller. Casing completely seals pump chamber from exterior. Flow rates range from 1.1 to 5.3 GPM in footprints from only 3 x 4 in. to 4 1/2 in. sq.

Vaccon Co., Inc.    Medway, MA 02053
Apr 15, 2002 CDF Series combination vacuum pump and cup generates high vacuum flow suitable for picking up light, porous objects such as open celled foam, fabric, fibrous paper products, and stenciled or screen printed circuit boards. It operates on Coanda Effect, where small volume of compressed air is converted into large flow of ambient air. Amplifiers are available in 7 standard models with internal bores from 1/8 to 2 in., and vacuum flows from 6 to 350 scfm.

Bio-Chem Valve Inc.    Boonton, NJ 07005
Apr 11, 2002 Inert solenoid operated isolation valves are 3/8 in. in diameter, allowing up to 4 manifold mounted valves to fit in 1 1/4 in. square space. Two-way, normally closed valves come in 3 body designs. Two incorporate rectangular body with 1/4-28 flat bottom ports on bottom or side. Manifold version has screw-in collar for easy assembly and exchange. Valves are constructed of PEEK or PPS with Teflon wetted materials.

Lee Company, The    Westbrook, CT 06498 0424
Apr 10, 2002 CCPI Series Press-In Chek miniature cartridge style check valves are available in 5.5 and 8 mm diameters. Barbed design provides retention and prevents any bypass leakage around valve. Each valve is 100% tested for flow, leakage and cracking pressure. Press-In Chek valves are offered in cracking pressures from 0 to 72.5 psid and are compatible with most fluids.

Acme Cryogenics, Inc.    Allentown, PA 18103

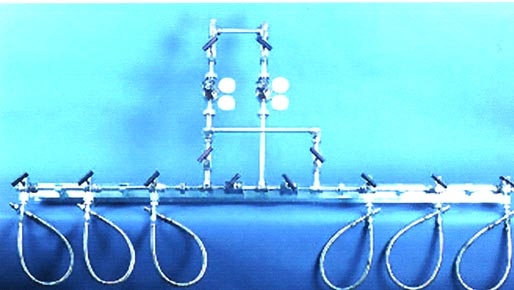

Apr 10, 2002 Stainless steel stationary discharging manifolds handle various gasses, but are best suited in handling Hydrogen, Carbon Dioxide, and Nitrogen. Also available in other materials, manifolds employ Automatic Switchover option, and promote uniform emptying of cylinders. Delivery pressure is rated at 10-250 PSIG, and configuration design handles up to 24 cylinders.

Moyno Inc.    Springfield, OH 45501 0960

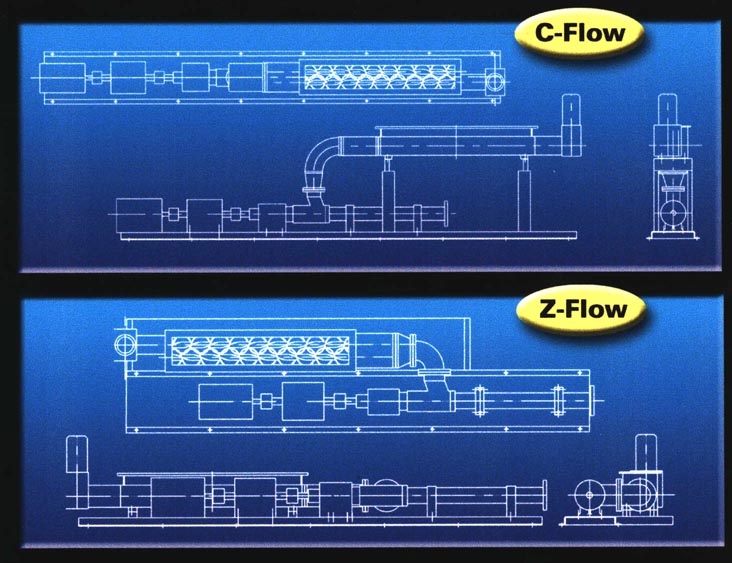

Apr 10, 2002 2000 HS System, designed for transferring dewatered sludge in municipal wastewater treatment, features integral hopper with twin-screw auger feeder and Model 2000 G4 progressing cavity pump for handling semi-dry, high solids content material. Feeder supplies constant pressurized feed rate to pump resulting in 100% pump cavity fill rate. Configurations include: C-Flow, S-Flow, T-Flow, U-Flow, and Z-Flow.

Camfil Farr    Riverdale, NJ 07457
Apr 10, 2002 Ultrasolve(R) minipleat air filter is only 4 in. deep, saving air handler component and inventory space, and its low pressure drop reduces energy consumption. Filter is available in three efficiencies: MERV 11, 13 and 14 based on ASHRAE 52.2. All use polypropylene media with high strength, low resistance to airflow, and moisture resistance in high humidity applications. Applications include commercial, food processing, electronics, and other facilities.

Eaton Corp., Cutler-Hammer Group    Moon Township, PA 15108
Apr 10, 2002 VR-Series medium voltage vacuum replacement (MVVR) breakers are functional electrical and mechanical replacements for air magnetic circuit breakers. Four times faster and 16 times more powerful than air magnetic breakers, they have SureClose(TM) MOC system that prevents stalling and damage to cell and MOC switch. Breakers are reversible, if cell structure modifications are necessary, and only require one outage for removal and installation.

Van Air Systems, Inc.    Lake City, PA 16423 2095

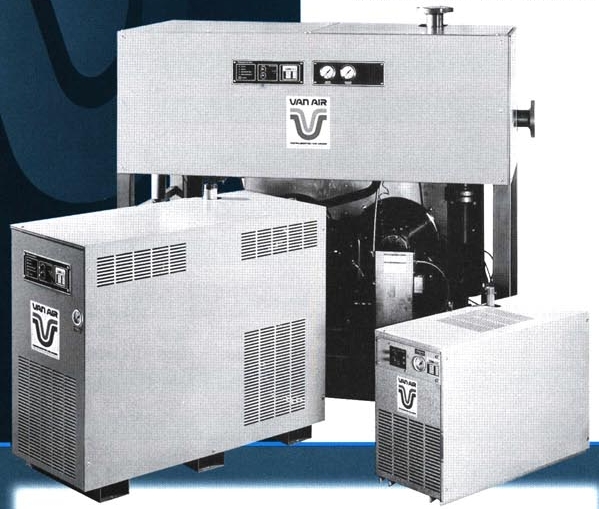

Apr 10, 2002 RD Series refrigerated compressed air dryers remove moisture from indoor air lines while providing 35 to 38 deg F dew point, low pressure drops, and no heat exchanger freeze-ups at low loads. It has non-cycling refrigerant compressor, CFC-free R-22 refrigerant, and capacity control valve to maintain steady dew point when flows fluctuate. Models are available to handle flows from 10 to 3,000 scfm at 100 psig. Models under 40 scfm include built-in mechanical drain.

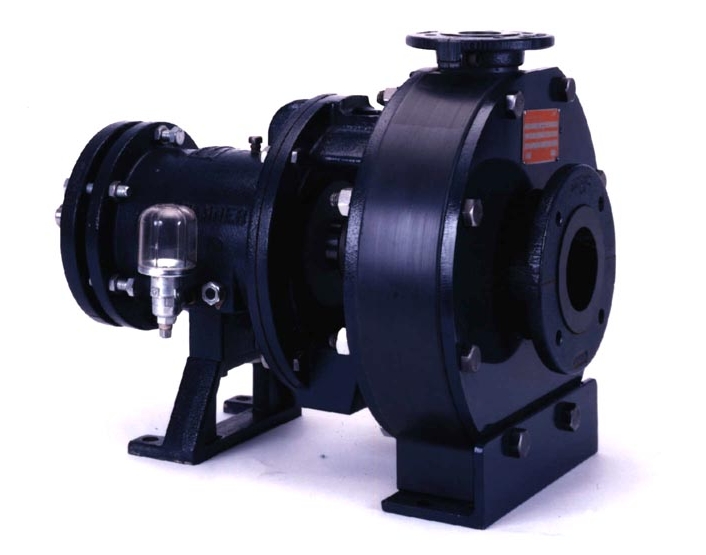

Wanner Engineering, Inc.    Minneapolis, MN 55403
Apr 10, 2002 Stan-Cor Series non-metallic centrifugal pumps are suited for pumping abrasive and corrosive process fluids. They provide total dynamic head to 350 ft and flow rates to 700 GPM. Solid Kynar or Teflon(R) pump head provides chemical compatibility and abrasion resistance. They are equipped with concentric casing designs, heavy-duty drive shaft, and duplex contact thrust bearings.

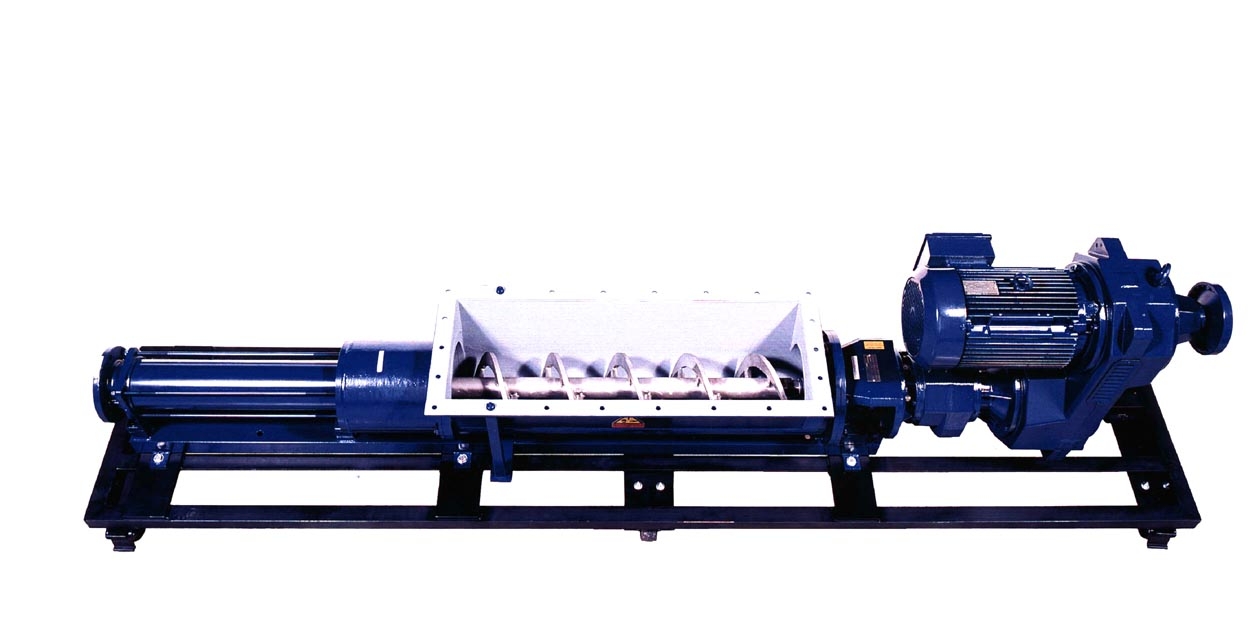

seepex, Inc.    Enon, OH 45323
Apr 08, 2002 BTE open hopper progressive cavity pump incorporates high volume auger and induction chamber, allowing pump to handle viscosities to 700,000 cps, paper stock to 12%, and sewage sludge to 32% solids. Ribbon mixer type auger can be substituted for the solid auger for high shear mixing and blending. Pump can be constructed in hopper lengths up to 10 ft.

Oil-Rite Corporation    Manitowoc, WI 54221 1207

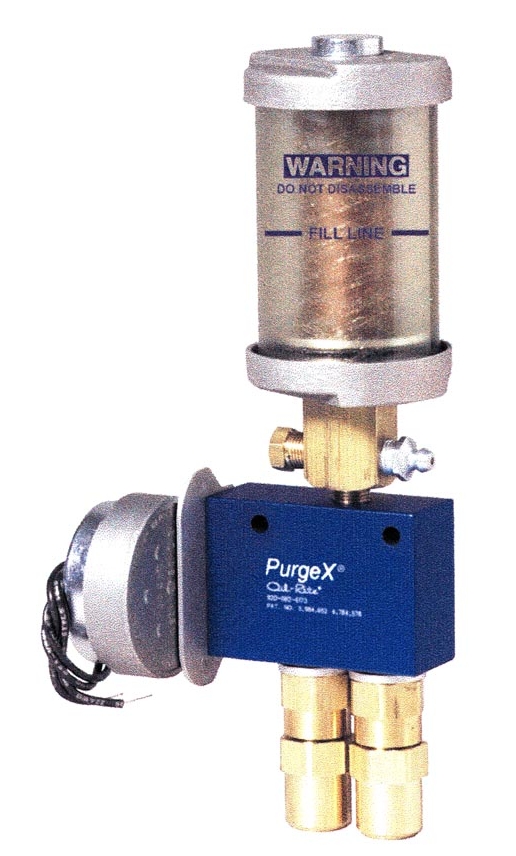

Apr 08, 2002 PurgeX(TM) has single piece piston that dispenses up to 0.012 cu in. of grease per cycle. Grease is supplied from reservoir to injector pump. Reservoir location is not critical, and meters can be mounted in any position. Electrical energy from switch timer or computer will activate system. Buna N and Viton seals are used throughout for positive sealing. All air and impurities are completely ejected with each stroke, thus eliminating vapor lock.

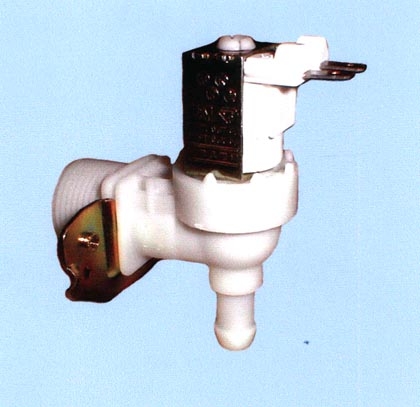

Deltrol Controls, Div. of Deltrol Corp.    Milwaukee, WI 53215
Apr 08, 2002 DSVP40 Series handles water pressures from 3 to 145 psi with internal flow regulation. Plastic bodied units offer inlet screen and chloramine resistant components. 3 models are available covering single and dual output versions. Inlet connections consist of either external 3/4 in. hose thread or internal 3/8 NPT brass fitting. Outlets utilize barb connection or 7/16-20 UNF thread. Other features include AC (120 or 240) or DC (24) coils.

Mass-Vac, Inc.    North Billerica, MA 01862 0359
Apr 08, 2002 MV Midi-Mist Oil Mist Eliminators remove oil droplets from exhaust stream of mechanical vacuum pumps. They offer all-stainless steel construction, and use replaceable microfiberglass coalescing filter elements. Available in 4 and 8 in. dia sizes, they have inlet ports up to 2 in. dia and drain plug. MV Midi-Mist Oil Mist Eliminators provide 99.999% efficiency, and are designed for pump speeds from 0 to 50 CFM (exhausted to room or roof).

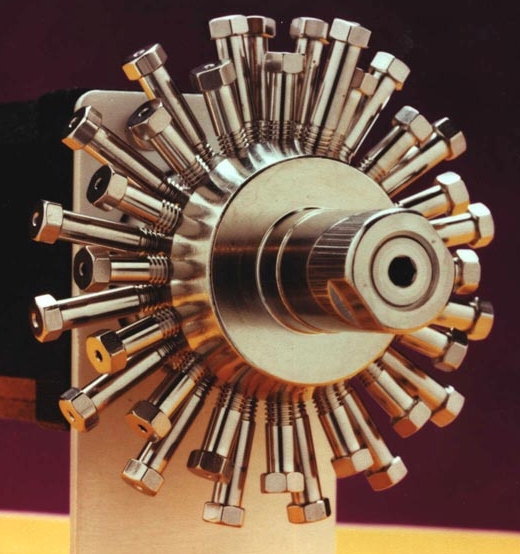

Valco Instrument Co., Inc.    Houston, TX 77255
Apr 08, 2002 MW Type Multiposition Valves offer various flow configurations, port and fitting sizes, and actuation options. Rotor can be inspected or replaced without removing valve from actuator. Valves are available with 4 to 16 positions. Standard valve body material is stainless steel, however, valves may be ordered in Hastelloy C-22 or Nitronic 50.

Clippard Instrument Laboratory, Inc.    Cincinnati, OH 45239

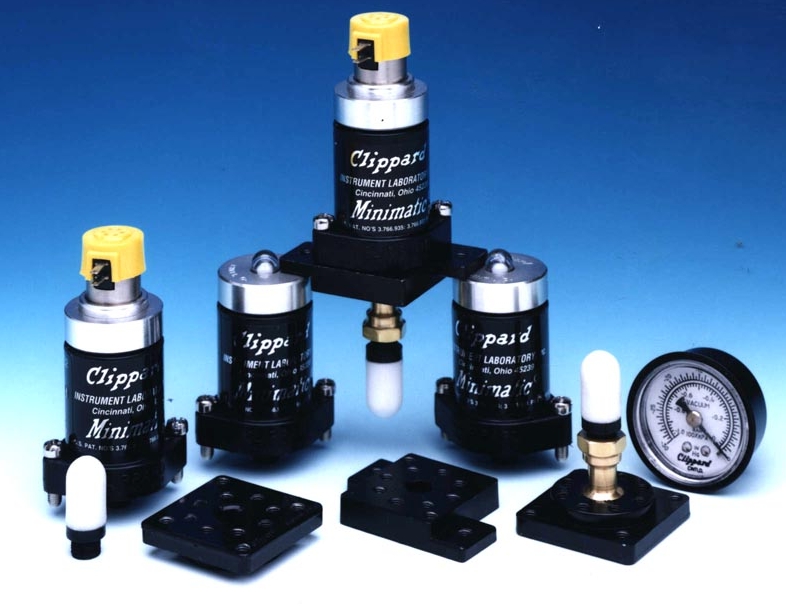

Apr 08, 2002 Combination venturi vacuum generator and fully ported 3-way valve are contained in single modular plug-in body. Unit can be used as stand-alone device or as part of larger pneumatic circuit. Valve utilizes micro gap construction for very short stroke of balanced spool. Vacuum may be used for pick, place, and hold applications, or liquid drawback circuits.

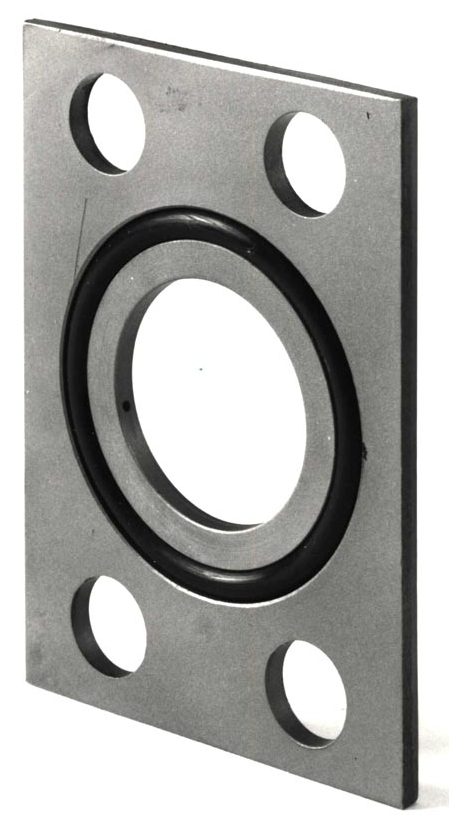

Adaconn & Inserta Products, Inc.    Blue Bell, PA 19422
Mar 30, 2002 Code 61 and Code 62 Seal Plates provide proper alignment and squeeze on O-rings when joining 2 surfaces. Outer diameter is grooved to center and improves O-rings' loading. Plates incorporate optional integrity support rings for structural support of 2 inner joined surfaces. These support rings eliminate seal damage.

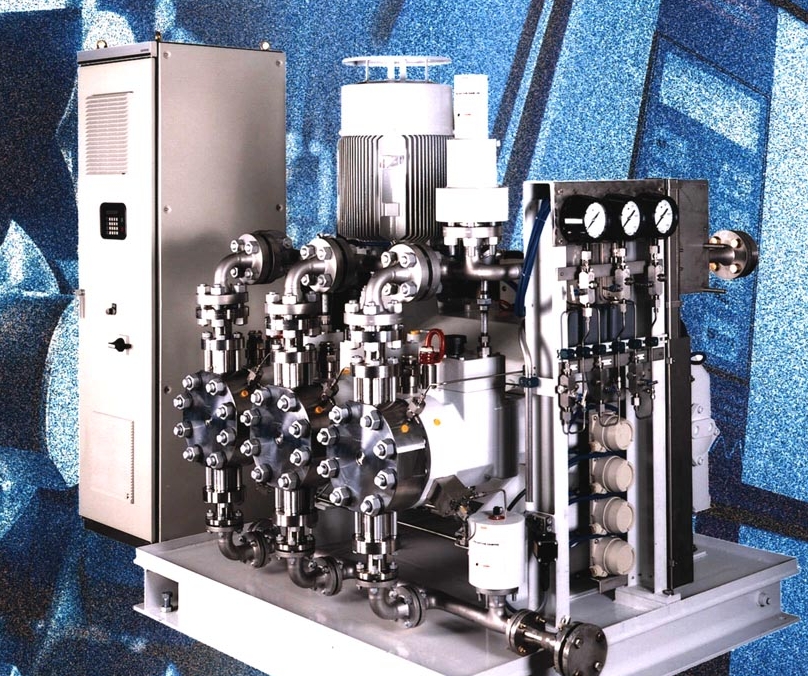

American Lewa, Inc.    Holliston, MA 01746 1455
Mar 28, 2002 LEWAtriplex(TM) Monoblock Metering Pumps feature leak-free, sealless diaphragm with positive displacement and low pump head volume. Capable of handling liquid CO2 at up to 10,000 psi, pumps use multi-layer PTFE- or metal diaphragm, 1 crankshaft machined to 120 deg, roller bearings on both ends for full support, and shock-resistant sleeve bearings on connecting rods. Triple-throw crankshaft drives all 3 pump heads and is fully immersed in oil.
