ABA Of America, Inc.    Cherry Valley, IL 61016-9560
Aug 08, 2003 Radialâ„¢ clamp employs 180° inserted spring liner that works radially toward hose to provide optimal contraction and expansion capabilities. Having no protruding parts, clamp is suited for applications where hose is subjected to temperature fluctuations and strong seal is critical throughout thermo cycle.

Walchem Corp.    Holliston, MA 01746 1460

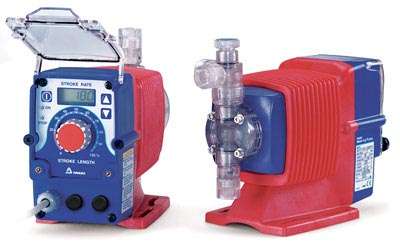

Aug 08, 2003 Series EW solenoid-driven, diaphragm metering pumps offer capacities to 6.7 gph and max pressure of 150 psi. At 360 strokes/min, they provide 1,800:1 turndown ratio. Pumps include feed verification, totalization, pulse/analog input, and quick-prime features. Membrane switches and stroke control are mounted opposite liquid end, under protective cover. Display utilizes high temperature LCD for protection from sunlight in outdoor applications.

Clark Solutions    Clinton, MA 01510

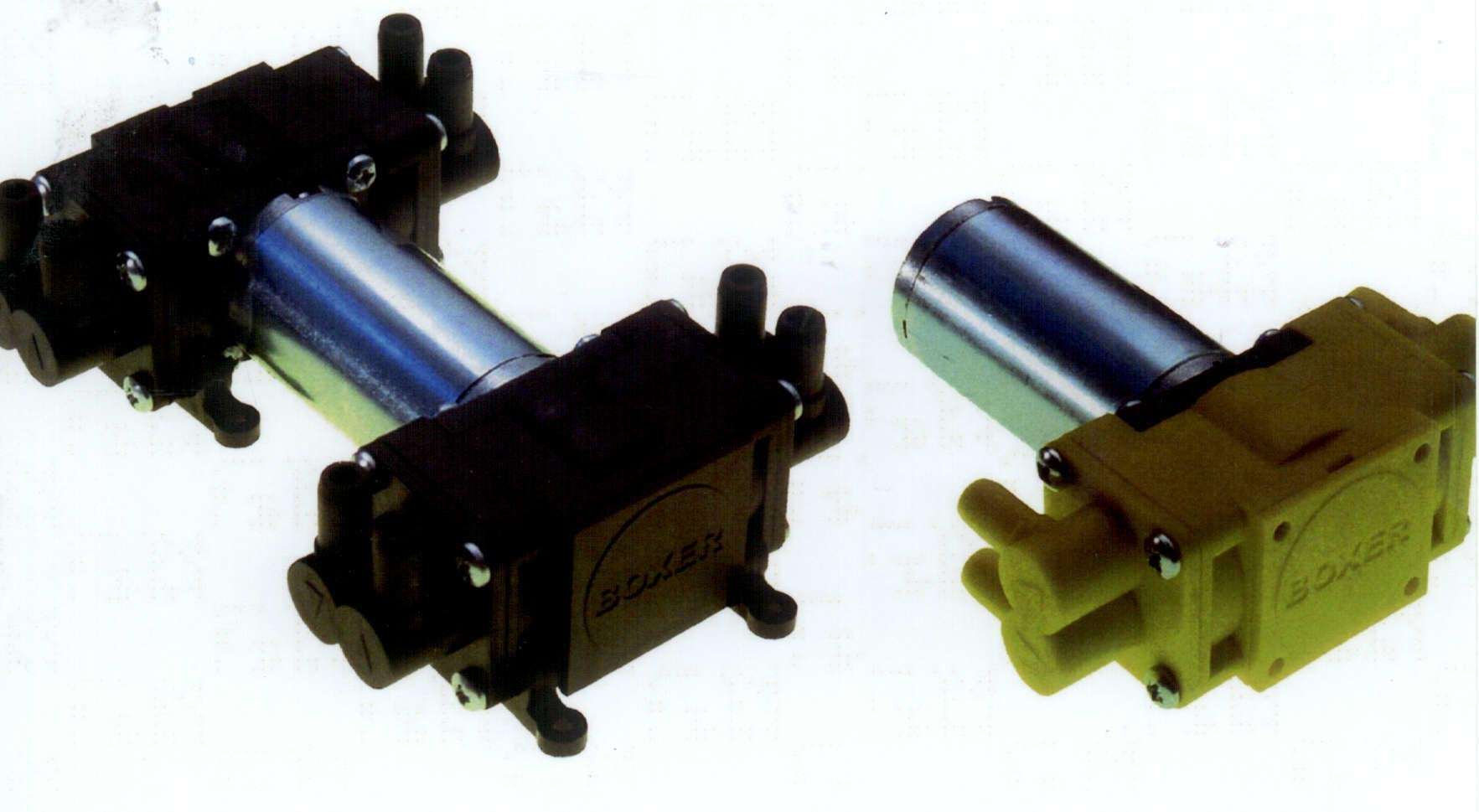

Aug 08, 2003 Boxer Series 3000 DC-powered diaphragm pumps are flow rated for liquids to 5.0 Lpm and gases to 30 Lpm. Made of non-corrosive materials, they have metal-free wetted path and steel or stainless steel bearings on motor shafts and cranks. Diaphragms and valves are silicone or santoprene for operation in low temperatures. Oil-free pumps come in dual or quad-head models, and each pumping head can be run separately or combined with other heads.

Nordson Packaging Systems    Duluth, GA 30155
Aug 07, 2003 Model EB60V edge-banding slot nozzle, for woodworking applications, incorporates remote adjust feature that enables users to control coating width from up to 100 ft away with 0.0007 in. accuracy. Coating width can be adjusted to 2.4 in. via servo-drive motor, which is directed by touchscreen control with numeric keypad. Edge-banding application heads of closed system apply adhesives such as EVA, polyolefins, and polyurethanes.

Humphrey Products    Kalamazoo, MI 49003

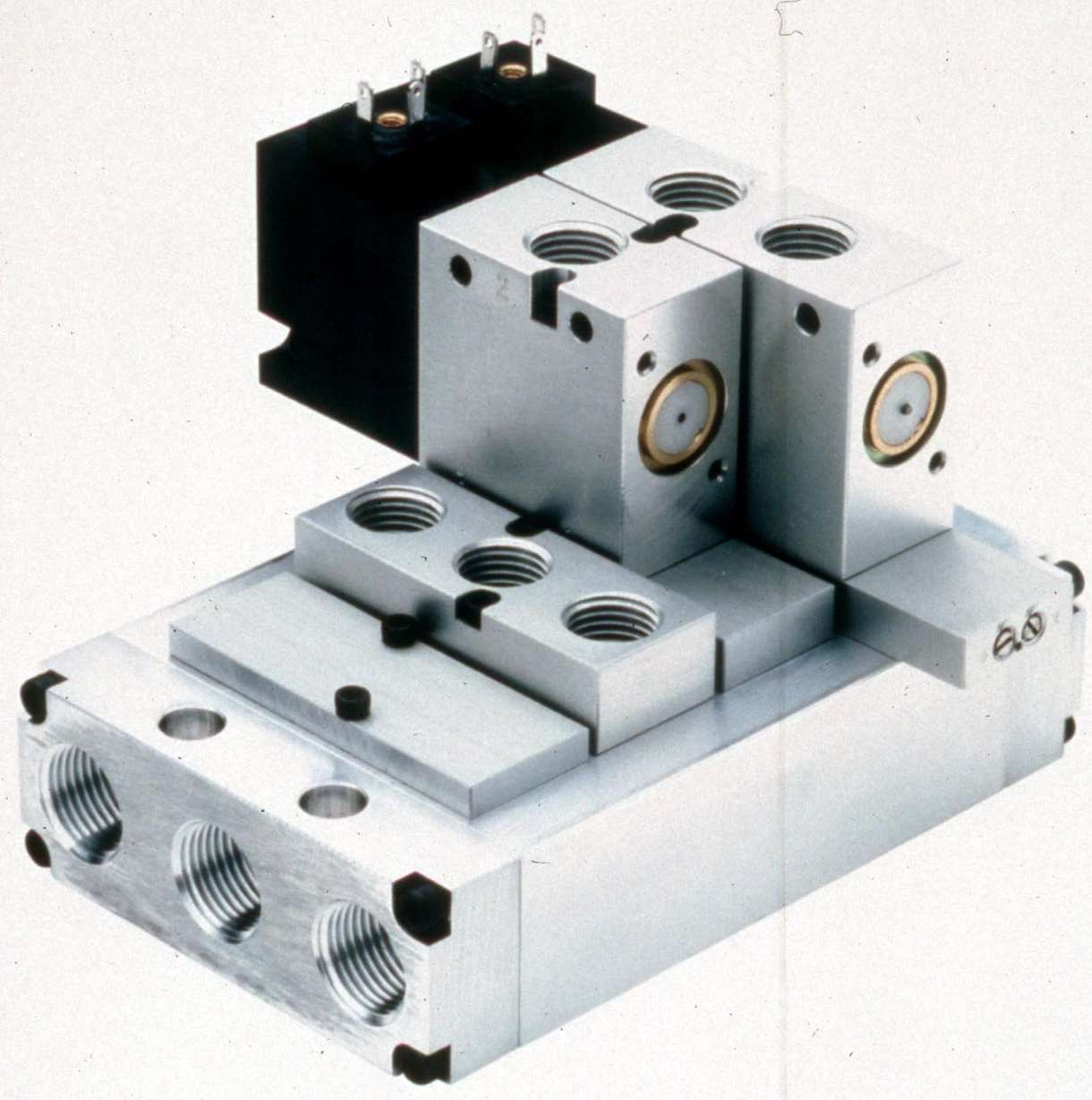

Aug 06, 2003 Rated from 28 in. Hg to 125 psig, 318 Series consists of multi-purpose, 2-position, 3-way valves, while 418 Series is made up of multi-purpose, 5-port, 4-way valves. Equipped with ¼ in. NPSF ports, flush non-locking manual override, and rotatable and interchangeable coils, NEMA 4 rated 318/418 Series valves offer 0.8C_v flow rate in narrow, 22 mm body. All models can be mounted inline, on manifold, or with DIN rail clips.

Parker Fluid Control Division    New Britain, CT 06051

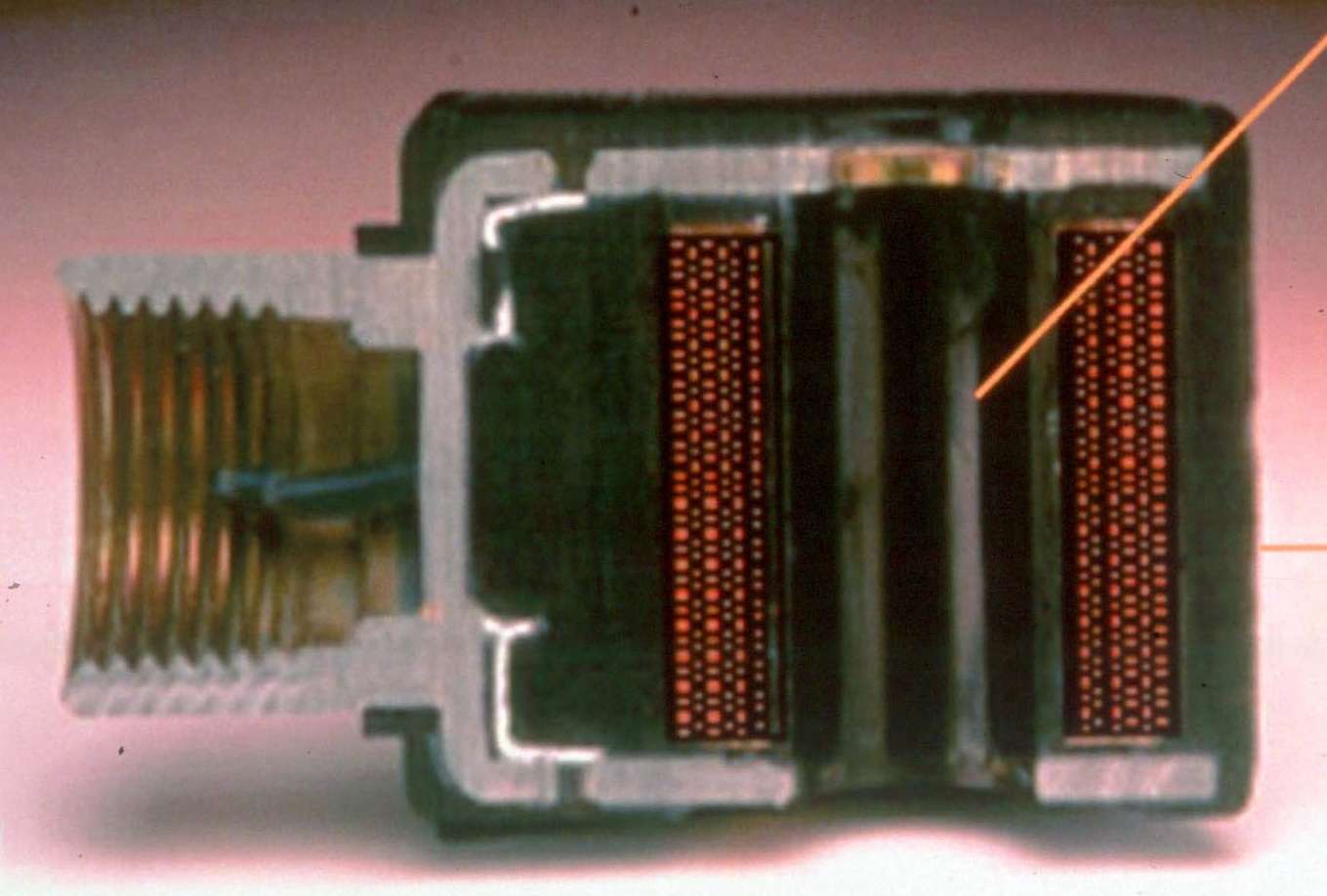

Aug 04, 2003 Skinner(TM) 7000 Series and Gold Ring(TM) valves are available with encapsulated coils that are totally enclosed to protect electrical components and provide chemical resistance. Valves have bobbin design that prevents media from leaking in and helps coil withstand water pressure in wash-down applications. Valves are suited for applications in food service, commercial equipment and machinery, and medical equipment industries.

Motor Guard Corp.    Manteca, CA 95337 6141
Aug 01, 2003 Model RF-2011 Automatic Drain empties accumulated water in compressor tank, eliminating possibility of carryover of water into compressed air lines. It features electrically operated solenoid valve with adjustable drain time control. Positive shut-off, ¼ in. valve won't clog or leak, adapts to existing drain piping, and connects to 110 V power supply with cord and plug. Solid-state, adjustable drain control also features manual override.

Scott Specialty Gases    Plumsteadville, PA 18949 0310

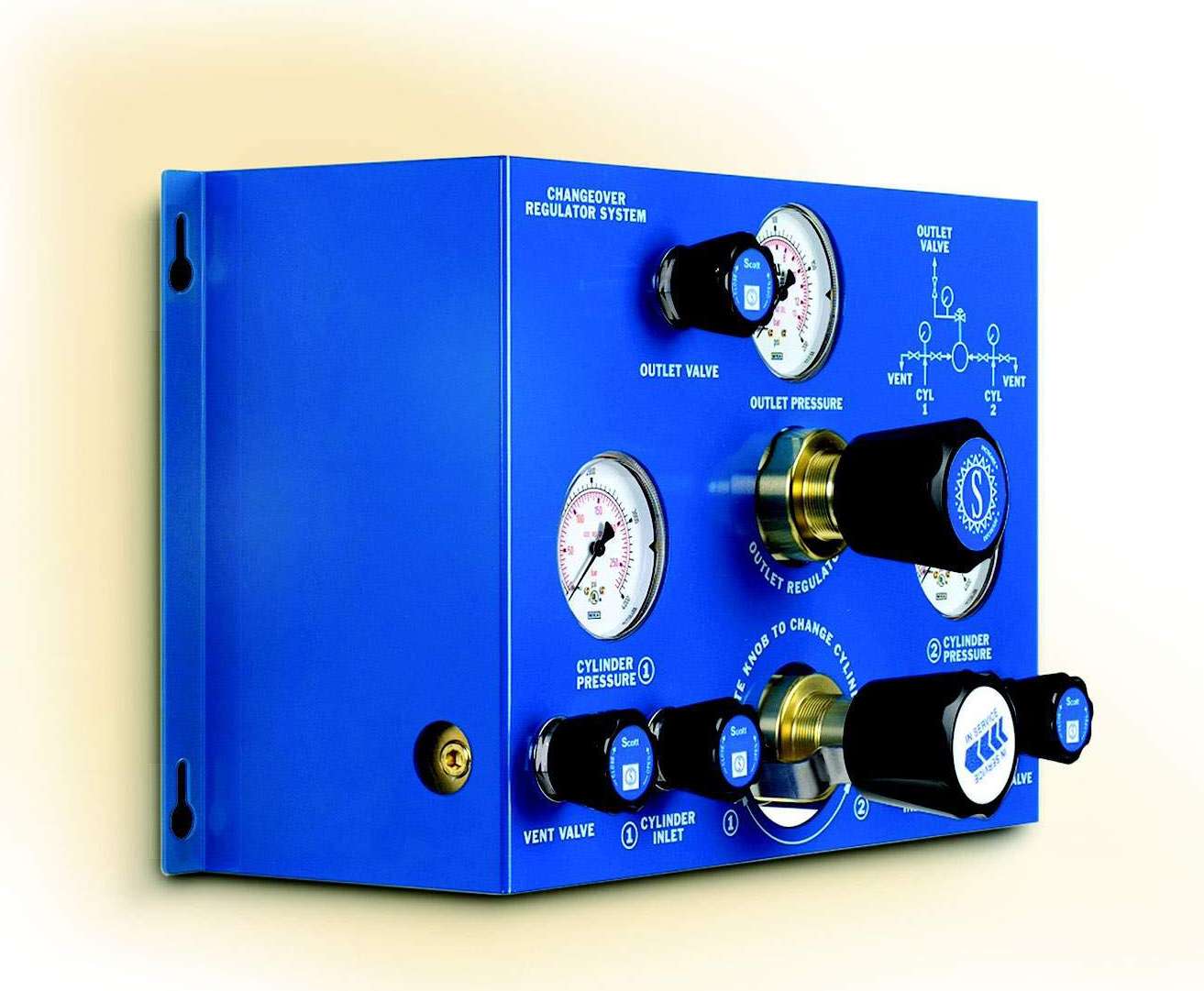

Aug 01, 2003 Model 8404 Automatic ChangeOver Regulator System combines pressure-reducing regulator with diaphragm valves to direct flow of gas from 2 separate high-pressure cylinders to point of use. When 1 gas source empties, system automatically draws from second source. Available with brass or 316L wetted body materials, unit is cleaned for oxygen service. Safe purge vent in rear of panel protects operators. Delivery pressure is adjustable from 0–200 psig.

NewAge Industries Inc.    Southampton, PA 18966

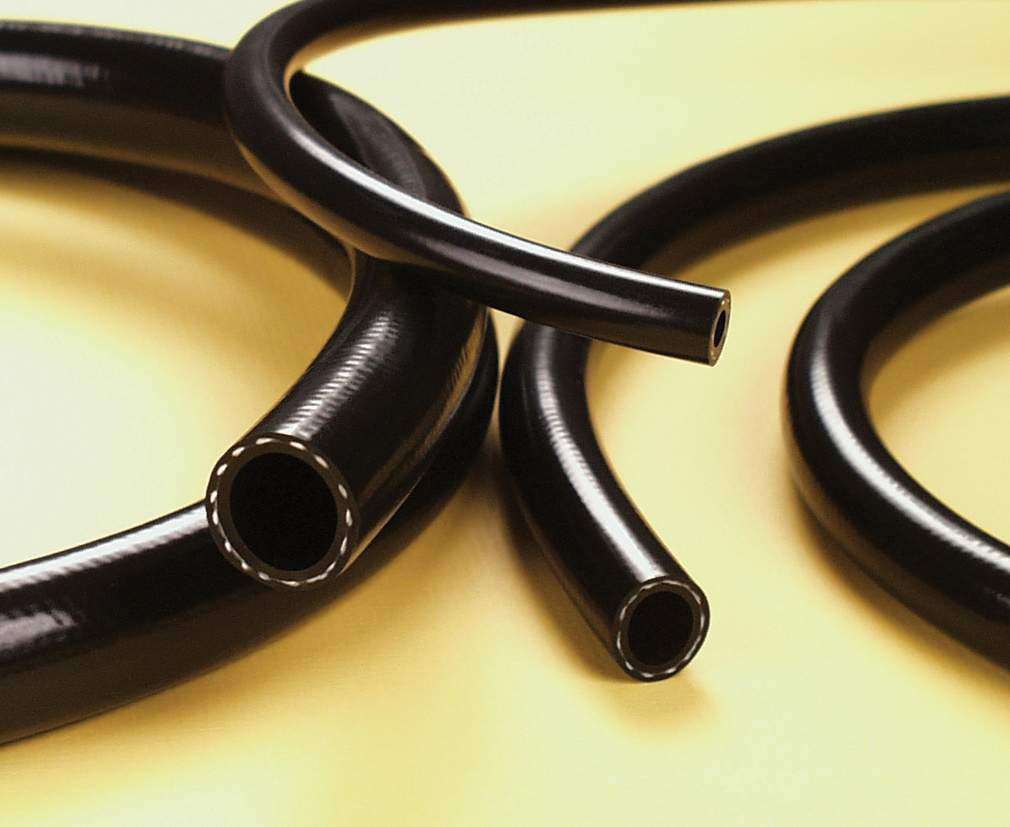

Aug 01, 2003 Nylobrade® Push-On Hose consists of nitrile rubber and PVC, reinforced with polyester braid. It works with push-on style fittings without need of clamps at up to 200 psi and 70°F. Black-colored, non-marking cover resists UV, ozone, and abrasion. Hose comes in 6 sizes from ¼â€“¾ in. ID. It is suited for air and fluid transfer applications such as processing, feed and discharge, supply lines, equipment components, and manufacturing facilities.

American Lewa, Inc.    Holliston, MA 01746 1455

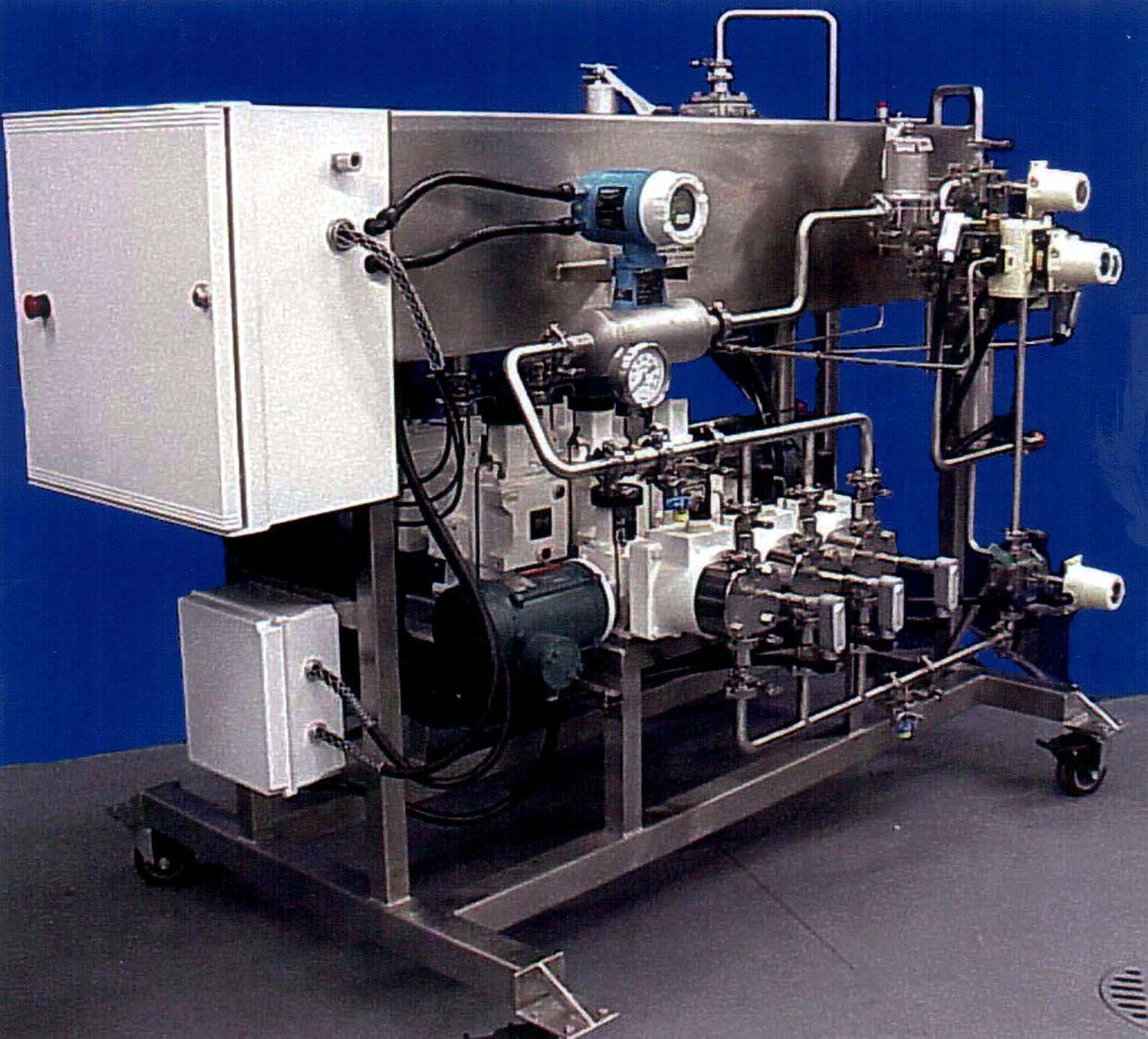

Jul 31, 2003 LEWAtriplexâ„¢ Monoblock Metering Pumps are capable of handling liquid CO₂ in supercritical state at up to 8,000 psi. They incorporate leak-free, sealless, multi-layer, PTFE or metal diaphragms with positive displacement that are never exposed to atmosphere. Pumps are inherently cool-running and can incorporate optional cooling jackets. Additional offerings include triple-throw crankshaft fully immersed in oil, roller bearings, and shock-resistant sleeve bearings

DL Technology, LLC    Haverhill, MA 01832

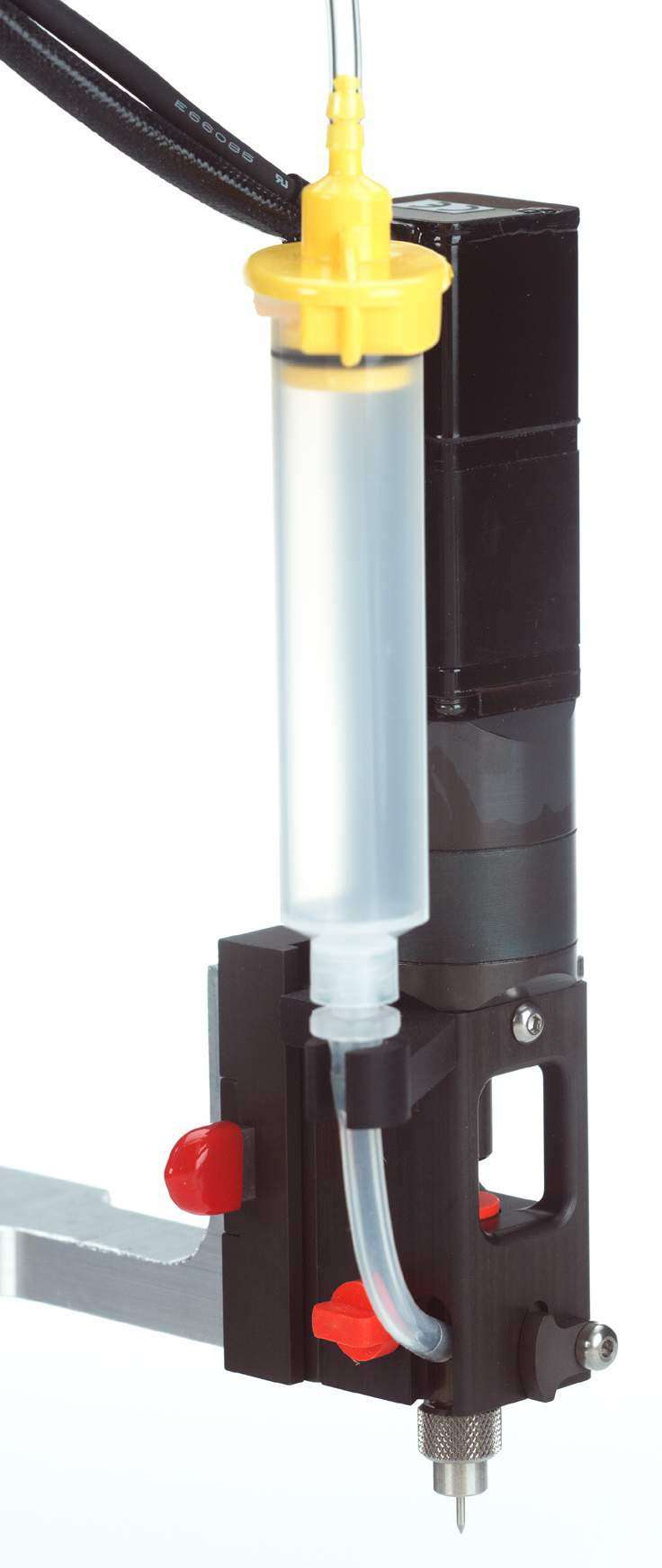

Jul 31, 2003 Micro Valveâ„¢ uses programmable encoder, which controls rotation of auger, providing 200,000 counts per 360° revolution. Valve can repeatably dispense 5.5 mil volumes, depending on material and application requirements. Multiple cartridge styles accommodate 3 different needle styles. Auger and cartridge liner are carbide, creating almost frictionless operation. Valve is suited for high-density interconnect, optoelectronics, and semiconductor packaging applications.

Bio-Chem Valve Inc.    Boonton, NJ 07005

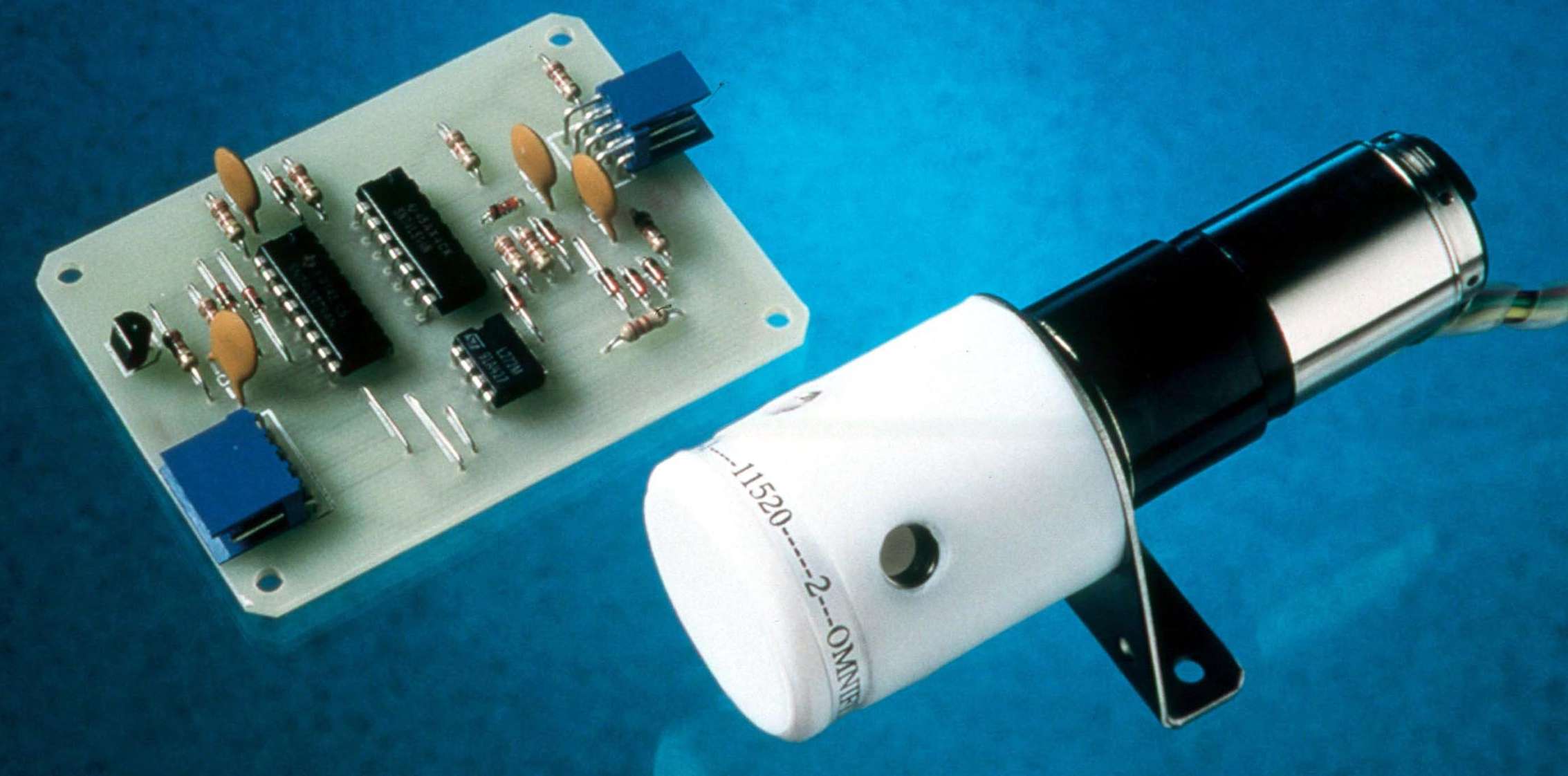

Jul 31, 2003 Suited for chemical, biotechnology, medical, and environmental applications, valves are manufactured from PTFE or other chemically and biologically inert materials. Products incorporate minimal dead volume to eliminate sample contamination and maintain smooth fluid flow. Standard range of electrical rotary valves is complemented by pneumatically-driven valves; all valves have various porting options and bore sizes for flexibility.

Adaconn & Inserta Products, Inc.    Blue Bell, PA 19422

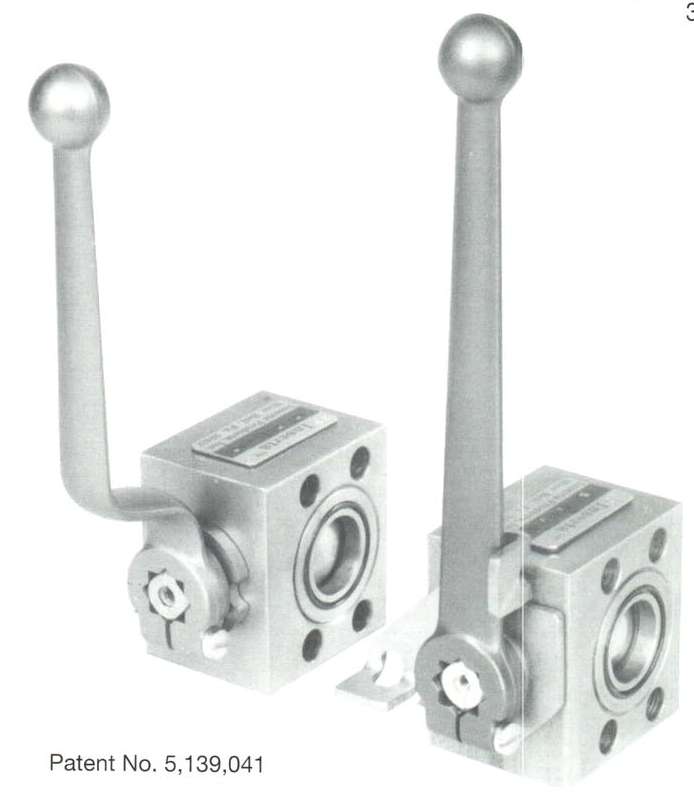

Jul 31, 2003 Featuring steel construction with hard chrome plated ball, INSERTAâ„¢ Flange Type, 2 Port Ball Valves can be installed on or between other components by bolting them together. Assemblies eliminate threaded pipe connections, and adjoining components are face sealed with leak-resistant O-ring. Top of stem has slot that indicates direction of hole that goes through 2-port ball valve element. Straight aluminum handle is standard with flat stop plate.

EXAIR Corporation    Cincinnati, OH 45249-1621
Jul 24, 2003 Stainless steel Reversible Drum Vac is capable of filling drum in 1 min. With turn of knob, pump can also empty drum. Unit is compressed air powered and has no moving parts. Automatic safety shut-off valve prevents overfilling drum. Built-in pressure/vacuum relief is integral to muffling body for safe operation. Flow rate can be controlled via knob, making unit suitable for dispensing liquids. Air consumption is 19 scfm at 80 psig.

Thermadyne Industries, Inc.    St. Louis, MO 63017

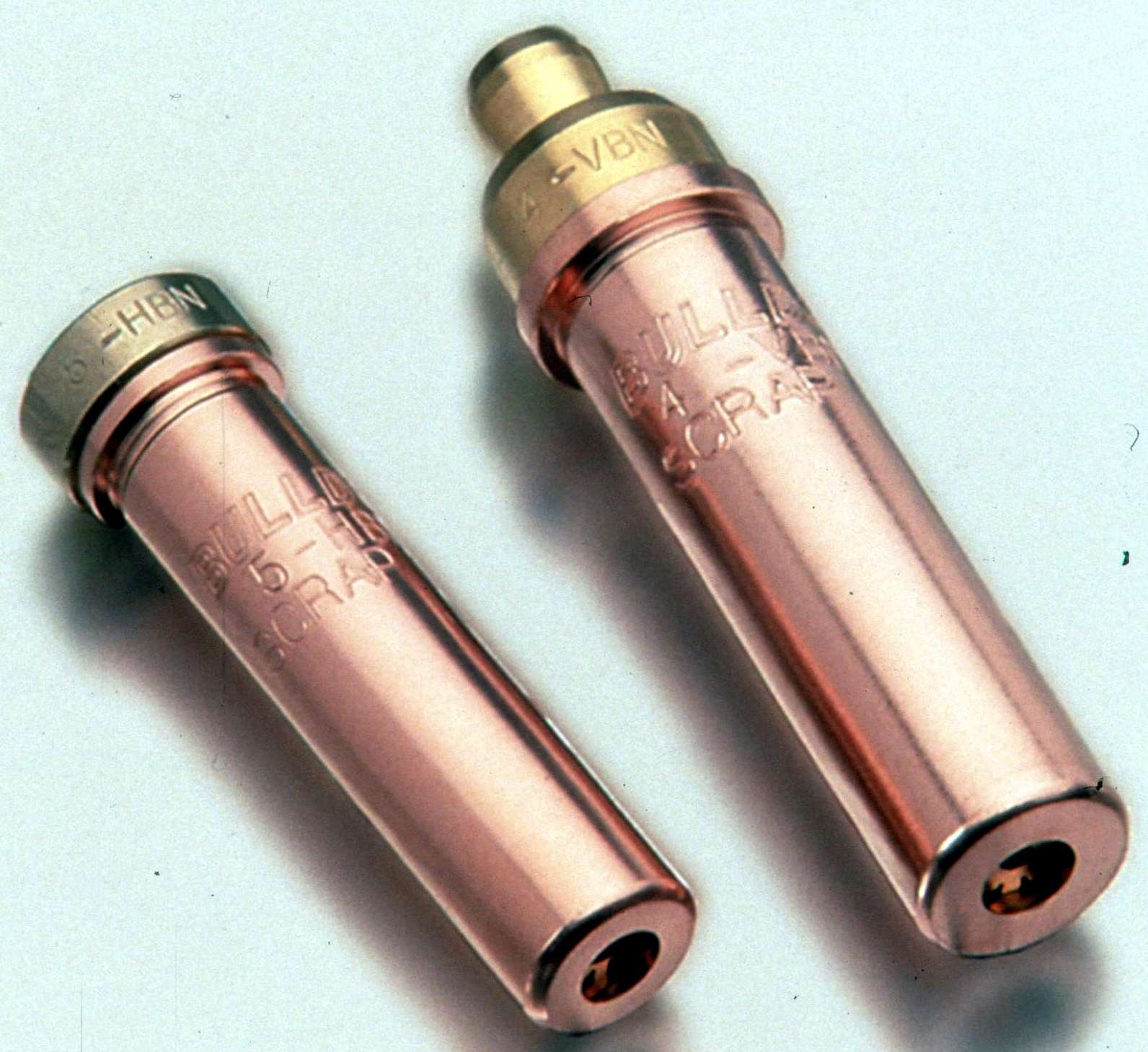

Jul 23, 2003 Available for Victor® and Harris(TM) style torches, Bulldog(TM) Tips by CutSkill(TM) feature heavy-wall, 2-piece construction that withstands rigors of scrap cutting. Products may be used with LP propane and natural gas torches in cutting up to 14 in. and resist slag build-up. Applications include scrap yard and demolition cutting tasks.

Herion USA, Inc.    Warrendale, PA 15086
Jul 22, 2003 Soft Seal Valves feature wear-compensating, one-piece spool design and pressure-loaded T seal system. With one internal component, valves are easy to service. Quick-change solenoids take only seconds to replace. High-flow, bubble-tight construction suits demanding, inline and NAMUR applications.

Spraying Systems Co.    Wheaton, IL 60189 7900
Jul 22, 2003 WindJet® Air Knife features protruding leading edge that extends 1/8 in. beyond air slot along length of knife. Flow of air is directed out of knife in uniform, high-volume straight stream, ensuring no spotting or blotching. Air knife lengths include 6, 12, 18, 24, 30, and 36 in. with .040 or .060 in. air slots. Supplied air is generated by Gast® regenerative blower assemblies available in 5, 10, 15, and 30 hp.

SSI Equipment Inc.    Buffalo, NY 14240 1594
Jul 22, 2003 Available with 1, 3, or 5 pipe diameters of flow straightening, products reduce turbulence and protect against particles. Units incorporate strainer, elbow, and pipe-reducer functionality along with quick-release cover and 1/8 in., stainless steel, perforated screen with 20-mesh liner. Diffusers are offered in cast iron, configured to replace 90° elbow, as well as in fabricated carbon steel or stainless steel to suit installation with end connections of 2 x 1¼ in. up to 36 x 36 in.

NewAge Industries Inc.    Southampton, PA 18966
Jul 21, 2003 Premium Air Hose combines pressure resistance of open-mesh polyester braiding and toughness of flexible PVC. Double-twisted braid reinforcement helps it resist kinking, while PVC material withstands cracking, rotting, and hardening. Hose comes in 1/4, 3/8, and 1/2 in. ID with lengths of 50, 100, or 500 ft. Maximum operating temperature is 175°F. Hose is suitable for air tools, pneumatic actuators and motors, air wash systems, compressors, and gauges.

Universal Silencer, A Fleetguard/Nelson Co.    Stoughton, WI 53589 0411
Jul 21, 2003 Combination silencer/catalyst utilizes one of two catalyst capturing techniques within silencer shell: a gasket-wrapped catalyst module or a torturous path configuration with serpentine interlocks around catalyst. Both designs completely seal silencer and ensure that exhaust gas passes through catalyst. Product is available in 4 performance grades with overall attenuation to 40 dB. Base catalyst housing packages are large end-in, end-out configured units.
