Graco Inc.    Minneapolis, MN 55440

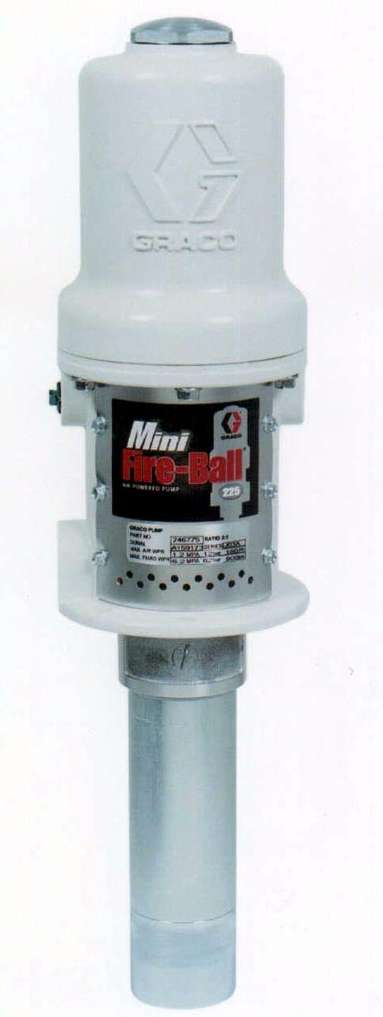

Feb 03, 2005 Designed with minimal moving parts in air motor assembly, Mini Fire-Ball® 225 pump has air ports that enable continuous pump operation without icing and u-cup designed throat packings with hardened steel displacement rod. Unit transfers low volumes of oil, handling 10-20 oil changes per day where fluid supply lines are under 250 ft and simultaneous use of dispense meters is not required. This 3:1 ratio pump provides fluid flow of 1.8 gpm at 80 cpm.

Harvard Apparatus, Inc.    Holliston, MA 01746 1371
Feb 01, 2005 Remote operated MRI Syringe Pump combines dual-syringe pump mechanism, constructed of nonferromagnetic metal, with 30 or 60 ft cable connection to pump electronics control box. Programmable pump features pulseless flow, accepts syringes from 0.5 µl to 140 ml, and handles flow rates from 0.002 µl/hr to 55.1 ml/min. With ±0.35% accuracy and 0.5% reproducibility, it is suited for drug delivery and tracer studies that require MRI imaging and real-time monitoring.

Spence Engineering Co., Inc.    Walden, NY 12586-0230
Feb 01, 2005 Safety Relief Valves are available in cast iron, bronze, stainless steel, and aluminum in sizes from ½ x ¾ in. to 6 x 8 in., for pressures up to 900 psig. Rugged construction and dual ring control provide dependable pop action, seat tightness, and repeatability. Valves meet ASME Sections I, IV, and VIII, API 527, and are also PED and TUV certified. Applications include steam boilers, pressure reducing stations, pumps, tanks, and cryogenic systems.

Leonard Valve Co.    Cranston, RI 02910

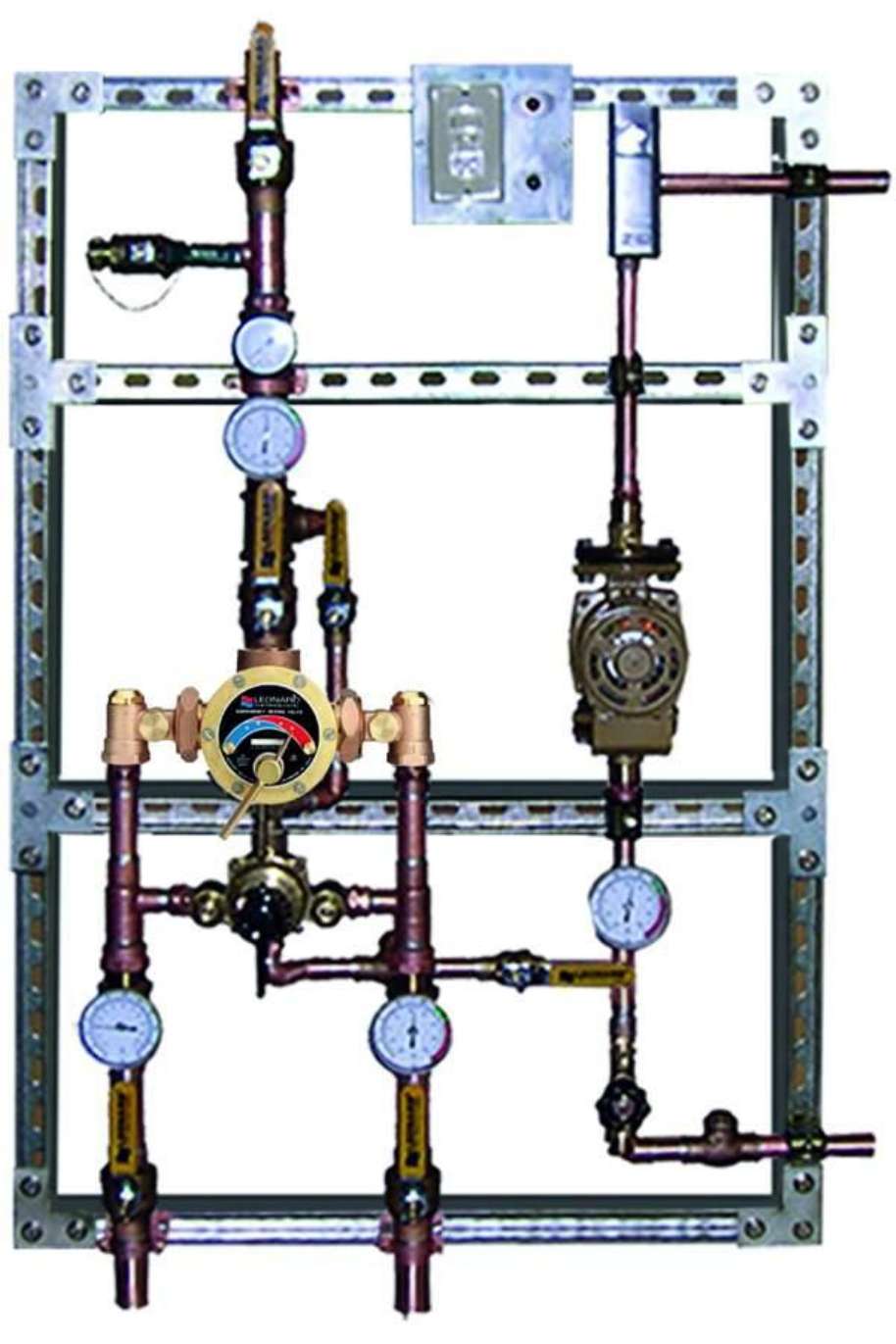

Jan 31, 2005 Megatron® is designed for hot water systems in new building construction and renovation applications. System components are mounted on galvanized strut. Dial thermometers on hot, cold, mixed, and return piping lines provide complete system monitoring. Mixed water capacity is from 0.5–190 gpm. Integral return piping incorporates circulator, aquastat, check valves, bypass piping, and balancing valve.

Norgren    Littleton, CO 80120
Jan 26, 2005 Featuring microprocessor-driven position control, Model VP60 utilizes glandless spool and sleeve design and delivers more than 250 million operations at full stroke. Zero point adjustment via mini keypad provides application specific method of adjustment for leakage, drift, and offset, while multicolor LED indicates device status. Available with ratings up to 174 psi, Model VP60 features IP65 protection and is free of lacquer affecting substances.

Inkjet, Inc.    Willis, TX 77378
Jan 21, 2005 Suited for use on Videojet EXCEL series coding and marking systems, EZ JET nozzle features field-replaceable components that can be cleaned or swapped out by in-house operators. This enables users to take it apart, change orifice or filter, flush it out, or replace faulty components. Nozzle accepts orifice sizes from 36–120 micron, making unit suitable for customers changing over one line or operating multiple lines.

Harvard Apparatus, Inc.    Holliston, MA 01746 1371
Jan 21, 2005 Available in single and dual syringe models, Pump 11 Plus Syringe Pump (70-2208) incorporates end-of-travel limit switch that preserves contents and protects syringes from damage. Anti-siphon bracket prevents leakage and secures plunger and syringe body to pump. With flow rate range of 0.0014 µl/hr to 26.56 ml/min, unit operates in constant flow or volume dispense modes and holds glass syringes from 0.5–1,000 µl and glass or plastic syringes from 1–10 ml.

KD Scientific Inc.    Holliston, MA 01746
Jan 21, 2005 Featuring dispense/infuse mode and withdraw mode, Model KDS 310 Plus provides pulseless flow delivery from 1 nl/min to 363.7 µl/hr. Remote injector can be placed up to 6 ft from controller, enabling user to deliver small volumes without wasting fluids in excessively long tubing. Syringes fit snugly in mounting bracket so fluid is delivered without movement of syringe. Optionally, Model KDS 310 can be triggered remotely by foot pedal or remote switch.

Elfab Limited    Tyne & Wear NE29 8SD  United Kingdom
Jan 21, 2005 Explosion vents are supplied with Panel Flo-Tel burst-detection device based on magnetically-actuated detection system that provides open signal once panel has operated. Panels are made from corrosion-resistant 316 stainless steel in sizes from 0.9–25.8 ft². Offered in various shapes, products operate over pressure range of 0.7–7 psig and in temperatures from -40 to +400ºF. Non-fragmenting design is suited for use in backpressure and vacuum conditions.

TLV Corporation    Charlotte, NC 28273
Jan 21, 2005 Direct-acting, stainless steel Model DR20 provides air pressure reduction and shut-off, and can be utilized in gas applications including CO₂ and N₂. Class 4 seat leakage rating ensures tight shut-off, while 30:1 turndown ratio provides close pressure control with 2-stage reduction. Stainless steel bellows-sealed design prevents fugitive emissions. Sizes include ½, ¾, and 1 in. NPT.

Wanner Engineering, Inc.    Minneapolis, MN 55403
Jan 20, 2005 Suited for corrosive and abrasive materials, Series 1700 Seals on Stan-Cor Centrifugal Pumps are hydraulically-balanced and feature cassette-within-a-cartridge design. Removable inner cassette allows gland to be reused with each new seal. Friction drive lock ring with cap screw assures alignment and eliminates slippage to facilitate installation. Self-centering locators are internal to seal and are not removed, allowing shaft to be rotated during assembly.

Mead Fluid Dynamics, Inc.    Chicago, IL 60641-1902
Jan 20, 2005 MV Series 3-way air switches, designed for use in place of electrical limit switches, eliminate spark hazard in industrial applications. Installed as NO, NC, or diverters, 1/8 in. ported air pilot valves eliminate need for wire shielding, transformers, and solenoids, simplifying control circuitry. Model MV-60 provides AND logic function with hookup that causes valve to respond only to simultaneous air signals at 2 ports.

Hayward Industrial Products Inc., Hayward Flow Control Systems    Clemmons, NC 27012

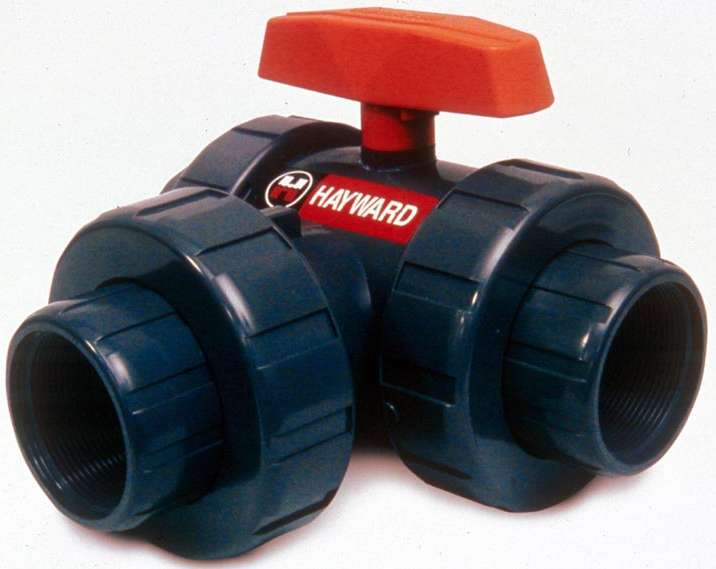

Jan 17, 2005 Plastic, lateral, 3-way ball valves replace conventional valve/tee connection combinations as well as zero dead-leg valves in piping system layouts. Available in sizes from ½â€“6 in., products can be made of PVC or CPVC with choice of FPM or EPDM seals. Integral ball permits flow to be diverted from center port to left or right ports without shutoff position. Valves feature one-piece molded body and true union design that permits removal from piping system.

Universal Hydraulics International Ltd.    Twinsburg, OH 44087

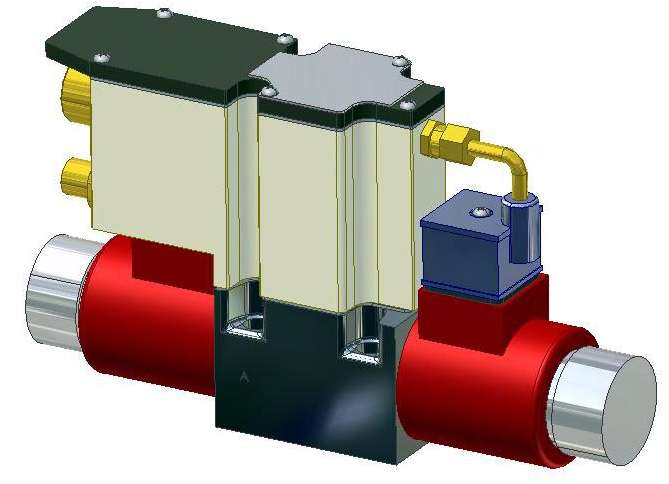

Jan 14, 2005 Available in directional and pressure control configurations, proportional valves offer optional on-board digital electronics that incorporate pre-set digital amplifier and CAN-Bus interface. Software lets users pre-set hydraulic parameters and includes computer assisted maintenance and diagnostic program. Products come in NFPA D03 (NG6) and NFPA D07 (NG25) configurations with flows to 80 gpm and operating pressures to 5,000 psi.

Hi-Tech Duravent    Georgetown, MA 01833

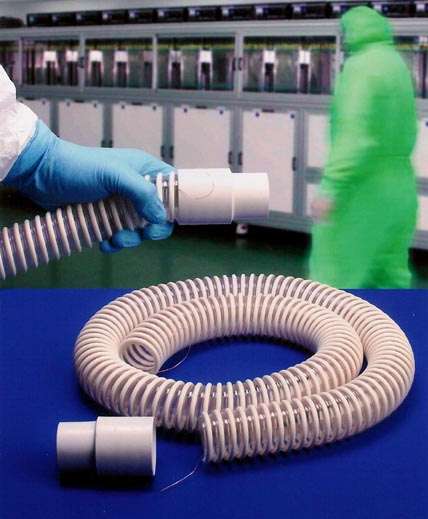

Jan 14, 2005 Static dissipative Series SDH is extruded from thermoplastic polyurethane and reinforced with plastic helix and built-in copper grounding wire. Molded cuff fits tightly to assure positive contact between grounding wire and machinery. Developed for clean rooms, clear FDA-acceptable hose has smooth interior, is free of fillers, does not outgas, and operates from -20 to +180°F. Flexible and abrasion-resistant hose comes in ¾-4 in. ID sizes in 25 and 50 ft lengths.

EFD Inc.    East Providence, RI 02914-1342
Jan 14, 2005 Pneumatically-operated 752 Series applies consistent amounts of adhesives and other assembly fluids on automated production lines. Fast, clean cutoff after each shot eliminates dripping, waste, and cosmetic damage to parts. Amount of cyanoacrylate dispensed is determined by fluid pressure, flow rate, and valve open time. Adjustable stroke control allows flow rate to be fine-tuned, while valve open time is regulated with microprocessor-based VALVEMATEâ„¢ controller.

Colder Products Co.    St. Paul, MN 55114
Jan 12, 2005 For applications requiring medical grade quality and gamma sterilization, NS4 ABS Series is made from acrylonitrile butadiene styrene (ABS) material and features non-spill shut-off valve. It provides single-click connection and incorporates thumb latch for secure, single-handed operation. Terminations include 3/8 in. OD PTF compression; 1/8, ¼, and 3/8 in. ID hose barb; and ¼ in. male NPT thread and ¼ in. male BSPT thread.

Advantapure, Div. Of NewAge Industries    Southampton, PA 18966

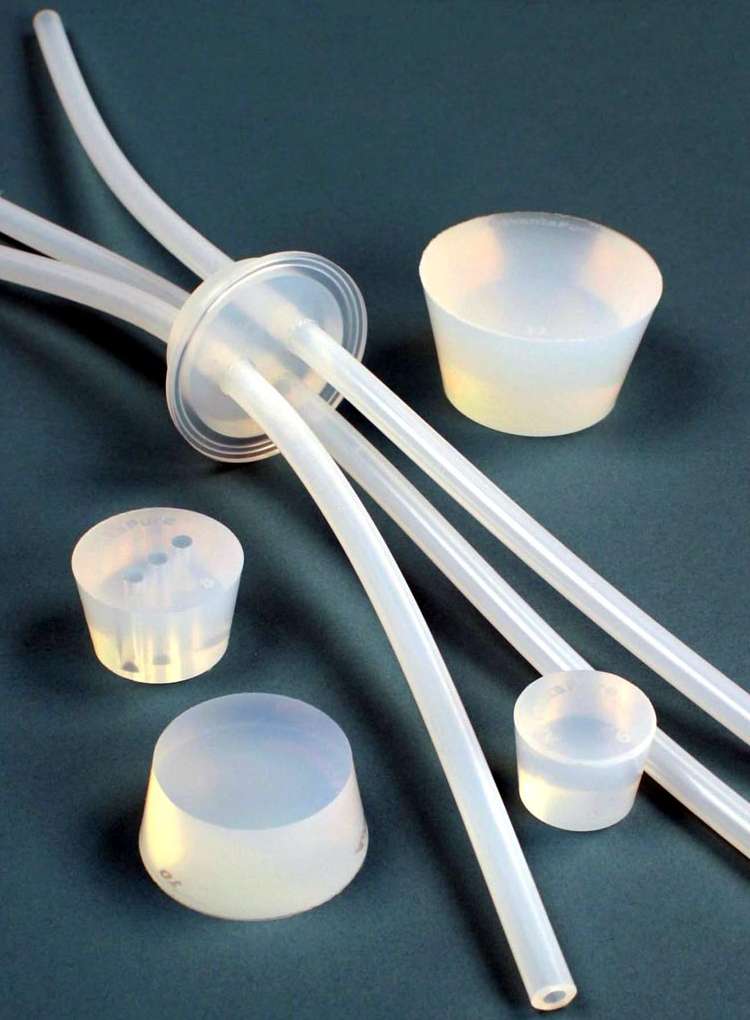

Jan 11, 2005 Molded Silicone Components include stoppers and sealing systems for carboys and vessels, bottles, laboratory equipment, and process and storage containers. Made from Class VI, platinum-cured silicone elastomer, chemical-resistant products have smooth, gap-free surfaces and no taste or odor transfer. Autoclavable, sterilizable, and reusable components resist cracking and particle migration, are biologically safe, and work with glass, metal, or plastic receptacles.

Watlow    St. Louis, MO 63146
Jan 10, 2005 Available in materials such as stainless steel, nickel, Inconel®, aluminum, copper, and bronze, IFC (Interference Fit Construction) heated parts can customized into various shapes and sizes to meet end-user requirements. With FEA (Finite Element Analysis) or iterative prototyping process, heated parts can achieve thermal transfer and temperature uniformity equaling ±1%. All heated part joints can be welded to ensure vacuum-tight seal.

Alemite LLC    Fort Mill, SC 29715
Jan 10, 2005 Low-level shut-off valve stops pneumatic fluid handling pump when material in bucket or other container reaches pre-determined level. This prevents damage to pump assemblies where no fluid is traveling through lines. Product mounts to drum cover inside fluid container and has lever connected by chain to flexible follower plate inside container. Valve is suited for chemical, heavy industrial, off-road, and automotive garage equipment applications.
