Lee Products Ltd    Buckinghamshire SL9 9QE  United Kingdom
Jul 23, 2009 Constructed entirely from 303 and 304 stainless steel, micro wash down nozzles are designed for washing cuvettes, test tubes, 96 well plates and laboratory receptacles as well as purging / drying gas chambers. Units are 6 in. long, feature 0.062 Minstac fitting at one end and have total nozzle restriction of 1,800 LW. They are available in 2 versions: one with ten 0.010 in. dia holes and one with twenty 0.007 in. dia holes.

Huntingdon Fusion Techniques-USA Inc.    Melbourne, FL 32936-1175
Jul 23, 2009 Available in sizes from 2-100 in., Oil-Chem Stoppers are covered with Nitrile, which withstands temperatures up to 110° and offers resistance to petroleum-based fluids, oils, and solvents. Units provide method of stopping flow of gas or liquid along pipe or duct during leak and pressure testing of pipes and containers. Available with ball or Schrader type valve, each can be inserted through small entrance port, inflated to required size, and withdrawn after deflation.

Edwards High Vacuum Int'l    Crawley East Susse RH10 9LW  United Kingdom
Jul 22, 2009 Available for load lock applications in solar cell and flat panel display manufacturing, iXL 500 offers pumping speed of 1,800 m³h^-1 while consuming only 7 kW of power. It is fully compatible with FabWorks(TM) network system. Maintenance free design uses long lasting oil lubrication and eliminates shaft seal by enclosing motor within vacuum.

Anver Corp. - Anver.Com    Hudson, MA 01749

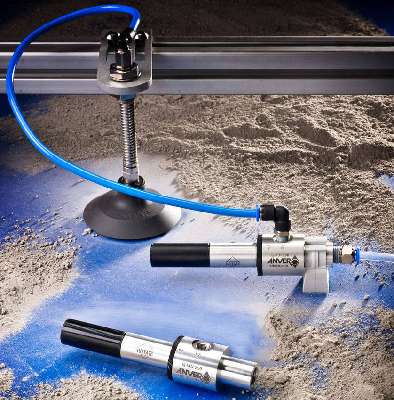

Jul 22, 2009 Suited for handling porous materials, Q-VDF Series is comprised of air-powered, venturi vacuum pumps with barrel sizes from 0.1-0.75 in. ID. Diffuser section can be rotated by user to control compressed air flow and provide vacuum flow rates to 120 scfm and vacuum levels to 25 in. Hg. Constructed without any moving parts or gaskets/O-rings, design minimizes maintenance requirements and allows debris to pass straight through pump bodies.

Golden Harvest    Burlington, WA 98233
Jul 21, 2009 Combining sealing methods of adjustable wedging action and resilient seals, Model GH-29 is designed to surpass specified standards of AWWA. Flexible design is available in project-specific sizes and operating head conditions, while mounting options include wall, thimble, or 125 lb flange. Available in self-contained and non self-contained frame configurations, gate is designed with head angles attached to slide at incline.

Keystone Filter Div., Met-Pro Corp.    Hatfield, PA 19440

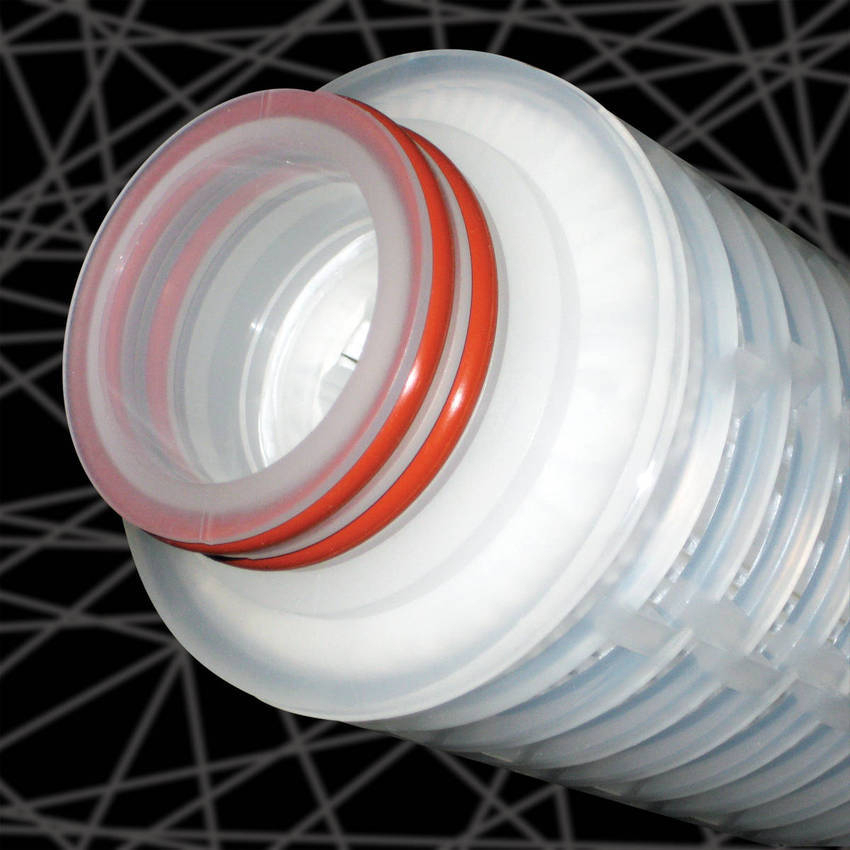

Jul 21, 2009 With ability to filter both through electro-adhesion and mechanical processes, Nano-Key(TM) filter cartridges feature ceramic nanofibers on micro-glass matrix, providing reduction of virus, bacteria, cysts, endotoxin and other submicron particles. They are available either as standard 2¾ in. dia single layer cartridges or multi-layered GIANT® 4½ in. dia cartidges. Filters come in standard or carbon version; carbon version removes humic compounds and reduces total organic compounds.

ITW Rocol North America    Glenview, IL 60025
Jul 20, 2009 Compact RL-Nozzle is band-sawing nozzle for Minimum Quantity Lubrication that attaches to 2-pump Accu-Lube MQL applicator system. Featuring 2 internal atomizing chambers where lubricant is broken up before being sprayed onto tool. Unit sprays lubricant from 3 different locations and mixes lubricant and air at nozzle, resulting in no lag time or dry cutting. Nozzle maximizes tool life/sawing productivity and minimizes fluid consumption.

Jet Edge    St. Michael, MN 55376

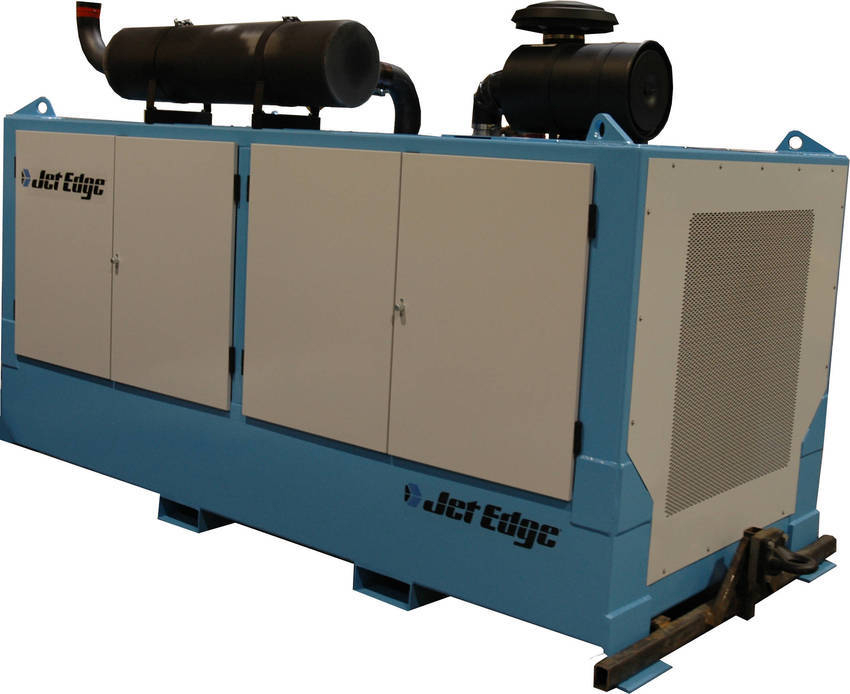

Jul 17, 2009 Powered by 280 hp turbo diesel engine, iP36-280DS can produce flow rate of up to 7.2 gal/min of 36,000 psi pressure water for waterjet cutting, surface preparation and cleaning applications. It is built on skid-mounted frame with lifting eyes and forklift guides, and uses pressure-compensated hydraulic system to drive dual plunger-style intensifiers. Unit is also available in 55,000 psi model.

Taco, Inc.    Cranston, RI 02920
Jul 17, 2009 Available in bronze fitted and all iron versions, TC Series have standard operating temperature at 250ºF and 175 psig in accordance with ANSI Standard B16.1. Mechanical seal has tungsten carbide rotating element and stationary seat, and carbon steel or stainless steel shafts come with replaceable bronze or stainless steel sleeves. Suitable applications include in heating, air conditioning, pressure boosting, cooling water transfer and water supply.

Air Squared, Inc.    Broomfield, CO 80020

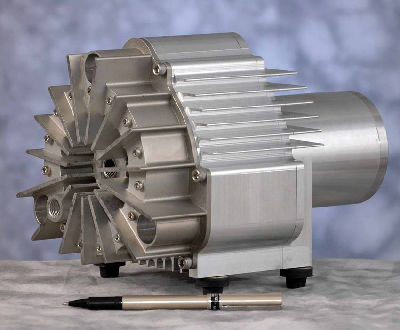

Jul 16, 2009 With package size of 7.5 x 5.9 x 5.7 in., 3-stage oil-free Scroll Pump features displacement of 2 cfm, noise level less than 45 dBA, and power requirement of 150 W. Power delivery is continuous, and rotary scroll design provides balanced, pulse-free operation. With only 2 primary moving parts, there are no inlet or discharge valves to break or make noise. Pump can replace turbo boosted pumps in spectrometers, gas detectors, analyzers, and lab vacuum stations.

Griswold Pump Company    Thomasville, GA 31792
Jul 16, 2009 Designed for use in any job that requires moving water from one place to another, H Series includes in 3, 5, 7 ½, 10, 15, and 20 hp models with heads to 260 ft and flow rates to 325 gpm. Along with positive priming, features include enclosed impeller and mechanical shaft seal. Heavy-duty rigid bracket maintains perfect alignment between centrifugal pump and motor. Applications include turf irrigation, swimming pool, industrial, marine, and general transfer.

Spartan Scientific Inc.    Boardman, OH 44512
Jul 16, 2009 Featuring indicator lights to show purge cycles and alarm function to alert in case of malfunction, CRDV/S condensation removal drain valve expels condensate from air system upon presence of moisture, eliminating unnecessary compressor cycling, reducing wear and tear on components. It can be used with any compressor, air dryer, or drop leg. Temperature fluxuation circuit helps trigger large orifice solenoid for evacuation of all condensate.

Groth Corp.    Stafford, TX 77477
Jul 16, 2009 Available in 2 in. (DN 50) through 12 in. (DN 300) flange sizes, 1800 A series full lift type valve is suited for applications requiring low emissions and operation near tank maximum allowable working pressure (MAWP). Modulating valve offers near zero blowdown and reseats at near set pressure, while reducing breathing losses of product in tank.

Flexaust Co., Inc., The    Warsaw, IN 46581
Jul 14, 2009 Available in 1.5 and 2 in. ID sizes in standard 25 and 50 ft lengths with plain finish and gray color, Flexaust Genesis® FLX Plus suits portable industrial applications such as wet/dry vacuum cleaners, car washes, and trim evacuation conduit. Crush-resistant polyethylene copolymer hose is engineered with double-profile construction that is reinforced with integral polyethylene helix. Abrasion-, chemical-, and detergent resistant unit moves smoothly over rough surfaces.

KD Scientific Inc.    Holliston, MA 01746

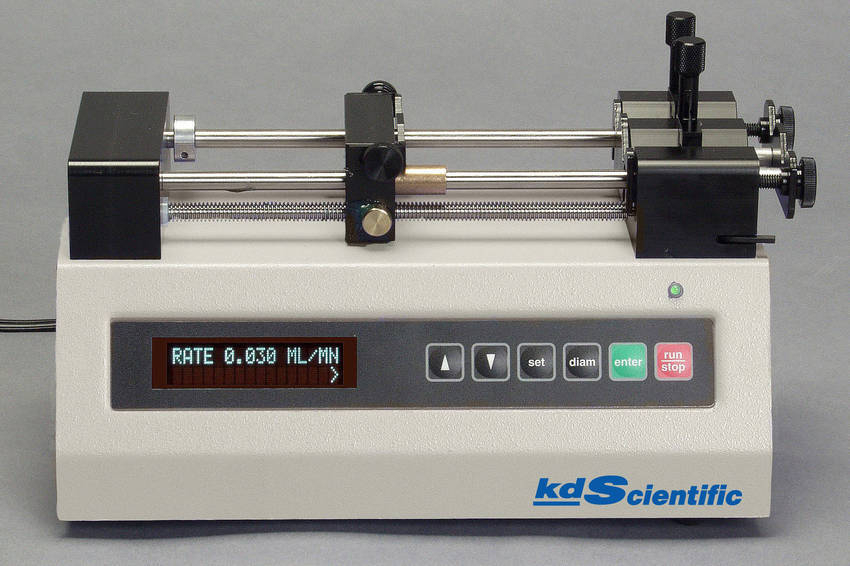

Jul 14, 2009 Designed to hold 2 syringes from 0.5 µl up to 10 ml, Pico Pump delivers picoliter, nanoliter, microliter, and milliliter flow rates ranging from 1.3 picoliters/min up to 0.8788 ml/min depending on syringes selected. Allowing flow rate change while in operation, pump features 2 line display and 6 membrane keys which require only 2 entries to start pumping.

Tridak    Torrington, CT 06790
Jul 14, 2009 Suited for dispensing non-reactive adhesives, silicone oils, inks, and solvents, Model 765 can be used in processes such as device assembly, packaging, optics assembly, and building PCBs. Low maintenance valve delivers precise flow control in high speed, high volume, and long running production jobs. Unit can also be integrated into process automation and robotics.

Tridak    Torrington, CT 06790
Jul 13, 2009 Ensuring consistent part-to-part shot volume, Tridak(TM) Model 826 features adjustable suck-back control to provide clean shut-off for tacky, stringy materials, and prevents material drool from forming at dispense tip with low viscosity fluids. Pinch valve has flow control and over-stroke adjustment that permit fluid deposits ranging from micro liter shots to continuous beads. It offers disposable fluid path technology which protects fluids from contamination and air entrapment.

Schroeder Industries LLC    Leetsdale, PA 15056-1025
Jul 13, 2009 Transfering fluid through 2 K9 filters in series for staged particulate or water/particulate removal, Filtration Station® is capable of flushing, filtering, and monitoring ISO cleanliness with user-defined, automatic features. It features water sensor that provides water saturation and temperature of fluid, both displayed through monitor. System runs continuously and displays ISO codes in manual mode, while in auto mode machine will run till required cleanliness codes are achieved.

Rain For Rent    Bakersfield, CA 93303
Jul 10, 2009 Providing up to 84% efficiency at BEP, 12 in. DV300c-E Power Prime(TM) pump handles 3 in. solids, has variable frequency drive (VFD), and produces total dynamic head up to 190 ft. VFD and inverted rated motor use available 250 hp only as necessary to produce heads and flows.

Innovative Pressure Technologies, Inc.    Erie, PA 16509
Jul 10, 2009 Featuring bonnet lock pins to prevent accidental loosening, 2-, 3-, and 5-way manifold valves have pressure rating up to 6,000 psi at 200°F. R-type manifolds provide differential pressure of flow recorder to impulse tubing, while D-, T-, and H-type manifolds bolt directly to differential pressure instruments to eliminate need for piping, valves, and fittings. Incorporating full back-sealed bonnets that prevent accidental stem removal and blowout, each valve has 4.0 mm orifice.
