McCaren Designs, Inc.    St.Paul, MN 55114
Nov 13, 2009 Offered as sustainable building solution, Greenwalls are engineered for maximum biofilteration of indoor air and thermal regulation. Additional benefits include noise absorption, lowered heat gain, improved IAQ, and reduced occupant stress. While also adding to indoor ambiance, product assists in securing LEED credit when used in combination with other sustainable building elements. Other features include stormwater control, drip irrigation, and waterproof membrane.

Clark-Reliance Corp., The    Strongsville, OH 44136
Nov 11, 2009 Featuring select serial filtration technology, Gas Sentinel Filter Elements help eliminate troublesome solids and liquid carryover. Units feature proprietary pleat pack and extended surface area, providing optimal dirt-holding capability for capture of black powder, iron oxides, salts, oil, and liquid contaminants found in natural gas. Replacing conventional graded density elements, Gas Sentinel elements optimize solids handling while maintaining low differential pressure.

W. L. Gore & Associates, Inc.    Elkton,, MD 21921
Nov 10, 2009 Incorporating high-flow ePTFE (expanded polytetrafluoroethylene) filtration media, GORE® filters can be used in high-throughput filling, packaging, and recirculation systems for high-viscosity fluids, acids, bases, solvents, specialty chemicals, and other high-purity chemicals used in semiconductor and electronics fabrication. They are available in pore sizes from 0.1-0.03 µm.

Rain For Rent    Bakersfield, CA 93303
Nov 10, 2009 Fully automatic, 6 in. HD6 pipeline pump can produce flows past 2,700 gpm, heads to 65 ft, and is able to pass 3 in. solids. Galvanized, 70 gal fuel tank never rusts, and needs fueling once per day. Self contained galvanized drag skids hold liquids that may drip from radiator, fuel tank, or engine, keeping surrounding environment clean.

Spencer Turbine Co., The    Windsor, CT 06095
Nov 10, 2009 Suited for facilities that provide critical services, GasCube(TM) boosts pressure for boilers, HVAC, hot water heaters, and manufacturing process equipment. Pre-wired, pre-piped skid package can boost utility street-pressure levels by as much as 83 in. WC with volumes to 240,000 cfh. UPS provides instant protection from momentary power interruption and can be relied on to power equipment during longer term outages until auxiliary power supply can be turned on.

Autoclave Engineers Fluid    Erie, PA 16509

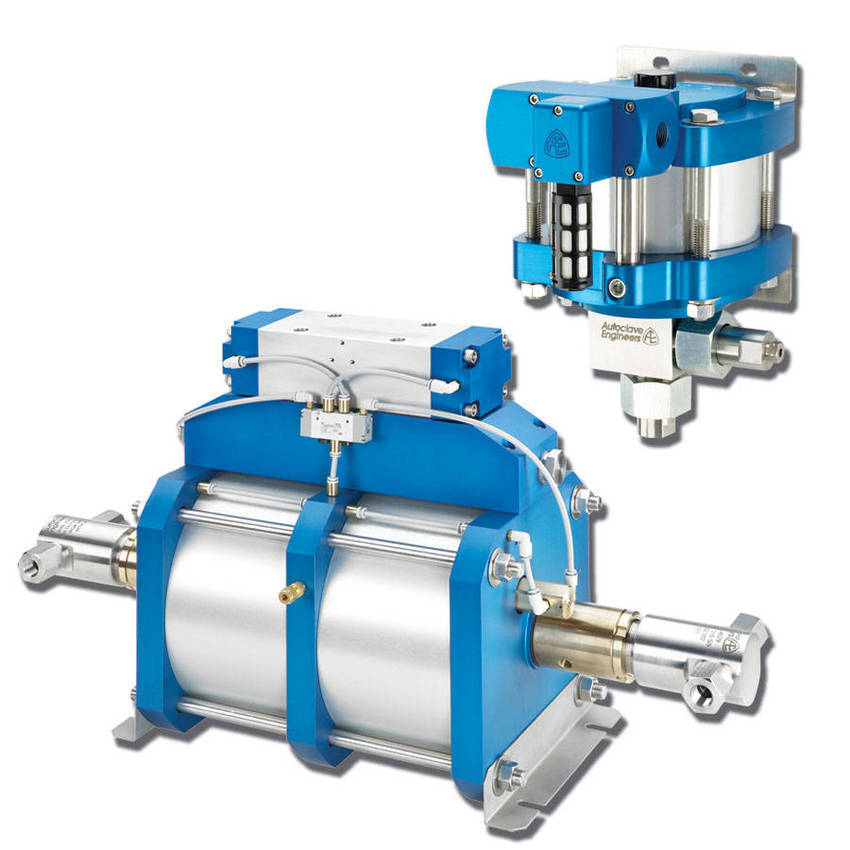

Nov 09, 2009 Air-driven, positive-displacement, high-pressure liquid pumps in ASL Series are available in variety of drive ratios and include both single and double air-drive designs. Manual options are available for ACHL Series pumps, while AHL Series double-acting, double air-drive pumps offer high flow and high pressure. All are pressure maintained without energy consumption and require no lubrication. External spool valve simplifies maintenance.

Griswold Pump Company    Thomasville, GA 31792
Nov 06, 2009 Designed for space constrained applications, Model 811CC is customizable with heavy-duty stocked ductile iron, stainless steel, and CD4MCu materials of construction, along with variety of seal options. Close-coupled electric motor eiminates need for coupling alignment and oil-level monitoring. Impeller can handle corrosive and erosive fluids and is keyed with features o-ring seal. Replaceable shaft sleeve and adapters allow for easy replacement of mechanical seal and packing.

Griswold Pump Company    Thomasville, GA 31792
Nov 05, 2009 Intended for fluid handling applications, 811 Series is available with broad selection of seals that can accommodate most any fluid and temperatures up to 500°F. Oversized seal chambers provide optimal seal environment for heat dissipation, solids, entrapped air, and vapor. Radial clearances between mechanical seal and seal chamber wall maximize circulation of liquid to and from seal faces. Standard, large, and tapered bore style chambers are available.

E Instruments International LLC    Langhorne, PA 19047
Nov 05, 2009 Combining pressure and vacuum generation, PHP Series features spring loaded stroke adjustment, scissor action, and fine adjustment vernier. Handheld units include Model PHP 2 with pressure range up to 30 psi, Models PHP 10/25 with pressure ranges up to 150/350 psi, and Models PHP 35/40 with pressures ranges to 500/600 psi. All include 3/8 in. BSP (F) connection to fit master indicators.

Parker Hannifin Plc    Barnstaple Devon EX31 1NP  United Kingdom
Nov 05, 2009 Stainless steel H-series helps improve reliability and conserve space in process and instrumentation applications involving viscous and contaminated media. It comes in 2 forms: discrete hand valve for controlling media flow, or integrated into monoflange-style manifold for safe double-block-and-bleed connection of instruments to process lines. Flow path size minimizes inclinations to blockages or related problems, and metal-to-metal seal offers bubble-tight shut-off.

PneuMagnetic, LLC    Quakertown, PA 18951
Nov 04, 2009 Converting most ASCO direct-acting IS and EX solenoid valves from electric to pneumatic operation, PneuMagnetic Actuators eliminate need for field wiring, conduit and junction boxes, flame arrestors, or barriers. Converted valves require only air pilot using flexible, small diameter pneumatic line.

Avery Dennison, Printer Systems    Philadelphia, PA 19111
Nov 04, 2009 Steam valve system provides hermetically-sealed protection against contaminants while accurately regulating cooking process of home-heated foods. Applied over pre-cut hole in flexible packaging or lidding film, valve opens at predetermined temperature and lets steam escape during cooking process by exposing structure's slitted or perforated baffle layer. Product also lets manufacturers specify how much steam leaves package during cooking as well as control pressure inside package.

AMOT Controls Corp.    Houston, TX 77064
Nov 04, 2009 Suited for underground mining or similar applications calling for Group 1 certification, Chalwyn SVX electronically operated air intake shutdown valve has non-sparking zinc alloy body and solenoid cover. Failsafe valve helps to prevent potential explosions from diesel engine ignition wherever there is combustible gas, vapor, or dust hazard. Designed for air intake diameters from 1½-8 in., butterfly valve can be flange or hose mounted.

GF Piping Systems    Tustin, CA 92780-7258
Nov 03, 2009 Type 567 Butterfly Valve features double eccentric design with off-center shaft that allows disc to completely disengage from disc seal, even when partially open, minimizing seal friction to extend service life and reduce maintenance. Industry-standard ISO flange mount facilitates electric or pneumatic actuation with most actuators. Built for chemical compatibility, valve also features bi-directional capability, pressure rating of 90 psi at 70°F, and hand wheel.

E Instruments International LLC    Langhorne, PA 19047
Nov 03, 2009 Comprised of models specified for pressure ranges to 30, 150, 350, 500, or 600 psi, Pneumatic PHP Hand Pump Series combines pressure and vacuum generation functionality with spring-loaded, grip-able handle and scissor action. Fine adjustment vernier and pressure release are also included, and connections to fit master indicators are 3/8 in. BSP (F). In addition to cases for pumps, adapters, and hose, options include set of BSP/NPT adaptors.

Innovative Pressure Technologies, Inc.    Erie, PA 16509

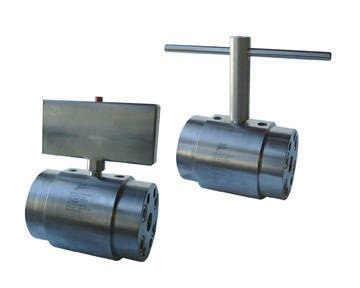

Nov 03, 2009 Subsea valves are available with T-handle for manual operation, paddle handle for ROV operation, or hydraulic actuator for remote operation, and with port sizes from ¼-2 in. They feature floating ball design for operation at 3,000-6,000 psi pressure, and trunnion ball design for operation at up to 15,000 psi. Valve seals feature PEEK seats for resistance to chemical, heat and wear, and NBR Buna-N o-rings make them suitable for operation in temperatures from -35 to 250°F.

Gems Sensors Inc.    Plainville, CT 06062
Nov 03, 2009 Constructed from chemically inert materials such as PTFE, ETFE, EPDM, FKM, FFKM, PEEK, PPS, and PSU, K Series is suited for applications requiring chemical resistance and/or sample purity. Modular, direct-acting, round-bodied solenoid valves include KS Series 2-way valves with MOPD of 20 psig; KM/KL Series 2-way and 3-way directional valves with MOPDs of 30 psig; and KV/KW Series 2-way and 3-way directional models with MOPDs as high as 209 psig.

EXAIR Corporation    Cincinnati, OH 45249-1621
Nov 02, 2009 Powered by compressed air, Chip Trapper(TM) cleans solids such as chips, swarf, and shavings out of used coolants and other liquids. Unit vacuums coolant or liquid that is filled with debris into included 55-gal drum, trapping all solids in reusable filter bag. With turn of flow valve, clean liquid pumps back out. Safe operation is assured with built-in pressure/vacuum relief and automatic safety shutoff valve that prevents spills or overfilling.

NLB Corporation    Wixom, MI 48393 2824

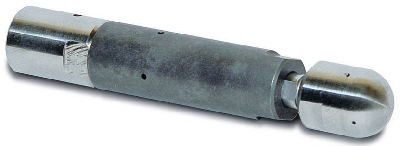

Oct 30, 2009 Respectively suited for applications requiring water pressures up to 24,000 and 15,000 psi, Typhoon(TM) 24-10 and 24-15 rotating water jet nozzles clean pipes as small as 5/8 in. dia with efficient water usage. Rotating action comes from nozzle, focusing force up front for optimal effectiveness, and integral seal limits leakage, which is distributed at both ends to equalize nozzle wear. Self-propelling nozzles rotate at up to 7,000 rpm with max flow of 10 gpm.

Tideflex Technologies    Carnegie, PA 15106
Oct 29, 2009 Constructed entirely of rubber, with enhanced sealing to improve headloss across valve, TF-1 Curved Bill Tideflex® Check Valve is immune to rust, corrosion, and weathering. It can also handle long-term water weight and maintain structural integrity. Vertical angle of spine enables valve to withstand cantilever effect when water is flowing through it.
