Specialized Products Company    Southlake, TX 76092
Nov 18, 2011 QuadLink turns any 6 or 12 Vdc battery charger into 4-station maintenance charger, automatically splitting and distributing all of the charger's capabilities into 10-minute sequencing charge segments. Four-way switcher is capable of charging batteries individually connected or connected as group in 24, 36 or 48 volt series. Output cable length is 5 ft 9 in., and 5 and 25 ft long cables are also available.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Nov 17, 2011 With power consumption of 1 mA per channel, OPAx836 Series provides 205 MHz of bandwidth for driving low-power SAR and delta-sigma ADCs. Units feature slew rate of 560 V/µs, THD of 130 dBc, and 4.6 nV/rtHz noise, with typical input-offset voltage of 0.065 µV and 1.1 mV/°C drift for accurate measurement. Available in 2 x 2 mm WQFN package with integrated gain setting resistors, op amps extend battery life of portable industrial, consumer, and medical applications.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Nov 17, 2011 Featuring fixed- and floating-point performance on single device, 10 GHz Series C66x addresses interface bandwidth requirements of SRIO, PCIe, and Hyperlink. Units provide path for parallel processing to meet FFT processing time requirements. Suited for SDRs, public safety, and emerging broadband radio systems, 1.2 GHz TMS320C6670 SoC includes multi-standard Bit Rate Coprocessor as well as other coprocessors that accelerate physical layer processing for LTE, WCDMA, TD-SCDMA, and WiMAX.

Z-Communications, Inc.    San Diego, CA 92126

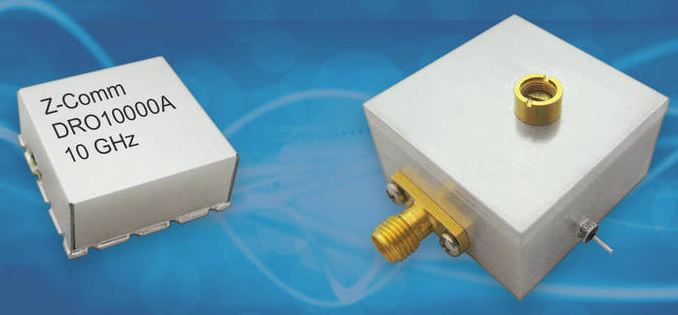

Nov 16, 2011 Using high-Q dielectric resonators, DRO Series is designed for up/down converter systems requiring ultra-low phase noise (-110 dBc/Hz @ 10 kHz offset) LO solution. Electrical tuning option for the version operating at 10 GHz has control range of 0-12 Vdc, promoting ultra-fine tuning precision. Electrical tuning provides ±3 MHz of frequency control, facilitating and accelerating oscillator phase-lock. Package options include SMT or connectorized metal enclosure.

Yamaichi Electronics U.S.A. Inc.    San Jose, CA 95134

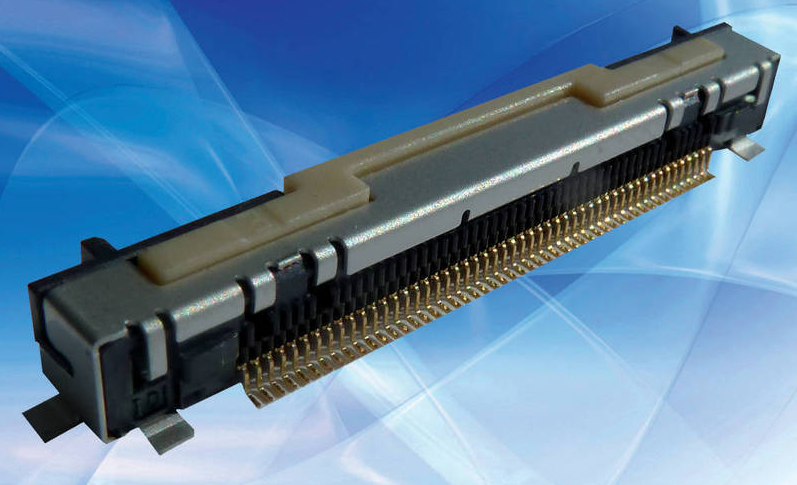

Nov 15, 2011 With design that simplifies connection between plug and cable, shielded HF507S-xx-72 enables high-speed FFC to be plugged directly together without additional materials. FFC has small punched-out gap on both sides in plug area for this purpose and is inserted into connector, engaging with its shape using one-push lock procedure. To remove FFC, operator presses button located on top of connector. Transmission of data is in Gbit range, depending on pin count (41 or 51) and length of FFC.

Larson Electronics, LLC    Kemp, TX 75143
Nov 15, 2011 With ability to convert 480 Vac 3-phase current to single-phase 120/208Y AC configuration, Model MGPD-SP-200-1D-45-2B allows operators to utilize generators or outside high voltage power sources when local or native power sources are unavailable. Portable 45 KVA unit makes 240 Vac available via two 100 A breakers for uninterrupted flow of usable power. Safe operation is achieved through inclusion of fusible NEMA-3R disconnect and 60 A fuses for positive power control and overload protection.

Kemet Electronics Corp.    Greenville, SC 29606
Nov 15, 2011 Utilizing organic conductive polymer as cathode plate, T522 Series comes in low-profile and standard height configurations with capacitance from 150-470 µF, voltage rating of 6.3 V, and ESR from 25-40 mW. Devices have Ta anode and Ta2O5 dielectric, eliminating ignition failures that can occur in MnO2 tantalum types. Operating from -55 to +105°C, capacitors are suited for battery-dependent applications such as handheld consumer electronics, global tracking systems, and wireless sensors.

Ironwood Electronics, Inc.    St. Paul, MN 55121
Nov 15, 2011 Designed for testing 0.5 mm pitch, 14 x 18 mm eMMC BGA device, SG-BGA-7219 connects all pins with 10 GHz bandwidth and operates with less than 1 dB insertion loss. Contact resistance is 20 mohm per I/O (typ), and mounting is accomplished via supplied hardware on target PCB without any soldering. Quick insertion method, using shoulder screws and swivel socket lid, accelerates IC change-out, while floating compression mechanism accommodates package manufacturing variations.

Maxim Integrated Products    Sunnyvale, CA 94086
Nov 15, 2011 With autozero technology, 20 V Model MAX44251 offers continuous self-calibration, ensuring system accuracy over time, temperature, and power supply variations. Less than 6 µV initial offset over 2.7-20 V operating range minimizes errors during signal conditioning. Unit's 1.15 mA current consumption per channel offers 10 MHz gain bandwidth and 5.9 nV/rt-Hz input referred voltage noise. Operating from -40 to +125°C, op amp is suited for pressure sensors, strain gauges, and medical instrumentation.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Nov 15, 2011 While 30 V SiZ300DT comes in PowerPAIR® 3 x 3 mm package and targets DC/DC applications handling currents of 10 A and under, 30 V SiZ910DT in PowerPAIR 6 x 5 mm package suits applications above 20 A. Devices in PowerPAIR 6 x 3.7 mm package include 25 V SiZ728DT, SiZ790DT with on-board Schottky diode, and 30 V SiZ730DT with RDS(on) of 0.0093 ohms @ 4.5 V and 0.013 ohms at 4.5 V. All products help simplify design of efficient synchronous buck single and multiphase DC/DC converters.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Nov 14, 2011 Housed in 7 x 7 mm, 48-pin QFN package, 12-bit Model DAC3162 and 10-bit Model DAC3152 are suitable for wireless base stations, software defined radio, point-to-point microwave, e-band radio, and portable test equipment. At 500 MSPS, Model DAC3162 uses 135 mW per channel with 20 mA output current and 67 mW per channel with 2 mA output current. Pin-for-pin compatibility enables user to achieve 12- or 10-bit resolution without board or software changes.

Toshiba America Electronic Components (TAEC)    Irvine, CA 92618-1811
Nov 14, 2011 Available in 3-state inverted and non-inverted buffer versions, TC74LCXZ Series and TC74LCXZA Series maintain output at high impedance when power supply voltages are in range of 0-1.5 V and 0-1.2 V, respectively. Hot-swap ICs manage inrush current during live insertion of cards to prevent system failures. TC74LCXZ Series consumes +40 µA max at V(CC) = 2.7-3.6 V (V(IN) = V(CC) or GND), while TC74LCXZA Series consumes +40 µA max at V(CC) = 2.3-2.7 V (V(IN) = V(CC) or GND).

Select-Arc, Inc.    Fort Loramie, OH 45845-0259
Nov 11, 2011 Delivering flat, well washed beads with minimal weaving, Select 410-AP all position wire welds straight 410 SS while providing corrosion and oxidation resistance up to 1,200°F. Select 410NiMo, featuring nominal weld metal composition of 12% chromium, 4.5% nickel, 0.6% molybdenum, and max carbon content of 0.06%, delivers smooth stable arc with low spatter residue and well washed beads. Both gas-shielded, flux cored electrodes are available in .045 in. and 1/16 in. diameters.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143

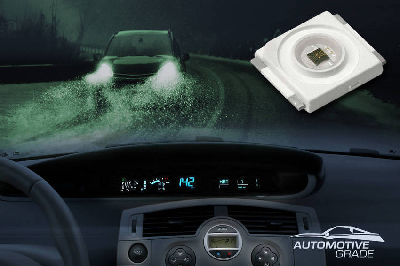

Nov 11, 2011 Offered in 6.0 x 7.0 x 1.5 mm Little Star® package, 850 nm Model VSMY7850X01 contains 42 mil chip for drive currents up to 1A and pulses to 5 A, while Model VSMY7852X01 features 20 mil chip for drive currents to 250 mA and pulses to 1.5 A. Low thermal resistivity of 10 K/W for VSMY7850X01 and 15 K/W for VSMY7852X01 enables max current to be employed over operating temperature range of -40 to +100°C. With SurfLight surface emitter technology, all generated light is emitted through top of chip.

Osensa Innovations Corp.    Coquitlam V3J0A3  Canada
Nov 10, 2011 Featuring DIN rail mount design, Model FTX-301 supports 3 fiber optic temperature inputs and includes 3 optically isolated 4-20 mA analog outputs, while Model FTX-302 is same device only without analog outputs. Both include industrial RS-485 serial bus for modbus communication to multiple daisy-chained devices. Providing real-time temperature data to 200°C, each device is configured and monitored via OSENSAView FTX software and direct USB connection to PC/laptop.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Nov 10, 2011 Using 81199A Wideband Waveform Center software and M8190A arbitrary waveform generator or Infiniium 90000 X-Series oscilloscope, design teams can verify overall performance of 60 GHz wireless devices. Combination also allows validation engineers to perform specific measurements with expected values for transmitters and receivers as defined in standard. Complete solution offers arbitrary waveform creation, frequency conversion, signal modulation, and spectrum analysis.

MagnaChip Semiconductor    Cheongju-si,Chungbuk   Korea (south)
Nov 10, 2011 Housed in 3 x 3 mm TQFN-16L package, 4-channel MAP3105 has input voltage range of 4-26 V and embedded MOSFET, which can boost output voltage to 45 V with switching range of 500 kHz ~ 2 MHz. Six-channel Model MAP3106, offered in QFN package measuring 4 x 4 mm, has input voltage of 5-24 V and embedded MOSFET which can boost output voltage to 40 V with switching range of 330 kHz ~ 1 MHz. Both include current overload protection, LED open/short protection, and over voltage protection.

MediaTek Inc.    Hsin-Chu   Taiwan
Nov 10, 2011 Integrating 802.11n Wi-Fi MAC, baseband, radio, embedded CPU, and power management unit in single chip, MediaTek MT5931 enables Internet access and peer-to-peer multimedia sharing for mobile and portable devices. SoC, measuring less than 9 mm² in chip scale package, also integrates PA, LNA, and T/R switches. Advanced Wi-Fi features such as STBC, Wi-Fi Direct, and Hotspot mode are fully supported to meet dynamic changes in Wi-Fi infrastructure.

STMicroelectronics    Lexington, MA 02421
Nov 10, 2011 Housed in SO-8 wide package, Model LCP12 protects against high-voltage surges on tip and ring connections of subscriber line interface cards, which connect telecom local loops to access network. Unit is rated for surge currents up to 75 A for 5/310 µsec waveshape at 4 kV. With firing-voltage range of -120 to +120 V and minimum holding current of 150 mA, Model LCP12 is compatible with most dual battery voltage SLICs.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Nov 10, 2011 Sitara(TM) AM335x ARM® Cortex(TM)-A8 microprocessors with NEON at up to 720 MHz consume as little as 7 mW of power while providing developers with 3D graphics capabilities, touch screen controller, and peripherals on one chip. Power management options help keep power levels as low as 700 mW in active mode, while integration provides CAN, 2-port Gbe switch, Dual USB + PHYs, LPDDR1/DDR2/DDR3, PRU, ADC, and cryptographic acceleration.
