Mill-Max Mfg. Corp.    Oyster Bay, NY 11771
Sep 09, 2011 Used for parallel board stacking interconnections, 891-10-064-30-120000 (male) and 893-43-064-30-420000 (female) are SMT, 64-position mezzanine connectors with mated height of 10 mm. RoHS-compliant products are suited for connecting common mezzanine card and may also be used as modular connectors for front panel and backplane I/O cards. Features include 30 µin. gold-plated contacts, tin-plated solder terminals, and insulator housings of high-temperature, glass-filled LCP.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Sep 09, 2011 With Line Fault Transparency, Switch Amplifiers enable users to simultaneously transfer switch and fault signals via single output. Models NIC2831 and HIC2832 are 1- and 2-channel units suitable for mounting on termination boards, while K-System KFD2-SOT2-EX1.N provides line fault transparency to control system in standard DIN rail mount configuration. Amplifiers provide comprehensive monitoring of field and control lines while minimizing amount of wiring required in hazardous areas.

Gennum    Burlington, ON L7L5M4
Sep 08, 2011 Leveraging 3 Gbps technology, Model GS3480 features dual non-inverted SDI outputs, while Model GS3481 provides 4 non-inverted outputs. Adjustable output pre-emphasis compensates for losses associated with thin cables, long cable runs, and high-density connectors. With output swing of 2,400 mV, Model GS3480 supports large system architectures that require external passive muxing, external cable and connector losses associated with patch panels, and other architectures that cause DC loss.

Sullins Electronics Corp.    San Marcos, CA 92079-0189
Sep 07, 2011 Featuring 0.039 in. centerline, dual-row SBH51 Series Male Box Headers and corresponding SFM210 Series Female Header Mates minimize risk of mismating in high-density board-to-board applications where optimal signal performance is required. Units come in 3-60 positions and have current rating of 1 A per contact. Provided in plate through hole, and with/without guideposts in surface mount terminations, UL94V-0 connectors feature extended temperature range of -40 to +125°C.

WAGO Corp.    Germantown, WI 53022
Sep 07, 2011 Featuring dual jumper rows and push-in termination for ferruled or solid conductors, TOBJOB®S 2006 Series Disconnect and Fuse Terminal Blocks serve industrial applications requiring disconnection, isolation, and fuse protection of analog signals. Model 2006-1671 Knife Disconnect Blocks have pivoting knife disconnect and 30 A/600 V UL rating, while Fuse Disconnects and Fuse Plug Carrier Blocks feature 15 A/600 V UL rating and accommodate 5 x 20 mm, 5 x 30 mm, or ¼ x 1¼ in. fuses.

MagnaChip Semiconductor    Cheongju-si,Chungbuk   Korea (south)
Sep 07, 2011 Triple voltage CMOS process consists of zero layer CMOS transistor design embeddable in standard 1.8/5 V and 1.8/3.3 V CMOS processes. CMOS transistors have max gate voltage of 7 V and max drain voltage of 10 V in operation with breakdown voltage of over 17 V. Fully compatible with standard CMOS process, solution is intended to support integration of off-chip, high-voltage circuits into standard dual voltage ICs for high-performance, mixed-signal applications.

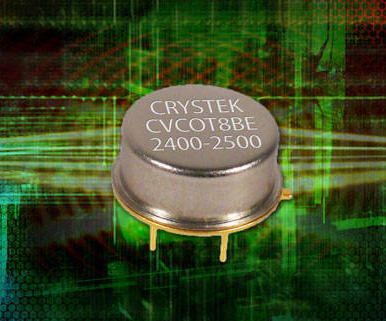

Crystek Corp.    Fort Myers, FL 33907
Sep 06, 2011 Housed in hermetically sealed TO-8 package, Model CVCOT8BE-2400-2500 provides frequency control in harsh environments. Unit features typical phase noise of -101 dBc/Hz at 10 kHz offset and tuning sensitivity of 55 MHz/V. Pulling and Pushing are minimized to 11.0 MHz and 1.0 MHz/V, respectively, and second harmonic suppression is -15 dBc typical. Featuring metal-can construction with gold-plated pins, VCO has control voltage range of 0.5~4.5 V with input voltage of 5 V.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Sep 06, 2011 Supplied in 12 x 12 mm BGA package with 0.8 mm pitch, TMS320C553x series offers up to 50 and 100 MHz performance options, total active core power consumption of less than 0.15 mW/MHz at 1.05 V, and standby power consumption of less than 0.15 mW. Series is supported by the C5535 eZdsp(TM) development kit and provides I²S, I²C, UART, SPI, and GPIO interfaces. Additionally, features include on-chip memory options from 64-320 KB; high-speed USB 2.0 with PHY, SD/eMMC; 1-3 LDOs; and LCD controller.

Bud Industries, Inc.    Willoughby, OH 44094
Sep 06, 2011 Carrying NEMA 4 rating, PN-Series is offered in various plastic materials and with clear or solid cover. Molded-in external mounting brackets on back allow mounting on wall, panel, or machine, while cover-attaching screws outside sealing area provide additional shielding from moisture and dust. Most models have internal guide slots for mounting PCB assemblies vertically, and internal bosses allow for mounting of PCBs horizontally or for connection of terminals into threaded brass inserts.

STMicroelectronics    Lexington, MA 02421
Sep 06, 2011 With resonant frequency beyond audio bandwidth, L3G3250A is completely immune to audio noise and mechanical vibrations for enhanced accuracy and reliability. Product is coupled through PCB, and single sensing structure for motion measurement along all 3 orthogonal axes further increases sensing accuracy and reliability. Device offers 2 user-selectable full scales - 625 or 2,500 dps (degrees per second) - with respective sensitivities of 2 and 0.5 mV/dps.

Analog Devices, Inc.    Norwood, MA 02062-9106
Sep 02, 2011 Featuring integrated programmable logic/PWM and 2 programmable reset generators, Models ADP5585 and ADP5589 simplify interface connectors by saving up to 10 and 19 I/O lines to main processor, respectively. Units save battery life in portable devices by consuming less than 30 µA when keys are pressed and less than 1 µA when keys are idle. Both support multiple, simultaneous key press detection and communicate presses and releases in chronological order via 16-byte FIFO.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Sep 02, 2011 Available in 0612 package, Power Metal Strip® WSK0612 features all-welded construction featuring solid metal nickel-chrome or manganese-copper alloy resistive element with low TCR of less than 20 ppm/°C. Four-terminal, 1 W device offers high-temperature performance up to +170°C and low thermal EMF of less than 3 µV/°C. Compliant to RoHS Directive 2002/95/EC, resistor is intended for current sensing, voltage division, and pulse applications in DC/DC converters and VRMs.

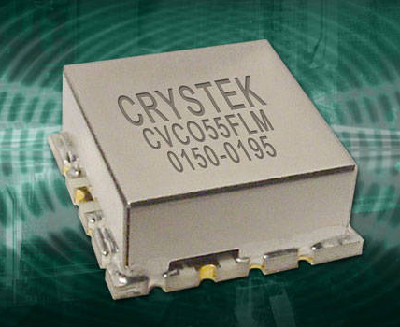

Crystek Crystals Corp.    Fort Myers, FL 33913
Sep 01, 2011 Operating from 150-195 MHz with 0.3~4.7 V control voltage, Model VCO55FLM-0150-0195 features typical phase noise of -118 dBc/Hz at 10 kHz offset. Extra modulation port, with negative slope and typical modulation sensitivity of -25 kHz/V, makes VCO suitable for transmitter applications. Housed in 0.5 x 0.5 in. SMD package, oscillator delivers 0 dBm output power with input voltage of 5 V and max current consumption of 5 mA. Pulling and pushing are minimized to 1.5 MHz and 0.5 MHz/V, respectively.

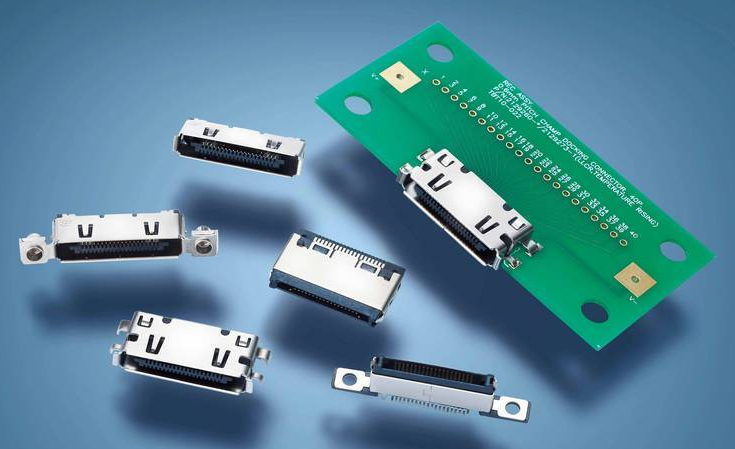

TE Connectivity Ltd.    Berwyn, PA 19312
Sep 01, 2011 To meet demand for hybrid I/O connectors, 0.6 mm CL (centerline) high-speed CHAMP docking series connector is designed for high-density, low-profile (3.8 mm) shield applications featuring 2 rows of contacts on 0.6 mm pitch centerline. Multiple options - right-angle receptacles, right-angle offset receptacles, and vertical plugs for both dock and cable applications - are available. Products meet various industry transmission standards, including USB 3.0, HDMI 1.4, and DisplayPort 1.2.

Binder-USA, LP    Camarillo, CA 93012
Sep 01, 2011 Designed with durable all-plastic shell with outer diameter of 11.5 mm, Series 620 comes in male and female versions with 3, 4, 5, or 8 gold-plated contacts. Connectors are IP67-rated when properly installed and mated, ensuring connection is protected from liquids and debris. With quick-disconnect feature, Series 620 is suitable for commercial and medical applications.

Mini-Circuits    Brooklyn, NY 11235
Sep 01, 2011 Capable of operating up to 15 W, model QCS-83+ is 2-way 90° power splitter with 4,000-8,000 MHz range and typical unbalance of 0.8 dB and 4°. Microwave RF/IF power splitter combiner, supporting nearly octave band in miniature EIA-0805 form factor, features LTCC construction, which lends to effective use in transmit or receive paths.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Sep 01, 2011 Available in 3232 case size with 8.18 x 8.64 mm footprint and 4.0 mm profile, Model IHLP-3232DZ-01 features frequency range to 5 MHz, maximum DCR down to 1.68 mW, and saturation current range of 9.0-34.0 A. Operating from -55 to +125°C, inductor has RoHS-compliant, 100% lead-free, shielded composite construction with resistance to moisture, shock, and vibration. Applications include voltage regulator modules and DC-DC converters.

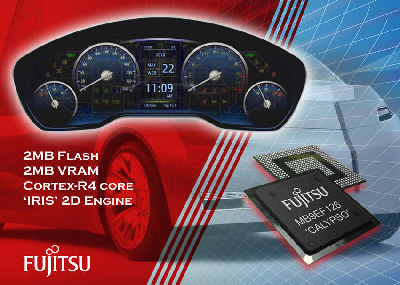

Fujitsu Semiconductor Europe GmbH    Langen D-63225  Germany
Aug 31, 2011 Based on ARM® Cortex(TM)-R4 core operating at up to 160 MHz and offering more than 200 DMips processing power, MB9EF126 Calypso contains intelligent support for up to 6 traditional gauges as well as IRIS 2D graphics engine to drive color display in same cluster. Single chip solution contains 2 MB Flash, 64 KB EEFlash, and 208 KB RAM, all protected by ECC, plus 2 MB of embedded graphics RAM. Communication interfaces support LIN, CAN, HS-SPI, I2S, and Ethernet protocols.

M/A-COM Technology Solutions, Inc.    Lowell, MA 01851
Aug 31, 2011 Fabricated as monolithic GaAs IC using pHEMT process, MAAD-010305 is designed to condition cable input signals to STB. This 1-bit, linear solution, suited for use in high-volume consumer premise equipment, exhibits 0.3 dB insertion loss, 15 dB attenuation, and 14 dB input and output return loss. Designed for operation from DC to 1.1 GHz, product comes in RoHS-compliant, SOT-25, 5-lead SMT plastic package and allows for positive and negative voltage control complimented by 75 ohm impedance.

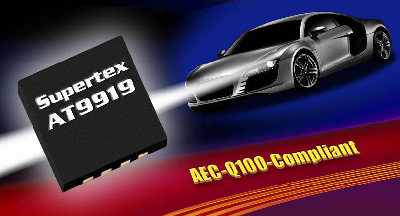

Supertex Inc.    Sunnyvale, CA 94619
Aug 31, 2011 Housed in 8-lead DFN package, AEC-Q100 compliant Model AT9919 drives LEDs using buck topology. Because of hysteretic control function, constant output current to LED string is maintained at all times. IC drives loads up to 1.0 A at over 90% efficiency from input voltages ranging from 4.5-40 V. With LED brightness achieved through PWM control signal, IC is suited for solid-state automotive lighting applications, such as head lights, tail lights, brake indicator lights, and dome lights.
