Benko Products Inc.
Sheffield Village, OH 44054
Sep 23, 2003 Made of heavy-duty, welded carbon steel, Modular Drum Hot Box is heated by steam, electricity, hot oil, or hot water. Unit can be shipped in 2 pieces. Top and bottom sections bolt together, and sections can be stacked up to 3 high, reducing footprint. Oven replaces inefficient homemade hot rooms and band heaters.

Despatch Industries
Minneapolis, MN 55440 1320
Aug 12, 2003 Available in versions that accommodate 8 cassettes of 150 mm wafers and 6 cassettes of 200 mm wafers, Polyimide Curing Tool features chamber-in-a-chamber design that reduces particulate contamination and oxygen concentration. It maintains temperature uniformity of ±2.5°C at 400°C and has inert atmosphere design that promotes material adhesion. With ramp rates of 5°C per minute heating and 2.5°C cooling, unit has controller that can store multiple recipes.

Grieve Corporation, The
Round Lake, IL 60073-2898
Aug 04, 2003 With workspace dimensions of 120 x 144 x 84 in., No. 916 has 800,000 BTU/hr installed in modulating natural gas burner and 24,500 cfm, 20 hp recirculating blower that provides combination airflow to workload. Product has aluminized steel exterior and interior, 4 in. thick insulated walls, and removable top-mounted heat chamber. Features include 325 cfm, 1/3 hp forced exhauster, digital programming temperature controller, and 10 in dia circular chart recorder.

Grieve Corporation, The
Round Lake, IL 60073-2898
Jul 01, 2003 With workspace dimensions of 24 x 26 x 53 in., No. 917 utilizes ½ hp motor drive, variable from .05–9 ipm, to move 29, 18 x 5 in. trays vertically through load/unload zone. It has 350,000 BTU/hr installed in modulating natural gas burner, while 2,000 cfm, 2 hp, recirculating blower provides horizontal airflow to workload. Construction characteristics include aluminized steel exterior and interior and 6 in. thick insulated walls.

Grieve Corporation, The
Round Lake, IL 60073-2898

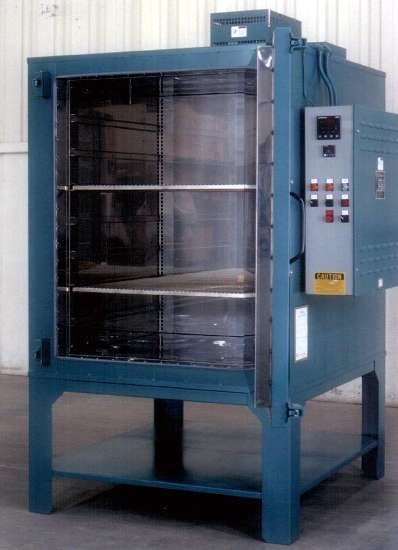

Jun 09, 2003 No. 918 gas-fired, 350°F shelf oven features 1,000 cfm, 1 hp recirculating blower, which provides horizontal airflow to workload. Exterior is aluminized steel and interior is Type 430 stainless steel with 4 in. thick insulated walls, integrally welded construction, and silicone rubber door gasket. Digital indicating temperature controller displays actual and set point values. Two nickel-plated wire shelves are included.

Benko Products Inc.
Sheffield Village, OH 44054
May 27, 2003 Industrial batch ovens are electrically heated and provide uniform heating capabilities up to 750°F. Products are designed specifically around heating requirements of each application, and offer precise temperature control, choice of airflow patterns, and all-welded, carbon-steel construction. Steam-heated and gas-fired models are also available.

Sub-Zero Freezer Co., Inc.
Madison, WI 53744 4130
May 15, 2003 Stainless steel dual fuel range is offered in 16 different size/feature configurations. Electric oven includes 2 convection fans and 4 heating elements for control over 8 cooking modes. All-glass electronic control panel is hidden to create clean, minimalist look. Oven knobs feature digital temperature readout. Burners deliver up to 15,000 BTUs. Dual-stacked design uses upper-level burner for max heat transfer and lower-level burner for simmering on all burners.

Grieve Corporation, The
Round Lake, IL 60073-2898
Apr 17, 2003 No. 915 gas-fired, 650°F cabinet oven, suited for testing paint coupons, offers workspace dimensions of 26 x 26 x 38 in. While 1,000 CFM, 1 hp recirculating blower provides vertical upward airflow to workload, 100,000 BTUs/hr are installed in modulating natural gas burner. Offerings include 12 x 8 in. access hatch in main door, digital indicating temperature controller, top-mounted control panel, and 325 cfm, 1/3 hp forced exhauster.

Grieve Corporation, The
Round Lake, IL 60073-2898
Apr 08, 2003 No. 914 gas-fired, 650°F oven offers workspace dimensions of 60 x 72 x 72 in. Modulating natural gas burner, fired into alloy radiant tube, provides 800,000 BTU/hr indirect heating. Five horsepower recirculating blower operating at 6,000 cfm delivers horizontal airflow. Oven includes 1,500 cfm powered forced exhauster, motorized dampers on fresh air intake and exhaust, digital programming temperature controller, and 10 in. dia circular chart recorder.

Grieve Corporation, The
Round Lake, IL 60073-2898
Feb 28, 2003 Electrically heated No. 911, for paint baking, offers workspace dimensions of 39 x 36 x 48 in. Heated, horizontal airflow is provided to workload by 30 kW installed in Nichrome-wire, tubular heating elements and 2,000 cfm, 2 hp recirculating blower. Construction includes aluminized steel exterior, 4 in. thick insulated walls, and Type 304, 2B finish stainless steel interior with continuously backwelded seam construction.

Despatch Industries
Minneapolis, MN 55440 1320
Feb 04, 2003 SEMI S2- and CE-compliant LLC/LLD oven provides thermal processing alternative for electronics and semiconductor packaging applications such as die-bond curing. With recirculation motor mounted on back, oven components are accessible for servicing. Products can be stacked up to 3 units high to save floor space while keeping loading heights ergonomically acceptable. Chambers, with non-corrosive, stainless steel interior, are offered with volumes of 1.6 and 5.1 cu ft.

Grieve Corporation, The
Round Lake, IL 60073-2898
Feb 04, 2003 Gas-fired Model 909 500°F oven generates 175,000 Btu/hr and offers workspace dimensions of 30 x 48 x 57 in. Recirculating 2 hp blower motor produces 2,000 cfm and provides horizontal airflow from top-mounted heat chamber. Oven has 4 in. thick insulated walls, stainless steel exterior, and Type 430 stainless steel interior with continuously backwelded seam construction. It includes 10 in. dia circular chart recorder and 10 permanently mounted survey thermocouples.

Despatch Industries
Minneapolis, MN 55440 1320
Jan 30, 2003 Model LBB Forced Convection Bench-Top Oven features front and back doors creating pass-through design, which increases throughput by maintaining continuous flow of products. Available in digitally controlled temperatures up to 400°F, oven offers chamber volumes of 18 or 27 cu ft. Corrosion-resistant stainless steel interior and nickel-plated shelves clean easily. Standard shelves hold up to 50 lb. Temperatures are displayed on ¾ in. LED panel.

Grieve Corporation, The
Round Lake, IL 60073-2898
Dec 26, 2002 Model No. 894 offers workspace dimensions of 30 x 48 x 15 in. Workloads travel on 316 stainless steel conveyor belt driven by 1/4 hp motor drive, variable from 0.4 to 8.4 ipm. Product offers 48 in. insulated heat zone with recirculated airflow provided by 2,000 cfm, 2-hp recirculating blower. Total of 60 kW is installed in Incoloy sheathed tubular heating elements. Additional offerings include magnehelic pressure gauge on blower outlet and exhauster outlet.

Precision Quincy Corp.
Woodstock, IL 60098 7483
Nov 14, 2002 Gas and electric ovens are offered with cart guide tracks and heating chambers of 47.5, 80, 125, and 180 ft³. Maximum temperatures reach 500 or 800°F, depending on model. All models have digital, microprocessor-based indicating set-point controller; aluminized steel interior; and fan forced horizontal air circulation. Ovens also include 2½ in. insulated floor, pressure release door latches, and heavy duty welded steel construction.

Grieve Corporation, The
Round Lake, IL 60073-2898
Oct 09, 2002 Built to JIC/NEMA 12 electrical standards, No. 906 has maximum operating temperature of 250°F and workspace dimensions of 36 x 38 x 92 in. (W x D x H). Its 4200 cfm, 3 hp recirculating blower provides vertical upward airflow to load. Incoloy-sheathed tubular heating elements provide a total of 20 kW. Up to 11 trays, each measuring 30 in. wide x 14 in. deep, ride vertically on chain drive, individually indexed to load/unload position.

Manncorp
Willow Grove, PA 19090
Oct 08, 2002 Model SMRO-0403C full convection, 16 in. reflow oven features 8 zones and is designed to handle 0201s, CSPs, BGAs, and lead free pastes. Unit is programmable through built-in control panel or via PC software. Thermocouples are included for real-time, dual-channel profiling.

Grieve Corporation, The
Round Lake, IL 60073-2898
Sep 10, 2002 Model No. 902 electric, high temperature oven has maximum operating temperature of 850°F, rollout shelving, 100 kW of Incoloy sheathed tubular heating elements, and 10,000 CFM, 7½ hp recirculating blower that provides combination airflow to workload. Oven has overall workspace dimensions of 72 x 79 x 78 in., with top-mounted heating chamber, aluminized steel interior and exterior, and inner and outer door gaskets. Doors have expansion joints on inner face.

CMM Group, LLC, The
De Pere, WI 54115
Jul 12, 2002 Custom product line includes arched or flat roll support dryers, vertical tower dryers, and high velocity jet tube impingement ovens. Drying uniformity is achieved with air nozzles and/or impingement hardware. To accommodate future production volume increases, equipment can be designed and manufactured in modular style.

Despatch Industries
Minneapolis, MN 55440 1320
May 29, 2002 LCC2-14 has chamber volume of 14 cu ft, large enough to handle thermal processing of 200 and 300 mm semiconductor wafers. It has stainless steel interior with continuously welded seams to protect work chamber from contamination. Oven is SEMI S2 and CE compliant, can be configured for multiple voltages and 50/60 Hz, and has UL and C-UL listed open control panel with lockable disconnect switch. With Protocol Managerâ„¢ software, oven controllers can be networked.
