IMS Company    Chagrin Falls, OH 44023

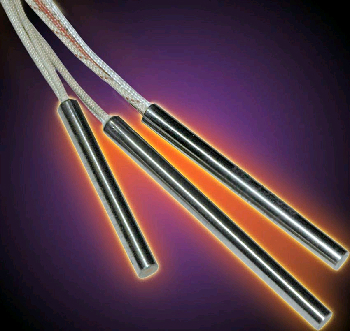

Jul 27, 2006 Designed with ceramic cores and alloy tubing to maximize heat transfer, Hot Stix Cartridge Heaters feature high-purity magnesium oxide packing for even heat distribution. Heater leads can withstand temperatures up to 842°F. Hot Stix GP Heaters are suitable for most heating applications, while ¼ in. diameter IN Heaters are designed for internally heated nozzle applications, and TC Heaters include built-in Type J thermocouple.

Despatch Industries    Lakeville, MN 55044
Jun 29, 2006 Paint Sample Baking Tool utilizes multiple variables and chamber-in-chamber design to accurately replicate paint curing process. Via software, users can adjust oven parameters to simulate characteristics of any type of production oven (radiant, direct gas heated, or electric convection) and replicate environmental conditions surrounding specific production facility. Features include monitoring ports, variable air flow velocity, and adjustable incoming dew point air.

Induction Atmospheres LLC    Rochester, NY 14624
Jun 28, 2006 Utilizing solid-state induction heating technology, Model VF-20 heats parts of virtually any shape in high-temperature, high-vacuum environment. It requires less than 8 minutes to reach 1,900°F and cools down to 400°F in less than 20 minutes. Furnace operates at high vacuum or partial pressure of inert gas. Chamber has base vacuum of 5 x 10^-6 Torr with leak-up rate of less than 1 micron/hour.

PolyScience Div. Of Preston Industries Inc.    Niles, IL 60714 4588
Jun 28, 2006 Designed for cooling applications where quiet operation is required, 4200 Series provides up to 4,500 W of heat removal and can maintain process temperatures from 61-104°F with 2.0°F stability or better. Units transfer waste heat directly to facility's water supply via liquid-to-liquid heat exchanger. Temperature is controlled via microprocessor-based controller, which automatically compensates for variations in temperature or flowrate of facility water.

Corning Cable Systems    Hickory, NC 28603-0489
Jun 21, 2006 Utilizing radiant heating technology, Heat Shrink Oven rapidly shrinks heat-shrink splice protectors ranging from single-fiber to 12-fiber ribbon. Heat radiation is emitted from heating element onto elliptical mirror where fiber with heat-shrink installed is placed in focal point. LED status display indicates heating, cooling, and time for removal. Oven is available as stand-alone unit as well as with OptiSplice(TM) Premier M90i Fusion Splicer and X77 14K Series Fusion Splicers.

Lucifer Furnaces, Inc.    Warrington, PA 18976 2088
May 31, 2006 Designed for 2,450°F operation, HS Series employs silicon carbide heating elements, which are controlled off line with SCR power supply that automatically compensates for changes in element resistance. Furnace chamber is lined with ceramic fiber and heats to 2,200°F in 55 min. Available in single and dual chamber models in sizes from 6 x 6 x 12 in. to 12 x 18 x 24 in., furnaces feature heavy gauge sheet steel construction, platinum/rhodium thermocouple, and double-pivot horizontal swing door.

Pfannenberg    Lancaster, NY 14086
May 30, 2006 Side mount heat exchangers, designed for complete outside or inside cabinet installation, are available in cooling capacities from 650-5,000 W. Suited for use in various industries, they provide thermal management of electrical and electronic enclosures. Each unit features integrated temperature monitoring and compact design with thermostat and solenoid valve for temperature control. Products are sealed and maintenance-free with NEMA 12 rating.

SciLabware (formerly Barloworld Scientific)    Staffordshire ST15 0SA  United Kingdom
May 17, 2006 Equipped with chemical- and temperature-resistant ceramic top, microprocessor-controlled Model CB162 uses magnets and motor to produce stirring speed up to 1,500 rpm with volumes up to 15 liters. Independent safety circuit protects against overheating, and internal electronic components are protected against corrosion. HOT warning light flashes whenever plate temperature is above 50°C and will operate even when hotplate is turned off and is still connected to power.

SciLabware (formerly Barloworld Scientific)    Staffordshire ST15 0SA  United Kingdom
May 10, 2006 Powered by 900 W infrared (IR) heater, CR300 Infra Red Hot Plate features chemically resistant ceramic top and Hot warning light that promotes user safety. IR ceramic plate measures 11.8 x 11.8 in. and has 5.5 in. dia heated area. Heater features 230 V, 50-60 Hz electrical supply.

MRK, Inc.    Lexington, NE 68850
May 02, 2006 Self-contained, trailer-mounted Mobile Rotary Kiln allows soil at rig sites, fuel dumps, and gas/service stations to be cleaned up efficiently. It operates through max temperature of 2,520°F and can process 10-15 tons/hr. Available in 33 and 48 ft versions, kiln utilizes infrared radiation and can produce cement clinker and various densities of expanded clay. Extreme temperatures enable disposal gasses, residues, and toxins to be eliminated or encapsulated in calcium.

Bananza Air Management Systems, Inc.    Kentwood, MI 49512

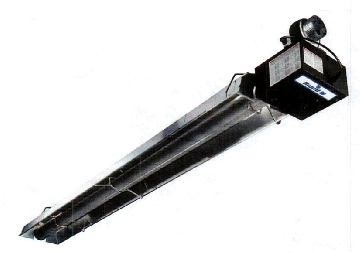

May 01, 2006 Available in natural gas or propane gas models, BANANZA® BH low-intensity unitary heater is ceiling-mounted to conserve floor space and employs parabolic reflector design that directs heat downward. Features include aluminized steel tubing and direct spark ignition. Offered in straight, U, or L configurations, heater is available with inputs from 40,000-200,000 BTU/h and tube lengths from 10-80 ft for various commercial applications.

Grieve Corporation, The    Round Lake, IL 60073-2898

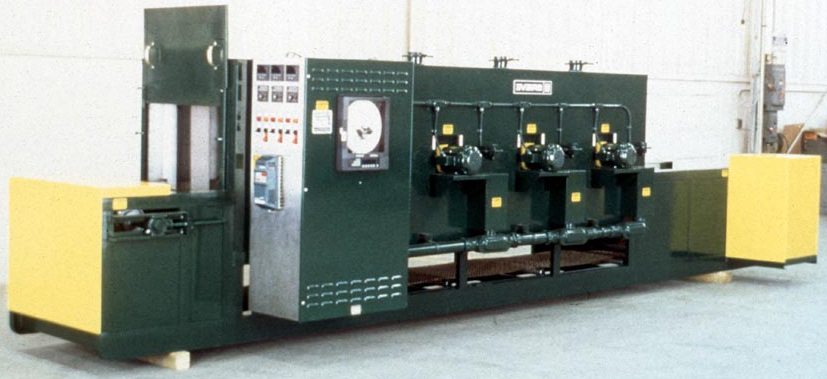

May 01, 2006 Electrically heated No. 794 has 90 KW total heat input installed in Nichrome wire heating elements (30 KW per heating zone) and uses three 1,000 CFM, 1 hp recirculating blowers to provide vertical downward airflow to workload. Along with 96 x 30 x 24 in. workspace, oven features aluminized steel interior and exterior; 4 in. thick insulated walls; and 3-pen, 10 in. dia circular chart recorder. Insulated heat zones offer independent airflow and temperature control.

Gaumer Process Heaters    Houston, TX 77040
Apr 12, 2006 Utilizing heavy-duty, corrosion-resistant incoloy heating elements, Over-the-Side Immersion Heaters feature sealed terminals, welded spacers and heating elements, and Evenflow configuration. Products are designed for heating clear, opaque, or hard-to-heat liquids from water to raw crude in containers such as tanks and drums. Heaters come in capacities from 8-120 kW and lengths from 21-124 in. and may be removed for cleaning or repairs.

Gaumer Process Heaters    Houston, TX 77040
Apr 12, 2006 Designed for use in heating revolving rolls, platens, molds, jacketed tanks, and autoclaves, custom Gaumer® Hot Oil System (GHOS) series has pre-engineered design package tested under continuous operation at temperatures to 650°F. Incoloy 800 sheath heating elements are arranged to provide even heat inside tube bundle, while Buffer Tank design solves oil degradation problems associated with hot oil (over 150°F) reaching expansion tank without need for nitrogen purge system.

Rapid Engineering, Inc.    Comstock Park, MI 49321
Apr 11, 2006 Available in inputs from 40,000-200,000 BTU/h and tube lengths from 10-80 ft, gas-fired RAPID(TM) BH Unitary Heater comes in straight, U, or L configurations. Unit is offered in natural gas or propane gas models with aluminized steel tubing and direct spark ignition. Ceiling-mounted heater features parabolic reflector design that gently directs heat downward in vehicle repair shops, warehouses, and manufacturing facilities.

Benko Products Inc.    Sheffield Village, OH 44054
Mar 30, 2006 Sahara Hot Room accommodates and heats up to twenty-four 55-gal drums. Offered as replacement for homemade hot rooms and awkward band heaters, unit may be steam- or electrically heated. Features include spill containment capacity, temperature control, and stainless steel or carbon steel construction.

Cemline    Cheswick, PA 15024
Mar 29, 2006 Vertically packaged SPH Series water heaters provide solution for producing domestic hot water with hydronic boilers including cast iron, copper tube, water tube, or specialty high efficiency condensing boilers. Completely packaged and ready for use, heater is available in range of storage tank volumes from 60-500 gal with ability to heat up to 2,500,000 BTU/hr of hot water.

DENSO Corp.    Aichi 448-8661  Japan
Mar 28, 2006 Targeted for automobile air conditioning systems, double-pipe internal heat exchanger integrates 2 pipes into one pipe with inner and outer tubes. Inner tube wall has spiral grooves that face outer tube, which enhance heat exchange and ensure that gap between inner and outer tubes is maintained when pipe is bent during installation into vehicle. Pipe length can be as small as 16 in. to achieve sufficient cooling.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Mar 21, 2006 Designed for IBM 7014-T42 rack, Model 6858 Rear Door Heat Exchanger enables server density to be increased without increasing cooling requirement in computer room. Water-cooled unit removes up to 50,000 Btu/hr of heat from air exiting back of fully populated rack before it enters room. Rear door design attaches to customer-supplied water, using industry-standard fittings and couplings.

Carrier Corp.    Syracuse, NY 13221
Feb 24, 2006 Hybrid Heat(TM) system combines furnace with heat pump, which also acts as air conditioner in hot weather. Operated via electricity, environmentally sound heat pump moves heat without flame and features Puron® non-ozone-depleting refrigerant. System combines heating methods to minimize effects of gas and electricity costs.
