Full-Bridge Strain Gages offer small, high-resistance patterns.

January 15, 2016

Based on Advanced Sensors technology, Transducer Class® S5056/S5020/S5046/S5047 offer alternative to bonding multiple, individual strain gages in bending and torque/shear applications. Features include optimized grid-to-grid temperature matching; range of pattern configurations; gold-plated solder pads; and resistance from 350 Ω to 20 kΩ. All 4 active arms of Wheatstone bridge circuit are formed on single carrier, and all intrabridge connections are integrated into pattern. Read More

Test & Measuring Instruments

High-Speed Inline Camshaft Gauge offers submicron accuracy.

September 21, 2015

Gantry or robot fed for 100% end-of-line inspection, Model 1310S measures up to 28 features, including lobes, journals, chatter, and timing references, with sub-micron accuracy and repeatability. Fully automated unit, with <25 sec cycle time, maintains production machining process for up to 200 parts/hr in real-time. Follower modules are capable of 3,600 data points per revolution per follower, and gauge has adjustable tailstock and headstock for simultaneous engagement of all follower modules. Read More

Test & Measuring Instruments

Setting Masters eliminate master rings and gauge blocks.

June 12, 2015

Equipped with Heidenhain optical scale, 415 Series Electronic Automatic Adjustable Setting Masters set wide variety of ID and OD measuring instruments without requiring use of ID ring, OD disc, or gauge blocks. Sizes can be set by typing in exact value, which only takes seconds. Units feature ceramic reference pads, electronic LCD, and ability to store up to 100 preset positions to set most common gauges. Data can be stored via USB port and remote PC control is possible. Read More

Test & Measuring Instruments

End-of-Line Camshaft Inspection Machine can measure 200 parts/hr.

December 10, 2014

Adcole 1310 High-Speed Camshaft Gage provides robot-fed 100% camshaft inspection by measuring 10 or more parameters with 0.1 micron resolution per data point or 3,600 data points per revolution. Along with Windows® 7-based software, features include utility upgrades with chatter analysis options, parameter warnings for programmable reports, and qs-Stat quality options. Automatic programmable headstock with 100 mm travel and programmable tailstock accelerate changeovers. Read More

Test & Measuring Instruments, Sensors, Monitors & Transducers

Liquid Level Gages offer adjustable centerlines.

February 13, 2014

Compensating for variances that can occur during production of plastic tanks, nylon liquid level gages accommodate centerline distances up to ¼ in. longer or shorter than specified measurement for total adjustability of ½ in. Adjustment can be made by hand, facilitating installation, and features include round Trogamid nylon sight that is clear and durable. Gages are available with centerline measurements from 6–36 in., and red line on back of sight enhances liquid level visibility. Read More

Test & Measuring Instruments, Mechanical Components & Assemblies, Sensors, Monitors & Transducers

Pressure Gauge withstands harsh operating conditions.

November 5, 2013

Measuring 4 ½ in. in diameter, Ashcroft® Type 1020S is specifically designed for monitoring pressures on Christmas tree control assemblies located on top of oil and gas wellheads. Unit features rotary movement and is constructed with stainless steel exterior and wetted parts to resist potentially damaging effects of petroleum pressure media. Read More

Test & Measuring Instruments

Digital Gauging Probe System ensures quality production.

July 30, 2013

With repeatability is greater of 0.0065% of range or 0.15 μm, Digital LBB (linear ball bearing) system measures manufactured parts during production for automated inspection screening and SPC data collection. Plug-and-play system can accommodate up to 31 daisy-chained probes via external power source. Networked via T-Connectors, probes are available in spring or air actuated versions with available stroke ranges of 1, 2, 5, and 10 mm. Accuracy is 0.1% of reading or 1 μm. Read More

Test & Measuring Instruments

Absolute Length Gauge uses optical technology.

September 13, 2010

Characterized by absolute position value formation, IP64-rated ACANTO Series hosts absolute optical encoder and therefore do not need re-referencing and will not drift. Optical scanning of absolute graduations promotes accuracy over entire measuring length, which is either 12 or 30 mm. EnDat 2.2 interface offers status request function and diagnostic capabilities as well as instant commissioning, and OEM-specific information can also be saved in memory. Read More

Test & Measuring Instruments, Electronic Components & Devices

Battery Gas Gauges for Single Li-Ion Cells offer 1% accuracy.

March 4, 2010

Supplied in 6-pin 2 x 3 mm DFN package with I²C interface for 2.7-5.5 V systems, LTC2941/LTC2942 use continuous-time analog integrator to measure charge directly while minimizing offset and gain error. Both models measure charge flowing in and out of battery to within 1% accuracy at room temperature, but LTC2942 also incorporates 14-bit No Latency Delta Sigma ADC to measure battery voltage and die temperature to within 1.3% and ±5°C accuracy, respectively. Read More

Test & Measuring Instruments

Environmental Gages leverage thin-film technology.

June 19, 2009

Thin film-based environmental gauges are manufactured by depositing environmentally susceptible coating materials onto inert substrate. Coating materials are deposited in custom-defined, quasi-grid pattern of lines. Redundant traces, matched in length and size, can be implemented to monitor environmental changes over small region or provide damage protection in abrasive conditions. Unmatched lines allow for variable open-space monitoring of increasing corrosion or corrosive elements. Read More

Test & Measuring Instruments, Display & Presentation Equipment

Inspection System combines length gage, DRO, and SPC.

June 11, 2009

In addition to CERTO length gauge and ND 287 single-axis position display with Statistical Process Control (SPC), universal HEIDENHAIN ND 287 also has card for gauge hookup as well as other sensors. Length gauges, respectively, measure ranges of 0-25 and 0-60 mm with ±0.1 and ±0.01 µm accuracy (±0.03 and ±0.05 µm after error compensation). Digital readout (DRO) offers various features to integrate with machine data transfer network, including 4 inputs and ability to toggle between them. Read More

Test & Measuring Instruments

Utility Guage features ABS case construction.

December 17, 2008

Type 1005P general purpose utility gauge comes in 1½, 2, 2½, and 3½ in. dia with either back or bottom connection, and features PowerFlex(TM) movement and optional FlutterGuard(TM) pointer stabilization. Unit is suited for both stem and panel mount installations in wide variety of applications. Read More

Test & Measuring Instruments

Linear Gauge Sensor uses linear glass scale technology.

June 28, 2002

Model GS-251 has standard AGD 2 dimensions, and measures dimensions, thickness, curvature, eccentricity, displacement, height, depth, flatness, variation, runnout, roundness, distortion, deflection, and position. It maintains consistent accuracy to 0.0004 in. throughout its 25 mm range. With equivalent rating to IP-64, instrument includes waterproof seal and dust bellow. Its 6 ft signal cable connects to remote displays with various outputs. Read More

Test & Measuring Instruments, Mechanical Power Transmission

Gage Amplifier has Windows-based software.

June 20, 2002

Model 767 has Pentium®-based computer with Windows NT/2000 operating system. Software provides operators with screens that display gaging and machine compensation information. SPC package includes X-Bar, histogram, trend, capability, range, standard deviation, and measurement history charts, as well as tool compensation frequency, tool wear indicator, Pareto diagram, C, Np, P, and U charts. Software allows gage application programs and formulas to be created and edited. Read More

Test & Measuring Instruments, Mechanical Components & Assemblies

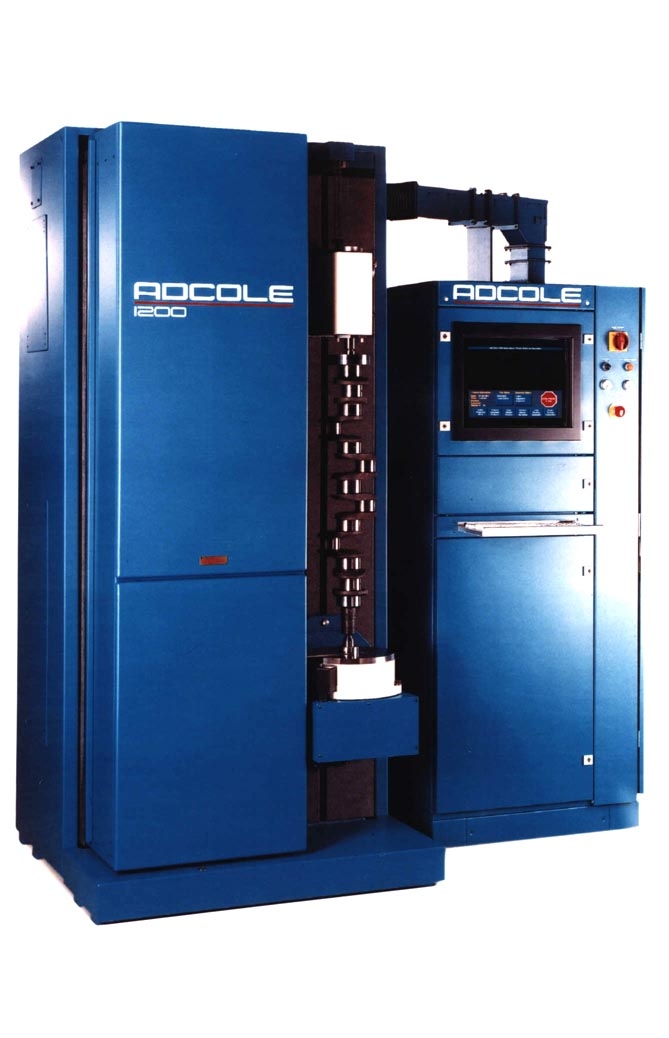

Field Retrofit Kit upgrades crankshaft gage.

March 11, 2002

Upgrade Package for Model 1200 crankshaft gage includes sealed and cooled electronic cabinet with UPS, Pentium PC, color printing/plotting, and 19 in. color monitor with touch screen and sealed keyboard. It also includes head stock drive motor and laser reference optics. Retrofit package improves user interface, increases data density to 1,440 points, and is 20% faster, allowing it to perform measurements within 8 min on automotive crankshaft. Read More

Test & Measuring Instruments, Sensors, Monitors & Transducers

Vacuum Gauge can be baked to 300 deg C.

February 4, 2002

Vacuum gauge offers Bessel-Box type energy filter and axially symmetric transmission (AxTRAN) gauge head. Its measurable pressure range is 7.5 x 10E-4 torr to 3.5 x 10E-13 torr. AxTRAN is resistant to interfering noise effects caused by light, radiation, and electrostatic discharge ions. Control unit is world-voltage compatible (85V - 240VAC 50/60Hz), and offers bright LED display and 0-10V analog signal output. Read More

Test & Measuring Instruments

Measuring Gage includes 3-D measurement functions.

November 8, 2001

QM-Measure 3-D measuring gage features open-sided structure for workpiece loading/unloading. Its cantilever design allows operators to reach, fixture, and move parts without obstruction. Holding capacity of the machine is 66 lbs, and its design provides accuracies of 3.0 + 41/1000 µm. QM-Measure comes with QM-Data, a machine-mounted data processing unit, and is also available with PC, monitor, and printer running Mitutoyo's GEOMeasure(TM) 3000 software. Read More
