Applied Robotics, Inc.    Glenville, NY 12302
Mar 26, 2013 With driver/cam geometry, Sigma NextGen™ provides moment and acceleration capabilities to handle high dynamic robots. Design ensures optimal coupling under extreme load conditions, and tool changer maintains safety with coupled mechanism during loss of compressed air. Sigma NextGen supports variety of servo tools and bus communications including Sigma SmartComm™ Communications Module, which features diagnostics via webpage and ability to schedule maintenance and run various reports.

SAS Automation, Ltd.    Xenia, OH 45385
Nov 03, 2011 SAS Automation tool changers facilitate and accelerate mounting of EOAT (end-of-arm tooling) and gripper systems to robot arm by automatically connecting multiple ports, including air, vacuum, and electric. Robot side (QSR) is permanently attached to robot arm, and tool side (QST) is permanently attached to each individual EOAT. EOAT mounts to robot by fitting 2 sides together and then locking them into position.

ATI Industrial Automation    Apex, NC 27639
May 10, 2011 Featuring direct-mount 100 mm bolt circle to food-handling robots, Model QC-77 enables robots to automatically change end-effectors or other peripheral tooling in extremely stringent food-processing environments. Stainless steel design resists attack by organic and inorganic compounds while withstanding aggressive washdown. Equipped with Fail-Safe Locking Mechanism, tool changer uses integrated Lock and Unlock sensing for safe coupling and uncoupling.

ATI Industrial Automation    Apex, NC 27639
Jun 08, 2010 Able to handle 55 lb payload, QC-21HM Master-Side Tool Changer allows for routing of air and electrical lines directly through center. Unit includes fail-safe locking mechanism, lock/unlock air supply, and lock/unlock sensing method, as well as 8 pass-through air connections. With all locking parts made of Rc58 stainless steel, tool changer provides X, Y, Z positional repeatability of 0.0006 in. at rated load at 1 million cycles.

ATI Industrial Automation    Apex, NC 27639
May 03, 2010 Utilizing EtherNet/IP(TM), DKD Ethernet Modules control/communicate with ATI's Heavy Automation Robotic Tool Changers. Arc Prevention Circuit protects electrical power contacts against high inrush current during coupling/uncoupling, while Tool Stand Interlock prevents uncoupling of tooling when not nested in tool stand. Modules feature electrical rating of 24 Vdc for control signals and 5 A/24 Vdc for pass-through signals. Web server aids tool changer configuration/status.

ATI Industrial Automation    Apex, NC 27639
Apr 01, 2010 Model QC-21HM Tool Changer allows for routing air and electrical lines directly through its center, and is compatible with all QC-21 Tool assemblies. It has Lock and Unlock sensing integrated into its design for safe Coupling and Uncoupling, and can be directly mounted to hollow-wrist robots. Unit features 8 pass-through air connections, in which 2 are ¼ in. and 6 are 1/8 in. push-connect tube fittings.

ATI Industrial Automation    Apex, NC 27639
Mar 25, 2010 Featuring integrated web server, DKD Ethernet Modules control and communicate with Heavy Automation Robotic Tool Changers using Ethernet/IP(TM) while passing DeviceNet(TM) network and power to tool-side. Modules feature Arc Prevention Circuits, which protect all electrical power contacts against high inrush current during coupling/uncoupling. Provided through connector on Tool module, Tool Stand Interlock technology prevents uncoupling of tooling when not safely nested in Tool Stand.

ATI Industrial Automation    Apex, NC 27639
Mar 25, 2010 Designed to facilitate tool changes by hand, Models MC-16 and MC-36 feature payload limits up to 40 and 100 lb, respectively. Model MC-16 includes 4 integrated 1/8 NPT pass-through air ports, while Model MC-36 has 6. Offering multiple fail-safe features, screw-cam locking mechanism resists vibration and prevents loosening. Units also include quick-action locking for one-handed manual operation.

Applied Robotics, Inc.    Glenville, NY 12302
Nov 19, 2009 Comprised of 4 models that match all current robots' bolt patterns from 125 mm on up, SmartChange(TM) series feature coupling mechanism and 6-cam locking design that lend to strength and applicability. There is no need to review load capabilities of tool changer versus robot, and flexible utility mounting positions facilitate integration. Models SC125, SC160, SC200, and SC250 respectively feature faceplate mounting configurations of 125, 160, 200, and 250 mm.

ATI Industrial Automation    Apex, NC 27639
Jan 06, 2009 Able to pass current up to 28 A, 500 Vac/700 Vdc, MT9 module includes Amphenol MS-style connectors and protective earth safety ground. Additional elements of construction include fluid-resistant seal on contacts, specially designed contact pins for low resistance, and compact design. This high-power Tool Changer electrical module is compatible with ATI Tool Changer models QC-110, QC-150, QC-300, and QC-510.

ATI Industrial Automation    Apex, NC 27639
Dec 15, 2008 Model QC-1210 Heavy Automation Tool Changer features 3 failsafe locking mechanisms to ensure high-moment capacity and strength. System incorporates separate modules that can be mounted on any of 6 flats and has 3 Ready-to-Lock sensors, which detect when tool plate is within 0.06 in. of master plate to make sure they are parallel. No-Touch Locking(TM) technology allows up to 0.10 in. plate separation when locking and all locking parts are made of Rc 58 stainless steel.

Robohand, A De-Sta-Co Div.    Madison Heights, MI 48071
Oct 18, 2005 Using Model QC-400, end effector tooling can be changed to accommodate many different styles of parts on same robot. Modular design allows user to choose from selection of optional interfaces including 4-port face seal pneumatic module or 19-pin pre-wired I/O module with standard boot that protects contact pins from fluid or airborne particulate. Model QC-400 has combined weight of 9.2 lb and takes moment loads up to 7,000 lb/in.

AGI - American Grippers Inc.    Trumbull, CT 06611
Sep 23, 2005 Robotic Tool Changers, supplied in robot-side and tool-side configurations, are designed to automatically change grippers, end-effectors, or other peripheral tooling. Equipped with fail-safe, pneumatic locking mechanism, products will not drop part even if air pressure fails. They are designed to handle load capacities to 6,000 lb-in. with +0.01 repeatability and come in 7 sizes from 1-10 in. in diameter.

United Grinding Technologies, Inc.    Miamisburg, OH 45342
May 12, 2005 Magerle Tool Changing System provides multi-tasking with minimal operator interference. It handles mills, drills, and taps, as well as grinding wheels as large as 500 mm. Maximum number of tools on display is 20 with max tool dimensions of 300 x 60 x 76.2 mm. Offering 12 second tool change, system includes HSK-A 100 spindle nose and through-the-spindle coolant at up to 80 bar to facilitate milling and drilling operations.

Robohand, A De-Sta-Co Div.    Madison Heights, MI 48071
Apr 27, 2005 Model QC-1200 automatic tool changer accommodates different styles of parts on same assembly machine. Modular design options include Device Net Bus module, self-sealing fluid or pneumatic module, 19 pin I/O module, and 200 A weld power module. Integral latch/unlatch sensor signals coupled condition of tool changer. Unit meets demands of robotic resistance welding and material handling applications.

Logansport Matsumoto Co.    Logansport, IN 46947
Sep 12, 2003 With AJC Chucking System, face of chuck comes off as single unit so all 3 jaws can be removed and replaced simultaneously. Separate plate containing top jaws for each part can be stored on rack next to turning center. Auto-clamping feature allows complete changeovers in less than 30 sec. When integrated with robot loader and vision part-identification system, it provides 100% unattended operation.

Applied Robotics, Inc.    Glenville, NY 12302
Sep 10, 2003 Solution package enables system integrators and end users to acquire robotic tools necessary for laboratory automation applications. Suite of products includes servo and pneumatic grippers, microplate handling fingers, microplate hotels, tool changers, and collision sensors, all of which can be applied to user's choice of motion systems. Serial Servo Gripper is designed for open architecture and needs no proprietary software or controller.

Applied Robotics, Inc.    Glenville, NY 12302
Nov 15, 2002 Sigma 3 and Sigma 5 feature modularity, data capabilities, and electric actuation. They allow interchangeability of interface modules, which are comprised of electrical connectors and utility packages used in manufacturing environments. Units handle variety of bus system requests, allowing user to route, connect, and disconnect electronic pathways to sensors monitoring manufacturing process. They are suitable for material handling and welding robots.

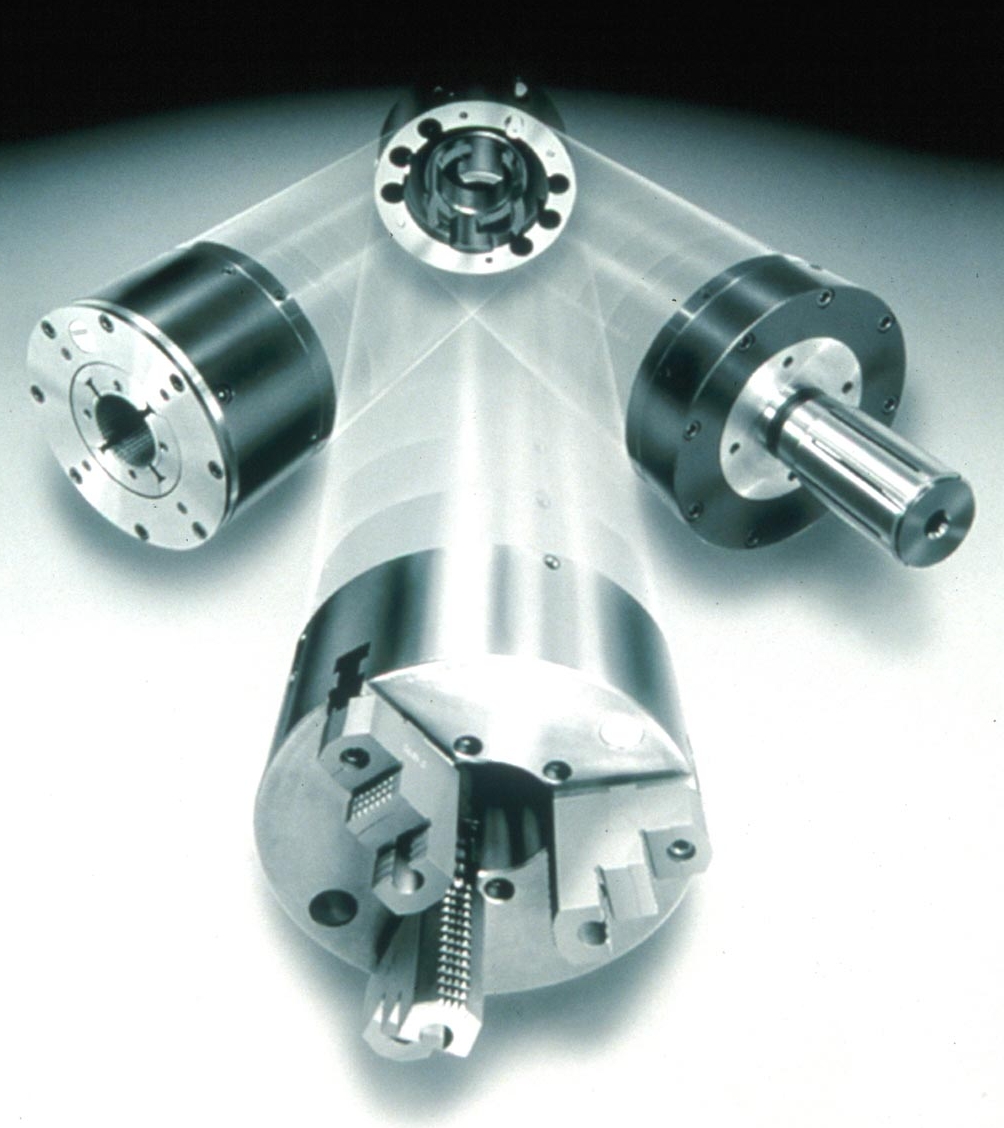

Positrol, Inc.    Cincinnati, OH 45227
Sep 18, 2002 Chuck-Changeâ„¢ System is specifically designed for multiple workholding changeovers on individual machine. It increases machining utilization by allowing chuck changes in minutes. Engineered to mount on most machine spindles, system receiver with drawtube connection becomes integral part of spindle. Receiver is available for 6 and 8 in. spindles. System can be installed on lathes, grinders, gear hobs, and machining centers.
