Nilfisk Industrial Vacuums    Morgantown, PA 19543
Jul 09, 2003 When integrated with company's vacuum cleaners, power tools drill, grind, cut, scale, descale, and sand while simultaneously collecting dust and debris. Suited for where dust caused by power tools is harmful to workers, tools collect dust in single tool hook-ups or central systems with multiple operator drops. Tools include: Mini Die Grinder, Pneumatic Sander, Electric Sander, Roto Scaler, Drill Shield, Needle Descaler and Mini Needle Descaler, and Grinder.

Dimas North America    Olathe, KS 66061
Jul 01, 2003 Pavement groovers and grinders have 12 in. blade capacity and ¾ in. max cutting depth. Model PG 6522 is equipped with 65 hp Wisconsin engine and 21¾ in. cutting head. Powered by either 35 hp gas or 30 hp electric motor, PG 3514 utilizes 14 in. wide cutting head and front wheels that allow machine to follow contour of pavement. With cutting head width of 8 in. and 16 hp Briggs Vanguard engine, PG 1608 offers adjustable grooving guide.

Palmgren Steel Products    Chicago, IL 60617
May 22, 2003 Grinders and Buffers provide de-burring, stock removal, and cleaning of rust and scale. Long life motors offer 88+ minutes of continuous use at full load with less than 1% rpm loss from stated maximum. One grinder model includes variable speed control for lower speed applications. Tool rests on grinders tilt for angle grinding.

United Grinding Technologies, Inc.    Miamisburg, OH 45342
May 21, 2003 Modular, 6-axis ewamatic line handles tungsten carbide, polycrystalline diamond, and polycrystalline boron nitride tools, indexable inserts, and rotary tooling. It combines spark erosion and grinding processes in one machine with single setup. Offerings include star-shaped turret grinding head with up to 6 independent grinding spindles, automatic, swiveling 3D-measuring probe, and use of measure-grind-measure principle to achieve required tolerances.

ERICO    Solon, OH 44139-2631
Aug 08, 2002 Portable Rail Grinder grinds rail to clean it in preparation for CADWELD® exothermically welded connections, which bond electrical conductors to rail. Adjustable tool rest allows operator to support grinder on head of rail during use. Handle has anti-vibration padding. Ginder has maximum wheel speed of 6000 rpm. Other features include grinding wheel spacers and 360° adjustable grinding wheel guard to allow grinding in tight areas.

Bridgeport Machine, Inc.    Bridgeport, CT 06606
Jul 11, 2002 Advanced family includes vertical machining centers and grinders. XV-Series 18-hp VMC has up to 1100 ipm rapid traverse rates on X and Y axes and rigid tapping standard. Model 4024 XV has 40 x 24 x 24 in. work envelope, making it suitable for use on 2 ft molds. XP-Series VMCs have traverse rates as high as 1,690 ipm, profile acceleration rates of 6m/sec², and dynamic thermal compensation. Also available is FGC 1000 Flexible Grinding Center.

United Grinding Technologies, Inc.    Miamisburg, OH 45342

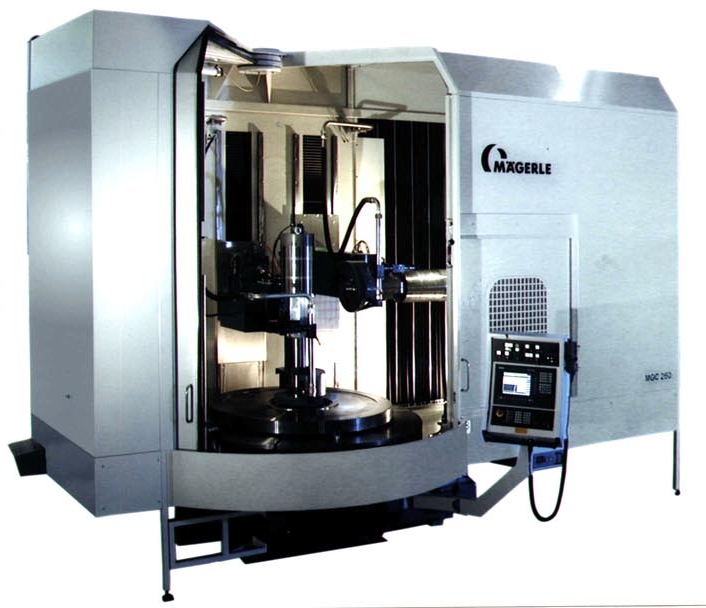

Jun 07, 2002 MGC-Special is equipped with precision hydrostatic rotary NC table, with brushless ring torque-motor drive and Heidenhain direct measuring scales, allowing index accuracy of ±1 arc sec and variable table speed up to 80 rpm. Table diameter to 2500 mm tackles loads up to 10 tons. Grinding-spindle orientation options include horizontal, vertical and inclined variations, to handle face, bore, and diameter grinding, as well as turning, milling, boring and drilling.

Hilti Inc.    Tulsa, OK 74121

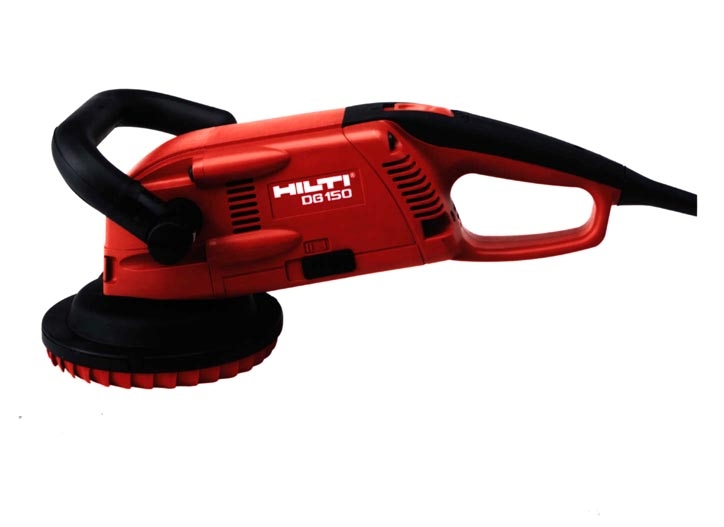

Jun 07, 2002 DG 150 is comprised of DG 150 Grinder, DPC 20 Power Conditioner, VCD 50 Vacuum Cleaner, and diamond cup wheel. Dust collection system reduces amount of dust inhaled by operator, extracting up to 95% of airbone particles. Spike diamond cup wheel removes adhesives and coatings and allows debris to pass through without loading up wheel. DG 150 System is suitable for grinding concrete, as well as removing paint, adhesives, and epoxy coatings.

Metabo Corp.    West Chester, PA 19380 4243
May 07, 2002 WE14-150 Plus with Vario-Constamatic full-wave electronic speed control, maintains constant speed while operating during maximum load and no-load conditions. It is rated at 1,400 watts, and operates at 6,000 to 9,000 rpm with 12.0 A motor. Maximum wheel diameter is 6 in. Grinder includes 2-position side handle, S-automatic safety clutch, winding protection grid, and thermal overload protection.

Setco    Cincinnati, OH 45233
May 06, 2002 Model 1500 Spark Erosion Grinding (SEG) system uses EDM technology to arc-grind metal parts to size and shape, precisely removing metal stock. It has precision 1.5 hp, 3600 rpm spindle, cart-mounted EDM power-pack, drive and electrical arc power cables, and six electrode wheels. Electrical current fed through spindle arbor forms controlled arc between electrode wheel and part. As spindle is fed into part, electric arc machines part to finished diameter.

Clausing Industrial, Inc.    Kalamazoo, MI 49007 1822
Apr 26, 2002 Equiptop Surface grinders employ heavy-duty walls and reinforced ribs. Machines are available with 8, 12, and 14 in. wheel dia. Equiptop handfeed models (CSG-618/818) feature timing belt table drive with handwheel indexing to 9 positions without backlash. Hydraulic models utilize hydraulic drive system with some motor driven cross movement. Fully automatic models have programmable hydraulic table speed control and rack and pinion table drive.

Metabo Corp.    West Chester, PA 19380 4243
Apr 23, 2002 Model GE700 variable speed, 2 in. die grinder requires only one wrench on its hardened and ground 1/4 in. collet. Extended spindle ideal allows for operation in confined areas, and auto-stop carbon brushes prevent motor damage. Grinder has no-load speed of 7,000 to 27,000 rpm, and is rated at 6.2 amps, 710 watts. Power switch is located on top of tool.

NSK America, Inc.    Schaumburg, IL 60173
Apr 04, 2002 Electer E-Max Ultra-Precision, Multi-Purpose Micro Grinder uses built-in microchip processor for optimum motor output. For easy handling and control, on/off switch is located directly on motor. Available speed ramges include 1,000 to 35,000 rpm, 1,000 to 29,000 rpm and, 1,000 to 15,000 rpm. Control unit includes digital speed display in x1000 rpm, soft touch buttons, and computer control.

Milwaukee Electric Tool Corp.    Brookfield, WI 53005 2550
Mar 26, 2002 Lightweight Models 6080-20 and 6081-20 7 and 9 in. sanders, respectively, Model 6088-20 7 in. grinder, and Models 6086-20 and 6089-20 9 in. grinders all have 4 hp, 15 A motors. For operator comfort and safety, they have angled rear handles and side handles, 2-finger trigger switches, 3-position side handles and spindle locks. Applications include metal fabricators, welders, steel erectors, pipeliners and masonry contractors.

Toyoda Machinery USA; Grinding Machine Division    Wixom, MI 48393

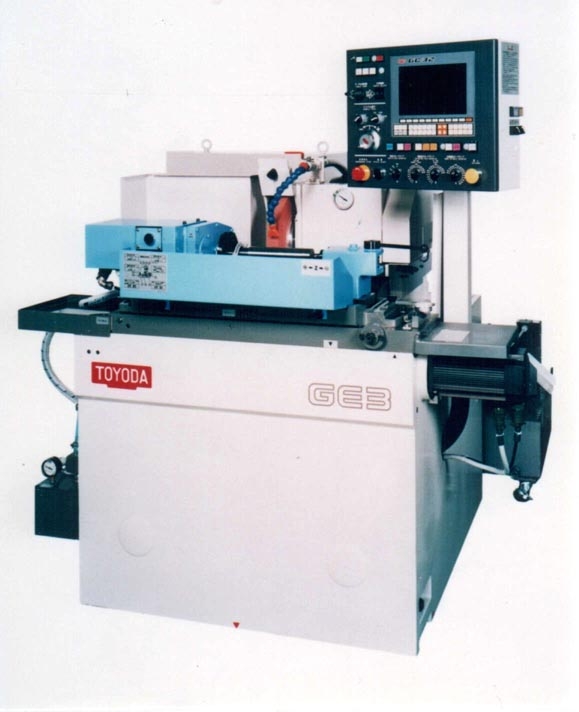

Jan 11, 2002 GE3 provides automatic grinding of small lots. It offers build-in grinding and dressing patterns, automatic wheel dressing, and table design for traverse taper grinding. Conversational control teaches user to create program with step-by-step format. GU4-R universal grinder has 3-in-1 wheelhead that automatically rotates between wheels for plunge, shoulder and internal grinding. It comes with 7.5 hp spindle motor and large straight and angle wheels.

DELUMPER ® Div., Franklin Miller Inc.    Livingston, NJ 07039

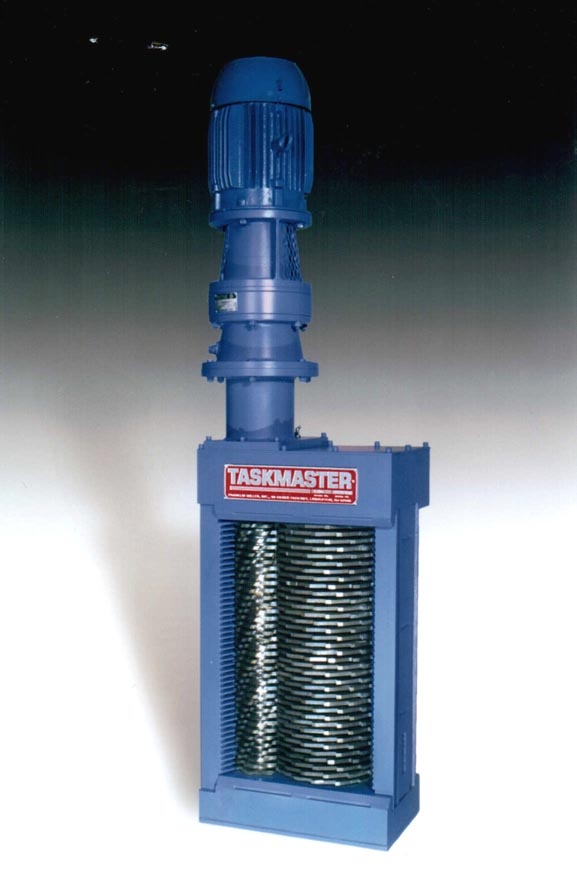

Nov 21, 2001 TASKMASTER TITAN provides high capacity grinding with low headloss. It employs twin shaft grinding, where one cutter stack intermeshes with disks. As wastewater enters, it is confronted with wall of cutters which are impossible to avoid or bypass. Solids are finely ground by shear forces of close fitting intermeshing cutters while liquids pass through unit unobstructed. It reduces solids such as sneakers, wood, rags, paper, mops and bottles.

Retsch, Inc.    Irvine, CA 92614
Nov 15, 2001 MS 100 Rapid Mortar Mill homogenizes sample volumes of 2 to 25 mL to particle size less than 20 microns, enabling samples to be pelletized for subsequent use in X-ray fluorescence or other spectral analyses. Grinding sets are available in 2 sizes and 5 different materials. Required fineness is typically achieved in 3 to 5 min. Unit has digital speed control settings for mortar and pestle, timer, and memory for 3 speed/time combinations.
