Weiler Corporation    Cresco, PA 18326 0149
Aug 18, 2003 Stem-mounted brushes are available in heat-treated steel or Type 302 stainless steel for both crimped and knot wire products. Styles include wheel, cup, and end brush configurations made with ¼ in. stems for mounting in tool collets. Dish-shaped, concave brushes are offered for cleaning and deburring off-hand or on drill presses. They are available in steel and stainless steel wire ranging from 1½â€“4 in. in diameter.

Chicago Pneumatic Co.    Rock Hill, SC 29730-7463

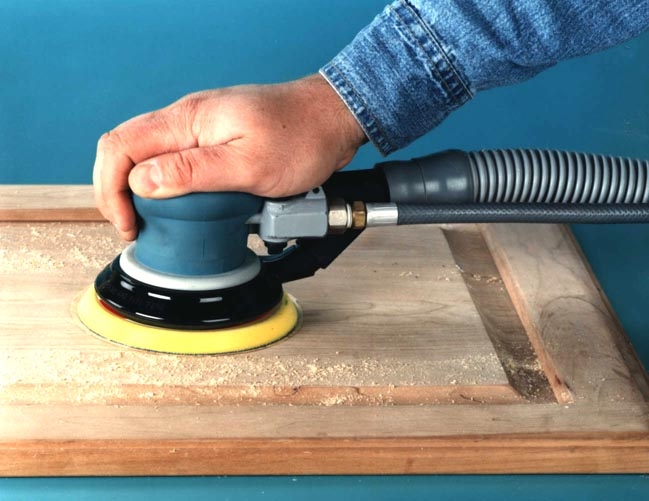

Aug 08, 2003 Series SX palm-type, random orbital sanders offer 3/32 in. orbit diameter for fine finishes and 3/16 in. diameter for general finishing. Lubrication-free pneumatic motor generates 0.3 hp with variable speed range from 0–12,000 rpm. Oversized, dual ball bearing sets are double sealed for long life. Two interchangeable grips are provided to suit operator hand size. Lock-off lever prevents accidental starts. Pad diameters include 3.5, 5, and 6 in.

Palmgren Steel Products    Chicago, IL 60617
Apr 08, 2003 Belt-disc sanders for sanding, finishing, polishing, and deburring on metal, plastic, and wood have capacitor motors that supply extra current at start up and when running under load. Models feature belt housing that rotates from vertical to horizontal positions for sanding long pieces. One model is dual speed sander for stock removal on cast iron or other metals. Disc sizes range from 6–12 in. with belt sizes that range from 2 x 42 in. to 6 x 48 in.

Mill-Rose Co., The    Mentor, OH 44060 4805
Oct 25, 2002 Micro/mini brushes are manufactured to exacting tolerances from 0.018 in. dia in materials such as stainless steel, brass, bronze, gold, silver, titanium, and molybdenum. Also manufactured in synthetic fibers (nylon, polyethylene, styrene, Herox®, Tynex®), brushes' bristle materials range in thickness from 0.0025 in. Uniform brush diameters are accurate to ±0.001 in. Brushes are available with or without loop handles, which facilitate turning and handling.

T.C. Service Co.    Willoughby, OH 44094
Oct 17, 2002 TOP CAT® Model 520VK vertical grinder/sander is available in versions that include 7 or 9 in. configurations for both Type 27 or Type 28 grinding wheels; and 4, 5, or 7 in. sizes for sanding discs. Wheel guard version includes drive flange wrench, while sanding pad version comes with sanding disc mounting nut and wrench. Tool has 1,500 W, 2 hp motor with rated speeds of 6,000–12,000 rpm. All versions include comfort-grip handles to protect hands and handle isolators.

Metabo Corp.    West Chester, PA 19380 4243
Sep 23, 2002 Model Lf724 strips paint, varnish, and other coatings on flat wood surfaces. S-automatic clutch reduces damage to gear train when planer hits nail on siding or wood. Tool has 4 reversible solid tungsten carbide blades and creates minimal dust during use. Blade cutting diameter is 3 1/7 in. and max rabetting height is 1 1/0 in. Cutting depths are .012 in. axil and .006 in. radial. No-load speed is 11,000 rpm with torque of 18 lbs-in.

Kalamazoo Industries, Inc.    Kalamazoo, MI 49001
Sep 06, 2002 With its 20 in. disc, Model DS20 sander operates at 1740 rpm. It offers tilt table with miter gauge and reversing switch. Two motors are available: 2 hp, 3 phase or 1½ hp, 1 phase.

Anderson Products    Worcester, MA 01610
Aug 12, 2002 Wide Face Crimped Wire Wheel brushes are characterized by wide and dense brushing faces. Construction permits brushes to be mounted individually or in groups, to cover more surface area in one pass. Low flexibility provides fast cutting action and long life, while oil tempered crimped wire provides uniform brushing action. Applications include deburring, edge blending, flash removal (rubber and plastic parts), and cleaning and removal of rust.

Anderson Products    Worcester, MA 01610
Jul 15, 2002 Anderbond Crimped Wire Wheel Brushes are produced by encapsulating wire brush material with elastomer. Because brushes do not flare out, aggressive brushing action is achieved with minimum pressure. Applications include: removing rubber from ends of pressure hoses; removing varnish from bearing surface of electrical components; removing insulation coating from electrical wires; and preparing tires for recapping.

Anderson Products    Worcester, MA 01610
May 14, 2002 Available in knotted and crimped wire, Mini-Grinder Cup Brushes are offered in carbon and stainless wire and are adaptable to both light- and heavy-duty brushing applications. Crimped wire Mini-Grinder suits applications where uniformed cleaning is required, as well as for flat brushing and edge cleaning. Knotted wire Mini-Grinder suits weld cleaning, scale removal, and deburring. Mini-Grinder Brush Adapters (standard to metric) are also available.

Kalamazoo Industries, Inc.    Kalamazoo, MI 49001
Apr 29, 2002 Model S613v is equipped with 6 x 48 in. belt and 12 in. solid aluminum disc. Belt side of sander features 6 x 10 in. worktable with 1/2 x 1/8 in. slot, 6 1/2 x 14 in. steel platen, and belt speed of 2800 fpm. Disc side features 8 x 14 in. cast iron worktable and disc speed of 2500 fpm. Sander is powered by 3 hp TEFC motor, and can be supplied with or without enclosed stand and built-in 100 cfm dust collector.

Anderson Products    Worcester, MA 01610
Apr 22, 2002 Anderlex Industrial Hand Pads can be used for coil or thread cleaning, cleaning metal surfaces prior to coating, light deburring or blending, satin and wood finishing, removing rust and corrosion, and cleaning and preparing surfaces. Pads are made of heavy, non-woven material, impregnated with abrasive grain and bonded with synthetic resins, and are available in general purpose and light duty types.

NSK America, Inc.    Schaumburg, IL 60173
Apr 10, 2002 LUSTER model NLS-100 incorporates its high torque motor into its E-max handle. Pistol type electromotive polisher has 360 deg adjustable head, variable reciprocating stroke rate to 7,600 times per minute, and variable stroke range from 0 to 6 mm. It handles tools to 6.4 mm in shaft diameter, and offers quarter speed reducer for polishing and deburring. Its rubber grip reduces vibration.

Milwaukee Electric Tool Corp.    Brookfield, WI 53005 2550
Mar 26, 2002 Lightweight Models 6080-20 and 6081-20 7 and 9 in. sanders, respectively, Model 6088-20 7 in. grinder, and Models 6086-20 and 6089-20 9 in. grinders all have 4 hp, 15 A motors. For operator comfort and safety, they have angled rear handles and side handles, 2-finger trigger switches, 3-position side handles and spindle locks. Applications include metal fabricators, welders, steel erectors, pipeliners and masonry contractors.

Dynabrade, Inc.    Clarence, NY 14031 1490
Feb 13, 2002 Dynorbital-Spirit 12,000 rpm, air-powered, random orbital sander has low profile housing, and comes in vacuum and non-vacuum models. It is available in 3, 3-1/2, 5 and 6 in. dia models, with 3 sanding orbit diameters: 3/8 in. dia orbit for aggressive sanding; 3/16 in. for general sanding; and 3/32 in. dia for ultra-fine sanding. It works on wood, metal, composites, solid surface, plastic, and fiberglass.

Great Lakes Powder & Equipment Company    Hudson, OH 44236
Jan 22, 2002 GLPX Extreme rim b1aster uses 0.170 to 0.330 mm steel shot to blast away powder coatings, dirt, grease, oil, stones, and other road elements from steel or aluminum truck rims up to 26.5 in. dia. Cycle time is 1.5 to 5 min depending on thickness of coatings to be removed. Elevator system cleans out old particulate to keep shot clean with each cycle. Unit has three 5 hp impeller motors, automatic door lock, door safety switch, and manual timer.

Abtex Corp.    Dresden, NY 14441-0188
Nov 30, 2001 Bradex® Composite hub fiber abrasive radial wheel brushes have embedded fibers across entire surface of their indestructable cores. This reduces filament breakage and allows filaments to perform consistently throughout wear process. Wheels are well balanced to aid in reducing machine fatigue.

NSK America, Inc.    Schaumburg, IL 60173
Nov 08, 2001 Sheenus Ultrasonic Polisher operates at 23,000 Hz with output powers of 20 W in low power mode and 45 W in high power mode. Strokes range from 3 to 40 microns. Accessories include diamond files and fixtures for a variety of tool types.
