RIDGID    Elyria, OH 44035
Feb 09, 2004 Designed for underground pipe installations that use no-hub couplings, Model No. 904 eliminates guesswork and assures proper coupling tightness for leak-free joints. Wrench has 80 lb-in. torque setting and 3/8 in. drive that tightens hubless couplings with ratcheting action. Click sound occurs when releasing to assure user when desired torque has been achieved. Product is constructed of stainless steel and corrosion-resistant painted steel.

Moody Tools, Inc.    East Greenwich, RI 02818 0230
Jan 29, 2004 Ranging in size from 2.5–7.0 mm, Metric Open End Wrenches are suited for use by mechanics, gun repair techs, or hobbyists. Products, also available in English sizes, are made in USA and come in 8 or 9 piece sets in pouch or tube.

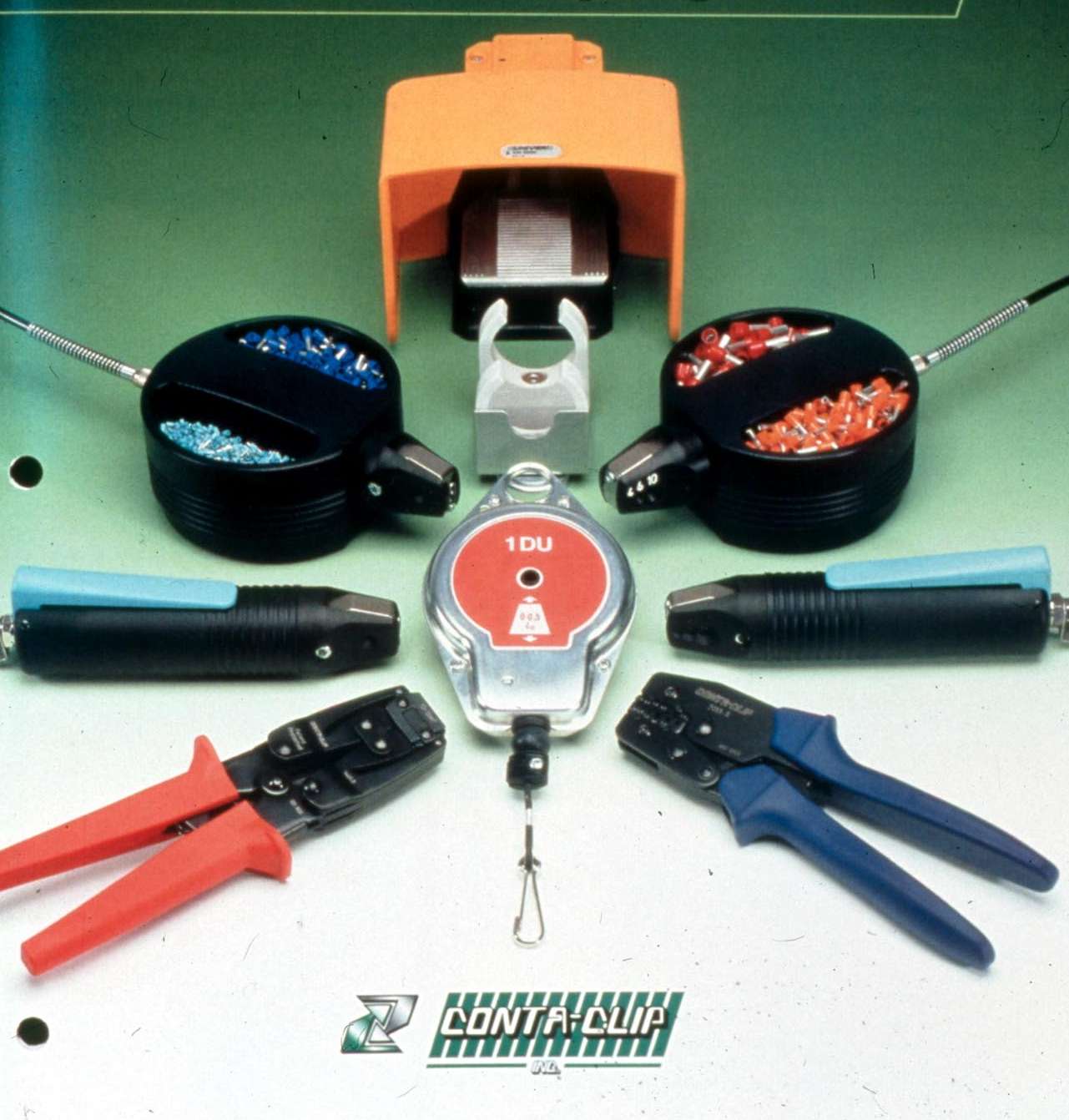

Conta-Clip    Hillsborough, NJ 08844
Jan 28, 2004 Ferrule Crimpers are available in pneumatic, handheld, tabletop, and hand-operated models. Supplied fully assembled and ready for hookup to compressed air supply, pneumatic crimpers produce trapezoidal crimp cross section, ensuring optimum mechanical and electrical connection between ferrule and conductor. Manufactured to exacting specifications, hand-operated ferrule crimpers are available with front or side wire entry, and with one or individual crimp cavities.

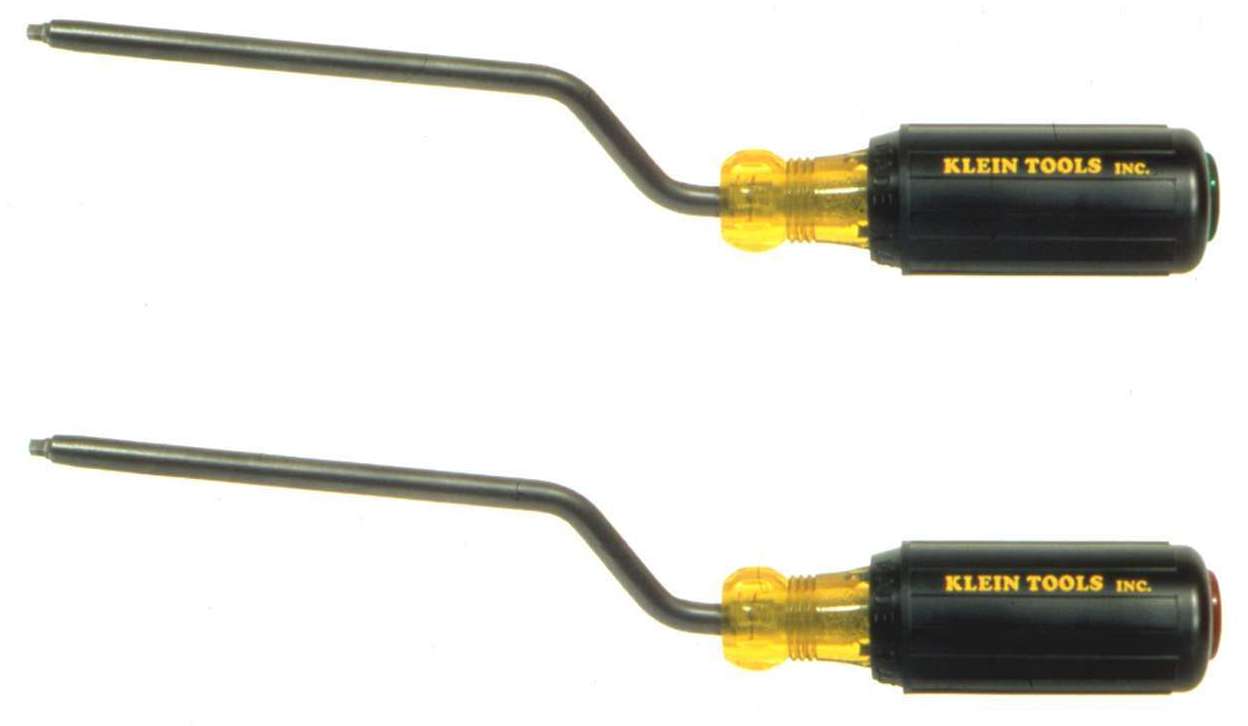

Klein Tools, Inc.    Lincolnshire, IL 60069
Jan 21, 2004 Available with No. 1 or No. 2 square-recess tips, Rapi-Driv® screwdrivers employ crank-action handle and design that permits one-handed operation. Made of heat-treated tempered steel, both models feature Cushion-Grip® handle; soft, black sleeve interlocks permanently with slotted plastic handle. Deep-ribbed design and cushioning provide turning power and comfort. Handle ends are color-coded for identification and selection of proper tip.

Ideal Industries, Inc.    Sycamore, IL 60178
Dec 11, 2003 Twist-a-Nutâ„¢ 7-in-1 tool offers 3/16 in. and ¼ in. slotted head, No. 1 and No. 2 Phillips head, and ¼ and 5/16 in. nutdriver. Connector wrench is formed into bottom of handle and accepts twist-on connectors from major manufacturers. Soft, black Santoprene® is overmolded on outer surface of grip for comfort, while harder, high-visibility yellow Santoprene® is used for end and inner surface. Santoprene is resistant to water, perspiration, oil, and chemicals.

FCI/Burndy Products    Manchester, NH 03108
Dec 05, 2003 KOMPRESSORâ„¢ LPHY750 remote-operated, 12-ton crimping tool is double acting for hydraulic ram advance and retract. It includes spring back-up for ram retraction in case of hydraulic pressure loss. Tool has 1.65 in. jaw opening with 350° head rotation. It can be powered directly from open or closed center hydraulic tool circuits, which are present on most utility trucks, or from individual, 1,500-2,500 psi hydraulic units.

Finn-Power USA, Inc.    Schaumburg, IL 60173
Dec 03, 2003 Model SP1200 Open Throat Crimper loads bent or angled parts directly in vertical head without having to pass piece through head. It handles hose size up to 1¼ in. and has max die opening of 1.89 in. Additional offerings include 120 ton swaging force, production capacity of 420 swages/hr, and computerized VS control, which can store up to 200 combinations of retraction diameters, correction requirements, swaging diameters, offsets, and die sets.

Steck Mfg. Co., Inc.    Dayton, OH 45408 1952
Nov 20, 2003 Rivet Nut Setter installs No. 8 to ¼â€“20 steel and aluminum threaded inserts (rivet nuts) in sheet metal. It works anywhere nuts need to be installed, but where no access is available to back side. Able to get into tight spots, it can be used with air ratchet. User operates tool by extending Setter Slide; assembling bolt, washer, and rivet nut on Setter; and tightening Setter Slide bolt to set rivet nut. Steel rod holds Setter preventing rotation.

Penn-Union Corp.    Edinboro, PA 16412-2381
Nov 07, 2003 Models TDY-1 and TDY-U feature pressure selection control located on tool handle, permitting tool to crimp variety of connector styles and sizes. Wide, hinged tool head allows easy insertion and removal of butt splices up to 750 MCM. Two-speed hydraulic pump advances ram into contact with connector and automatically shifts into crimping mode to complete connection. Tools have conductor range of 4–750 AWG MCM copper and 4–1,000 AWG MCM aluminum.

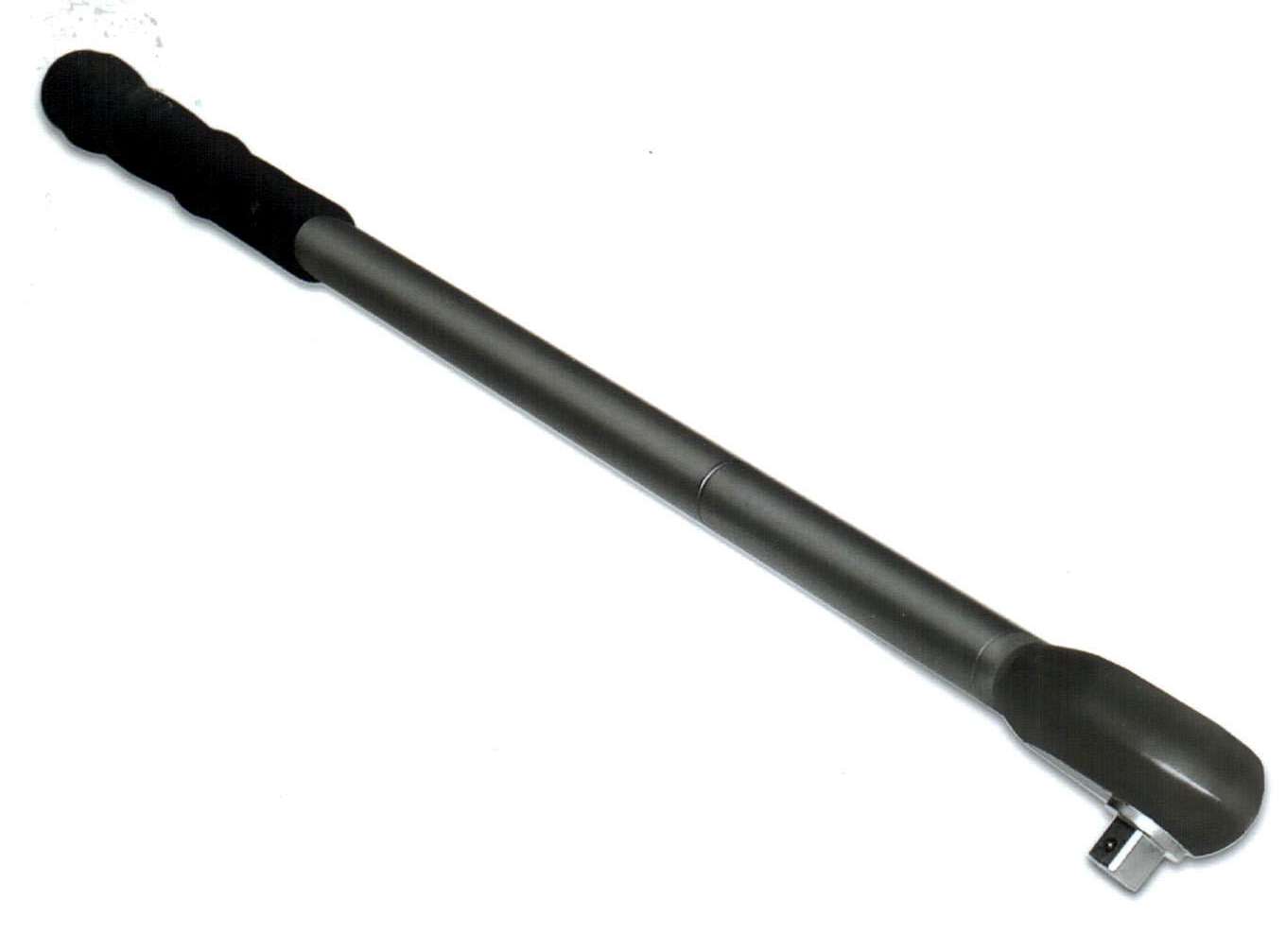

RS Technologies, Ltd.    Farmington Hills, MI 48335
Oct 07, 2003 Electronic, 300 lb-ft hand torque wrench offers low-level analog input capability and is compatible with strain gage instruments and data collectors. It can be used by QC inspectors and technicians seeking to verify that proper torque has been applied to fastener. Wrench is 28 in. long with comfortable foam handgrips, and is suited for light and large truck and off-highway vehicle assembly operations.

Bondhus Corp.    Monticello, MN 55362 9347
Sep 24, 2003 ProHoldâ„¢ Tip screw holding tools include star tip drivers that fit all common star head screws. Tip of each tool has non-magnetic, corrosion-proof button that holds screws to tool, thus eliminating dropped screws in hard to reach applications. Design allows each tool to deliver full torque of Potanium® steel. Tools are offered with ProGuardâ„¢ finish, which provides corrosion protection.

Emhart Teknologies, A Black & Decker Co.    Shelton, CT 06484
Sep 16, 2003 Enabling auto-feed riveting, AutoSetâ„¢ features one-touch cycle mechanism allowing one hand to be free to hold application while riveting. Capable of setting approximately 30 rivets per min, product can be reloaded in less than 10 sec. Additional features include tape loaded rivets, vacuum rivet-holding system, built-in mandrel collection system, and 3-piece jaws. Instrument uses POP® pre-loaded rivets in sizes from 1/8–3/16 in.

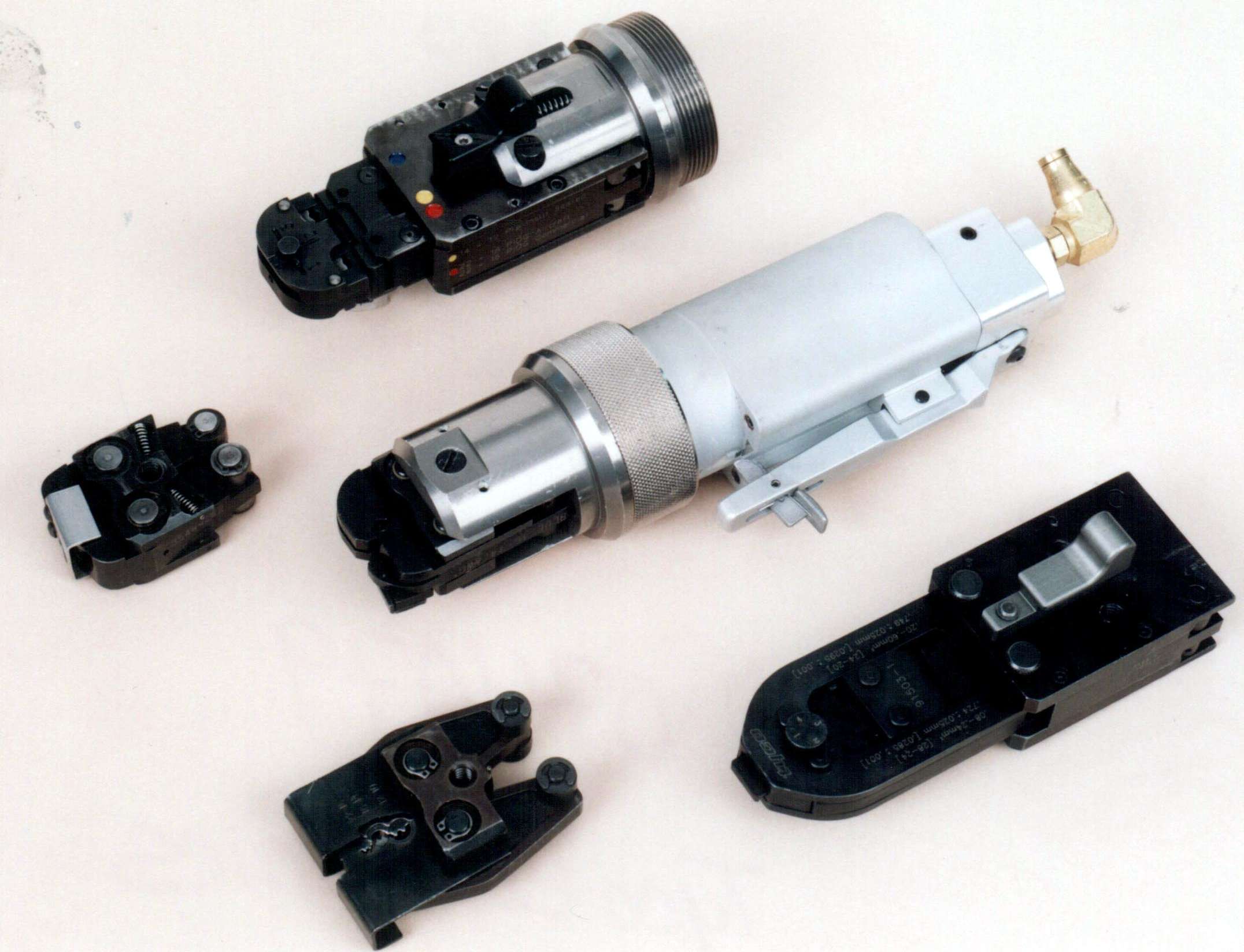

TE Connectivity Ltd.    Berwyn, PA 19312
Sep 08, 2003 Micro-pneumatic crimping tool is hand actuated and operates on 90 psi air pressure. When used with compatible crimping heads, product typically crimps terminals and splices to 26-14 AWG wire. In some cases, acceptable wire range is 22-10 AWG. Tool may be outfitted with double-action crimp head, T-HEAD crimper, or straight-action crimp head. General-purpose tool suits intermediate production volumes that require more speed than un-powered hand tool.

Wheeler Mfg. Div. Of Rex International U.S.A. Inc.    Ashtabula, OH 44004 9601
Aug 14, 2003 Value Line Heavy Duty Pipe Wrenches have I-beam handles and full floating jaws with spring suspension. Jaws are replaceable and made of heat-treated alloy steel. HD Straight Pipe Wrenches come in 7 sizes with 2 sizes available in HD End Pipe Wrenches. Aluminum Pipe Wrenches are nearly 50% lighter compared to iron and are available in 6 straight sizes and 2 offset sizes. All wrenches are made to US Federal specifications.

RIDGID    Elyria, OH 44035
Aug 13, 2003 RAPIDGRIP(TM) self-adjusting pipe wrenches come in 10, 14, and 18 in. sizes with jaw capacities of 1½, 2, and 2½ in., respectively. Spring-loaded, forged steel, hook jaw adjusts to any size work surface and aggressive tooth design ensures secure grip. Thumb trigger allows easy application and removal from work piece. Unlike traditional pipe wrenches, there is no need to tighten adjustment nut.

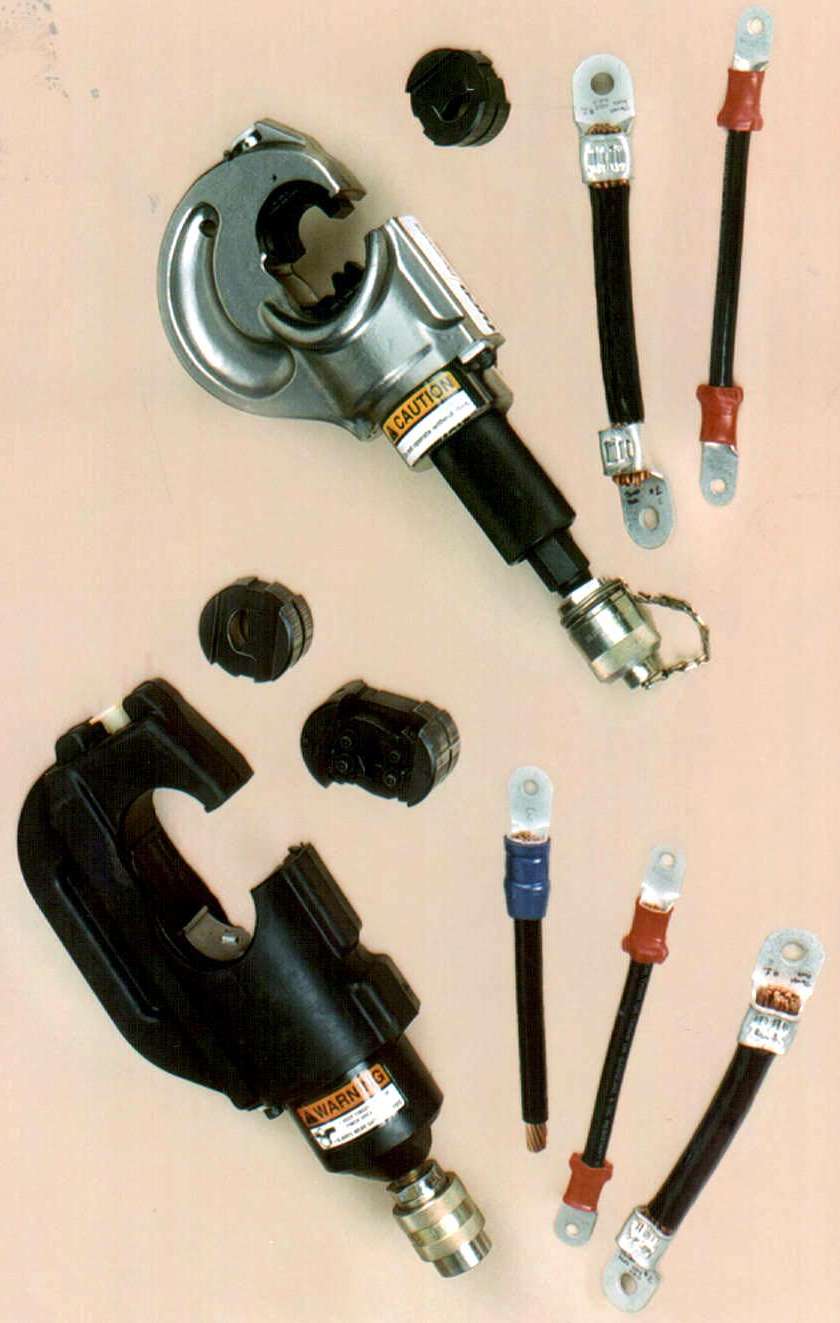

TE Connectivity Ltd.    Berwyn, PA 19312
Aug 12, 2003 Powered by 10,000 psi electric pump or manually actuated pump, crimp tools consist of components necessary to crimp connectors from 8 AWG up to 4/0. Electronic control unit can be hand or foot operated. Products are available with 4 crimp heads: 12 ton with 1 in. stroke, 14 ton with 1.5 in. stroke, 12 ton titanium with 1 in. stroke, and SOLISTRAND terminal compression head. Tooling uses U-die design and accommodates several terminal styles.

Snap-on Industrial    Kenosha, WI 53141 1410
Jul 29, 2003 With max free speed of 5,500 rpm, AT126 Blue-Point® Brand ¾ in. Square Drive Impact Wrench incorporates jumbo single hammer mechanism for loosening and tightening tasks. Tool delivers 1,000 blows/min and achieves max torque of 1,100 lbs-ft. Features include built-in grease lubrication system and handle defused exhaust that directs air away from job area. Unit accepts compressed air at pressures up to 90 psig and consumes 5.3 ft³ of air per minute under load.

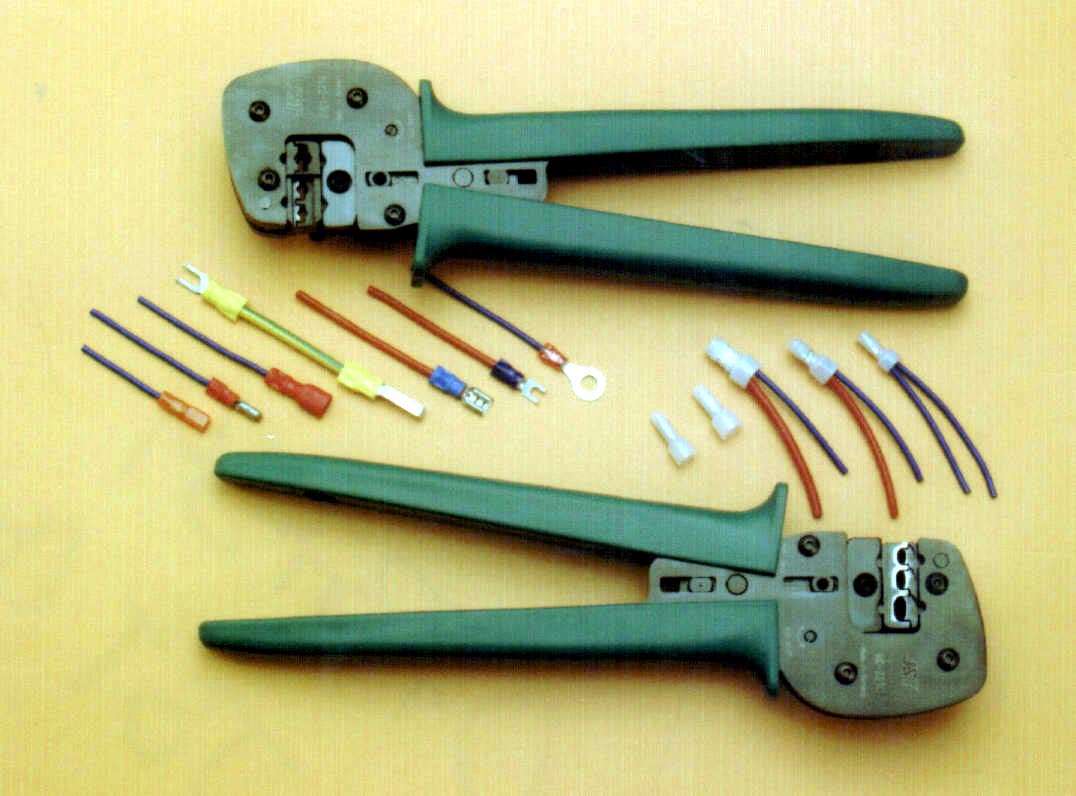

J.S.T. Corporation    Waukegan, IL 60085
Jul 29, 2003 Model JUCS-2210 provides both wire barrel and insulation support crimp in one operation. Die set has 3 crimping nests to terminate 22-16, 16-14, and 12-10 preinsulated terminals and butt splices. Model WC-2210 die set has 3 crimping nests to terminate 22-16, 16-14, and 12-10 closed end splices. Two locators accommodate American and European/Asian closed end splices. Both tools provide straight or in-line action for high quality crimp.

Makita U.S.A., Inc.    La Mirada, CA 90638
Jul 21, 2003 With compact design that measures 6 5/8 in. long, 6917DWDE utilizes 2-piece motor that incorporates rare-earth magnet, replaceable armature, and field and externally accessible brushes. It offers variable speed for controlled fastening from 0–2,300 rpm and impact system rated at 0–3,000 ipm. With maximum torque of 88.3 lb-ft, 3/8 in. square drive tool is suited for fastening applications. Product weighs 3.5 lb with battery.

Bahco North America A Sub. Of Snap-On Inc.    Scranton, PA 18501 2036
Jul 21, 2003 Screwdrivers suit heavy-duty work involving tough-to-budge slotted screws and bolts. Square shank provides grip for pliers and wrenches to safely deliver more torque. Square-shaped handle with molded-in thumb stop creates strong, comfortable grip for turning difficult screws by hand, and prevents roll-away when tool is laid down. Chrome blades resist corrosion and facilitate cleanup. Screwdrivers come in ¼, 3/16, 5/16, and 3/8 in. blades and variety of lengths.
