Interface Isolation Boards & Modules
(Showing headlines 1 - 20) more ....
|
 Interface Modules monitor/control high-voltage field devices.Acromag, Inc.
Wixom, MI 48393 7037
May 16, 2013
Measuring 22.5 mm wide, DIN rail-mount BusWorks®XT Series connects discrete field devices to measurement and control system I/O modules. XTA-120V-6 optocoupler modules have 6 individually isolated 120 Vac/Vdc digital inputs to sense on/off levels and provide 5–32 Vdc logic outputs to fieldbus input module or controller. XTA-MRNO-6 interposing relay module receives 4–32 Vdc logic-level signals from output module or controller to switch 6 mechanical relay outputs.
|
 Carrier Card interfaces XMC mezzanine modules to PCIe bus.Acromag, Inc.
Wixom, MI 48393 7037
May 10, 2013
Accommodating data transfer requirements of high-performance industrial and scientific research computing systems, APCe8675 enables PC to communicate with XMC mezzanine module over PCIe bus. One XMC socket interfaces up to 8 serial I/O lanes to carrier's PCIe x8 edge connector, while another XMC socket routes to one pair of 4-lane serial ports for board-to-board connections that support up to five high-speed (5 Gbps) transmit/receive differential or LVDS pairs.
|
XMC Module features versatile Mini PCIe and mSATA support.Extreme Engineering Solutions (X-ES)
Middleton, WI 53562
Apr 29, 2013
Respectively supporting -40 to +85°C and +70°C ranges for conduction- and forced air-cooled applications, XPort5005 helps reduce complexity for supporting I/O and storage requirements of different platforms. Module enables support for CAN bus, GPS, IEEE 1394, MIL-STD-1553, ARINC 429, SSDs, AES-256 encryption, GPIO, WLAN, WiMax, Cellular, RS-232, Bluetooth, and more. Size of Mini PCIe and mSATA modules allows unit to support up to 2 full height and one half-height module within single XMC.
|
 Fully Isolated A/D Boards feature 8 analog input channels.United Electronic Industries
Canton, MA 02021
Apr 03, 2013
With respective ±10 and ±300 Vdc input ranges, DNx-AI-218 and DNx-AI-228-300 feature 24-bit A/D resolution, 120 KSPS max sampling rate, as well as 350 Vrms channel-to-channel and channel-to-chassis isolation. DNR versions can be used with RACKtangle® chassis, while DNA versions can be installed into PowerDNA Cube chassis. Boards provide simultaneous sampling, and each channel is based on its own oversampled SAR converter. Input gains of 1, 2, 4, 8, 16, 32, and 64 are software programmable.
|
HD MIPI Camera Board supports TI OMAP4 processors.e-con Systems, Inc
Ballwin, MO 63021
Mar 26, 2013
Based on OmniVision OV5640 sensor, e-CAM51_44x is interfaced to PandaBoard, which is based on Texas Instruments OMAP4430/OMAP4460 processor, and includes 5 MP autofocus MIPI CSI-2 camera module as well as full schematics and Linux driver support with source code. Board can stream Full HD 1080p at 30 fps and also supports HD 720p at 60 fps. Allowing flexible enclosure design, e-CAM57_MI5640_MOD comes with 70 mm flex cable; camera module can be placed up to 100 mm from processor interface.
|
Drill Control Interface operates underground rigs.Boart Longyear
Stone Mountain, GA 30086
Mar 15, 2013
With fully electronic drill control interface (DCI), drillers can operate LM™ series underground drill rig and rod handler at safe distance. One-touch rod feed and pull functionality allows operator to efficiently trip rods, while wireline drum counter enables semi-automatic descent and retrieval of wireline. Incorporating CANBUS technology for self-monitoring, DCI provides immediate feedback of drilling conditions and data logging for reporting and analysis.
|
Embedded Wi-Fi Module fosters cloud-based M2M deployments.Digi International
Minnetonka, MN 55343
Mar 07, 2013
Enabling serial-to-Wi-Fi networking, XBee® Wi-Fi™ embedded module offers native iDigi Device Cloud integration, Soft Access Point (AP) interface, and Wi-Fi Protected Setup (WPS) for facilitated device provisioning and maintenance. Module offers secure 802.11 b/g/n networking and features UART and SPI, which optimizes integration with embedded MCUs. Available in through-hole and SMT styles, product is suited for industrial monitoring, asset tracking, home automation, and tank monitoring.
|
 AS-Interface Module can deliver output to 2 devices.Pepperl+Fuchs
Twinsburg, OH 44087
Feb 18, 2013
Featuring 2 outputs, VBA-2A-G10-E2L-1M-2V1-W comes in standard, modified, and custom versions. Each output is powered by auxiliary black flat cable, enabling delivery of up to 2 A per output and 4 A per module. When used with standard flat cable, module features IP68/IP69K rating. It can also be configured for lead breakage detection. Standard versions include 2 in (one M12 pigtail), 2 in (two M12 pigtails), 2 in (two M8 pigtails), 2 in/1 out (two M12 pigtails), and 2 out (two pigtails).
|
 Wireless Expansion Boards connect access control devices.DoorKing, Inc.
Inglewood, CA 90301
Feb 12, 2013
DKS wireless expansion boards will connect card readers, keypads, or any 26-bit Wiegand device to DKS 1830 series telephone entry and access control products without requiring wiring to be run back to controller. Each board acts as repeater station to provide for longer distances; individual repeater units are available when access control device is not needed. As many as 16 card readers or other access devices can be added to access control system without additional wire runs.
|
Video Stabilization Module supports Sony block cameras.SRI International
Menlo Park, CA 94025
Feb 12, 2013
Available for Sony's FCB-EX and FCB-EX-E Series standard definition block cameras, Model ILS-5000-SD™ corrects for unwanted vertical, horizontal, and rotational motion across wide range of shake frequencies, optimizing video quality in law enforcement, surveillance, intelligent traffic systems, border protection, robotics, and unmanned vehicles. Video stabilization interface board supports Sony's VISCA® camera control protocol, providing seamless interface for both video and stabilization control.
|
Complex Programmable Logic Device controls 3-phase motors.Electro Standards Laboratories
Cranston, RI 02921 3403
Feb 12, 2013
Designed to connect directly to CellMite ProD Data Acquisition and Control Boards, CellMite ProD Model 4350 CPLD Interface Board is based on Altera EPM3512QC208-10 CPLD Complex Programmable Logic Device, which has 10,000 usable gates, 512 macrocells, 32 logic array blocks, and 172 user I/O pins. Operating from 0–70°C, board provides 15 single-ended PWM input signals, 16 differential PWM output signals, 4 differential brake output signals, and differential inverter enable output signal.
|
 GPIB to LAN Interface works with range of instruments.ICS Electronics Corp.
Pleasanton, CA 94588
Feb 01, 2013
Enabling addition of Ethernet-based instruments to GPIB Test System, Model 4865B offers choice of 2 protocols: VXI-11 for communicating with VXI-11.3 compatible instruments, and Raw Socket for communicating with raw socket instruments. Transparent solution, configured over Ethernet via any Web browser, also provides optional settings that let user upgrade basic raw socket communication to be more GPIB-like with substitute command strings for GPIB commands.
|
 Logic Module supports SoC/ASIC prototyping.S2C Inc.
San Jose, CA 95110
Jan 24, 2013
Using 4 Xilinx Virtex®-7 2000T All Programmable 3D ICs, Quad V7 TAI Logic Module allows designers to deploy multiple SoC/ASIC prototypes for hardware verification and early software development. Module supports 80+ pairs length-matched LVDS bus between any 2 FPGAs optimized for LVDS pin-multiplexing and 10,000+ design interconnections between any 2 FPGAs with LVDS bus running at 800 MHz+. With dedicated LVDS Pin-Multiplexing reference clocks and reset circuits, almost any design can be partitioned.
|
 Interface System supports RF performance from DC to 40 GHz.Bomar Interconnect Products
Ledgewood, NJ 07852
Jan 16, 2013
Intended for subminiature, RF coaxial cable-to-board and board-to-board applications, 50 Ω SMP Interface System features VSWR of 1.18 max at 40 GHz. Male PCB connectors are available in vertical surface mount, vertical surface mount through-hole, and edge mount configurations. Three levels of detent are available, each with different engage and disengage coupling forces. Cable ended SMP female connectors accommodate 0.047, 0.085, and 0.086 dia semi-rigid or conformable coaxial cable.
|
 Communication Module adds Profibus connection to PLC.Siemens AG
Munich D-80333 Germany
Dec 10, 2012
Adding 9-pin Sub-D socket connector to versions of S7-1500 controller which have no integrated interface, Simatic CM 1542-5 allows communication with lower-level Profibus devices in bandwidths from 9.6 Kbps to 12 Mbps. Module can also be used to implement separate Profibus lines to control field devices via Profibus segments. Assuming all communication tasks in process, Simatic CM 1542-5 minimizes load on controller's CPU. All functions are configured via TIA Portal v12.
|
ISDN Basic Rate Board for Telecom System Innovators.Sangoma Technologies Corp.
Markham, ON L3R 9R6 Canada
Sep 11, 2012
Supplied in PCIe form factor, B500 Basic Rate Interface (BRI) Telephony Interface Board lets developers create telecom products and services aimed at where PSTN connection of choice is BRI. Board expands to support 2 or 4 Basic Rate ports, each configured independently as either network or user configuration. Full support is available for Asterisk and FreeSwitch as well as other open-source and proprietary PBX, IVR, and general VoIP solutions.
|
 Signal Interface IC supports single and dual capacitive sensors.Micro Analog Systems Oy
Helsinki Finland
Aug 31, 2012
Primarily intended for MEMS-based pressure sensor modules, 16-bit Model MAS6512 uses ratiometric AD-converter principle employing delta-sigma conversion technique. Resolution of ADC is 14-bits. IC includes internal temperature sensor, clock oscillator, and 256-bit EEPROM calibration memory. Available in 4 x 4 x 0.75 in. QFN-16 package as well as wafers or dies, unit operates from supply voltages of 1.8-3.6 V with current consumption of 1.9-28 µA.
|
 Interface Modules facilitate networking of automation devices.Hilscher North America Inc
Lisle, IL 60532
Aug 03, 2012
Used to add or change fieldbus and Industrial Ethernet protocols in automation devices, netJACK modules come with PCIe and Dual Port Memory (DPM) interface options. Products support 13 protocols for fieldbuses, such as DeviceNet and PROFIBUS, and Industrial Ethernet, such as EtherCAT, Ethernet/IP, and PROFINET, in both master and slave versions. Configuration of automaton product to use particular protocol solely requires insertion of appropriate module.
|
Single-Slot Digital Telephony Interface Board supports 16 spans.Sangoma Technologies Corp.
Markham, ON L3R 9R6 Canada
Jun 25, 2012
PCIe-compliant A116 terminates 16 digital telephony spans compatible with TI, E1, and J1 standards, selectable by span, and also supports up to 480 simultaneous voice calls. Intended for server-based telecom platforms, board is designed for facilitated integration with open source projects. Full duplex data rates to 32.8 Mbps give full bandwidth access for data applications, and optional carrier-grade hardware-based echo cancellation is available for VoIP applications.
|

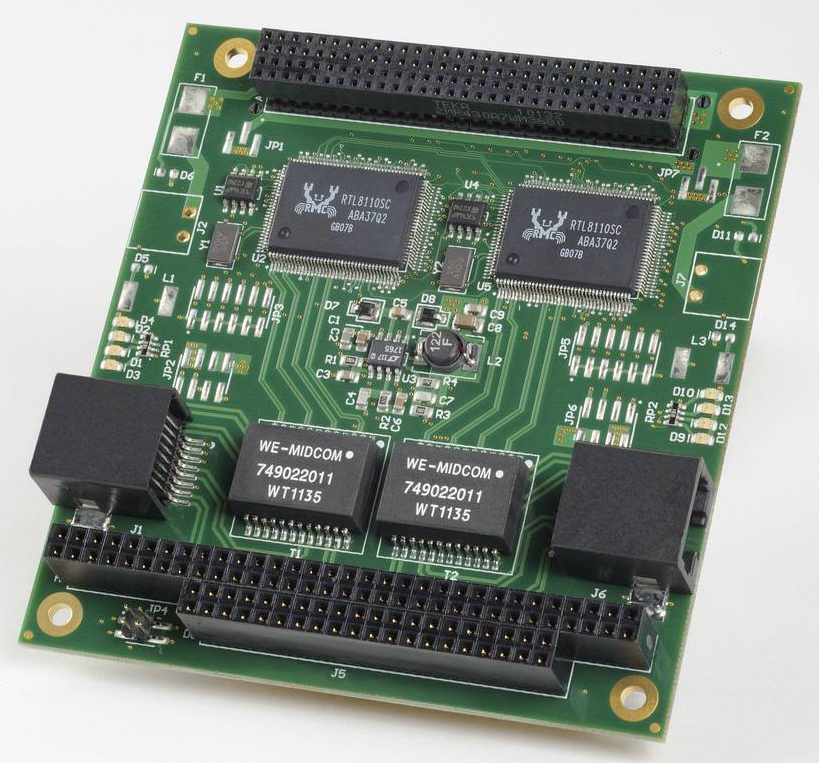

 PC/104+ 2-Channel GbE Module connects to embedded networks.WinSystems, Inc.
Arlington, TX 76011
May 31, 2012
Employing DSP and mixed-mode signal technologies, PPM-GIGE-2 offers self-stacking I/O expansion on PC/104, EPIC, and EBX SBCs based on PC/104-Plus form factor. Add-in module uses RJ45 connectors to plug into 10/100/1000 Mbps networks using CAT5 unshielded twisted pair (UTP) copper cables. Dual onboard Realtek RTL8110 Gigabit Ethernet controllers combine triple-speed, IEEE 802.3-compliant MAC with triple-speed Ethernet transceiver, 32-bit PCI bus controller, and embedded memory.
|
