Dwyer Instruments, Inc.    Michigan City, IN 46361
Jan 25, 2012 Intended to continuously monitor changes in machine vibration, Series VBS takes real-time RMS vibration input and provides analog output of velocity as well as switching output when alarm value is exceeded. Compact unit, supplied in IP67 enclosure with 18-32 Vdc electrical rating, features 2 setup dials used to adjust maximum RMS velocity set point and false trip time delay. Operating from -22 to +221°F, switch has 0-50 mm/sec measuring range, less than ±3% accuracy, and M12 connector.

Dytran Instruments, Inc.    Chatsworth, CA 91311

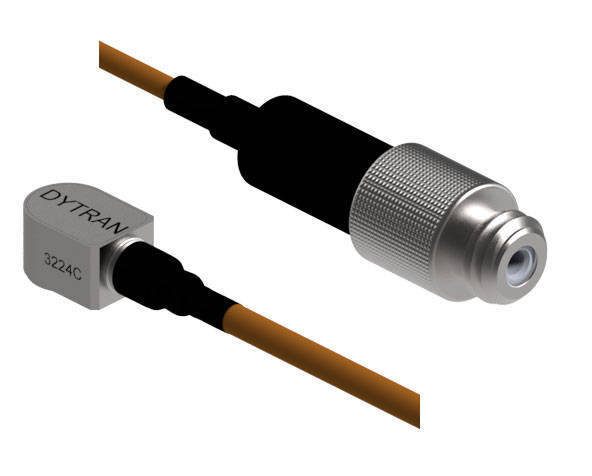

Jan 25, 2012 Model 3224C low-profile (0.105 in.) charge mode accelerometer weighs 0.2 g and incorporates ceramic shear sensing element in laser-welded titanium housing. Standard 3 ft integral cable terminates to 10-32 jack and is designed to mate with several Dytran extension cables. With sensitivity of 0.6 pC/g, accelerometer is designed to adhesively mount in tight spaces and suits measurement of shock and vibration of small objects such as PCBs and board-mounted components.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143

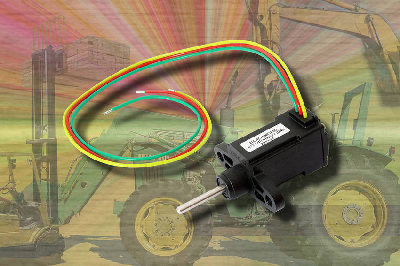

Jan 24, 2012 Featuring non-contact Hall effect technology, Model 20 LHE is available with spring return system and is suited for applications in harsh environments. Unit features linearity down to ±1 and performs up to 10 million cycles. With analog ratiometric or digital PWM output, sensor provides continuous performance with no drift of linearity. Operating with supply voltage of 5 V ±10% and supply current less than 16 mA, sensor withstands +20 V overvoltages and 10 V reverse voltages.

Measurement Specialties, Inc.    Hampton, VA 23666

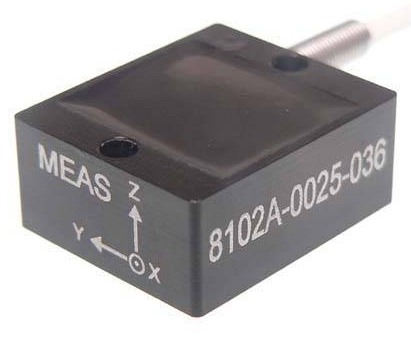

Jan 24, 2012 As CE- and RoHS-compliant piezoelectric sensor with amplified output, Model 8102 comes in aluminum or stainless steel housing with integral 60 in. cable assembly and is offered in ranges from ±50 to ±6000 g. Low-profile plug-and-play COTS sensor, with operating range of -40 to +125°C, is designed for screw mounting and provides flat frequency response to 6,000 Hz with linearity of ±1% FSO. It operates from 3.0-5.5 Vdc excitation and offers FS output swing equal to ½ of excitation voltage.

GRABNER INSTRUMENTS Messtechnik GmbH    Wien A-1220  Austria
Jan 24, 2012 Featuring intelligent, self-learning design, MINISCAN IRXpert automatically analyzes 40+ parameters of gasoline, diesel, and biofuel blends, and enables unlimited number of new fuel parameters to be added. Device houses dual-cell spectrometer, which offers extended wavelength from mid-IR to near-IR. Rather than few selected areas, unit analyzes full spectrum and more than 12,000 data points. Measurement stability is guaranteed through temperature-controlled measuring cell and density meter.

STMicroelectronics    Lexington, MA 02421
Jan 23, 2012 Supplied in 2 x 3 x 0.8 mm package, STC3105 measures battery voltage and current to increase handheld electronics' battery runtime and lifespan. IC uses open-circuit voltage and coulomb-counter methods to estimate battery capacity as well as supervise and track charge/discharge status. Drawing 60 µA typ, product also features power-saving mode and programmable alarm output. Latter can alert system when battery state of charge is below certain level without involving system MCU.

Palmer Wahl    Asheville, NC 28804
Jan 23, 2012 Featuring electrical signal outputs in 4-20 mA, 0-5 V, and 1-10 V with Packard, DINN, or cable-type electrical connections, Pressure Transducers feature ceramic, silicone, or piezoresistive sensing elements. They offer housings of 304 or 316 stainless steel and are designed for HVAC, water treatment, hydraulic control and monitoring, compressors, aerospace, and process control applications. Accuracies are as precise as 0.2% FS, with maximum ranges of 8,700 psi.

CJPS Enterprises, LLC    Auburn Hills, MI 48326
Jan 23, 2012 Supporting Microsoft Windows®-based tablet PCs, VitalPoint® HOME can monitor blood pressure, blood oxygen saturation, pulse rate, weight, and glucose level as well as prothrombin time and ratios, temperature, fluid status, and electrocardiogram data. Standalone 4.5 lb device enables caregivers to remotely monitor patients in their home using laptop or cell phone. Patients receive verbal, written, and visual instructions and reminders.

Newport Electronics, Inc.    Santa Ana, CA 92704
Jan 23, 2012 Operating at 2.4 GHz, zSeries monitors and records temperature, relative humidity, and barometric pressure over Ethernet network or Internet via web browser. End Devices transmit up to 300 ft to Coordinator connected directly to network, and can trigger alarm if variables go above or below user-determined set point. Alarms can be sent by email to single user or to group distribution list, and by text messages to Internet-enabled cell phones and PDAs.

Macro Sensors    Pennsauken, NJ 08110 1334
Jan 20, 2012 Environmentally sealed to IP68 standard, rated to 185°F, and protected against dust ingress, Steel Mill Position Sensors monitor position of milling frames that support rollers during hot rolling process, ensuring frames do not deform or shift. Radial configuration with rod ends facilitates installation, while pre-calibrated on-board electronics eliminate need to configure signal conditioners. Available in ±0.015 to ±10.0 in. ranges, non-contact sensors provide 0-10 V, 4-20 mA, and ±10 V outputs.

Symmetricom Inc.    San Jose, CA 95131
Jan 20, 2012 As carrier-grade IEEE 1588-2008 Grandmaster Clock, TimeProvider® 5000 handles frequency and phase requirements of Next Gen networks. Carrier-grade Network Time Protocol (NTP), Synchronous Ethernet (SyncE), and T1/E1 support supplement Precision Time Protocol (PTP) synchronization platform, ensuring service providers have necessary timing protocols for 4G/LTE services. Solution supports up to 10 expansion shelves with TimeProvider® 5000 Grandmaster and up to 1,000 PTP clients.

Pepperl+Fuchs    Twinsburg, OH 44087
Jan 19, 2012 Available in 8 mm dia models with barrel lengths as short as 35 mm, X-Series Pile Driver(TM) Extended Range Inductive Sensors have 100% stainless steel housings. Miniature sensors deliver 3 mm sensing range and feature single-piece machined barrel that is fully embeddable in steel. Black Armor(TM)-coated, weld-immune models are available to repel slag particles, and pig-tail connect versions feature integral high-visibility power supply and target presence LEDs.

G Instruments    San Diego, CA 92128
Jan 19, 2012 Equipped with fully programmable RS485 MODBUS RTU communication port, GpH140 Series offers up to 2 pH inputs, up to 2 mV inputs that can be programmed to also accept 11 types of thermocouples, 1 Pt1000 RTD input for -50 to +300°C with absolute error of 0.2°C, and one 4-20 mA input. Built-in cold junction compensation features absolute error of 0.2°C, while all inputs have typical error of 0.03% FS.

Allegro MicroSystems Inc.    Worcester, MA 01615
Jan 19, 2012 Featuring ambient temperature range of 40-150°C, customer-programmable Model A1357 converts analog signal from internal Hall sensor element to digitally encoded PWM output signal. Duty cycle of PWM output signal is proportional to applied magnetic field. BiCMOS, monolithic circuit inside A1357 integrates Hall element, precision temperature-compensating circuitry, high-gain amplifier, dynamic offset cancellation circuits, and PWM conversion circuitry.

MultiDimension Technology    San Jose, CA 95138
Jan 19, 2012 Employing TMR (Tunneling Magnetoresistance) technology, MMS103H and MMS105H are intended for use in battery-powered smart flow meters, including water, heat, and gas types, and feature frequency response up to 100 kHz and supply current as low as 5 µA. Bipolar sensors with CMOS digital latching output have operate and release points at ±30 Gauss (MMS103H) and ±50 Gauss (MMS105H) and exhibit temperature stability from -40 to 125°C.

Parker Hannifin Corp., Instrumentation Connectors Div.    Huntsville, AL 35803-2197
Jan 18, 2012 Protecting temperature instruments from damage due to pressure and velocity, Thermowell Sensor Assemblies consist of connection head, spring fitting or nipple union nipple, RTD or thermocouple, and thermowell. They are available in threaded, flanged, VanStone, socket weld, weld-in, and sanitary styles, and thermocouple types in calibrations of J, K, T, and E meet NEMA 4X requirements. Temperature ranges for RTDs are from -328°F to 1,112°F and for thermocouples -328°F to 2,300°F.

OmniVision Technologies, Inc.    Sunnyvale, CA 94089
Jan 18, 2012 OV9713's 12-bit RGB RAW output capability provides high dynamic range (HDR), while embedded sequential line- or frame-based HDR features address high-contrast scenes found indoors. Sensor is 3D ready and designed for interactive gaming and real-time communication for telepresence applications. OV9713 captures 720p video at 60 fps and is built on low-light sensitive OmniPixel3-HS(TM) pixel. It comes with 2-lane MIPI interface and fits into 8 mm x 6 mm x 4.5 mm module size.

OmniVision Technologies, Inc.    Sunnyvale, CA 94089
Jan 18, 2012 Using OmniBSI+ pixel architecture and second-generation backside illumination (BSI(TM)) technology, 1/3.2 in. OV8825 CameraChip(TM) sensor suits smartphone/tablet manufacturers upgrading camera designs. Sensor operates at 24 fps in full resolution and in full HD video mode at 30 or 60 fps and can capture images and video in bright and low-light conditions. Additional features include 4-lane MIPI interface, scaler with electronic image stabilization, and 2 x 2 binning functionality.

Radiopaque Solutions, Inc.    Bonita spring,, FL 34135
Jan 18, 2012 Available for all security screening applications, RadMark(TM) Airport Security Bin Identification System uses uniquely identifiable, x-ray visible tag placed under rim of each bin. Identification code on radiopaque tag matches bin identification label, and tag itself can also perform both functions. When scanner operator selects bin to be checked, it is visually identified on x-ray scanner screen by ID number. Bin can then be segregated for further screening by visually matching bin label.

Newport Electronics, Inc.    Santa Ana, CA 92704
Jan 17, 2012 Available for analog voltage and current, temperature from digital sensors and dual thermocouples, humidity, and barometric pressure, wSeries has weatherproof, polycarbonate NEMA4/IP65 housing and battery or ac power options. Users can view charts and graphs as well as monitor and record readings over Ethernet network or Internet from any computer, tablet, or smart phone via Web browser. Also, alarms can be set and to notify individuals/groups via email or text messages.
