Sensotec, Inc.    Columbus, OH 43228

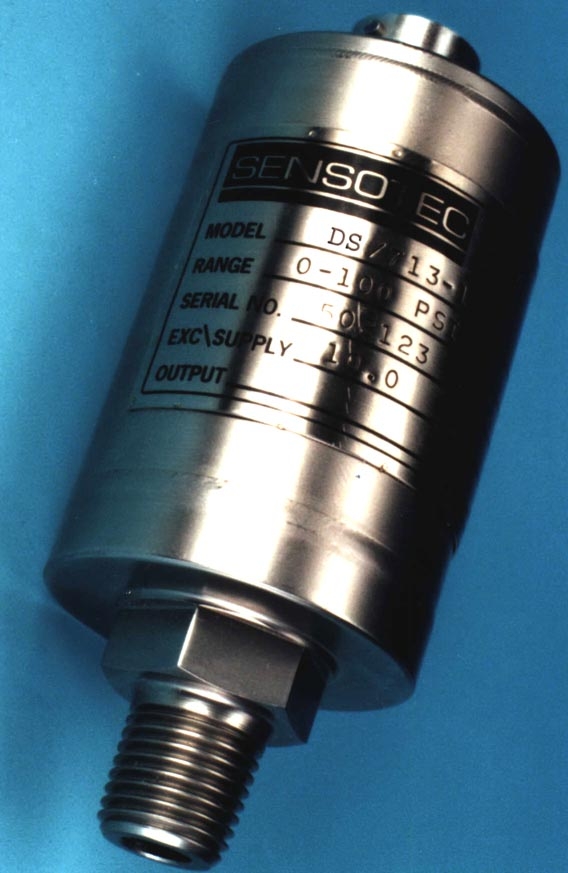

Jun 07, 2002 Model DS pressure sensor provides RS485 or RS232 output capable of 380 readings/second and 0 to 5 Vdc analog output with frequency response rated to 1200 Hz. All-welded stainless steel construction is suited for factory floor or test cell installation. Model DS has combined accuracy of ±0.1% FS, including temperature errors over compensated temperature range. Pressure ranges are available from 0 to 5 psi up to 0 to 10,000 psi.

USFilter's Stranco Products    Bradley, IL 60915 0389
Jun 07, 2002 CoolSIM(TM) on-line cooling water management tool measures electrochemical noise that takes place with transfer of electrons that create corrosion. This allows facilities to monitor system corrosion, pitting, and fouling in real time, under actual flow and heat transfer conditions, and therefore optimize chemical treatment programs. It recognizes when corrosion and pitting begin to occur in heat exchanger, and when corrosion and pitting activity stop.

Fischer Technology Inc.    Windsor, CT 06095
Jun 07, 2002 Fischerscope® X-Ray XDVM®-u uses X-ray fluorescence and micro-focus X-ray optics to measure and analyze microstructure coatings on structures as narrow as tens of microns. It can analyze thickness and composition of multiple coatings containing up to 24 individual elements, either in pure element or alloy coatings. Applications include testing and measuring miniaturized electronics, including PC boards, chips, and contacts.

Lebow Products, Inc.    Troy, MI 48084-4600

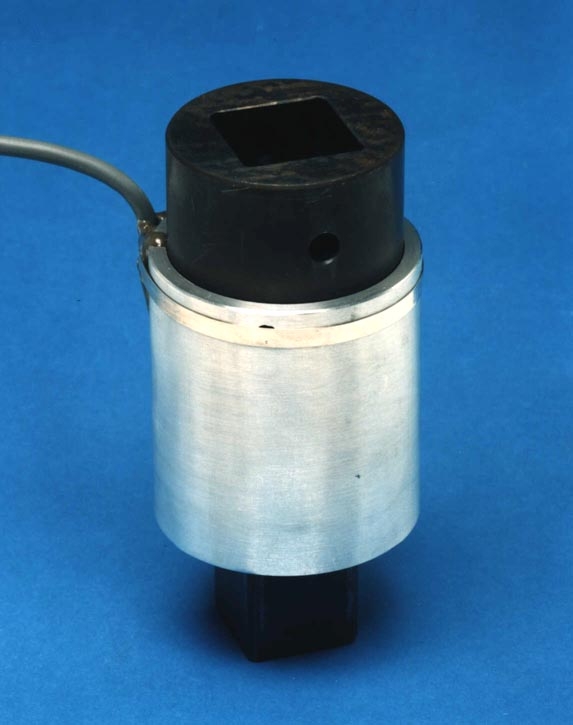

Jun 07, 2002 Model 2133 Series measures static torque in clockwise or counterclockwise directions. Models cover torque ranges from 10 to 1000 lb-ft in 7 different rated capacities, with ¼ to 1 in square drive size configurations. Each unit is temperature compensated from 70 to 170°F over useable temperature range from -65 to +200°F. Accuracy is ±0.25% of rated output with sensitivity output of 2 mV/V nominal. All sensors are calibrated with standards traceable to NIST.

Crowcon Detection Instruments Ltd.    Erlanger, KY 41018

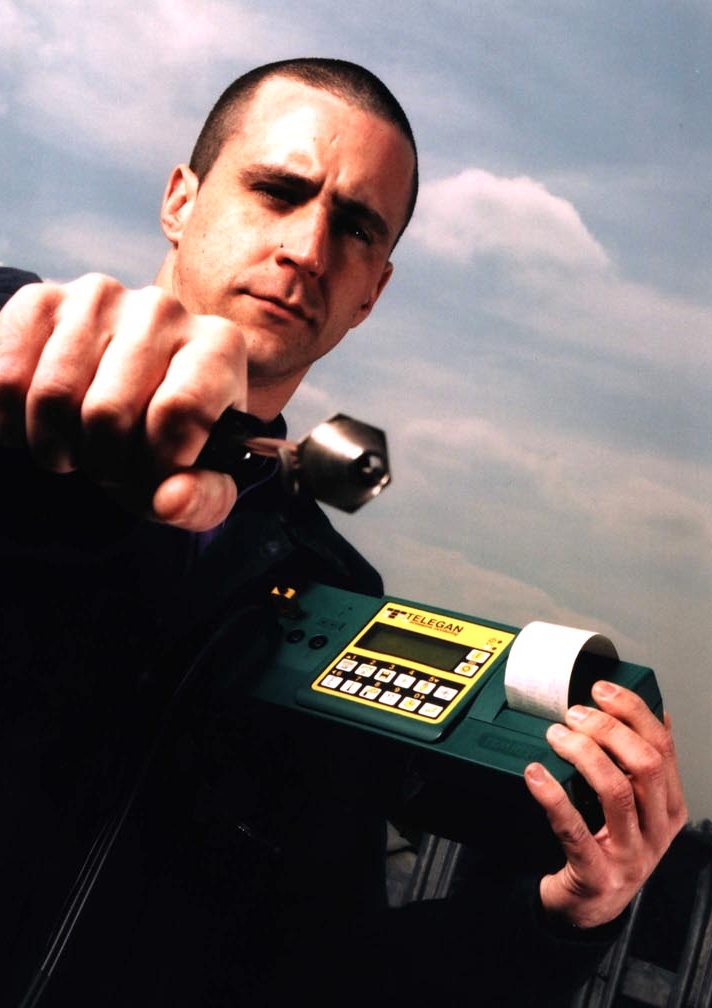

Jun 07, 2002 Tempest 100 handheld analyzer monitors gaseous emissions, calculates combustion efficiency, and logs and prints gas data. Detectable gases include CO, CO2, nitrogen monoxide, and O2. All data can be downloaded to PC. Tempest 100 also provides unattended monitoring over extended periods via programmable datalogging. It analyzes combustion performance with integral thermocouples, which measure inlet, stack, and ambient temperature.

PCB Piezotronics Inc.    Depew, NY 14043 2495

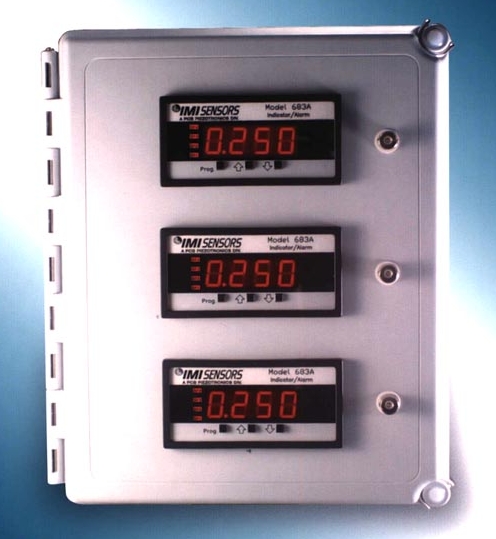

Jun 06, 2002 Up to eight Model 683 Vibration Meters can be housed in NEMA4X-rated, fiberglass, Series 684 Enclosures. Vibration meters offer excitation power for 4 to 20 mA vibration sensors or ICP® accelerometers. They display peak or rms vibration data on fully scalable LED display. Set point relays (two) offer alarm or control capabilities, and relay action is time-delayed. Hinged doors provide access to necessary wiring.

PCB Piezotronics Inc.    Depew, NY 14043 2495

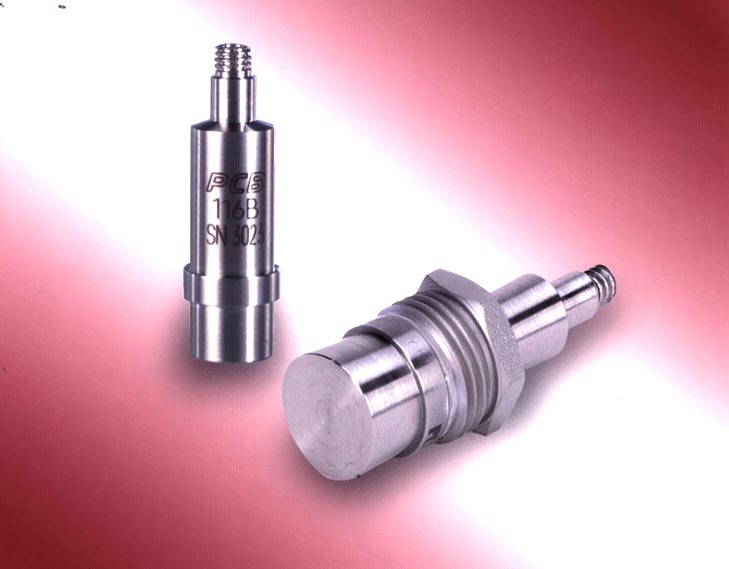

Jun 06, 2002 Series 106 and 116 can measure low-level pressure and high-intensity acoustic and ultrasonic sound pressure levels. Both have solid-state construction, no moving parts, stainless steel housings, high frequency range, and up to 500 mV/psi sensitivity. Applications include monitoring pulsations, turbulence, and noise in hydraulic and pneumatic systems; detecting pressure fluctuations in compressors, turbines, pumps and pipe lines; and measuring noise of jet engines.

Time Mark Corp.    Tulsa, OK 74116 2019
Jun 06, 2002 Model 2629 monitors over and under ac or dc voltage, and has input range from 15 to 260 V. It has adjustable trip points, automatic reset, and DPDT relay. Dead band is less than 5% between pull-in and drop-out.

Banner Engineering Corp.    Minneapolis, MN 55441

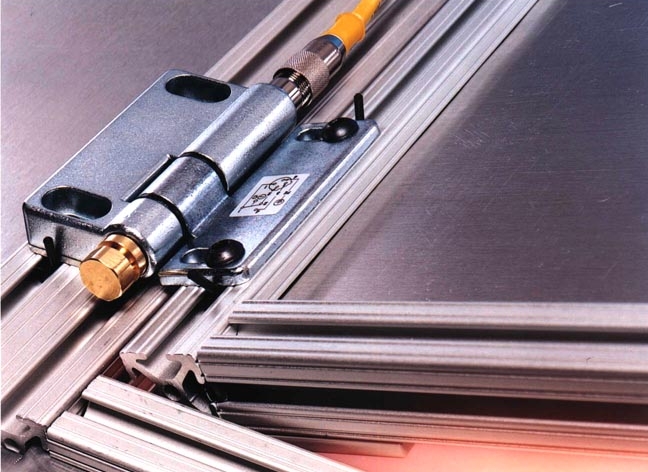

Jun 05, 2002 Hinge-style Safety Interlock Switches are integrated and encapsulated into load-bearing hinge to provide protection from tampering. Components are concealed inside hinge to prevent access and provide protection from mechanical impact and washdown. Applications include hinged machine covers, doors, gates, and safety fencing systems. Switches have IEC IP67 rating, IEC 60947-5-1 positive-opening safety contacts, and can support axial load of 165 ft-lb.

ifm efector, Inc.    Exton, PA 19341

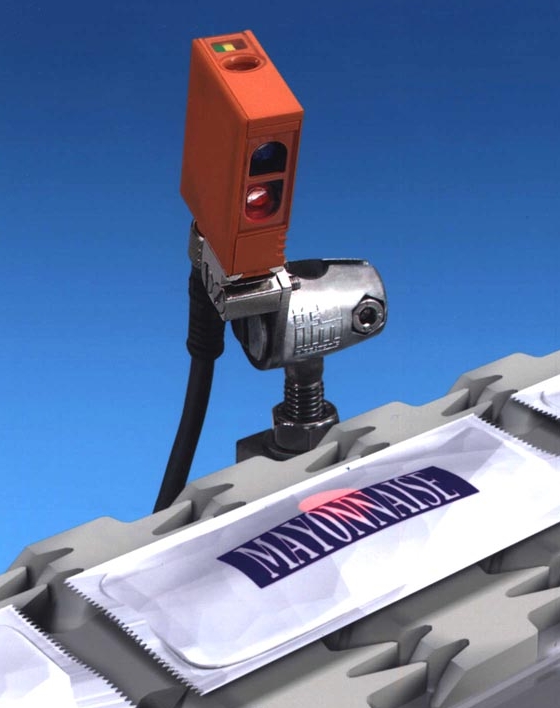

Jun 05, 2002 OJ Series Photoelectric Sensor ignores shiny metal or bright white backgrounds typically found in conveyor applications. It senses small targets at distances up to 400 mm. Visible red light source provides precise target detection and highly visible 18 mm dia light spot. Sensor offers front or side sensing and includes quick disconnect feature. Microprocessor-based pushbutton adjustment simplifies installation and setup.

Delta F Corp.    Woburn, MA 01801 1087
Jun 04, 2002 Series 500 microprocessor-based, ambient air oxygen monitor incorporates non-depleting sensor which is factory calibrated to NIST Traceable Standards and lasts life of monitor. Sensor eliminates false alarms due to sensor depletion. Monitor includes built-in battery back-up, dual adjustable oxygen alarm setpoints, 0-25% range, and 1/2 in. LCD. Sentry Circuit(TM) monitors instrument calibration against any system or condition changes.

Novotechnik U.S., Inc.    Southborough, MA 01772

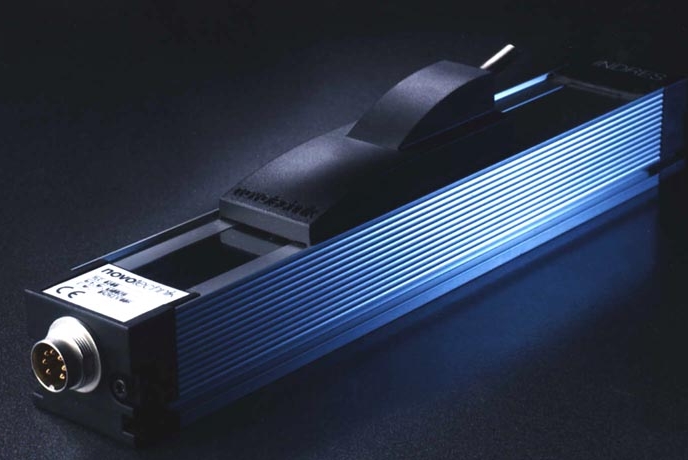

Jun 04, 2002 TLC Series supports measuring lengths from 100 to 1000 mm. Output voltage is proportional to position of probe moving near, but not touching, 2 resistive tracks that are inductively coupled. Integrated ASIC provides linearization and filtering for resolution better than 0.01 mm. Rodless design, with ball coupling, accommodates side loads. Sensors operate at speeds to 10 msec with repeatability less than or equal to 0.01 mm.

TURCK, Inc.    Plymouth, MN 55441

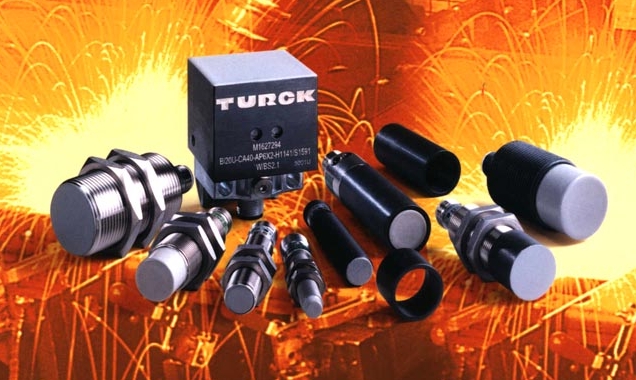

Jun 04, 2002 WeldGuard Sensor is available in AC/DC ferrite core with WFI, DC U-prox®, and extended ferrite core with 2- and 3-wire DC. Front face material lasts 13 times longer than standard sensor face materials. Barrel is either stainless steel or Teflon® coated. Sensor comes in 8, 12, 18, and 30 mm barrel sizes and cube style CA40 (40 mm cube). It is suitable for resistance welding in automotive applications.

TAOS Inc.    Plano, TX 75074
May 31, 2002 Model TSL2014, 896 x l Linear Sensor Array measures 4.4 in. in length and is designed for scanning A6 format-size documents. It comes in 10-pin Glass Epoxy Substrate package with Cover Glass. Model TSL210, 640 x 1 Linear Sensor Array measures 3.15 in. in length, and comes in 18-pin Glass Epoxy Substrate package with Cover Glass. TSL210 can be configured in serial mode. TSL2014 can be configured to run in serial or parallel mode.

Strainsert Co.    West Conshohocken, PA 19428 2793
May 31, 2002 Force Transducer is available with internally gaged, force sensing clevis pins and instrumentation packages in shock-qualified configurations to MIL-901D specifications. Similar clevis pin designs, incorporating internal 4-20 mA amplifiers, have also been qualified for specific vibration environments. Internal gaging is environmentally protected.

Encoder Products Co.    Sandpoint, ID 83864
May 30, 2002 Model 775 and 776 Slim Line Thru-Bore Encoders are available with protective cover that increases sealing capabilities. Model 775 and 776 measure .840 and 1.36 in. thick and offers bore sizes to 1.375 and 1.875 in., respectively. Both feature noise and electrostatic discharge immunity. Rated to 100°C, they provide resolutions to 4,096 CPR, and are available with phenolic inserts for electrical and thermal isolation.

GEI International, Inc.    Syracuse, NY 13217 6849

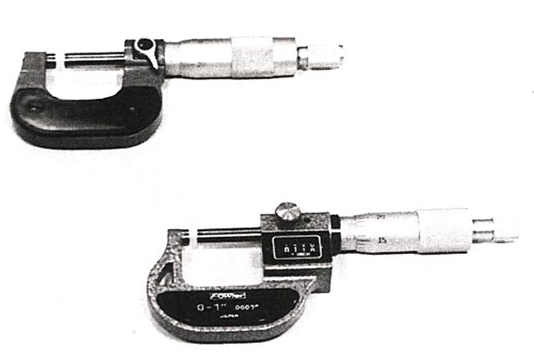

May 29, 2002 BNS Series measures thickness of sheet metal, card, paper, and other materials in 0.001 in. increments. Thickness on some models is displayed on digital readout. All units incorporate ratchet to prevent compressing soft materials when measurements are taken. Inch and metric versions are available. All models are supplied in plastic or wood storage cases.

Gentech International    Rochester Hills, MI 48307

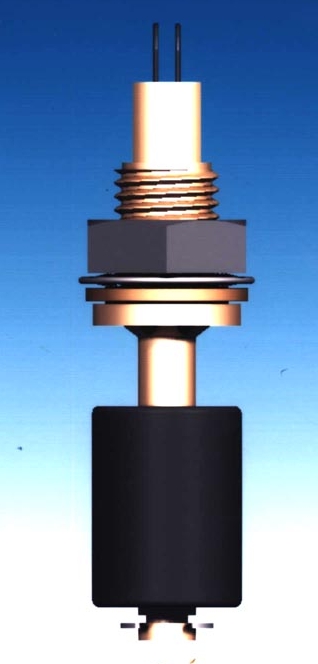

May 29, 2002 VS703-51 utilizes Buna N float, and features normally open or normally closed designs. Mounted vertically, it can be fitted internally or externally via compression grommet system, either via top or bottom entry of tank. Maximum switch ratings are 100 Vdc and 250 Vac, and operating temperature range is -30 to 130°C. Sensor is suitable for high or low switch point level sensing.

Dillon, A Div. Of Weigh-Tronix    Fairmont, MN 56031
May 29, 2002 Tabletop TC²-i and SnapShot-i provide compression, tension, and flexure testing capabilities up to 550 and 220 lbf, respectively. Both use intelligent load cells that send test data directly to PC via serial port with speed of 2,000 samples/sec. User-friendly i-software controls test stand and compiles data. Analytical capabilities include graphing, data interrogation, and exporting. Both are programmable for crosshead travel speed from 0.039 to 19.7 ipm.

Flowline Inc.    Los Alamitos, CA 90720
May 29, 2002 Ultrasonic LA12 Cricketâ„¢ 2-wire transmitter mounts through top wall of tank and provides continuous liquid measurement from 0.3 to 10 ft. It has automatic temperature compensation over entire range, NEMA 4X IP65 enclosure with ½ in. conduit connector, 4-20 mA output, and LED power-status indicator. Acoustic wave guide, available in PP, PVC or PVDF, reduces measurement space to ½ in. while separating foam from point of measurement. Accuracy is ±1% of span.
