Cyber Technologies    Ogdensburg, NY 13669
Jul 09, 2004 Laser-based, Height Measurement System uses DRS digital sensor technology that automatically compensates for variations in surface reflectivity such as shiny, translucent, or multicolored surfaces. Based on principle of triangulation, DRS sensor is also used in Vantage and CT300 Series metrology systems, which employ computer-controlled motion and software to produce 2D profiles and 3D raster scans.

Photovac Inc.    Waltham, MA 02451 1166
Jul 08, 2004 Weighing less than 15 lb and measuring 13.0 x 10.5 x 5.0 in., PetroPRO(TM) high-speed, portable gas chromatograph screens common VOCs on site. It analyzes benzene, toluene, ethylbenzene, and m-xylene compounds in less than 2 minutes down to parts per billion levels. Linear photoionization detector reports concentrations from low PPB to high PPM. Applications include OSHA compliance, fenceline monitoring, petroleum tank pre-entry, and emergency response.

Krohne, Inc.    Peabody, MA 01960-3803
Jul 08, 2004 Two-wire ALTOFLUX 2W includes hybrid power booster, which enables operation in 2 x 2 wire connection mode for difficult applications. It can be upgraded to 2 x 2 with no process turndown or meter removal and without impact on rating, cabling, or calibration. Featuring intrinsically safe connection and stainless steel reinforced Teflon®-PFA liner, ALTOFLUX 2W handles 99% of all applications including fluids with solid contents or low conductivity.

Load Cell Central    Monroeton, PA 18832
Jul 07, 2004 Encased in ABS enclosure, PVS-10 transducer simulator is designed for in-field use by scale technicians. Load cell simulator is suited for troubleshooting scale indicators and verifying proper indicator setup. Vernier provides infinitely variable adjustment in coarse, medium, or fine ranges and tests set points for batching, check weighing, and other load cell applications where relay outputs are used.

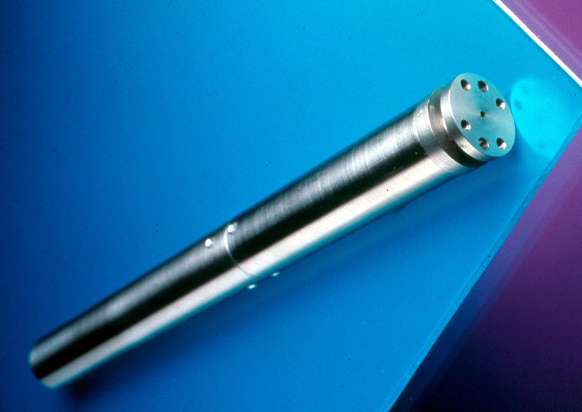

Jewell Instruments LLC    Manchester, NH 03103
Jul 07, 2004 Suitable for applications with high levels of shock and vibration, Model LCF-196 comes in 22 mm stainless steel package with ranges of ±14.5 to ±90°. It provides Full Range Output of ±5.0 Vdc ±1%, bias temperature sensitivity of less than 50 µg/°C, nonlinearity of less than 0.05% full range, and operating temperature of -40 to +80°C. Unit is suited for geophysical measurement, earth movement monitoring, oil and gas well monitoring, dam monitoring, and grading.

Heidenhain Corp.    Schaumburg, IL 60173-5337
Jul 06, 2004 Model LC 400 incorporates single-field scanning technology that utilizes large scanning window, mitigating effects of contamination. It provides constant signal quality over entire measuring length, resolution up to 10 nm, and maximum traversing speed up to 180 m/min, making it suited for linear motor and machine tool applications.

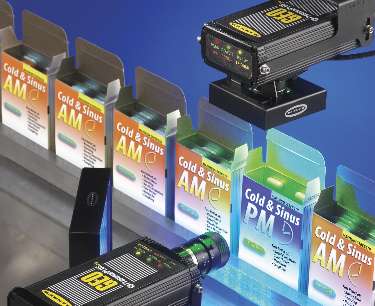

Banner Engineering Corp.    Minneapolis, MN 55441
Jul 02, 2004 PresencePLUS® P4 GEO inspects for correct features regardless of product orientation in sensor's field of view. Remote TEACH function allows sensor to learn new features without connecting to PC or shutting down line. Live video image output lets user view inspections in real-time and view failed inspection images without PC. Sensor can inspect up to 6,000 parts/min, and interfaces to factory networks via 10/100 Ethernet connection, RS-232, or discrete I/O.

Munters Drycool    Selma, TX 78154
Jun 30, 2004 ExactAire system allows technicians to monitor and configure operation of temporary dehumidification, cooling, and heating equipment remotely via secure Web site. Compatible with any Munters climate control equipment, system monitors environmental components such as dew point, surface temperature, and RH. System records climate control conditions on onboard memory chip and also transmits them to secure Web site every hour.

Honeywell Sensing and Control    Golden Valley, MN 55422
Jun 30, 2004 Opto-Electronic Sensor allows for hands-free, keyless entry into vehicle by providing instantaneous detection when driver reaches for door handle. Typical response time is less than 3.5 ms and is adaptable to specific system supplier requirements. With power consumption of less than 300 µA, sensor is compatible with virtually any type of door handle and can be located inside bracket or handle itself.

Honeywell Sensing and Control    Golden Valley, MN 55422
Jun 30, 2004 Compact, dual-function FS300-100 Combi-sensor is suited for use in boiler systems. Sensor incorporates analog pressure and temperature output that allows system fine tuning in conjunction with electronic control. It utilizes ASIC-controlled pressure sensing element and has pressure range of 0-3 bar relative, overpressure of 6 bar, and burst pressure of 10 bar. Operating temperature is 41 to 230ºF.

Honeywell Sensing and Control    Golden Valley, MN 55422
Jun 30, 2004 Series ASDX DO Sensors are fully calibrated and temperature-compensated with on-board ASIC. They provide digital correction of sensor offset, sensitivity, temperature coefficients, and non-linearity. I²C protocol allows interfacing to microcontrollers and microprocessors without additional components or electronic circuitry. Operating from 5 Vdc supply, sensors feature pressure ranges from 0-1 and 0-100 psi and are intended for non-corrosive, non-ionic working fluids.

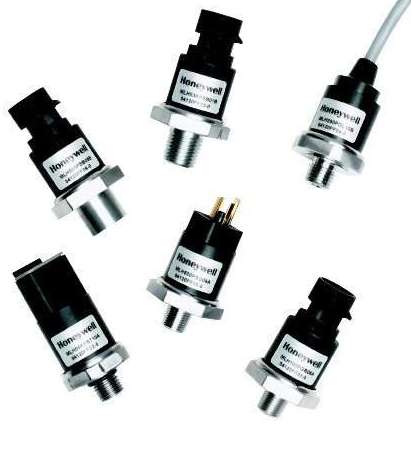

Honeywell Sensing and Control    Golden Valley, MN 55422
Jun 30, 2004 MLH Series features all welded construction with steel wetted parts and no internal elastomers. Compatible with various fluids and gases, product is sealed to IP 65 for use in harsh environments. Fully temperature compensated, calibrated, and amplified series is available in pressure range of 50-8,000 psi with response time under 500 µs. It is offered with choice of 6 outputs, 17 electrical terminations, and 15 pressure connections.

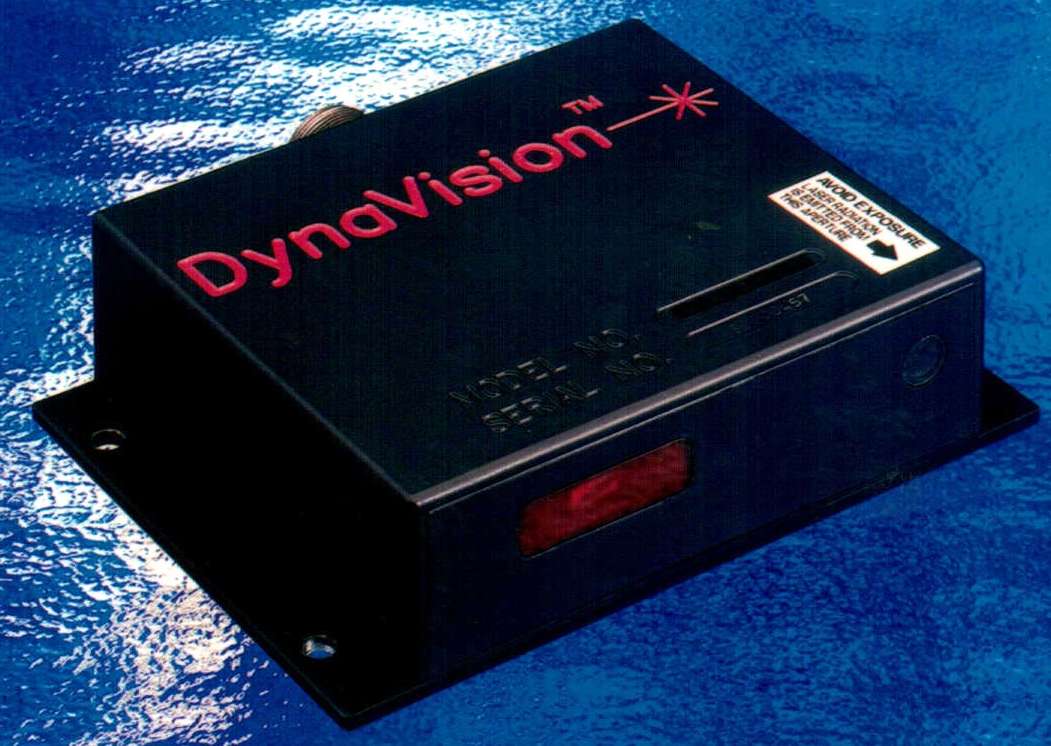

LMI Technologies Inc.    Southfield, MI 48075
Jun 30, 2004 CCD-based Dynavision SPR-02 can profile shapes/thickness, measure tapers, and indicate displacement. Use of 2 sensors allows detailed length or thickness profiles from this Class IIIb long-range laser, which delivers resolutions as fine as 0.001 in. With high-speed, adjustable scan rate to 1,667 Hz/sec, it has measurement range of up to 14 ft with accuracy of ±0.05%-±0.20% of range. Digital design resists changes in ambient temperature and light intensity.

Allegro MicroSystems Inc.    Worcester, MA 01615
Jun 29, 2004 With dual, zero-crossing output signal, A1425 consists of ac-coupled differential sensor with on-chip capacitor. True zero-crossing detector has output that switches when difference in magnetic field strength between 2 Hall elements is zero. Dual-comparator scheme provides for accurate switching at zero crossing on positive and negative going regions of differential signal, while utilizing hysteresis to prevent false switching.

Fluid Components Intl.    San Marcos, CA 92069 5115
Jun 29, 2004 With hermetically sealed, piezoresistive sensing element, AS-PT Pressure Transmitter has no moving parts and is suited for liquid and gas service. It operates with integral or remote electronics that provide output signal directly proportional to pressure in process-control loop. Accurate to +1% of reading, unit senses changes in pressure within 0.5 sec. It operates from –40 to +257°F and withstands pressures to 10,000 psig. Applications include aerospace, aviation, marine, and military.

Eurotherm Controls    Leesburg, VA 20175
Jun 28, 2004 Ultra SlimPak II Isolating Signal Conditioning Modules and Limit Alarms utilize Smart Power feature that adjusts outputs depending on power required to drive current load. Configured locally using switches to select I/O range, products offer pushbutton calibration, removable terminal blocks, and DIN rail mounting capability. Built-in power bus allows 32 units to be mounted together, while web-viewing capability allows process data to be viewed over Intranet.

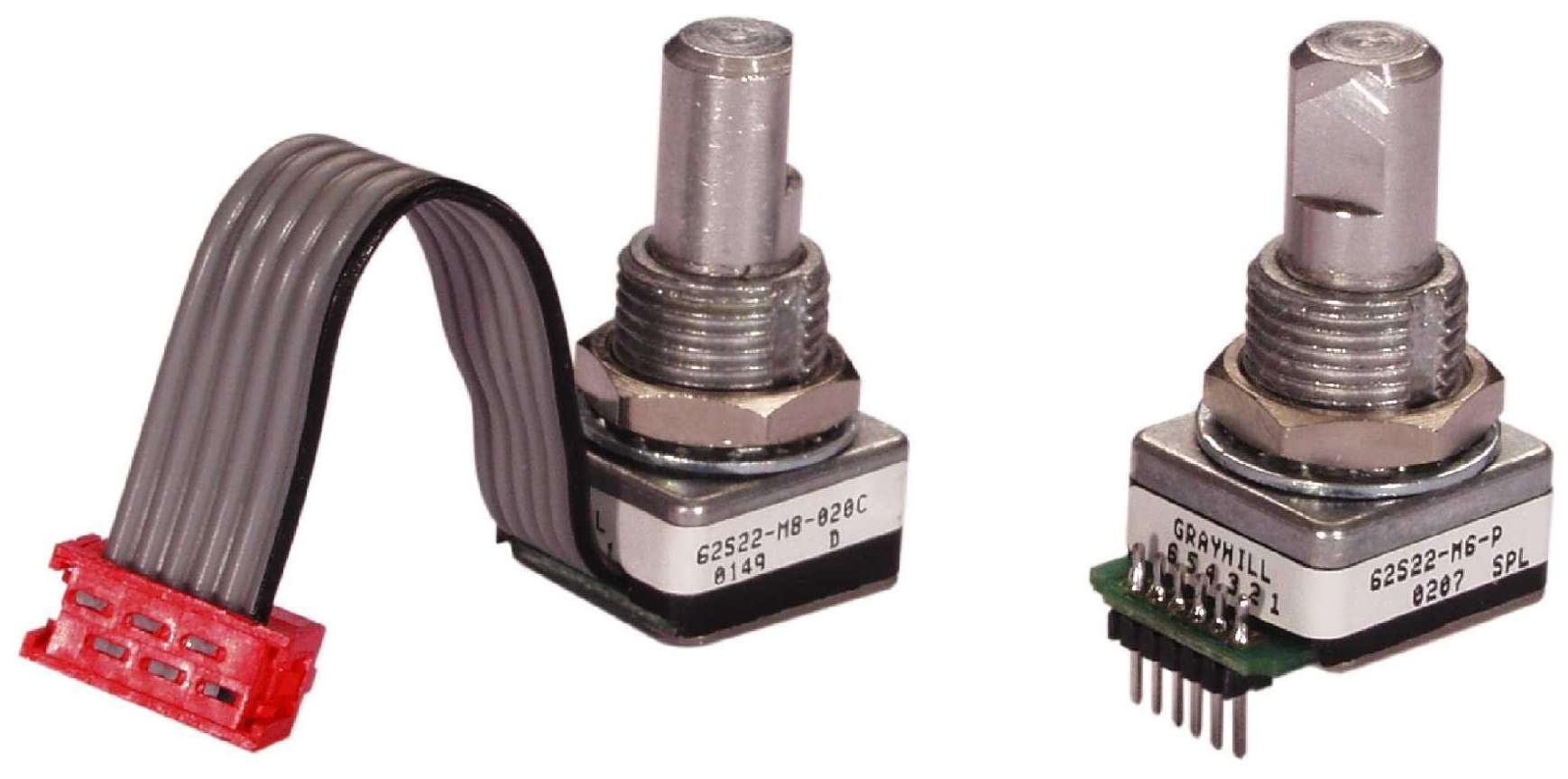

Grayhill, Inc.    La Grange, IL 60525 5914
Jun 28, 2004 Housed in compact, ½ in. package, Series 62S features minimum life expectancy of 1 million rotational cycles; 8, 12, 16, 20, 24, and 32 detent positions; and optional integral pushbutton. Customizable components of switch include terminations, shaft, and bushing configurations. Resolutions may also be user-specified. Applications include avionics, global positioning/driver information systems, audio equipment, and medical equipment.

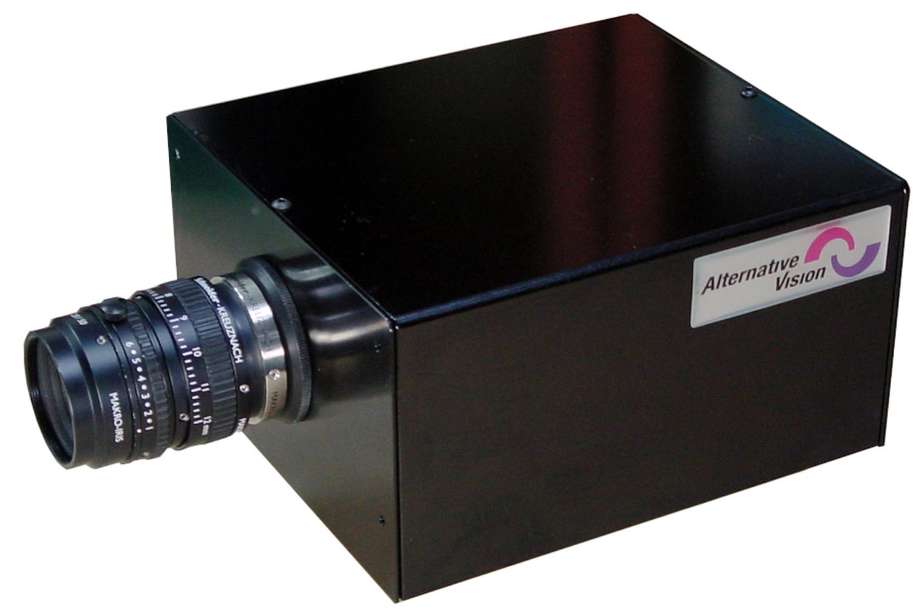

Alternative Vision Corporation    Los Altos, CA 94024-1055
Jun 28, 2004 Design Support Kit (DSK) AVF-51 facilitates development of digital color cameras using Foveon FO18-50-F19 X3 4.5 MP direct image sensor. It supports digital control of all setup voltages, direct access to all sensor setup and control registers, and operation of sensor in still and real-time modes. It also supports image-data post processing with 30-bit digital color output. Complete development package also includes removable visible pass filter and C-mount lens.

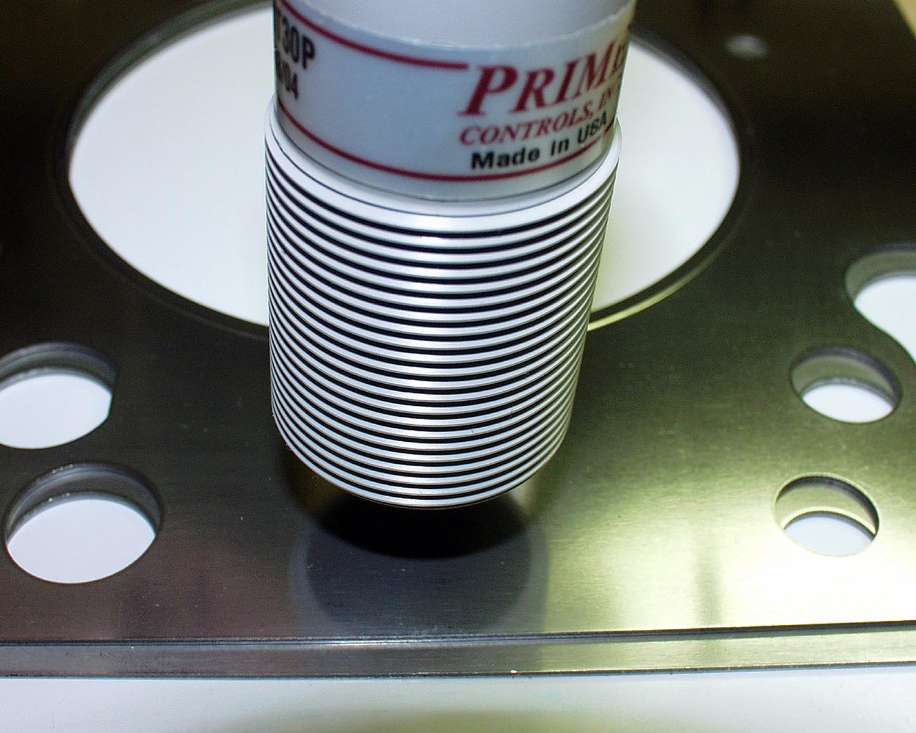

Prime Controls Inc.    Dayton, OH 45440
Jun 25, 2004 Measuring change in signal strength proportional to thickness, Model DS160 monitors nonferrous metals such as stainless steel, copper, and aluminum foil with one probe. This enables detector to have sensor installed within destacking pickup mechanism. Built with circuit that permits non-contact detection at distances of 25+ mm, product is calibrated with single sheet, then automatically calculates double value and sets reject threshold.

Foveon, Inc.    Santa Clara, CA 95051
Jun 24, 2004 Model FO18-50-F19 is a 1/1.8 in., 4.5 megapixel, CMOS direct image sensor that incorporates X3 technology to directly capture color in 3 layers. Each stack of pixels containes a red, green, and blue pixel, eliminating need for color interpolaton and blur filters. Variable Pixel Size technology groups neighboring pixels together to form larger pixels that are optimal for high frame rate and dual mode still/video applications.
