IC-Haus GmbH      Germany
May 30, 2012 Designed as SoC for diffuse reflective photoelectric sensors, Model iC-LO measures and classifies distances via 2 antivalent switching outputs. Optical array has 1 near diode, 127 middle diodes, and 1 far diode. Two AC amplifiers enable ambient light suppression and dynamic range up to 100 dB. Number of averaged measurements can be set to digitally filter signals with measurement rates up to 13.9 kHz. Housed in 15-pin optoBGA package, iC-LO operates from 4.5-5.5 V at -40 to +85°C.

Goff's Enterprises, Inc.    Pewaukee, WI 53072
May 30, 2012 Available for G2 HarshGuard Doors, Photo Eye System uses opposed high power emitter-receiver pair, avoiding false trips due to water spray, mist, and localized fogging. Unit is waterproof with IP67 and NEMA 6 environmental rating, as well as rustproof and corrosionproof due to ABS/polycarbonate blend housings. Through use of 875 nm infrared beam and advanced optics, photo eye is immune to interference from sunlight and incandescent or fluorescent lighting.

Baumer Ltd.    Southington, CT 06489 1534
May 30, 2012 Available with CCD sensors in 3 resolutions from VGA to 2 megapixels, VeriSens® XC Series featurs fully-integrated flash controller, which helps reduce time involved in external light source installation. Units control flashing at up to 48 V and 4 A under management of intuitive software, which also provides statistical assessment, integrated test environment for listed jobs, integrated FTP function that facilitates image storage on external media, and tools for distance determination.

Lion Precision Inc.    St. Paul, MN 55126 7014
May 30, 2012 Available in diameters of 3, 5, and 8 mm as well as 3/8 in. with axial and radial cable exits, Capacitive Displacement Sensor Probes are useful in any application requiring measurement or monitoring of position of conductive target. Units are not sensitive to material changes and respond equally to all conductors. Designed to work with several models of electronic drivers, probes are suited for semiconductor, disk-drive, precision bearing, and micromachining industries.

Porter Instrument Div., Parker Hannifin Corp.    Hatfield, PA 19440
May 30, 2012 For severe industrial environments, Porter Instrument 3600 Series includes models that meet IP66, NEMA 4X, Class I, Div 2, ATEX Zone 2, and IECEx requirements. Digital control electronics promote accuracy, repeatability, and stability, while TURCK(TM) electrical connectors simplify wiring and replacement. Along with multi-gas capability, series features stainless steel body and internals; 0-5 Vdc, 0-10 Vdc, or 4-20 mA analog I/O; and Modbus, Profibus, or DeviceNet digital communications.

Micronas GmbH    Frieburg D-79108  Germany
May 30, 2012 Supplied in TO92UT package and rated from -40 to +160°C, AECQ100-qualified HAL 24xy delivers optimized linearization through flexible output compensation function with 16 programmable set points. Product can measure angles up to 180° and provides non-volatile memory to store sensor parameters. Accuracy is based on 16-bit signal path with integrated DSP core delivering ratiometric 12-bit analog output signal. Operating from 5 V, sensor incorporates diagnostics and bidirectional output pin.

Novatec, Inc.    Baltimore, MD 21225
May 30, 2012 MoistureMaster(TM) polymer moisture sensor system displays resin moisture content in real time, eliminating need for manual moisture analysis procedures. It is designed for molders and extruders of medical devices who must know actual polymer moisture content to maintain physical and visual properties. Stand-alone moisture sensor can be added to drying hopper regardless of brand, while color touch screen control can monitor 4 or 8 sensors, displaying resin moisture content in percent or ppm.

API Technologies Corp.    South Plainfield, NJ 07080
May 30, 2012 Ready for use within minutes of unpacking, single-axis (No. 15208A), dual-axis (No. 25208A), and triaxial (No. 35208A) models come in ±500 and ±250 g versions suited for shock detection as well as sports equipment safety testing. User-configurable products contain accelerometer(s), temperature sensor, signal processor, and 3 analog outputs; RS485 interface, also included, allows direct connection to PC. Each ruggedized unit comes fully calibrated, with data stored inside sensor.

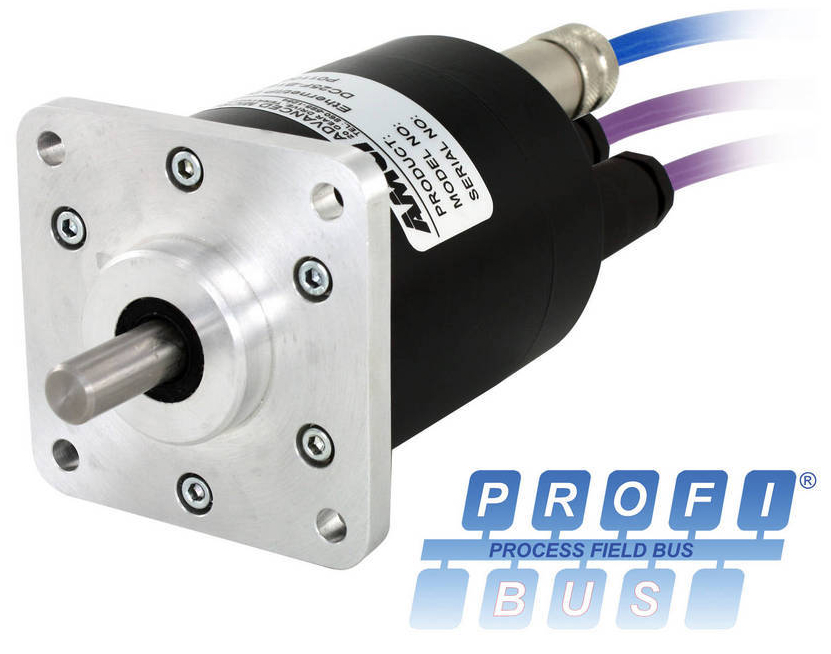

Advanced Micro Controls, Inc.    Terryville, CT 06786
May 29, 2012 Comprised of heavy-duty rotary sensors, resolver-based NR25 series offers overall measuring range of 16 bits (single-turn resolution) plus 12 or 14 bits (number of revolutions). Absolute single- and multi-turn versions, compatible with all PLCs that support Profibus-DP, deliver up to 30-bit (65,536 steps x 16,384 revolutions) resolution and come in IP67-rated, 2.5 in. dia package with 3 M12 connectors on back. Solid and hub shaft versions as well as stainless steel units are available.

Nyad, Inc.    Concord, CA 94520
May 25, 2012 Self-contained in NEMA 4-rated enclosure, Series 1000N measures dewpoint and/or temperature in °C or °F with optional 4-digit LCD for visual readings. Units offer premium range of -112 to +68°F and standard range of -40 to +68°F. Operating from 12-30 Vdc, transmitters are available with 4-20 mA loop powered output, voltage only output, or 3 to 4-wire 4-20 mA. Series provides factory preset alarms with remote sensors up to 1,000 ft and pressure rating to 2,000 psi.

Honeywell International    Freehold, NJ 07728
May 25, 2012 Experion® MX Quality Control System (QCS) is capable of making Transmission Infrared (TRIR) Fiber Weight and Moisture Measurements via sensor that simplifies overall operations in tissue production industry. Sensor provides measurement of both dry weight and moisture while decreasing sensitivity to environmental factors such as temperature and head alignment. Solution can also be retrofitted to replace older systems containing nuclear source betagauges.

Peratech    North Yorkshire 3510754  United Kingdom
May 24, 2012 Utilizing Quantum Tunnelling Composite materials that change resistance when force is applied, QTC Electronic Nose rapidly detects Volatile Organic Compounds and recovers in seconds. One form of sensor uses granular type of QTC material that provides high surface area for absorption, enabling it to detect levels of VOCs in 10-100 ppm region.

Jenoptik Laser Technologies USA Corp.    Brighton, MI 48116
May 24, 2012 Designed for workpieces up to 430 mm in diameter, Hommel-Etamic F435 and F455 complete fully automatic measurement of geometrical tolerances, surface roughness, and straightness in single setup. Advanced probe design permits roughness and waviness inspections along with form and position tolerance measurements via adjustment on rotary control. With CNC rotation and tilt module, fully automatic axial and radial measurements are performed without interruption.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
May 24, 2012 Measuring 31 x 11 x 23 mm, F77 Series is insensitive to color, provides reliable clear object detection, and ignores target holes and ridges. IP67-rated products provide up to 50 Hz switching frequency and operate from -14 to +158°F. With 2 Hz/mm max resolution sensors exhibit acoustic interference immunity; provide one PNP, NO, or NC switch point output; and use discrete PLC inputs. Diffuse, retroreflective, and thru-beam models offer respective ranges up to 400, 400, and 800 mm.

Sensirion Inc.    Westlake Village, CA 91361
May 23, 2012 SHT20 humidity and temperature sensor features typical accuracy of 3% RH, temperature measurement accuracy of ±0.4°C, and measuring range of -40 to +120°C. Using CMOSens® technology, full calibration and both digital and analog interfaces, sensor features compact 3 x 3 mm footprint and 1.1 mm profile.

Balluff, Inc.    Florence, KY 41042-0937
May 23, 2012 Micropulse® Generation 7 transducers are offered with Rapid Replacement Module (RRM) option that allows field replacement without removing pressure tube from hydraulic cylinder. With this option, transducer electronics and sensing element can be replaced as single unit while hydraulic seal remains intact. There is no danger of oil spillage during replacement, and there is no need for environmental containment procedures. Also, there is no danger of dirt/wood debris entering hydraulic port.

Dytran Instruments, Inc.    Chatsworth, CA 91311
May 23, 2012 At 5 g and 0.39 in. high, model 3316M1 utilizes planar shear technology and features charge mode element mounted in hermetically sealed, miniature Inconel® housing. Silver window on top cover of housing provides oxygen access to crystal at high temperatures while maintaining hermetic seal. Along with sensitivity from 1-2 pC/g, unit offers 10,000 Hz upper frequency response and has 10-32 tapped hole and 10-32 radial connector. Model 3316C, similar to 3316M1, comes with 5-40 tapped hole.

NOTIFIER Fire Systems    Northford, CT 06472
May 23, 2012 Used in commercial and industrial applications, Fire Sentry units integrate with any version of ONYX Series fire alarm systems for detection of true fire emergencies. Series of algorithms accelerate detection of real fire event while minimizing false alarms. In addition to monitoring for spikes in radiant energy of flame, detectors monitor entire flame spectrum for inconsistencies to verify alarm. Units protect against fires from hydrocarbon and non-hydrocarbon gases in all conditions.

Emhart Glass    Elmira, NY 14901
May 23, 2012 Using light barrier consisting of transmitter and photoelectric sensor, WHS Ware Handling Supervision automatically detects substandard glass containers at hot end of production line. Pneumatic air-reject system removes unwanted ware from conveyor before it can cause jams in subsequent stages. Completely integrated into FlexIS control system, WHS enables users to enter nominal bottle width, tolerance bottle width, reject duration, and minimum bottle distance.

Rohrback Cosasco Systems    Santa Fe Springs, CA 90670
May 23, 2012 Offered in 3 types, CUI Corrosion Monitoring Sensors may be customized to meet requirements. Continuous Insulated Braid Wire Sensor, using insulated carbon steel wire as corrosion fuse, detects corrosion over large area. Inserted Probe Array Sensor acts as corrosion fuse detector that provides indication of corrosion occurring at pipe surface. Consisting of individual electrical resistance probe, CUI Corrosometer® Probe measures corrosion rate near pipe surface and helps determine underlying cause.
