Dresser Instrument    Stratford, CT 06614-5145
Aug 22, 2003 The ebroâ„¢ EBI 2 battery-powered data logger senses, records, and displays temperatures from -40 to +167°F and humidity from 5–95% rH. It has memory capacity of 40,000 measurements with recording period up to several years. Metallized housing offers internal or external Pt 1000 temperature sensors with resolution of 0.1°C within accuracy of ±0.3°C ±1 digit. WINLOG 2000â„¢ software is FDA 21 CFR part 11 compliant and allows superposition of up to 5 measurement curves.

Preso/ a division of Racine Federated Inc.    Racine, WI 53406
Aug 22, 2003 ThermoTrack(TM) HVACR energy flow monitoring system is built on non-invasive platform. All components, including flow and temperature transducers, clamp to outside of pipe, making it suitable for retrofit applications. Several units can be daisy-chained and wired to single PC for central monitoring. Monitor is paired with multiple output and communications modules such as 200,000 event data-logger, 4-20 mA otuput, control relay, rate pulse, RS232, and RS485.

Omron Electronics, LLC    Schaumburg, IL 60173
Aug 21, 2003 With push of a button, Model E3X-DAS automatically shifts power level to optimum level for any sensing condition. Dual display allows user to view both set point and current incident level simultaneously. Auto Power Control circuit compensates for LED degradation, and 4-element LED further reduces degradation to absolute minimum. Sensor includes differential mode, counter function, remote input, and function lock that prevents sensor tampering.

Banner Engineering Corp.    Minneapolis, MN 55441

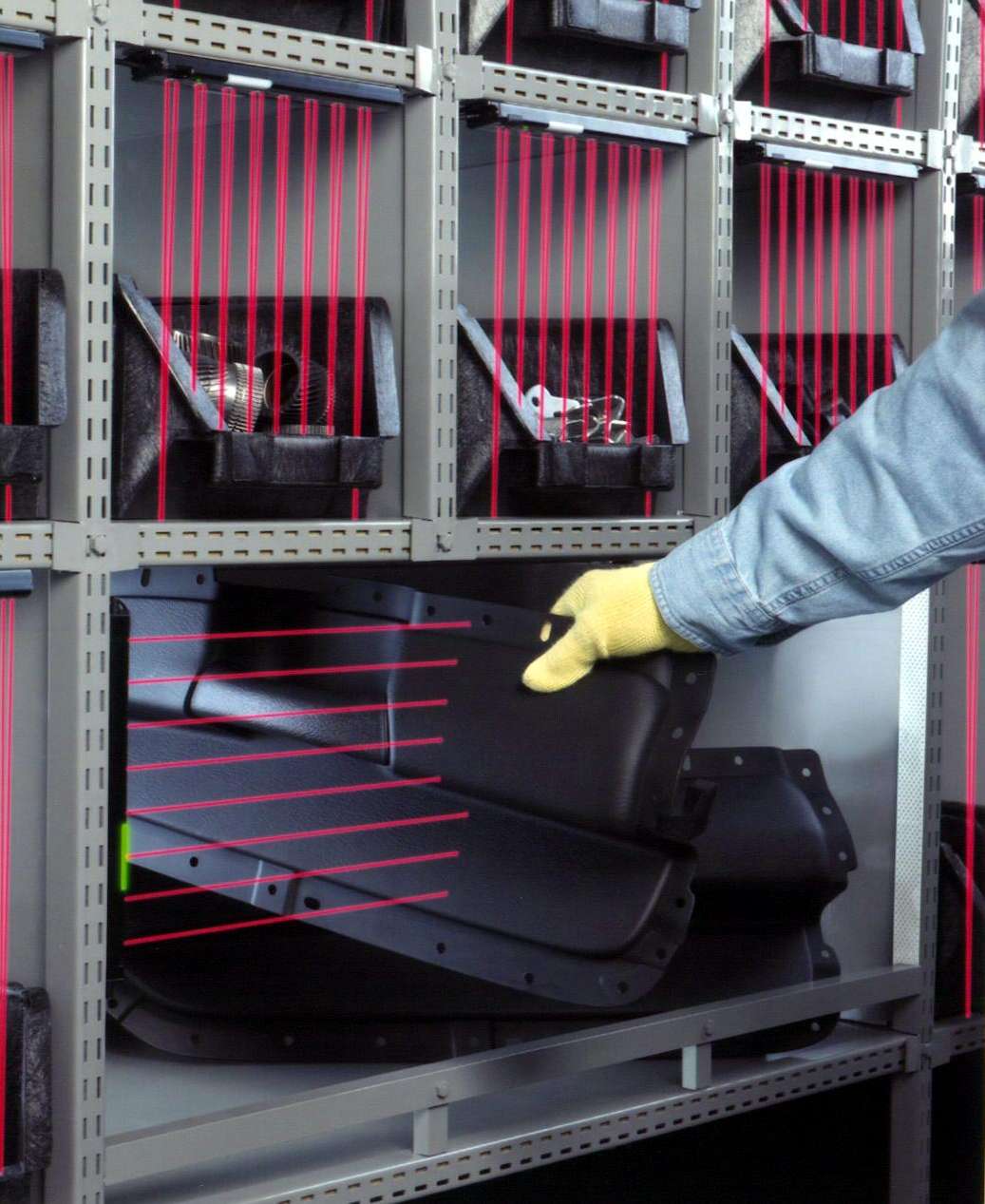

Aug 21, 2003 PVD Series Parts Verification Sensor features green and red job lights that provide visual cues to guide assemblers through part picking sequences. With one-piece, self-contained emitter/receiver design, product offers automatic selection of diffuse or retroreflective sensing mode with respective 15.7 in. and 6.5 ft sensing ranges. Self-contained, solid-state microprocessor design automatically compensates for changing sensing conditions.

PCB Piezotronics Inc.    Depew, NY 14043 2495

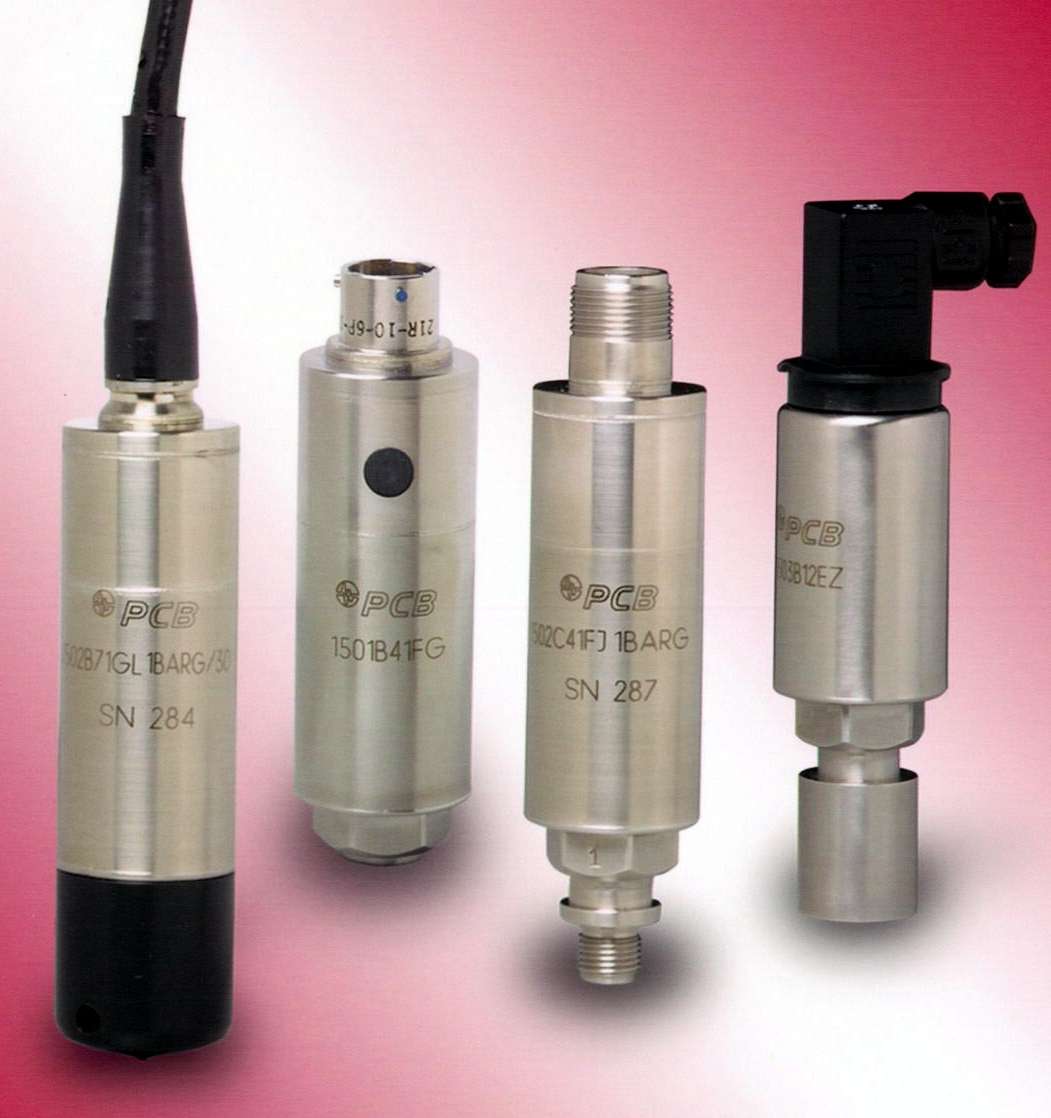

Aug 21, 2003 Series 1500 Thin-Film Pressure Transducers and Transmitters offer integral hermetic connector or molded, integral cable options. There are no mechanical fasteners, washers, O-rings, or fluid fills. Full scale ranges span from full vacuum to 6,000 psi with accuracies of 0.5, 0.25, and 0.1%. Output signals include 0–5 Vdc, 0–10 Vdc, or loop-powered, 4–20 mA. Units are stainless steel and suited for laboratory, factory, field, or submersible environments.

PCB Piezotronics Inc.    Depew, NY 14043 2495

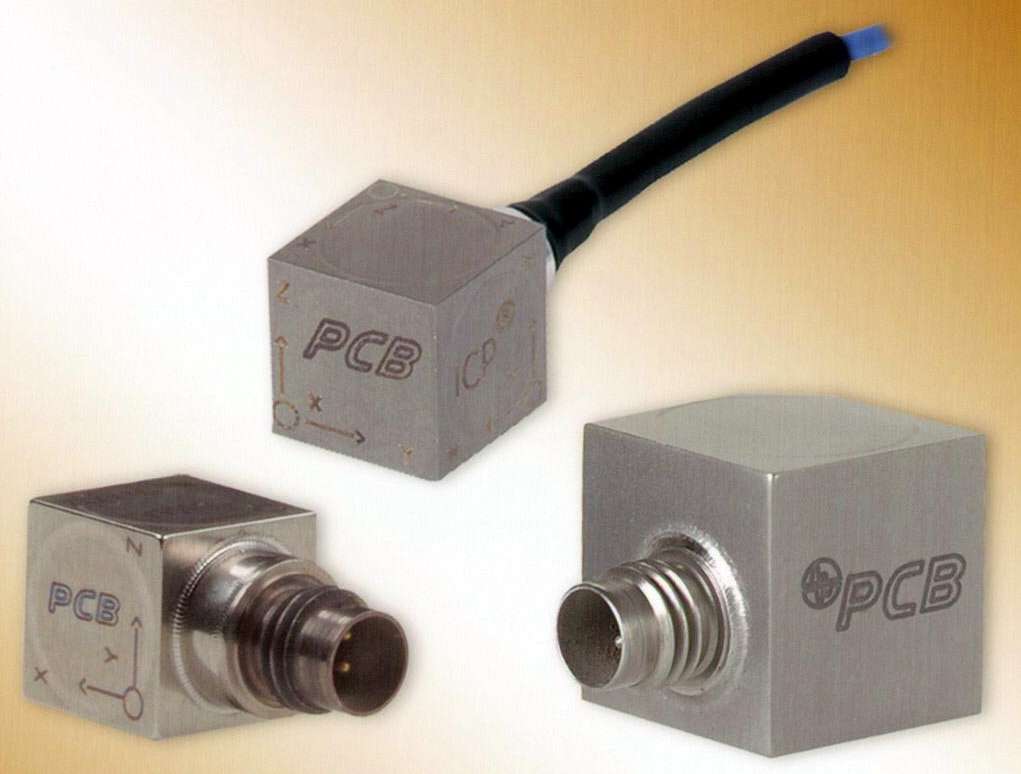

Aug 21, 2003 Miniature ICP® triaxial accelerometers simultaneously measure vibration in 3 orthogonal directions. Filter allows low frequencies of interest to pass unchanged, while eliminating undesirable high frequencies and minimizing potential for sensor overload. With sensitivity rating of 10 mV/g with 500 g peak measurement range, Models 356A61/63/66 have signal conditioning microelectronics and are protected inside hermetically sealed titanium housings.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Aug 21, 2003 Series 218 Charge-Mode Force Sensors measure dynamic and quasi-static forces over full-scale measurement range of 10–5,000 lbs. Constructed of stainless steel, hermetically sealed miniature sensors are designed with pre-loaded quartz disks that enable operation in compression, tension, or impact mode. Supplied with English and metric mounting studs and removable impact cap, products offer overload ratings to 160% FS and operating temperatures to 400°F.

IMI Sensors, Div. of PCB Piezotronics    Depew, NY 14043-2495
Aug 21, 2003 Housed in Series 684 NEMA 4X enclosures, Model 683 Vibration Meters offer excitation power for 4–20 mA vibration sensors or ICP® accelerometers and display peak or rms vibration data on scalable LED display. Set point relays (2) offer alarm or control capabilities, and relay action is time-delayed to eliminate false alarm trips due to momentary upsets. Hinged doors provide ease of access to all necessary wiring, and power connections are ganged to common terminals.

Vibro Industries, Inc.    Port Royal, PA 17082
Aug 21, 2003 Transporter Motion Sensor controller automatically shuts down production line machinery, within 6 sec, whenever air pressure to conveying system is interrupted to protect equipment and valuable material. Unit incorporates pneumatic control technology and electronic circuitry and controls Vibro's Model 250, 320, 450, and 850 Air-Operated Transporter conveying systems.

Meggitt (Maryland), Inc.    Germantown, MD 20876
Aug 20, 2003 BlueLynx(TM) BLM Wireless Sensor Links feature Class 1 Bluetooth(TM) technology for industrial operation from -40 to +85°C. They utilize frequency hopping, spread spectrum technique within 2.4 GHz ISM band to ensure license-free and secure communication. BlueLynx BLM-T Transmitter collects analog signals from up to 4 standard 4-20 mA sensors and transmits data wirelessly to BlueLynx BLM-R receiver wired to PLC, DCS, or other instrumentation system.

RAE Systems    San Jose, CA 95134
Aug 20, 2003 MultiRAE Wing Tank Entry Kit improves safety of any aviation wing tank entry or service program. Fuel tanks of commercial and military aircraft contain many serviceable parts requiring confined space entry for repair and maintenance. Kit contains alarms, gas measurement scales, and calibration gases specifically for use in environments containing jet fuel vapors. MultiRAE Plus includes oxygen sensor and LEL sensor, providing backup reading for PID.

American Innovations    Austin, TX 78727
Aug 20, 2003 Bullhorn Monitors allow user to configure alarms, control equipment, and receive data through secure website. They use MicroBurst(TM) wireless network from Aeris.net to transfer information from remote equipment to central database. With voice notification feature, data packets travel from Bullhorn device to server, where system checks to see if alarm conditions are met. Alarm is then sent to up to 5 cell phone numbers until notification is acknowledged.

Omron Electronics, LLC    Schaumburg, IL 60173
Aug 20, 2003 Model D6F features heater between 2 thermopiles that lets unit detect both gas flow velocity and direction. Silicon thermal sensor detects velocities as low as 0.005 m/s. Package styles are available for use in natural or LP gas flow measurement, HVAC system air flows, medical gas applications, and hydrogen. Sensor is suited for fuel cells, chemical test chambers, boilers, and respiration monitors in medical treatment applications.

Omron Electronics, LLC    Schaumburg, IL 60173
Aug 20, 2003 Equipped with power tuning function that enables unit to automatically adjust to sensing condition, E3X-MDA employs built-in and/or logic output that eliminates need for separate PLC or sensor controller. Function lock mode locks all sensor functions to protect sensor setting integrity. Product is suited for limited-space applications where positioning and detection need to be synchronized, such as material handling and packaging sorting operations.

Migatron Corp.    Woodstock, IL 60098
Aug 19, 2003 Offered with ranges from 4 in. to 18 ft, depending on model, Series RPS-409A needs no setup adjustments or calibration and offers linear output of .125 volts per inch. Designed to utilize PLC and computer analog input cards, analog card chosen will determine resolution of system. Unit is encased in PVC and is rated up to IP-68 or NEMA-6P. Temperature range is –40 to +140 °F.

Pipeline Inspection Company Ltd    Houston, TX 77055
Aug 19, 2003 Offered in 3 models, detectors inspect pipe coatings on 2–60 in. pipe. SPY® Model 715 provides infinite voltage settings over 1,000–5,000 V range, while Model 725 inspects various coatings with its 1,000–15,000 V range. With its 15,000–35,000 V range, Model 735 is suited for use with extra thick and somastic coatings. All detectors feature infinite voltage settings to allow specific sensitivity adjustments on the fly.

Swagelok Company    Solon, OH 44139 2764
Aug 19, 2003 Thermoplastic Pressure Gauges monitor vacuum and positive system pressures up to 15,000 psi. Featuring 4½ and 6 in. dial sizes in lower-back mount and lower mount configurations, gauges come with male NPT or tube adapter end connections. Tube adapter connections allow user to rotate gauge to desired position for viewing. Available unfilled or liquid-filled with glycerin or silicone, solid-front gauges feature turret-style case and blowout back.

Measurement Specialties, Inc.    Hampton, VA 23666
Aug 19, 2003 Self-contained GC-485 digital output gage head is available in 5 bipolar measurement ranges with standard strokes from ±.050 to ±1.0 in. It provides single-ended, 8.5-30.0 Vdc input and 2-wire, addressable, RS-485 output that is pre-scaled in engineering units. Product stores Max, Min, and TIR functions in memory, while zero function enables users to set unit in unipolar or bipolar mode. Sensor and electronics are packaged in hermetically sealed, stainless steel housing.

Uson L.P.    Houston, TX 77041
Aug 18, 2003 Qualichek 196 portable, electronic, gas leak detector features detachable probe for access to difficult sites. It offers convenience of 1-handed operation and at-a-glance readings. Audio facility further aids positive leak location. Control is via membrane keypad and selection of preset sensitivity factors is offered. Sensitivity automatically adjusts to leak rate. Maximum leak rates are recorded and displayed in choice of user-selectable units.

Extech Instruments Corp.    Nashua, NH 03063
Aug 18, 2003 Model C050 uses one button to check CO levels. Backlighting on display automatically switches on in low light areas. Audible indicator increases in tone up to 30 ppm; above 30 ppm, 2-tone alarm is activated. Meter provides 15 min ambient room test and stores peak value. Display ranges from 0-999 ppm for low end monitoring.
