Balluff, Inc.    Florence, KY 41042-0937

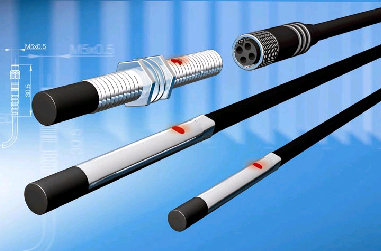

May 30, 2006 Offered in 4 mm and 5 mm unshielded versions, Mini Inductive Proximity Sensors are suited for small part detection where miniaturization is required for tight, difficult-to-install situations. Applications include robotic tooling and automated assembly systems in semiconductor, medical, and electronic industries.

Sensortechnics, Inc.    Walpole, MA 02081

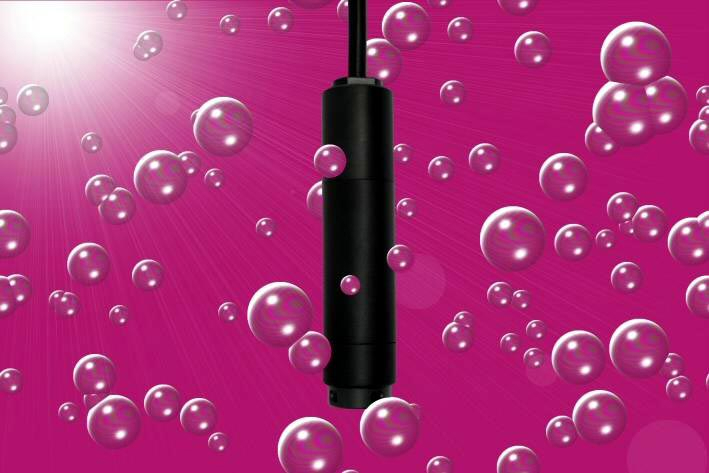

May 30, 2006 Featuring chemical resistant polyphenylensulfide plastic housing, series KTU3000CS submersible pressure transmitter offers hydrostatic level measurement for pressure ranges from 5 psi FS. Temperature compensated probes supply 4-20 mA output signal, and cable with integrated vent tube allows true reference pressure to sensor element, which eliminates errors due to barometric pressure changes. All KTU3000CS transmitters are EMC compliant and CE-marked.

Sonatest Ltd    Milton Keynes   United Kingdom

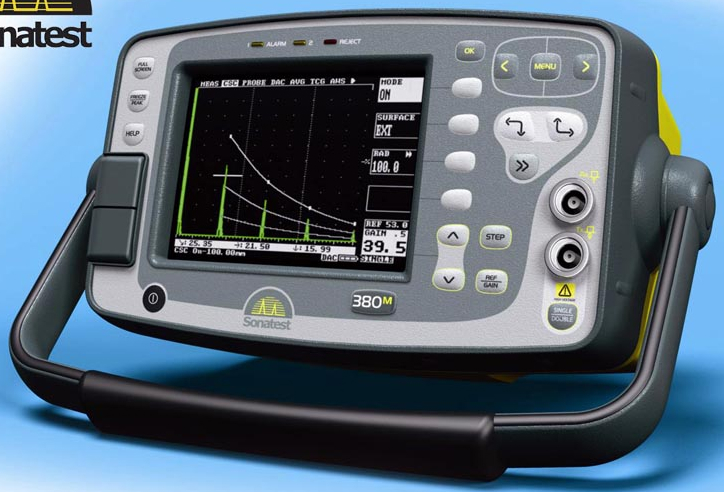

May 30, 2006 Masterscan 350M and 380M feature acquisition systems with resolution and signal to noise ratio suited for ultrasonic testing. Along with direct daylight-visible, transflective color display, products feature keypad and user interface with full screen A-scan and menu navigation systems as well as drop down menu lists. Suited for single-channel system applications and portable scanners, 380M also has interface trigger, backwall echo attenuator, and high PRF.

OmniVision Technologies, Inc.    Sunnyvale, CA 94089
May 30, 2006 Built to specifications of AEC-Q100 criteria, integrated Automotive CameraChip(TM) OV7949 is based on OmniPixel(TM) architecture. Single-chip sensor features low-light sensitivity and minimal blooming suited for rearview cameras, black box cameras, and other applications where brightness of lights directly in front of sensor can blur or disturb image and prevent clear documentation. Operating temperature range is -40 to +105°C.

Raztec (NZ) Ltd.    Christchurch   New Zealand
May 26, 2006 With tolerance to electrically noisy environments, Series 3® Current Transducer incorporates industry standard communications protocol for direct connection to microcontroller's I/O port. Single package design provides current sensing from 1 mA to over 80 A, and offers galvanic isolation from circuit under measurement. Close-coupled, 12-bit ADC provides precisely calibrated digital output stream that is directly proportional to current flowing in conductor.

Network Instruments LLC    Minneapolis, MN 55426
May 26, 2006 Designed for use with Observer® consoles, hardware monitoring appliances provide visibility into SANs that reside on Fibre Channel links. Rack-mountable GigaStor-FC is designed for wire-speed, full-duplex analysis, while Fibre Channel field service solution operates as combined console and probe for analysis portability. Administrators can watch for session delays, view Fibre Channel-specific statistics and errors, and set alarms for notification of potential problems.

Tektronix, Inc.    Beaverton, OR 97077
May 26, 2006 Controlled via standard web browser interface, Cerify fully tests all aspects of stored compressed video and audio quality to ensure it meets system parameters, formats, resolutions, bit-rates, video/audio quality levels, and compliance/correctness to specified video and audio standards. System logs errors as content is checked, can move suspect content to quarantine server, and can send e-mail alerts of errors to users and content encoders.

K-Tek    Prairieville, LA 70769
May 26, 2006 Featuring 2-wire, loop-powered design, Model MT5200 uses concentric waveguide to direct radar beam, alleviating divergence problems and echoes in tanks with narrow openings. Unaffected by dust or feed flow, unit accurately measures materials with dielectric constants as low as 1.3 and bulk densities up to 50 lb/ft³. Integrated display enables viewing of waveform screens, while setup menu supports wide range of languages. Transmitter operates at up to 400°F and 1,500 psi.

Flowserve Corp.    Irving, TX 75039
May 26, 2006 Designed to optimize, control, and protect pumps, pre-engineered IPS Tempo(TM) incorporates variable frequency drive, pump-specific optimization software, industrial-grade electric drive, and menu-driven interface. System adjusts pump operations for flow, pressure, temperature, and fluid level changes, as well as monitors process variables and pump power. It helps eliminate downtime caused by dry running, blocked lines, pump overloads, and cavitation.

Advantech Automation Corp.    Cincinnati, OH 45240
May 25, 2006 Suited for industrial and commercial applications, FPM-3120G color flat panel monitor features 12.1 in SVGA TFT LCD display with luminance of 350 cd/m² and 800 x 600 resolution. It offers multi-scan function supporting XGA, SVGA, VGA, and text mode; auto-recognition of input signal; and VESA arm, desktop, panel, and wall mounting options. NEMA4/IP65 compliant aluminum front panel has hard anodic coating that protects against abrasion and acid corrosion.

Madison Company    Branford, CT 06405
May 25, 2006 Offered in 5 models, non-contact USR Series is supplied with factory-set sensing range, so no calibration is needed. Microprocessor-based circuits provide temperature-compensated signal. Optional USR Level Controller is programmable for up to 2 sensors, for either 110 or 220 Vac power source. Controller provides integrated user-programmable display and alarm, and can also be programmed with hysteresis and alarm delay options to match process control requirements.

Micronor    Newbury Park, CA 91320

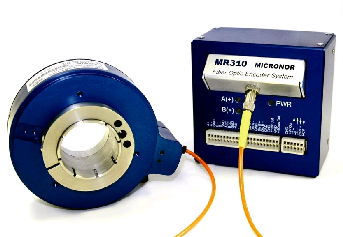

May 24, 2006 With resolution of 1,024 ppr, ZapFREE(TM) M314 Hollow Shaft Rotary Encoder accommodates needs of large drive applications. There are no integral electronics within encoder housing, and all-optical design requires single 62.5/125 mm optical fiber connection. Intrinsically safe encoder is insensitive to EMI and RFI, and immune to lightning and atmospheric static. Operating from -40 to +80°C, standard model can be used in medical equipment and noisy industrial environments.

Omega Engineering, Inc.    Stamford, CT 06907
May 24, 2006 Designed for measurement of conductive liquids with virtually no pressure loss, Series FMG600 features PTFE lining and can handle applications involving wastewater, pulp, food, and slurries. Standard outputs include analog, frequency, and RS485 communications. Suitable for pipes up to 12 in., flowmeters offer NIST 3-point calibration and optional sanitary tri-clamp mounting. Local- and remote-display models are available.

Moore Industries International, Inc.    North Hills, CA 91343
May 23, 2006 Delivering accuracies to ±0.09°F, loop-powered TPZ Transmitter allows up to 32 field devices to be networked into 1 PROFIBUS PA data link. Two-line, alphanumeric digital display shows real-time process status and diagnostic information, and can be customized with user-selectable engineering units. Unit sets up from control room using PROFIBUS PA configuration tool to handle 14 RTD types, 9 thermocouple types, as well as direct mV and resistance/potentiometer inputs.

CLARE INSTRUMENTS US INC    Tampa, FL 33634
May 22, 2006 Battery-powered for portability, handheld PrimeTest 50 provides immediate push-button pass/fail indication. User connects power cord or tool to tester, selects test, and within 5 seconds receives indication as to whether cord or equipment is safe for use. If operator selects incorrect test, unit will issue audible warning until correct button is depressed. Adaptors are provided for cords covering 115 and 124 V as well as 15 and 20 A NEMA connectors.

Pomona Electronics    Pomona, CA 91766 3835
May 22, 2006 Combining ac voltage detector and flashlight in one device, LumaVolt can detect voltages of 40-300 Vac from 1-15 in. away from source. Flashlight features ultra-bright white, 100,000 hr LED. Unit operates on standard AAA batteries for long life without need for lithium batteries.

JDSU    San Jose, CA 95131
May 19, 2006 Digital and IP Video Service Monitoring System provides simultaneous monitoring of 250+ video streams while testing access coverage at all points in network relevant to delivering quality video service. Operators can receive precise analysis of service and detect any problems in network from remote location. System also addresses every deployment phase, from initial design, through network element deployment and service provisioning, to service assurance and troubleshooting.

Scientific Technologies Inc. - Automation Sensors    Logan, UT 84321
May 18, 2006 Measuring 4.45 x 3.00 in., self-contained IRU-5110 Series offers reliable means of detecting level, presence/absence, volume, proximity, and distance of solids or liquids over 3-79 in. sensing range. Available outputs include 0-5 Vdc or 0-2.5 Vdc, 4-20 mA, or 4-20 mA with 2 programmable NPN transistor trips. Integrated microprocessor technology accommodates for environmental factors such as temperature change, waves on liquid, tank irregularities, agitators, and humidity.

Tel-Tru Mfg. Co., Inc.    Rochester, NY 14605
May 18, 2006 Available in 2½ or 4 in. case sizes, Sanitary Pressure Gauges are engineered to meet stringent performance and material demands within dairy, food, chemical, biotechnology, and pharmaceutical environments. Diaphragm seal fitting connections are standard in 316L stainless steel with 1½, 2, and ¾ in. Tri-Clamp® sizes. Offered in back-connected and lower back-connected versions, gauge family includes Select, Plus, Fractional, Autoclavable, and Homogenizer models.

Baumer Ltd.    Southington, CT 06489 1534
May 18, 2006 Resisting up to 10 g vibration and shock up to 100 g, Model GXM2S Optical Absolute Multi-Turn Encoder retains position in event of power loss. Steel housing measures 58 mm dia and is available with variety of bus interfaces and options. Designed with carbon fiber reinforced plastic housing, Model GI342 Incremental Encoder resists 10 g vibration and 200 g shock. Unit is 58 mm dia and suited for monitoring movement in conveying, sorting, and packaging applications.
