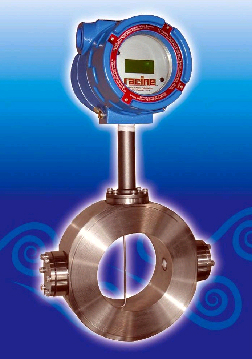

Racine Federated, Inc.    Racine, WI 53406
Jun 09, 2006 Wafer-Style Series RWG and RWBG measure tiny vortices that form when media in pipe move across strut. Number of vortices shed is directly proportional to flow rate. Units have no moving parts and are virtually maintenance-free once installed. All are loop-powered with standard HART® communications, facilitating field programming and system integration. With internal RTD and optional external sensor pressure, software will compensate for changes in pressure and temperature.

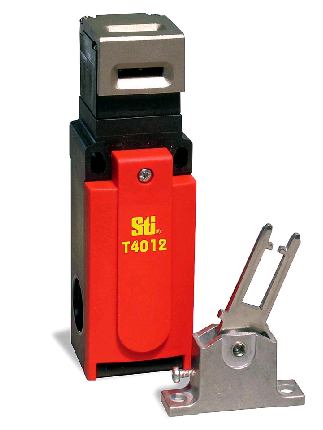

Scientific Technologies Inc.    Fremont, CA 94555
Jun 09, 2006 Universal, tongue-operated Series T4012 features glass-filled NEMA 6 thermoplastic housing, making it suitable for water washdown environments. Two or four contact pole versions are available, with 4 contact pole version providing 2 poles for dual channel safety monitoring and 2 poles for status monitoring. Rotatable head offers 8 possible actuator entry points. When used with optional stainless steel actuator, switches can provide minimum of 2 million actuations.

Rockwell Automation    Milwaukee, WI 53204
Jun 09, 2006 Fulfilling requirements of Turbine Supervisory Instrumentation, Allen-Bradley XM 121A Absolute Shaft and XM 442 Voted Electronic Overspeed Detection System Relay Modules monitor and protect critical plant-floor assets. Scalable solutions can be integrated into plant control and information system. XM-121A measures turbine shaft vibratory motion relative to free space, while XM-442 provides 3 redundant shutdown relays, one alarm relay, and redundant logic circuits.

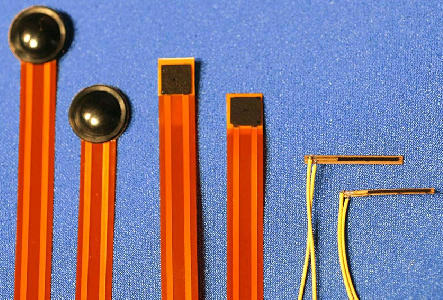

Sensor Products Inc.    Madison, NJ 07940
Jun 08, 2006 Tactilus® dynamic electronic pressure mapping systems consist of up to 16 multi-channel tactile surface sensing points that can detect pressures up to 60 psi, coupled with electronics and USB interface. Running on laptop computer, software allows user to customize for 2-D and 3-D imaging, region-of-interest viewing, longitudinal and latitudinal analysis, graphical displays of data, pressure vs time, line scan, histogram and isobar charts, and statistical analysis of pressures.

Sensor Products Inc.    Madison, NJ 07940
Jun 08, 2006 Consisting of thin, clear Mylar sheet, Pressurex® Film maps and measures pressure distribution and magnitude between mating, contacting, or impacting surfaces. When placed between impacting or mating surface, film instantaneously and permanently changes color, with color intensity directly proportional to pressure applied. Pressure magnitude can be determined by comparison of color variations to correlation chart.

SICK STEGMANN, INC.    Dayton, OH 45413
Jun 08, 2006 Available with IP65-rated housing, Model DGS66 incremental encoders are offered in blind and through hollow shaft configurations for 6, 8, 10, 12, and 14 mm, or 3/8 and ½ in. shafts. With either TTL or HTL electrical interfaces, encoders suit applications in machine tool, textile, woodworking, and packaging.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Jun 08, 2006 Available with NPN or PNP outputs, Accu-Vue(TM) Fiber Optic Amplifiers incorporate one-touch auto-teach, and built-in timer functions ranging from 250 µsec to 20 sec. Sensor features auto power control to maintain constant light emission level over life of sensor and adjustable response times of 50 µsec. Applications include parts presence, label detection, error proofing, and thread detection.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Jun 08, 2006 SBL Series Roller Conveyor Sensors mount directly between conveyor rollers with thru-hole mounting or attach with optional mounting bracket. Sensors provide adjustable sensing from 40-900 mm and up to 25 sensors can be cascaded and connected to single power supply. Available outputs include PNP and 2/3 way pneumatic valve. Integrated adjustable timers for on-delay and off-delay functionality are available..

Control Company    Friendswood, TX 77546
Jun 08, 2006 Displaying current, minimum, and maximum levels, Traceable® Monitor activates settable high/low alarm for all 4 readings. With range of 1-99% RH and resolution of 0.1%, unit offers accuracy of ±4% between 20-80% RH. Temperature range is -40 to 70°C with resolution of 0.1° below 100 and accuracy of ±1°C. Measuring 4 1/8 x 4 1/8 x 1 in. and weighing 4¼ oz, monitor is supplied in high impact, chemical-resistant ABS plastic case.

Fluid Components Intl.    San Marcos, CA 92069 5115
Jun 08, 2006 Designed for direct in-line installation, Model ST75 direct mass flow instrument services line sizes from 0.25-2.0 in. and flow ranges from 0.008-839 scfm. Suited for low- and high-flow applications, unit offers up to 100:1 turndown ratio, accuracy of ±2% of reading, and ±0.5% repeatability. Meter features wireless IR technology that allows user to remotely monitor measurements, make setting changes, and read trouble-shooting codes.

Omega Engineering, Inc.    Stamford, CT 06907
Jun 08, 2006 Offered in 8-, 16-, and 32-channel models, Series OMET-USB-73T features 24 digital inputs and outputs, which let user control external contacts and relays in case of alarm or other event requiring action. Units offer USB 2.0 compatibility, ±2°C accuracy, and max sampling of 200 readings/sec. They are suited for environmental applications such as monitoring of furnaces, cold storage, and computer rooms.

French Technology Press Office, Inc.    Chicago, IL 60601
Jun 08, 2006 Made of stainless steel with welded seal, Shear Beam Series SK30X is available in capacities from 660-4,400 lb with certified accuracy up to 6,000 divisions OIML and 5,000 divisions NTEP. With IP68 protection grade, load cells resist corrosion and can be used in demanding environments. Series SK30X works with STABIFLEX or ISOFLEX mounting assemblies.

Scientific Technologies Inc.    Fremont, CA 94555
Jun 07, 2006 Stand-alone Model MFS requires magnetic and ferroresonant signals to close safety signals, making it resistant to tampering. NEMA 4 enclosure enables switch to withstand water washdown cleaning, while providing up to 10 million actuations of operation. Unit is pre-wired and mounts on 1 in. square tubing. For lower risk applications, it can be used as stand-alone safety switch with direct switching of relays and contactors up to 2 A at 230 Vac.

Setra Systems, Inc.    Boxborough, MA 01719
Jun 06, 2006 Suited for automated weather systems, Model 260 features user-selectable pressure ranges and analog outputs, standard LCD, and AC/DC excitation on voltage output operation. With configure-on-the-fly ability, unit offers pressure ranges from 0.1-10 in. WC full scale, and may be field-configured as unidirectional or bi-directional. External push button for field zeroing provides fast, accurate zero, without compromising full-scale performance.

HBM, Inc.    Marlborough, MA 01752 3014
Jun 06, 2006 Utilizing principle of axial shear, Model TB2 is designed for non-rotating use in static and dynamic measurements. It is available in 6 nominal measuring ranges of 500 Nm, 1 kNm, 2 kNm, 3 kNm, 5kNm, and 10 kNm. Standard system is quasi-hermetically sealed and can optionally be provided protected to IP67 as defined by EN 60529. Relative standard deviation of repeatability is less than ±0.01%, and linearity deviation including hysteresis is less than ±0.03%.

Banner Engineering Corp.    Minneapolis, MN 55441
Jun 02, 2006 Featuring TEACH-mode push-button programming, R58 Expert(TM) Series detects 16 levels of gray scale by selecting sensor's red, green, or blue LED, based on contrast of background and registration mark being sensed. With 1.2 x 3.8 mm sensing image and ability to perform up to 10,000 actuations/sec, units can detect small, inconspicuous marks in low-contrast, high-gloss sensing applications. Sensors operate on 10-30 Vdc and feature solid-state bipolar discrete outputs.

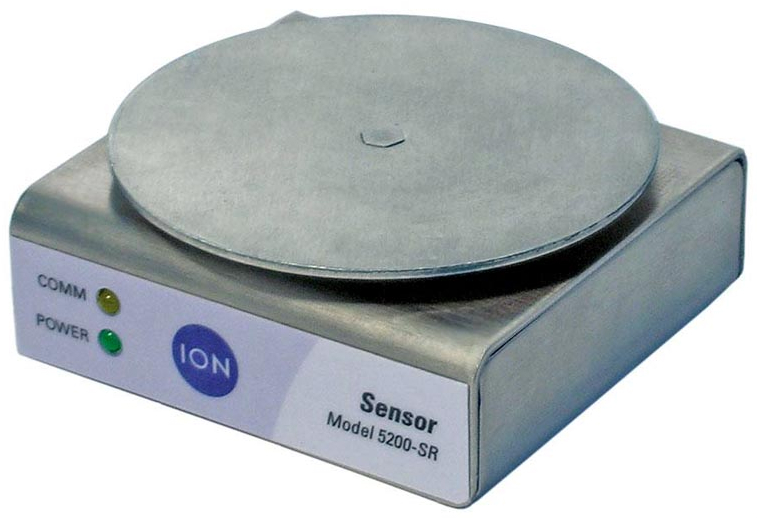

MKS    Andover, MA 01810 2449
Jun 02, 2006 Model 5200-SR, combined with AeroBar ionizers and integrated IonMonitor(TM) software, provides closed-loop controlled ionization system that ensures tool calibrations remain in compliance with industry guidelines such as SEMI E78. Promoting uniformity even in of changing conditions in wafer processing environments, digital unit offers adjustable ionization parameters and can be set to alarm at user-specified thresholds or under specified process conditions.

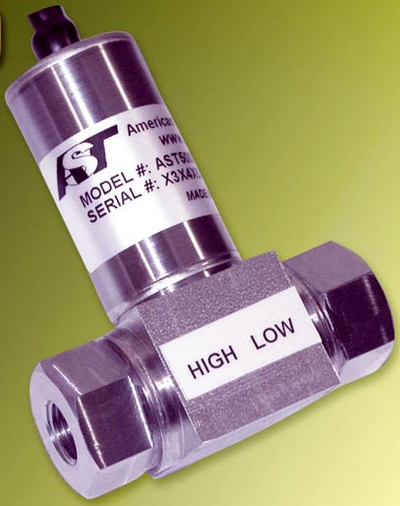

American Sensor Technologies, Inc.    Mt. Olive, NJ 07828
Jun 01, 2006 Featuring AST's Krystal Bond(TM) Technology, Model 5000 safely measures differential pressure (DP) of hydrogen and other gases. It does not contain internal O-rings or fluid-filled cavities, and diaphragm is constructed of 316L stainless steel wetted materials. Offered in bi-directional and uni-directional pressure ranges for applications with line pressures up to 1,000 psi, design provides over-range and burst protection to 5x rated line pressure or 2,000 psi.

Fisher Controls International, An Emerson Process Management Co.    St. Louis, MO 63105
Jun 01, 2006 Featuring integral pneumatic relay and explosion proof rated housing, Type i2P-100 electro-pneumatic transducer converts milliamp input signals to a switch-selectable proportional pneumatic output signal. Dip switch allows output range of 3-30 psi. Transducer features free-flow, pilot stage design with large internal air passages, while plug-in converter module balances parts symetrically around pivot point. Actuator, pipe stand, or surface mount equipment is included.

Kittiwake Developments Ltd    West Sussex BN17 7LU  United Kingdom
May 31, 2006 Protected to IP65 or IP67, ANALEXrs sensors monitor lubricant and machine condition information in real-time. Specific models identify total ferrous content, ferrous and non-ferrous metal particle content, oil condition, and moisture presence. With self-diagnosing, digital and analog outputs, sensors can be integrated into existing condition monitoring and operating control systems. They use 4-20 mA, RS232, RS485, CAN, and 802.11b WLAN outputs for communication.
