Toshiba America Electronic Components (TAEC)    Irvine, CA 92618-1811
Jul 13, 2011 Featuring .25 in. optical format and 8 megapixels, each pixel measuring 1.12 µm, Model T4K05 will support video capture at up to 60 fps in both 1080p and 720p high-definition. Back-side illumination technology deploys lens on rear of sensor, on silicon substrate, as opposed to front where wiring limits light absorption. Sensor is suited for variety of portable digital devices, ranging from mobile phones and digital cameras to smartphones and tablets.

CUI, Inc.    Beaverton, OR 97005
Jul 12, 2011 Generating U/V/W commutation signals for vectoring current to brushless motors with 2, 4, 6, 8, 10, or 20 pole pairs, AMT303LD Series offers complimentary incremental A/A, B/B, and Z/Z channels for various servo positioning and startup sequences. Unit generates position information using capacitive code generation system coupled with ASIC, which is immune to environmental particulates and magnetic interference. Consuming 10 mA at 5 Vdc, encoder supports 9 mounting patterns and 10 bore sizes.

TAOS Inc.    Plano, TX 75074

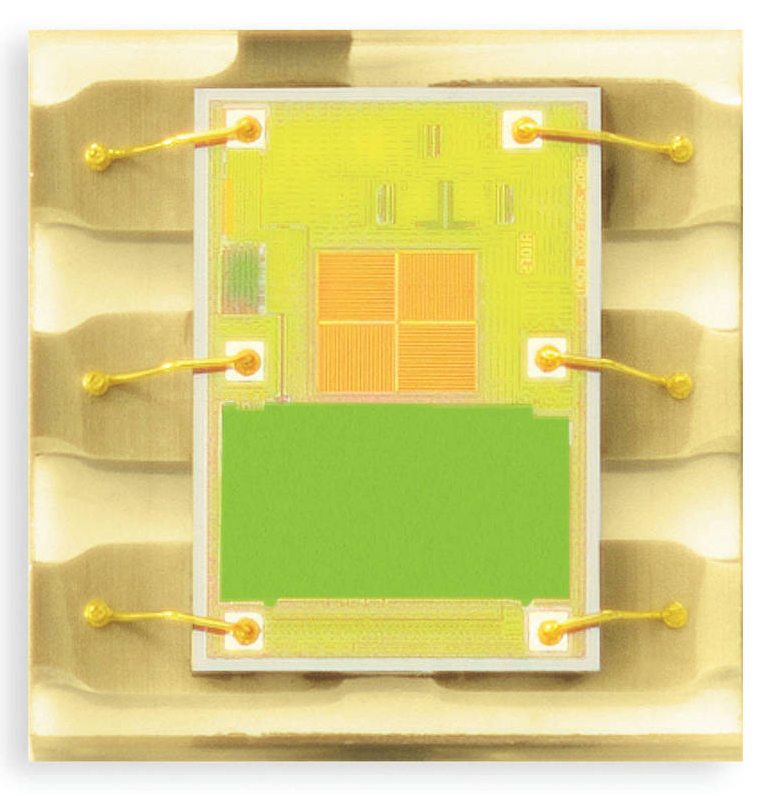

Jul 11, 2011 Providing ambient light sensing (ALS) and proximity detection operation in environments over 60,000 lux (sunlight), TSL2x72 Series creates dynamic range of operation necessary for mobile products to adapt to all lighting conditions. Dynamic range is enabled by device's programmable gain modes, including reduced gain mode. Proximity detection features include SNR performance and programmable register, which allows compensation for optical signal crosstalk.

Sensirion Inc.    Westlake Village, CA 91361
Jul 11, 2011 Able to detect flow rates below 120 mL/min for hydrocarbon-based liquids, SLQ-QT105 offers ~40 msec measurement response time and sensitivity for flow rates down to 3 mL/min. Detection of air bubbles in µL range is also possible, and all wetted materials are made from PTFE or quartz glass. Flow is measured without moving parts and non-invasively through wall of straight flow path. Features include fittings for 4 x 3 mm PFA tubing, digital interface, and RS485 communication.

Huntingdon Fusion Techniques-USA Inc.    Melbourne, FL 32936-1175
Jul 11, 2011 Utilizing non-chemical sensor technology, PurgEye(TM) 500 measures oxygen levels down to 10 ppm. Alarm facility can be set to activate if oxygen levels around weld exceed desired value and in association with alarm, can shut welding machines off and on again as gas levels raise and lower. With PurgeLog(TM) software, operators can store and print data for quality control purposes so that each weld can be supported with relevant document showing weld purge integrity.

Gems Sensors Inc.    Plainville, CT 06062
Jul 11, 2011 With resolution of ±1 mm independent of pressure, temperature, and density, CT-1000 sensors provide continuous level gauging for filling of tanks or continuous separating layer coverage in electrically conductive liquids. Measuring times is in millisecond range, and construction is of stainless steel. Suitable for 8 in. to 19.7 ft long tanks, sensors are available with 4-20 mA output or Hart protocol and come in versions that can handle temperatures to 390°F and pressures to 2,175 psi.

Dytran Instruments, Inc.    Chatsworth, CA 91311
Jul 11, 2011 Suited for use in flight testing applications, hermetically sealed 3326A Series works with standard aircraft on-board power supplies from +20 to +32 Vdc. Two models are available, with sensitivities of 10 and 100 mV/g, and both feature ceramic sensing elements operating in shear mode and packaged in titanium housing. Low-noise accelerometers feature ¼-28, 4-pin radial connector and miniature thru-hole mounting, allowing sensor to be turned 360° prior to be secured.

Industrial Test Systems, Inc.    Rock Hill, SC 29730
Jul 11, 2011 Suited for detecting environmental/industrial contamination, DX-2b detects gamma, beta, and X-rays. Its military-grade GM tube detects all gamma and beta isotopes released by nuclear power plants, such as iodide and cesium. Offering one-button operation to facilitate use by nontechnical persons, meter uses 200 Vdc, Geiger Müller tube detector and provides visual and audible warnings. This 3¼ x 6¾ x 1½ in. unit is powered by 9 V battery, which lasts 50 hr at normal background levels.

FRABA Inc.    Hamilton, NJ 08609-2020
Jul 08, 2011 OPTOCODE encoders are available with combined interface that enables simultaneous communication of both absolute and incremental rotary position data. Designed to provide point-to-point communications between encoders and PLCs, interface reports absolute rotary position data to PLC using synchronous serial interface (SSI) standard, operating over RS-422/485 communication link. Simultaneously, encoder can transmit series of electronic pulses as shaft rotates (up to 16,384 ppr).

McCrometer, Inc.    Hemet, CA 92545
Jul 08, 2011 Providing wireless data collection, RemoteCONNECT(TM) RC45 delivers information via Internet from installed flow meters, pumps, and other agricultural water management sensors operating remotely in field. Web-based GUI notifies operators of any changes in irrigation system or other sensors via Internet, email, mobile phone, texting, or pager. Equipped with 2 digital inputs, 2 analog inputs, and 1 analog output, mast-mounted system offers choice of 300 mA solar or 110 Vac power supply.

Measurement Specialties, Inc.    Hampton, VA 23666
Jul 08, 2011 Operating in shear mode and free of internal performance-limiting adhesives, Model 7502A exhibits stable thermal performance from -73 to +260°C. Unit is used for high-temperature vibration and shock measurements and features nominal charge output of 1.8 pC/g. Constructed of titanium, hermetically sealed device weighs less than 1 g and has ±5,000 g dynamic range, ±10,000 g shock limit, and non-linearity of ±1% per 1,000 g.

Spectrum Sensors & Controls    St. Marys, PA 15857
Jul 08, 2011 Available in customer-specified configurations, quick-ship XL403A Series includes single, dual, and triaxial versions in any full-scale range from ±1 g to ±15 G, with bandwidths up to 800 Hz. MEMS-based units offer optimal accuracy and linearity over temperature range of -40 to +85°C and are supplied with NIST-traceable calibration certificate. Standard quick-ship termination option consists of 4 ft cable with DB9M connector.

Sensorex    Garden Grove, CA 92841
Jul 06, 2011 Supporting FCL400 Free Chlorine Sensor and CLD400 Chlorine Dioxide Sensor, FCLA 7000 eXact Photometer utilizes 525 nm LED light source to measure free chlorine from 0-11 ppm or chlorine dioxide at 0-6.5 ppm with photometric precision of ±0.1/0.01% T and transmission range of 100-0.00% T. EPA-compliant, battery-powered unit operates from 32-122°F and features 3-digit customized LCD with annunciators, automatically displaying 0.01 or 0.1 resolution.

Acromag, Inc.    Wixom, MI 48393 7037
Jul 06, 2011 Mounted in DIN Form B sensor heads or on DIN rail, Model ST133 converts sensor input signals from 8 thermocouple types or ±100 mV range and outputs proportional 4-20 mA process control signal. Addition of 1,500 V isolation between input and output circuit shields equipment from high-voltage surges and transient signals and breaks up ground loops. Operating from -40 to 80°C, USB-configured transmitter includes signal linearization, cold-junction compensation, and response time of 30 msec.

PREMO Group    Barcelona   Spain
Jul 06, 2011 Supplied in package for THT mounting, DSR5 series is designed for single supply voltage of +5 V and integrates primary winding that allows DC, AC, and pulse current measurement on PCBs. This close loop technology component also features external pin that allows access to internal reference (2.5 V) and can be used as output or input signal to be used by MCUs, optimizing offset control at cero current. Series is designed for nominal currents of 6, 15, 25, and 50 A.

Contrex, Inc.    Maple Grove, MN 55369 4018
Jul 06, 2011 In addition to slim motor mount flanges, NRK ring kits feature 60-tooth ferrous sensing gears and drop-in magnetic pickup (variable reluctance) sensors. Products are available to fit 56C through 256TC NEMA C-face motors and also offer 30-tooth sensing gear option. Additional sizes, gear tooth configurations, and sensor cables may be available upon request. Magnetic pickup ring kits are rated to sense speed of rotating motor shafts from 2,000-10 rpm.

Keyence Corporation of America    Itasca, IL 60143
Jul 06, 2011 Utilizing short-wavelength laser, VK-X Series provides non-contact profile, roughness, and thickness measurements, even on surfaces with highly angular surfaces. System features 0.5 nm Z-axis resolution with magnification range from 200-24,000x and ability to capture images at up to 21.6 MP. By combining laser with 16-bit photomultiplier, VK-X Series can obtain image and measurement on nearly any type of material. AI-Scan function enables users to image and measure target with click of mouse.

MICRO-EPSILON AMERICA    Raleigh, NC 27617
Jul 01, 2011 Used to measure gap width, capaNCDT CSG uses sensor electrodes and differential method to determine gap widths from 0.9-4.9 mm while moving sensor into gap. Sensor electrodes are applied to top front and back on 20 cm wide circuit board, and flexible probe enables sensor to be used in applications where measurement object is difficult to access. Also available, capaNCDT CSE offers 2.5X larger measuring range and is equipped with shielding electrode that is set back.

GAO RFID Inc.    Toronto   Canada
Jul 01, 2011 With measurement range up to 5 km, Model A0870002 performs end-to-end fiber identification, detecting breaks and micro-bends, even through jacketed fibers. Unit offers wavelengths from 640-660 nm and spectral width of less than 5 nm. Optical connectors include FC and Universal 2.5 mm adapters. Operating for 30 hours with single battery charge, Model A0870002 is suited for fiber optic network maintenance in telecommunications and CATV systems.

Balluff, Inc.    Florence, KY 41042-0937
Jun 30, 2011 Available in 11 pressure ranges from 0-8,702 psi, Pressure Sensors combine 4-digit display, measuring transducer, and pressure switch into single device. Display shows current system pressure in bar, mbar, psi, or MPa. With IP67-rated housing and ceramic thick film measuring technology, sensors are suited for use in gaseous and liquid media. Stainless steel versions, featuring extended temperature range of -40 to 125°C, withstands harsh environments.
