Emerson Process Management    Austin, TX 78754
Oct 12, 2007 Complementing existing technologies for complete online machinery monitoring of turbomachinery, CSI 6000 Machinery Health(TM) Monitor offers full turbine supervisory instrumentation with local display option. It delivers actionable information on mechanical equipment health, enabling plant personnel to optimize plant availability and production. This 3U high, 19 in. wide rack includes buffered outputs for connectivity with any data collector for raw waveform vibration data.

STMicroelectronics    Lexington, MA 02421
Oct 12, 2007 Available in 3 x 3 x 0.9 mm plastic package, Series LIS331 has compact design that provides immunity to vibration and shock survivability up to 10,000 g. Model LIS331DL integrates SPI/I2C digital interface, and smart embedded features such as click and double-click recognition, wake-up and motion detection, high-pass filters, and 2 dedicated programmable interrupt lines. Analog-output Model LIS331AL offers individual acceleration values for x,y,z axes, and ±2.0 g full-scale output range.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Oct 10, 2007 Measuring 8 mm in dia, IP67 protected ultrasonic thru-beam proximity sensors feature teach-in input mode and offer sensing range from 20-60 mm, with optimal sensing range of 45 mm. Splice sensors detect presence or absence of glue, splices, bondings, or base material. Label detectors are used in automatic detection of labels and carrier materials, while double sheet detectors help identify 0, 1, or 2 sheets of material with weights ranging from 10-2,000 g/m².

Industrial Scientific Corp.    Oakdale, PA 15071 1500
Oct 10, 2007 With bump test feature, GasBadge® Monitors enable customers to establish testing frequency based on best practices, company policy, or local regulatory agencies. During bump test, user exposes instrument to known concentration of gas to determine if sensor response is within safe operating range. If bump test is unsuccessful, user must calibrate instrument before further use. Instruments indicate when bump test is overdue with visual and audible alarms.

Dust Networks    Hayward, CA 94544

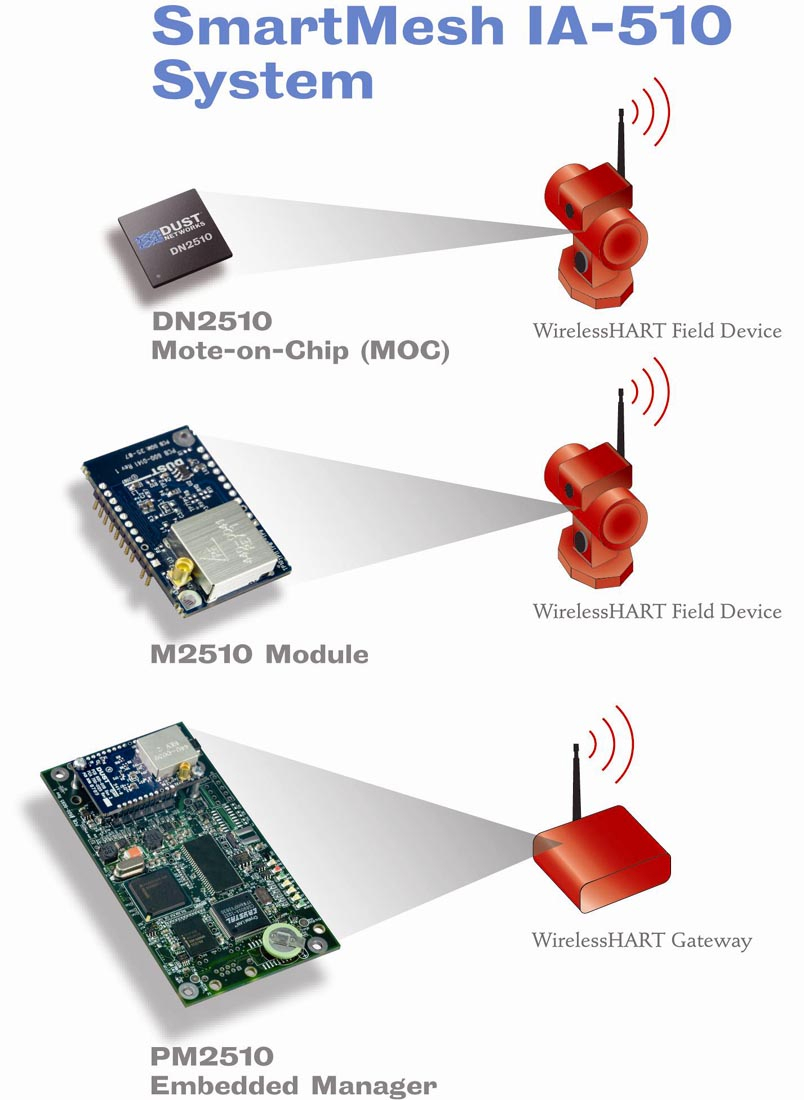

Oct 09, 2007 Combining Intelligent Networking Platform and low-power radio technology, 2.4 GHz SmartMesh IA-510(TM) features variable bandwidth and optimal allocation of timeslots, enabling single network to meet latency and throughput needs of multiple applications. Intelligent routing algorithms, dynamic interference assessment, frequency hopping, time synchronization, and full mesh networking ensure reliability. For security, AES 128-bit cipher is incorporated on multi-level encryption key scheme.

MTS Systems Corp. - Sensor Div.    Cary, NC 27513
Oct 09, 2007 Working with CAN J1939 and CANopen, MH Sensor measures displacement and speed variables. Unit consists of sensor head with built-in electronics, pressure-proof sensor pipe that protects internal sensing element, and position magnet. In addition to 100 g shock and 25 g vibration ratings, sensor has 200 V/m EMI protection. Unit is designed for cylinders measuring 2 in. in diameter and larger and provides measurement ranges from 2-98 in.

ICx Technologies    Washington, DC 20005
Oct 09, 2007 Designed to monitor indoor environments for biological, chemical, and radiological material, SafeAir(TM) employs multidimensional network of sensors, devices, software, and services to detect and confirm biological threats in real-time. It utilizes widely distributed sensors that are located in most vulnerable building areas. Upon receiving unusual air signal, sensors send alert directly to monitoring personnel who investigate conditions and perform testing.

Walchem Corp.    Holliston, MA 01746 1460
Oct 09, 2007 WebAlert® web-enables any installed equipment, providing local and remote access to vital system information. It monitors and datalogs analog/digital inputs from virtually any installed device, and instantly notifies on-site and remote personnel of any alarm conditions via text message, email, or local alarm relay. System status reports and datalog files can be emailed automatically, and users can access live or stored data remotely within LAN or from anywhere.

FCI Automation    Grand Rapids, MI 49548
Oct 08, 2007 Designed to work as overload relay and motor system monitor, MOTOR+MEDIC provides diagnostic information needed to recognize impending motor failure or conditions that will lead to motor failure if not resolved. Included software suite allows user to sample motor's health on steady or periodic basis. In addition to low and high voltage, MOTOR+MEDIC protects 3-phase motors from low and high current, current and voltage imbalance, and ground fault.

Opti-Sciences, Inc    Hudson, NH 03051
Oct 05, 2007 Suited for non-invasive study of photosynthesis in plants, crops, and algae, Model OS-5p high-end, multi-mode pulse modulated chlorophyll fluorometer offers optically-monitored sources and sensitive, low-noise detection of fluorescence response. Field-portable unit can also be used for detecting and monitoring environmental stress. It includes LED for power conservation and halogen for high saturation light sources, and can operate continuously for more than 20 hr.

WIKA Instrument Corporation    Lawrenceville, GA 30043
Oct 04, 2007 Available with voltage or current output, analog T91 Series feature fixed measuring ranges for thermocouples or Pt100/Pt1000 RTDs. Units offer industry-compliant accuracy, interference resistance, and sensor monitoring. Model T91.10 can be mounted inside any standard connection head, while T91.20 model is available for DIN form J connection heads. Rail mounting Model T91.30 features galvanically isolated input and output, regardless of analog construction.

Sensata Technologies - Industrial Sensors Group    Attleboro, MA 02703
Oct 04, 2007 Employing advanced monocrystalline silicon MEMS strain gage technology, GDI Sensor regulates pressurized fuel within combustion chamber, enabling efficient air/fuel mixture over range of gasoline and diesel fuels, and across wide temperature range. Depending upon system's final configuration, operating pressure can reach up to 300 bar.

Thermalogic Corp.    Hudson, MA 01749
Oct 04, 2007 TA 2629 Digital Humidity, Dew point, and Temperature Sensor/Transmitter incorporates RS485 serial communications, which enables configuration of multi-zone networks with up to 31 units on single bus. Utilizing differential balanced line, it can span distances up to 4,000 ft and resists electromagnetic interference, such as from motors and welding equipment. It is available in 6 in. long by 7/8 in. dia PVC tube housing and includes ¾ in. NPT male adapter.

Contrinex AG    Old Saybrook, CT 06475
Oct 03, 2007 Embedded in pressurized systems to detect moving elements or targets, Series E miniature sensors withstand up to 300 psi continuously on front face. Sensors offer 5 kHz switched output and provide stable, positive control feedback in severe vibration conditions. Sensing face is made from sapphire for 4 mm and M5 sizes or thick ceramic for 6.5 mm and M8 sizes. Other features include AISI 303 stainless steel housings, flexible PUR cables, and rear IP68 sealing.

Princeton Gamma-Tech, Inc.    Princeton, NJ 08540
Oct 03, 2007 In addition to Chemical, Biological, and Radiation detection instruments, CBRN Detection Kit includes training and field exercises. SAM Defender radiation detection module uses algorithms to identify unknown isotopes and provide reachback with analytical data, while ChemIMS open-loop Ion Mobility System detects and identifies potentially hazardous chemicals. Open-Loop IMS does not require desiccant filters or molecular sieves, minimizing clear-down times.

Aeroflex Laboratories    Plainview, NY 11803
Oct 03, 2007 Synthetic Multifunction Adaptable Reconfigurable Test Environment (SMART^E 5000(TM)) can adapt to test applications in EW, radar, communication, navigation, and identification, military ATE, and microwave test applications. It features synthetic stimulus and measurement channels to 40 GHz in configurable modular bands, power settings and measurement range of -90 to +10 dBm to better than 0.1 dB resolution, digital I/O up to 400 MHz at DDR, and LVDS with programmable levels up to 100 MHz.

Linear Technology Corp.    Milpitas, CA 95035
Oct 02, 2007 LTC2917 single voltage supervisor can monitor 27 pin-selectable thresholds, with accuracy of ±1.5%, ranging from 1 V drained single AA battery up to 12 V industrial applications. Watchdog input checks whether processor has locked up and watchdog timer can be set to fixed 3.2 ms, 1.6 s, or is adjustable based on external capacitor. Operating across -40 to +125°C temperature range, it includes 2 x 3-state input pins that select 1 of 9 internally programmed thresholds.

Cortechs Systems & Consulting    Santa Rosa, CA 95404
Oct 02, 2007 NeuroQuant(TM) receives magnetic resonance image (MRI) scans, routed from scanner or PACS as input, and automatically return age-related atrophy reports as well as numerical and color-blended anatomical volumes annotated with graphical overlays to physician's desktop. Using intelligent image analysis and extraction methods, system can be used to monitor disease processes in patients or as means for deriving quantitative imaging biomarkers in clinical trial research.

Fat Spaniel Technologies, Inc.    San Jose, CA 95113-1824
Oct 02, 2007 Designed to simultaneously manage multiple commercial-scale renewable energy systems, Insight Manager(TM) delivers remote energy monitoring, reporting, and fault management services in web-based dashboard. Site List displays information regarding name, location, kW capacity, and color-coded health status for solar energy systems, while Event Log tracks and displays events and timeframe of condition. With customizable alert options, email notifications are delivered when system faults occur.

Anritsu Industrial Solutions USA Inc.    Buffalo Grove, IL 60089
Oct 02, 2007 Featuring Dual Wave Technology, DuW Series is sensitive to all kinds of metals, including ferrous and stainless steel contaminants. Units include automatic Set-Up Wizard and 30-sec tool-less conveyor disassembly for cleaning. Variable speed conveyors and software-assignable I/Os come standard for line control purposes. Detectors are suited for food, pharmaceutical, and cosmetic inspection.
