Hawk Measurement    Middleton, MA 01949
Aug 27, 2008 Used to locate and track differing density layers of clarifiers and thickeners within process tank, Orca products work under high suspended solids loading, sliming, and generally upset process conditions. It lets user control flocculent dosing, settling time, and bed density. Optimized for power, penetration, and calibration density range, transducer designs include 3-7 sonar crystals mounted in one head. Each sonar array produces concentrated sonar beam.

Summit Microelectronics, Inc.    Sunnyvale, CA 94085
Aug 27, 2008 Providing real-time output voltage and input current monitoring for power control, SMM151/2/3 features I²C interface, non-volatile memory, 256 bytes general-purpose EEPROM memory, and 2 general-purpose voltage comparators. Devices allow input current and differential output voltage monitoring via integrated 10-bit A/D conversion. While SMM151/2 provide output voltage margining with 0.3 V to VDD (up to 5 V) range, SMM152/3 also integrate 4 GPIO.

VisEn Medical, Inc.    Bedford, MA 01730
Aug 27, 2008 With IntegriSense(TM) Fluorescence Molecular Imaging Agent, researchers can image and assess role of integrin alpha v beta 3 in disease progression and therapeutic response in disease states including oncology, cardiovascular disease, and bone disease. Agent works with VisEn's Quantitative Tomographic FMT imaging systems to enable quantitative data on biological targets in vivo. It is also compatible with other fluorescence imaging systems, including planar systems and intravital microscopes.

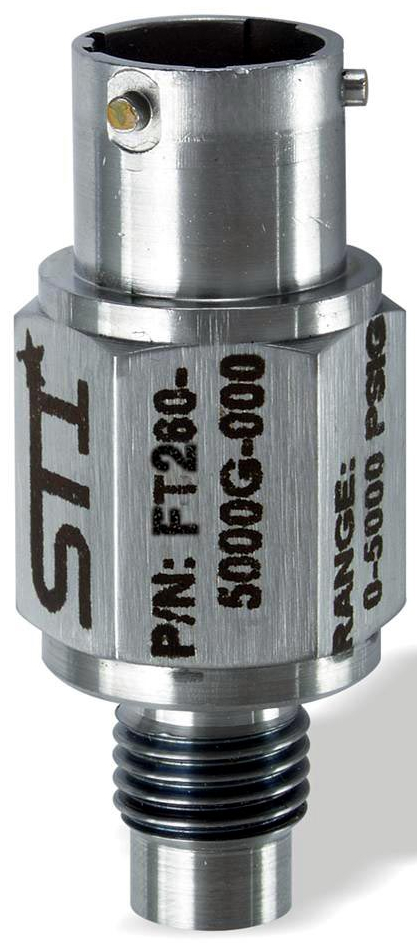

Stellar Technology, Inc.    Amherst, NY 14228
Aug 26, 2008 Along with all-welded stainless steel construction, Model FT260 features flush diaphragm that resists accumulation of residue on fixturing. Sensing element is machined from one piece of steel to ensure reliable operation, and pressure ranges are available from 0-2,000 psi through 0-10,000 psig/a. Environmentally sealed, solution performs over -100 to +300°F range and is compensated from -65 to +250°F. Static accuracy is ±0.25% (BFSL) and standard output signal is 3 mV/V at 70°F.

GF Piping Systems    Tustin, CA 92780-7258
Aug 26, 2008 With Signet Metal Magmeter Model 2552-3, operator can perform installation or maintenance without system shut-down. Mounted to pipes sizes from 2-102 in., unit provides dynamic flow range of 0.15-33 ft/s with repeatability of ±0.5% of reading at 25°C. Signal output options include frequency, digital, or 4-20 mA. With no moving parts to wear, unit can accurately measure flow in fluids containing high content of particles, solids, and fibers.

Universal Flow Monitors, Inc.    Hazel Park, MI 48030
Aug 25, 2008 Comprised of variable area flowmeters with flow switches, Universal® Series monitors cooling water, circulating lubrication oil, and other clean fluids. Units include transmitter for remote readout, recording, or data logging, as well as high-amperage-limit alarm switches for troubleshooting and notification of flow failure. Models include L Series piston-style meters for very low flows from 1-3 gpm, S series for flows from 3-20 gpm, and M series for flows from 20-160 gpm.

Tel-Tru Mfg. Co., Inc.    Rochester, NY 14605
Aug 25, 2008 Available in .187 and .250 in. dia and in lengths up to 12 in., RTD probe assemblies and temperature transmitters include thin film PT100 platinum RTD sensing element packaged in all welded 316L stainless steel probe. Options include programmable transmitter built into the probe assembly as well as probe configurations featuring Tri-Clover® fittings and surface finishes that comply with 3A Standard 74-03 for food, dairy, beverage, pharmaceutical, and chemical processing applications.

GE Sensing    Billerica, MA 01821
Aug 25, 2008 Available in 3 upgradeable models, Phasor Flaw Detectors are suited for applications ranging from corrosion monitoring to defect detection and sizing. Portable phased array Phasor XS provides highest resolution and probability of inspection, while mid-level Phasor 16/16 Weld combines phased array and conventional capability and produces full color image scans that can be stored as jpg for remote analysis. Phasor CV offers conventional, single-channel ultrasonic flaw detection.

GE Sensing    Billerica, MA 01821
Aug 25, 2008 Able to be operated as point (0D) and linear (1D) detector, Meteor1D uses single photon counting principle and incorporates semiconductor technology. Maintenance-free unit, compliant with health and safety regulations, requires no gas or cooling and does not employ any Beryllium. In static and scanning mode, with energies from 5 keV (Cr) to 18 keV (Mo), detection efficiency is greater than 98% for copper. Detector housing accommodates detection angle (2 Theta) of more than 170º.

GE Sensing    Billerica, MA 01821
Aug 25, 2008 Designed for operation with Kaye Validator stand-alone thermal validation system, pressure transducer allows saturated conditions to be validated, along with temperature, in accordance with EN554. It is specified for operation over total conventional autoclave temperature range, with pressure range of 0-4 bar absolute and accuracy of 10 mbar at 110 to 140°C. Solution is supplied with fully traceable calibration to ISO-17025, with pressure calibration performed at 23°C and 121°C.

Westfall Mfg. Co.    Bristol, RI 02809-2721
Aug 22, 2008 Custom built to meet specific sewage treatment air handling system requirements, Westfall 2350 Series Venturi Flow Meter features epoxy vinyl ester construction with 1 in. thick stainless steel throat and 1¼ in. thick 316L SS full-face 48 in. flange. It has no moving parts, and is designed for 50,000 scfm rate of flow. Corrosion-resistant flow meter has short laying length design, provides low permanent pressure loss, and can be installed between ANSI flanges.

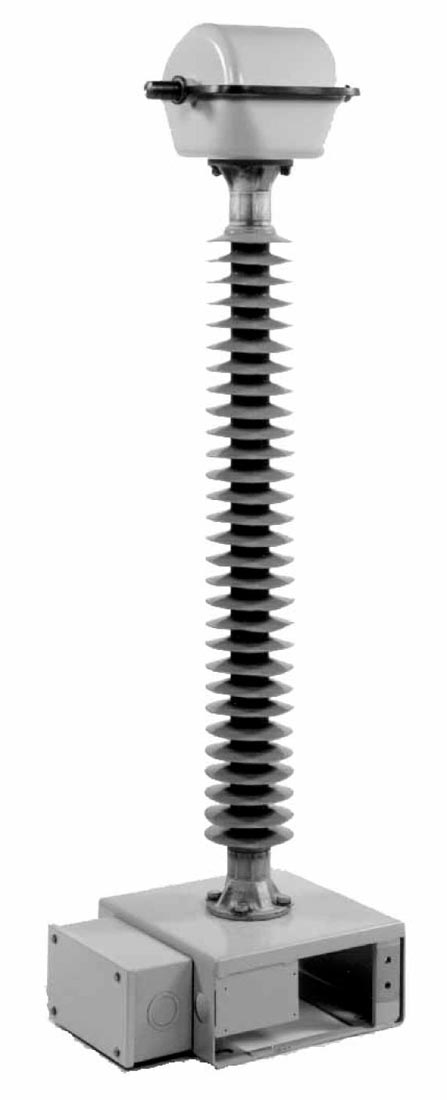

ABB Ltd.    Zurich CH-8050  Switzerland
Aug 22, 2008 Suited for high voltage network applications, Magneto optical current transducer (MOCT-P) optical instrument transformer has free-standing sensor column that communicates with rack mounted electronic module, located in control house, by means of 200/230 multimode optical fibers. It features multiple analog 200 mV low voltage outputs, SF6 free design, and accurate reproduction of fault events. Unit can be used in transmission line, bus, transformer, breaker, or distribution schemes.

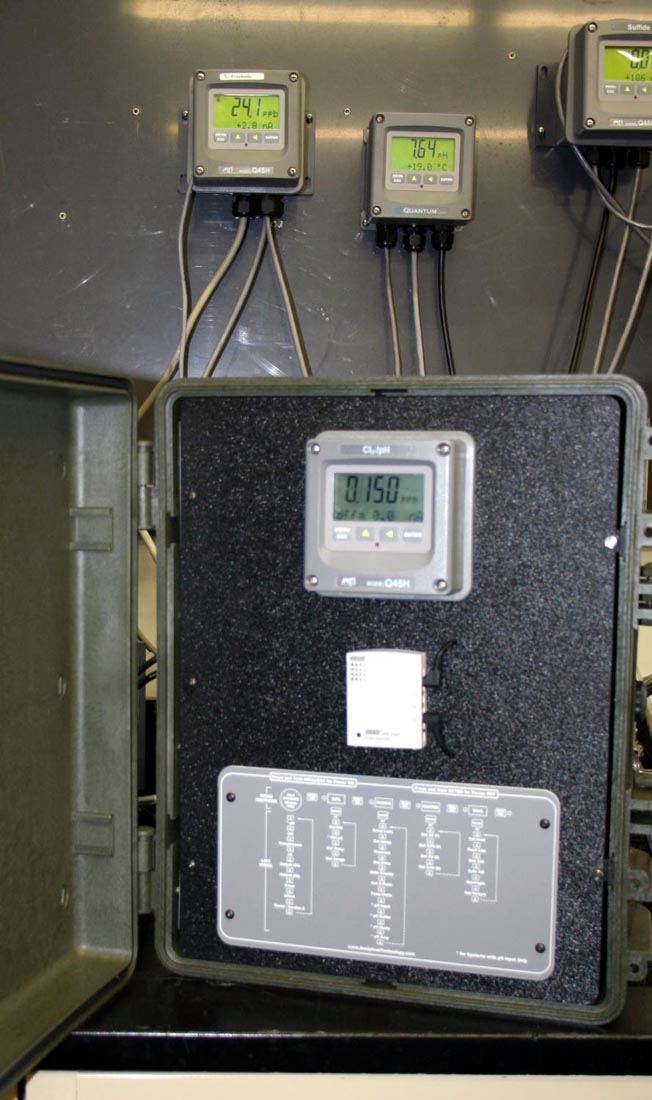

Analytical Technology, Inc.    Oaks, PA 19426
Aug 22, 2008 Utilizing membrane-covered polarographic sensor that does not require addition of chemical reagents, Model Q45H/62 Residual Chlorine Monitor allows on-line control of chlorination systems without use of reagents or mains power and enables direct installation into water and wastewater networks. Available with 2 data logging options, it comes in shock-proof, water-resistant casing. Unit has optional pH compensation feature to eliminate free chlorine error caused by process pH drift.

Castell Interlocks, Inc.    Chicago, IL 60601
Aug 22, 2008 Eliminating potential for human error and tampering, QuadCam identifies objects and people moving in and around machinery, distinguishing between 1, 2, or more persons with real-time tracking. It allows users to define warning and shutdown zones, and provides visual and audible warnings when warning zone is breached. Single imager protects up to 8 x 10 ft zone when it is mounted at 11 ft. Up to 10 imagers can be managed by single QuadCam controller, monitoring up to 800 square ft.

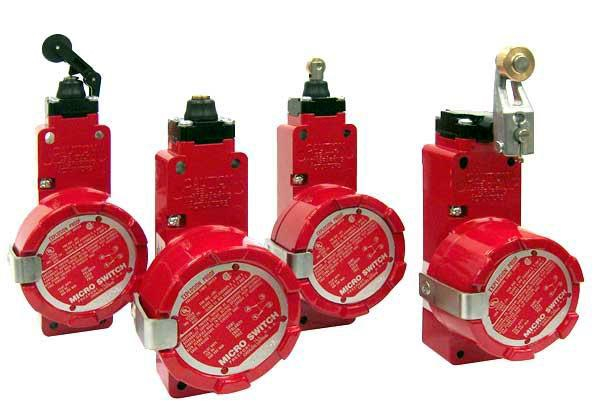

Honeywell    Golden Valley, MN 55422 3935
Aug 21, 2008 Ensuring that even welded contacts open and machine stops in emergency, Micro Switch(TM) GSX Series provides safe failure mode to support safe working environments. It combines MICRO SWITCH(TM) global limit safety product with explosion-proof housing from LSX and BX product lines. Unit offers over 10,000 actuator and switching option combinations and can be applied to machine safety in hydrocarbon refining, chemical process, grain elevators, and other agricultural/food processing equipment.

Measurement Specialties, Inc.    Hampton, VA 23666
Aug 21, 2008 Available in rugged stainless steel package for stud mounting, Model 4801A offers amplified signal conditioned output in ranges from ±2 to ±500 g, and features ASIC that offers temperature compensation from -55 to +125°C. MEMS sensing element is gas dampened for optimum frequency response and includes mechanical over-range stop that offers shock protection up to 10,000 g. Hermetically sealed accelerometer can be used by test engineers preferring detachable cable assembly.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Aug 21, 2008 Including Models SEN040F and SEN041F with 1 and 10 mV/g sensitivity, respectively, Series SEN04xF measures workers' exposure to hand-arm vibration (HAV). Devices feature miniature 4-pin connectors, heavy-duty cables that interface directly with HVM100 Human Vibration Exposure Monitor, and low-pass filtering circuits that minimize false readings from shock and mechanical resonances. Accelerometers can be mounted onto range of mechanical adapters for HAV studies.

Phidgets, Inc.    Calgary, AB T2M3R7  Canada
Aug 21, 2008 Designed to connect into analog input on 1018 PhidgetInterfaceKit 8/8/8 or on PhidgetTextLCD, Model 1122 AC/DC Current Sensor measures AC current up to 30 A and DC current from -30 to +30 A. Features include current conductor resistance of 1.5 mW, output impedance of 1 kW, and active current consumption of 10 mA. Maximum measureable AC frequency is 10 kHz.

Crowcon Detection Instruments Ltd.    Erlanger, KY 41018
Aug 20, 2008 Measuring 70 x 179 x 42 mm, LaserMethane® mini uses Tunable Diode Laser Absorption Spectroscopy to detect ppm levels of methane from distances up to 100 m. Portable, handheld solution features automatic ranging, color LCD, 5-hr battery, and IP54 construction. Zone 1 area rating allows for on-plant use as well as detecting escapes in hard to reach or inaccessible areas. Unit performs self-check on start-up and verifies operation and calibration of laser diode.

Balluff, Inc.    Florence, KY 41042-0937
Aug 20, 2008 Designed specifically for replacement of worn out or obsolete position feedback systems used by aircraft flight simulators, Micropulse Linear Position Transducer and Interface Module features internal LCD screen for parameter display, and pushbutton tuning for quick setup. In most cases, Micropulse solution is both mechanically and electrically compatible, down to host system connector plug.
