Custom Sensors & Technologies (CST)    Moorpark, CA 93021
Nov 20, 2008 Designed to measure airflow, P992 features pressure ranges of 0-2 to 0-10 in. H₂0, ceramic MEMS sense element, and plastic composite housing. Model P356 features ceramic capacitive sense element, brass housing, pressure range of 0.5 to 0-5 psi gauge/differential, and is suited for measuring propane or natural gas flow. Fully temperature compensated P992 and P356 offer 0.25-0.45 and 0.5-4.5 Vdc linear amplified output proportional to pressure, respectively.

OmniVision Technologies, Inc.    Sunnyvale, CA 94089
Nov 20, 2008 Housed in lead-free QFP package, 1-megapixel Model OV9710 is built with OmniPixel3-HS(TM) technology, which enables it to operate in virtually every lighting condition, from bright daylight to nearly complete darkness. Unit provides full-frame, sub-sampled or windowed 8-bit/10-bit images in raw RGB format via digital video port. Suited for wide-angle applications, ¼ in. sensor delivers full-frame video at 30 fps and VGA resolution at 60 fps.

Thermo Fisher Scientific    Waltham, MA 02454
Nov 20, 2008 RDO Pro DO Sensor incorporates online optical dissolved oxygen sensor technology, which offers superior resistance to both photo bleaching and abrasion by aggressive process media. Suited for wide variety of municipal and industrial water treatment applications, product employs smart sensor technology, and compliments online liquid analytical sensors for pH/ORP, conductivity, dissolved oxygen, ozone, free chlorine, turbidity, and suspended solids.

STMicroelectronics    Lexington, MA 02421
Nov 19, 2008 Featuring 1,024 x 512 pixel format and 7.14 V/lux sensitivity, VL5510 feeds decision-making vision processor that activates functions such as active braking and lane-departure warning. Range of CMOS sensor provides optimal image quality even in extreme illumination, providing real-time information for vision-based advanced driver assistance systems (ADAS). Features such as programmable output image size and frame rate let ADAS manufacturers tune system for each application.

BlueView Technologies    Seattle, WA 98103
Nov 19, 2008 Suited for deep operations of Oil and Gas industry, DP900-90 miniature multibeam imaging sonar is small enough to mount with ROV's main camera system. This acoustic underwater vision system has 90° imaging field of view, which aids ROV operators in low-visibility navigation and operations. It is available with Impulse MSSJ or Schilling SeaNet connector, facilitating integration onto most work-class ROVs.

Koslow Scientific Co.    Englewood, NJ 07631
Nov 19, 2008 With no size limitation to test piece, Model 2026 Passivation Tester measures corrosion tendency of stainless steel surfaces. Unit detects surface free iron through galvanic process, which is measured as voltage. Measurement can be repeated over surface of test part and at sensitive spots, such as seams and welds. In addition to all chromium containing stainless steels, Model 2026 is suited for use with precipitation-hardened steels such as 17-4, 15-5, and 17-7.

Spinwave Systems,Inc.    Westford, MA 01886
Nov 18, 2008 Offering plug-and-play functionality, field kit helps users monitor building's energy usage, indoor air quality (CO2), occupant comfort (temperature and RH), as well as equipment current consumption. Information is transmitted wirelessly for on-site and remote energy measurement, and Excel-compatible data can be viewed onsite, sent via FTP to remote server, or sent to Web server. Components include indoor environmental conditions monitor(s), wireless pulse counter(s), and receiver.

Novotechnik U.S., Inc.    Southborough, MA 01772
Nov 18, 2008 Operated by 5 buttons on front panel or remotely via serial interface, MAP 4000 Series includes programmable input selection and mathematical functions as well as up to 4 limit switches. Multifunctional inputs are programmable for potentiometers, DC voltage, current/voltage, resistance, and temperature sensors. Providing isolated RS 232 or RS 485 outputs, MAP 4000 Series offers measurement range of -99,999 to 999,999 with accuracy of 0.1% +1 digit of full scale.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Nov 17, 2008 Model GFD detects and indicates phase of first ground fault condition on ungrounded or isolated system, enabling corrective action to avoid potential hazards resulting from second ground fault. Flashing red LED gives positive fault indication of phase-to-ground fault or lost connection to corresponding phase. Supplied in 94V-0, flame-retardant, black ABS plastic, panel-mount enclosure, unit has detection threshold of 11.7 kW ±20% @ 50 Hz and 9.3 kW ±20% @ 60 Hz.

Hubbell Wiring Systems    Newtown, CT 06470

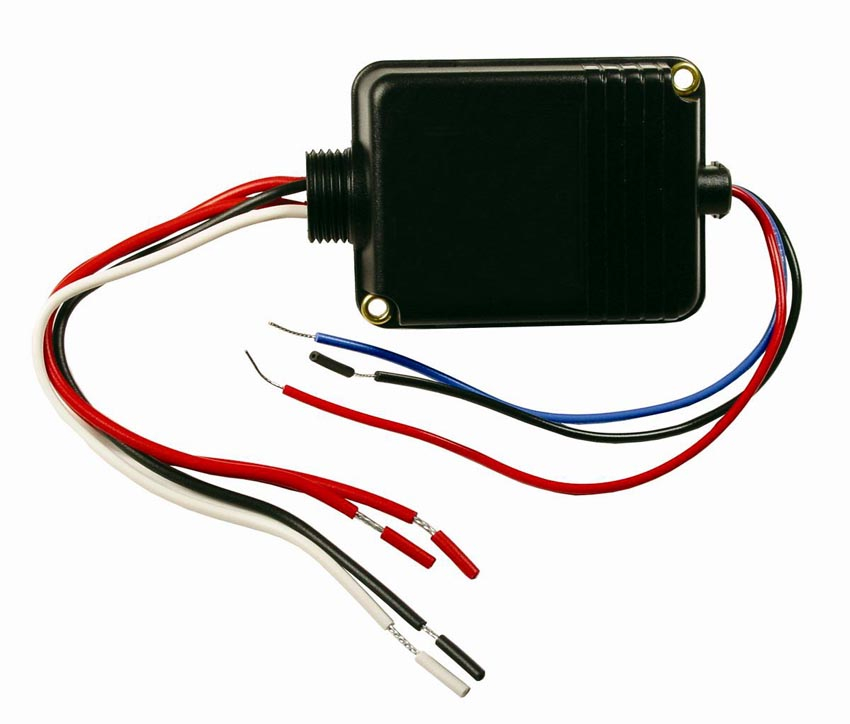

Nov 17, 2008 Supplying 24 Vdc for 1-4 sensors, H-MOSS CU300A Universal Control Unit automatically detects which voltage is needed - 120 V or 277 Vac, 50/60 Hz. It features zero arc point switching, which minimizes relay contact wear associated with high inrush loads. Plenum rated, and UL/cUL certified, unit is used to power Hubbell's ATD, ATP, ATU ceiling and wall mount sensors.

Balluff, Inc.    Florence, KY 41042-0937

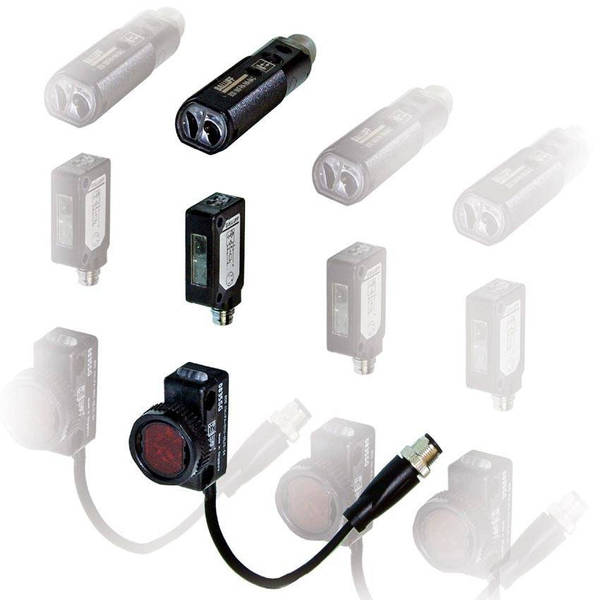

Nov 17, 2008 GlobalEye(TM) series include 3 different form factors, 18 mm threaded combination, small block, and standard 18 mm tube. Each of these are available in background suppression, diffuse, retroreflective, and thru-beam models. Background suppression sensors are able to sense targets and ignore objects behind them, where as diffuse sensors sense target when it reflects light back to sensor. Retroreflective types acquire object when it blocks light coming back to sensor from reflector.

Kistler Instrument Corp.    Amherst, NY 14228 2119
Nov 17, 2008 Designed for injection molding process analysis and quality assurance, CoMo Injection Type 2869B Monitoring System provides support for up to 24 channels for pressure and temperature sensors. Real-time functionality for cascade control allows opening, closing, or activation of needles by means of pressure signal or to be timed on absolute or differential basis. System features software interface v2.0 and optional 12.1 in. TFT color touchscreen display.

Loadstar Sensors, Inc.    Mountain View, CA 94043
Nov 17, 2008 Designed to automate process of replenishing inventory at customers' point-of-use sites, iVMIT Intelligent Vendor Managed Inventory Solution monitors level of parts in bin by weighing contents. Weight information is transferred from sensor to PC running eTurns software via USB or wireless protocols. After number of parts in each bin is compared to set minimum/maximum levels, suggested orders or alerts are automatically sent to buyers or stockroom managers.

Advanced Micro Controls, Inc.    Terryville, CT 06786
Nov 14, 2008 Available in SSI and analog output versions, ME15 series size 15 rotary shaft encoder has dia less than 1.5 in. and is designed for heavy-duty operation. IP67 rating protects against dust and moisture and sturdy machined housing is resistant to shock and vibration. Operating over -40 to +85°C range, encoders utilize diametrically polarized magnet and custom ASIC that contains array of Hall sensors. Series is capable of operating in areas with high external magnetic fields.

IBAG North America    North Haven, CT 06473
Nov 14, 2008 Through pre-positioned sensors, Argotech PA-4 provides continuous monitoring of repeating machine processes in real-time. Four sensor inputs provide tool wear or fracture detection, collision protection, machine and tool load, as well as 1 or 2 critical dimensions of parts. Display shows optimum production and deviations from pre-set tolerance limits where alarm can be generated and production is shut down. In addition, system can be used in unmanned production operations.

Max Machinery, Inc.    Healdsburg, CA 95448
Nov 14, 2008 Compatible with fluid viscosities ranging from 5-100,000 cP, stainless steel Gear Flow Meters cover max flow rates of 4, 15, 45, and 105 l/min with 0.3% of reading accuracy across 100:1 flow range. Meters incorporate linearizing transmitter and microprocessor circuitry that automatically adjusts output signal to optimize accuracy. Compliant with RoHS and CE Certified, meters are suited for hydraulic testing, motion control, and precision dispensing.

Rohrback Cosasco Systems    Santa Fe Springs, CA 90670
Nov 13, 2008 Suited for small scale systems or as building block to full ICMS3 Corrosion Management System, Intelligent Interface Unit provides real-time corrosion rates, erosion rates, and pitting tendency in water systems. System integrates RCS digital Microcor, Quicksand, and Corrater corrosion monitoring transmitters to or through SCADA or DCS system. With Symantec PC Anywhere or Microsoft remote desktop, users can access data systems for configuration and graphical interface remotely.

Gems Sensors Inc.    Plainville, CT 06062
Nov 13, 2008 Suited for drinking water dispensing applications, TurboFlow FT-330 series of turbine flow rate sensors feature Hall-effect turbine technology which is not influenced by changes in system pressure caused by aging filters. Unit is available in 2 flow ranges. Wetted parts of OEM flow sensor are made from FDA-approved materials including Noryl, polyamide or nylon composite, Delrin and 316 stainless steel.

Prologue Technology Inc.    Ontario   Canada
Nov 13, 2008 Consisting of microcoil sensor and linear or rotational target, Incremental Encoder Kit offers speeds up to 50 m/s, resolution below 1 µm, and airgap up to 1 mm. Various output formats are available, including A quad B, analog ratiometric, or PWM. Resistant against liquids and mechanical impact, targets consist of single-sided PCB with one copper layer covered by solder mask. Rotational targets with different diameters and linear targets up to 300 mm are available.

Supercircuits    Austin, TX 78759
Nov 13, 2008 Wireless alarm system can be programmed and modified from wireless alphanumeric keypad, computer USB, or remotely over internet, phone or via text message. Built in RF card reader can enroll up to 50 RF tags and 50 user codes. Sensors in unit come with sensing range of 100 m which can be extended by optional antenna. Device is suited for difficult installs such as post construction, two-story buildings or construction with difficult accessibility factors.
