Schneider Electric    Palatine, IL 60067-7399

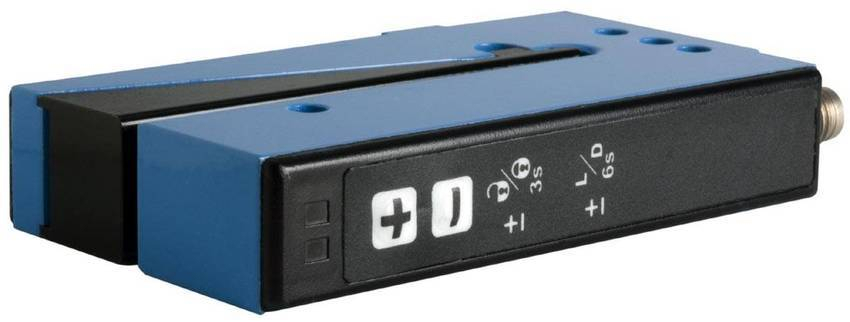

Dec 02, 2008 Leveraging thru-beam technology, XUV Fork Ultrasonic Sensor can detect labels of any material, size, color, or translucency and allows for manual adjustments on-the-fly. Keys on sensor allow for real-time modifications based on material thickness, which can range from 0.001-0.003 in. Rated to IP65, sensor also can be locked to avoid unnecessary adjustments and will retain its settings even if it is powered down and turned back on. Operating range is 41 to 131°F.

Schroeder Industries LLC    Leetsdale, PA 15056-1025
Dec 02, 2008 Testmate Monitoring Unit measures solid particle contamination in hydraulic systems, and measurement accuracy is ±½ ISO code. It features automatic measurement and display of cleanliness ratings as ISO 4406:1999, SAE AS 4059, and NAS 1638. Unit has viscosity range of 46-1,622 SUS, and measures particles whose sizes are greater than 4, 6, 14, and 21 microns. Integrated pump and hoses with test point connections allow operation on reservoirs, control circuits, and high pressure circuits.

FUTEK Advanced Sensor Technology, Inc    Irvine, CA 92618

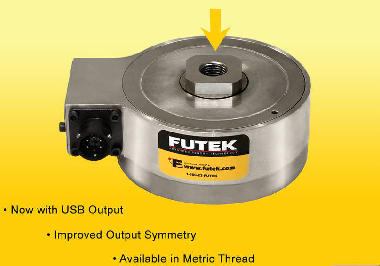

Dec 01, 2008 Featuring one-piece, heat-treated 17-4 stainless steel construction, Model LCF400 is available in 500-5,000 lb with various outputs of 3 mV/V, ±5 Vdc, ±10 Vdc, and 4-20 mA. Utilizing metal foil strain gauge technology, completely welded tension and compression load cell offers linearity of ±0.10%, bridge resistance of 700 W, and deflection of 0.002-0.005 in. nominal. Standard unit can be modified or customized to meet requirements.

American Sensor Technologies, Inc.    Mt. Olive, NJ 07828

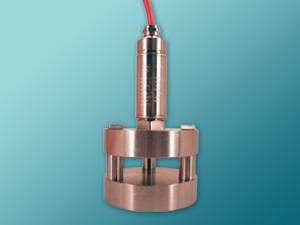

Dec 01, 2008 Approved to UL/cUL913 Class 1, Div 1 IS, Groups C and D with approved barrier, AST4520 suits submersible and level measurement applications. Stainless steel constructed unit operates at temperature ranges of -40 to 185°F. Media isolated, submersible pressure sensor comes with ±0.25% BFSL accuracy, EMI/RFI protection of 100 V/meter and a 4-20 mA output. Flush Diaphragm Steel Cage design allows for proper flow of media while keeping sensor at bottom of tank or well.

Softinventive Lab    Seattle, WA 98124-1069
Dec 01, 2008 With ability to build detailed report on type and time of error or failure, Total Network Monitor v.1.0.1 controls user network, separate computers, and network and system utilities continuously. Software checks HTTP, FTP, SMTP/POP3, IMAP, event log, service state, and registry servers. It also alerts user in case of failures and unpredictable errors.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Nov 28, 2008 Series FAFM Fan Inlet Air Flow Measuring Probes utilize evenly distributed total and static pressure measuring points to measure flows in fan inlet. Installed from outside of fan, lightweight, durable units can be ordered to fit inlets with diameters ranging from 6-96 in.

Turck USA    Minneapolis, MN 55441
Nov 26, 2008 Featuring compact rectangular housings that can be mounted at ±10, ±45, ±60, and ±85° angles, Dual Axis MEMS Inclinometer Sensor measures angular tilt in reference to gravity. It incorporates micro-electro-mechanical capacitive element, and IP67 rated unit provides 2 analog outputs of 0.1-4.9 Vdc or 2 current outputs of 4-20 mA, and operates in -30 to 70°C temperatures.

Analytical Technology, Inc.    Oaks, PA 19426

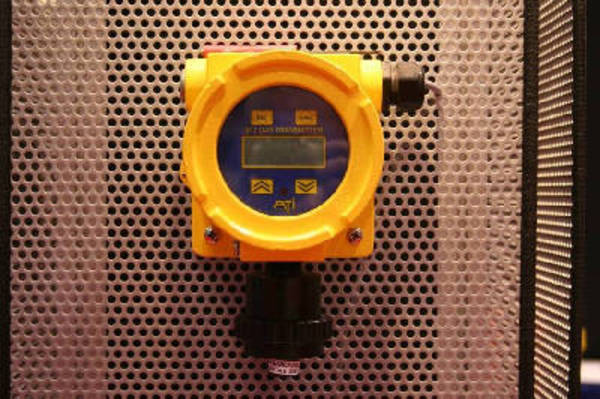

Nov 25, 2008 Targeting water and wastewater treatment applications, 2-wire, loop-powered Model D12 uses electrochemical sensor for toxic gases and catalytic bead for combustible gases, which offer accuracy levels of ±10% of value. Unit includes AutoTest feature, which generates small sample of gas every 24 hours to verify operation. Device features menu-driven set up pages and large LCD numerical display so gas values can be read along with alarm indication.

Time Mark Corp.    Tulsa, OK 74116 2019

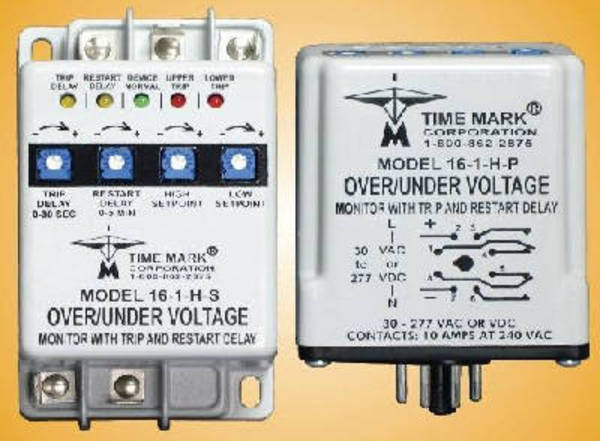

Nov 25, 2008 Offered as MCU-based sensing circuit, Model 16-1 protects equipment from over, under, over/under voltage, and rapid cycling conditions. Trip and restart delays are respectively adjustable from 0-30 and 0-300 sec or can be disabled. Input voltages for alternating low range and high range versions is 12-30 Vac/Vdc and 30-277 Vac, respectively, and response time is 48 msec (less than 100 mS with relay flight time). Surface-mount and 8-pin socket versions are available.

Electro-Chemical Devices, Inc.    Yorba Linda, CA 92887

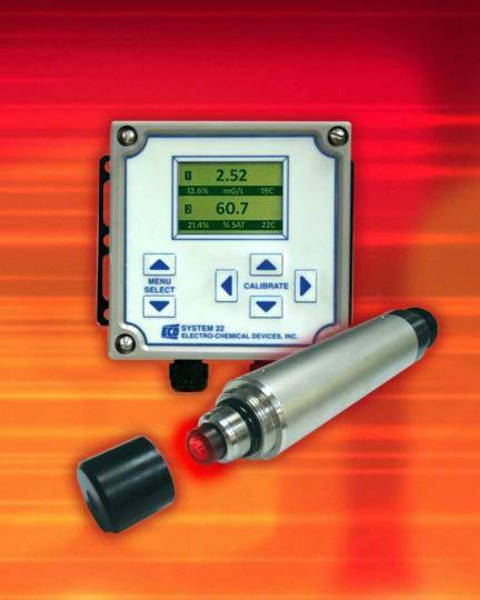

Nov 25, 2008 Featuring maximum error rate of less than 2%, Triton DO8 offers repeatability of ±0.5% and resolution of 0.01 ppm or 0.01% saturation. It provides 3 different outputs including 0-20 ppm, 0-200% saturation, or 0-500 psi, withstands ambient temperatures from 0-140°F, and records measurements at 20-120°F. Self-monitoring unit uses fluorescence quenching (FQ) optical technology coupled with microprocessor-based electronics, and stores calibration data within sensor.

Lowrance    Tulsa, OK 74128
Nov 25, 2008 Featuring GPS-Chartplotter and Fishfinder combination units, HDS-5, with 5 in. 480 x 480 pixel cold-cathode display, and HDS-7, with 6.4 in. 640 x 480 pixel VGA display, incorporate Lowrance Broadband Sounder technology that eliminates clutter/noise in water column. Devices include 16-channel GPS+WAAS antenna and backlit screens and keypads. Compatible with Lowrance HD radar systems, waterproof units can operate standalone or be integrated via Ethernet and NMEA 2000 networks.

GE Intelligent Platforms    Charlottesville, VA 22911
Nov 24, 2008 When configured with IMP20 Video Processing Mezzanine Card, ADEPT104 and AIM12 provide system for detecting, tracking, stabilizing, and fusing images from multiple sensors and cameras in real-time. Full-frame, multi-resolution image fusion algorithm enables intelligent management and interpretation of multiple parallel visual information streams. Also included, warp engine provides rotation, scaling, and translation for each video source to compensate for distortion/misalignment.

New Scale Technologies    Victor, NY 14534
Nov 24, 2008 Offering alternative to miniature optical encoders, TRK-1T02 TRACKER Magnetic Sensor offers 2 µm resolution and can be used as linear encoder or off-axis rotary encoder. Measuring 8.5 x 11.5 x 1.61 mm, unit does not require light source and is insensitive to external light, shock, vibration, and high-particulate environments. On-chip encoder provides direct digital output using standard I2C protocol, eliminating need for external pulse counters.

Gems Sensors Inc.    Plainville, CT 06062
Nov 24, 2008 Intended for non-contact applications, UCL-510 Ultrasonic Level Sensor combines 4 relays, 4-20 mA output, and pump/valve control in one unit for total fluid handling and automation solution. Product is built for small tank applications (49.2 in. or less) and offers switch, controller, and transmitter capabilities. Featuring 2 in. dead band and PC interface for configuration, sensor is suited for corrosive and dirty applications and is virtually maintenance-free.

Mark-10 Corp.    Copiague, NY 11726
Nov 21, 2008 Accommodating range of applications, TSTM-DC motorized torque test stand offers 100 lb-in. capacity and integrated angle indication with RS-232 data output. Modularity enables configuration to test requirements, while lever-operated slider with travel stops facilitates and accelerates sample engaging and disengaging. While able to be fully controlled by PC, universal tester can also be configured to stop at or cycle between programmable angle limits or torque limits.

Fluid Components Intl.    San Marcos, CA 92069 5115
Nov 21, 2008 Suitable for pipe sizes from 2.5-120 in., Model ST98HT measures air/gas mass flow rate, totalized flow, and temperature in single instrument. Insertion-style unit is designed with direct mass flow sensing element that is accurate to ±1% of reading, and ±0.5% of full scale, with repeatability of ±0.5% of reading. Operating over flow range from 0.75-600 sfps with turndown ratio up to 100:1, meter provides linearized 4-20 mA output and HART 2-way communications.

Fife Corp.    Oklahoma City, OK 73126
Nov 21, 2008 Eliminating need for printed elements used solely for guiding, such as striker line, SE-46 Line Guide Sensor offers features that demonstrate ability to guide to existing 1D graphics on printed package. Requirements for printed elements are minimal, including minimum line width 0.02 in. and smallest detectable feature of 0.146 in. at 600 m/min. Clearance between printed elements is reduced to .008 in., and scan frequency and proportional band allow for accelerated press speeds.

Setra Systems, Inc.    Boxborough, MA 01719
Nov 21, 2008 Designed for critical environments, Model 269 is provided with removable process head, allowing for field certification without disturbing process tubing. Digitally-based differential pressure transducer offers accuracies including non-linearity of ±0.15% and ±0.35% full scale (terminal-based). Installation is via either base mount or din rail, and removable electrical terminal strip simplifies wiring.

Contrinex AG    Old Saybrook, CT 06475

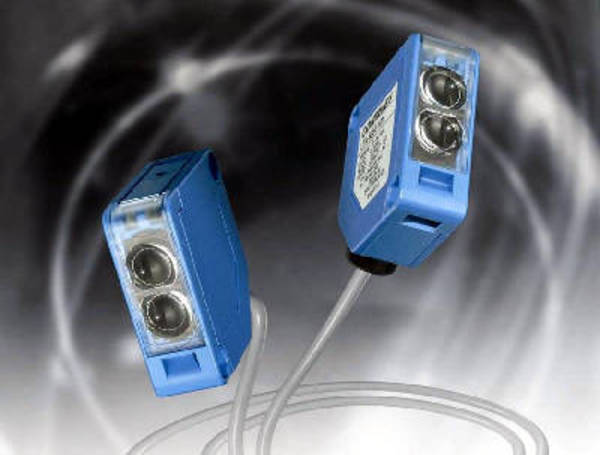

Nov 20, 2008 Built in 50 x 50 mm format with 10-36 Vdc supply range, 5050 Series is available in diffuse, retro-reflective, and through-beam models with sensing distances of 800 mm, 4 m, and 50 m, respectively. Units can be supplied in NPN or PNP versions with 2 m cable or S8 4-pin plug configuration. Lens window material is PMMA plastic, making sensors suited for food and pharmaceutical industries. Diagnostic or excess gain function can be selected, which monitors visible red light detected.

Bunting Magnetics Company    Newton, KS 67114 0468
Nov 20, 2008 Without interrupting production, Quicktron 05 RH detects and rejects metal contaminants from free-falling bulk materials. It features round apertures from 2-12 in. dia, and all product contacting parts are made from food-grade materials such as stainless steel, polypropylene, silicone, and Teflon®. Metal detector coil is enclosed by multiple anti-static layers and integrated interference shield to ensure complete immunity from external interference.
