Koehler Instrument Co., Inc.    Bohemia, NY 11716
Mar 05, 2009 Heated Oil Test Centrifuge incorporates LCD touchscreen control panel that can be used to govern centrifuge rotation speed, turn heat on/off, set duration of test, and choose type of rotor assembly and corresponding glassware to be used during test. Manufactured to meet Class 1, Division 2 explosion resistant rating, system conforms to range of Standard Test Methods and features top-opening lid that provides access to rotor and tube holders and features 18½ in. dia viewing window.

Baumer Ltd.    Southington, CT 06489 1534

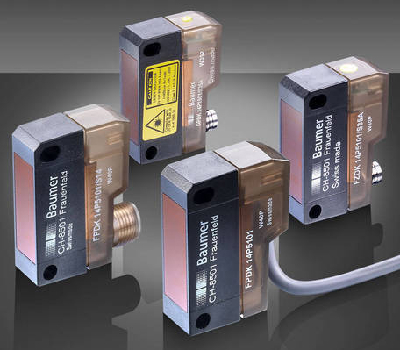

Mar 04, 2009 Reliant upon LED or laser light sources, Series 14 sensors detect presence, placement/orientation, or size of objects. They are available with 3 methods of operation - thru-beam, retro-reflective, diffuse - and have integrated channel that lets cable lay flush against sensor housing for limited-space installations. Along with transparent rear housing for viewing operation/reception LEDs, available features include molded M12 (S14) connector and metal 4-pin M8 connector (S35A).

Dynapar    Gurnee, IL 60031
Mar 03, 2009 Using magnetic coupling technology, NorthStar HDN and HDP Series eliminate encoder shafts, bearings, and seals. Target magnet, in form of bolt or collar, can be affixed to rotating shaft or equipment that requires position or speed sensing. Electronics are completely sealed and encapsulated in clear potting compound, which allows visibility of status LEDs that monitor signal output. Available in incremental or absolute output format, encoders are suited for very dirty environments.

E Instruments International LLC    Langhorne, PA 19047
Mar 03, 2009 With accuracy of ±1% rdg. + 0.2 mbar and 128 x 128 pixel backlit LCD display, MP100 manometer suits application in HVAC industry. It includes leak test procedures and air velocity with density compensation. Measuring 5 x 2.5 x 1.25 in., product also comes with pressure tubes, battery, and 11 pressure units including Pa, psi, mbar, bar, mm H₂O, and in. H₂O.

KWJ Engineering Inc.    Newark, CA 94560
Mar 03, 2009 Measuring 2.66 x 1.40 x 0.61 in., Pocket CO Model 300 carbon monoxide detector, alarm, and dosimeter weighs less than 1 oz and has 0-500 ppm range. It warns of dangerous low and high CO levels, with first alarm at 50 ppm, second at 125 ppm, and third at 400 ppm. There is also 8 hr TWA warning alarm at 25 ppm. With response time of less than 90 sec, monitor produces readings on digital LCD with 1 ppm resolution. It can also monitor cumulative CO exposure over 12 hr period if necessary.

Azima DLI    Woburn, MA 01801
Mar 03, 2009 Using DCA-60(TM), plant technicians can collect vibration data and diagnose machine faults on-site or transmit data via Internet to Azima DLI expert analysts as part of WATCHMAN Analysis(TM) program. Unit is capable of simultaneous 4-channel vibration data collection, offers wireless connectivity and multimedia support, and provides 80 GB for data storage. Also included, onboard ALERT(TM) machine vibration analysis software provides various diagnostic tools.

Ashcroft Inc.    Stratford, CT 06614

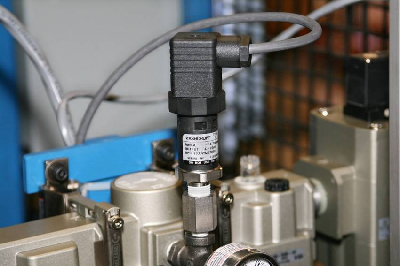

Mar 02, 2009 Available in ranges from vacuum through 0/20,000 psi, Ashcroft® T2 features static accuracy of ±0.25% FS at 21°C and digital temperature compensation that ensures Total Error Band better than ±1% between -20 to +85°C. Unit can be configured with variety of process connections, output signals, and electrical termination options. Able to withstand overpressure, shock, vibration, and extreme pressure cycling, transducer is suited for industrial applications.

Dwyer Instruments, Inc.    Michigan City, IN 46361

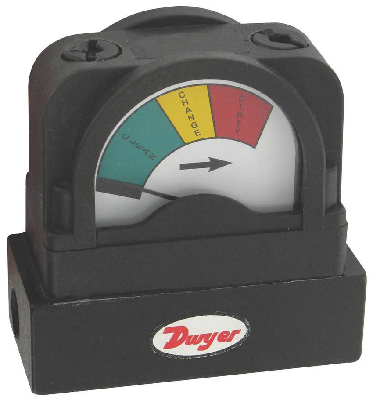

Mar 02, 2009 Intended for applications that require filter status check, Series PFG determines pressure drop on either side of filter through ¼ in. female NPT pressure connections, and relates value to 1 of 3 zones. Green indicates clean, while yellow recommends change, and red means filter is dirty. In addition to filter applications, Series PFG is suited for line loss, valve drop, and other differential pressure applications where indicator is needed.

GAO Tek Inc.    Toronto M1B2K4  Canada
Mar 02, 2009 With ability to verify capability of cable to transmit xDSL signals, GAO 5221 xDSL tests Vac/Vdc of copper twisted pair cable, resistance, ac/dc current, capacitance, frequency response, noise, DMT, and load coils. Measuring 260 x 190 x 70 mm, and weighing approx. 1.9 kg, unit has impedances of 75, 100, 120, 135, and 150 W and automatic. Other features include manual or auto TDR test, 640 x 480 pixels LCD graphic display for test results, and ac/dc or internal battery power supply.

STMicroelectronics    Lexington, MA 02421
Feb 27, 2009 Featuring ¼ in. optical format, 3.15-megapixel Models VD6853 and VD6803 provide integrated Extended-Depth-of-Field capabilities ranging from 15 cm to infinity. Units include image enhancement filters and 4-channel anti-vignette to balance uneven illumination. Model VD6803 is available with 10-bit parallel legacy interface, while Model VD6853 features CCP2 interface. Enabling camera modules as small as 6.5 x 6.5 mm, sensors are suitable for mobile phones, laptops, and machine vision applications.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Feb 26, 2009 Featuring 6 in. dial face as well as wetted parts of 316SS and Fluoroelastomer (FKM), Series CLG Cryogenic Level Gage is available with aluminum, brass, or stainless steel body and suited for liquid level, line loss, and valve drop applications. Flexible elastomer diaphragm design provides accurate (±3-2-3%), direct-acting, low-range differential pressure indicator. Construction is also resistant to effects of expansion/contraction due to temperature shocks.

Dytran Instruments, Inc.    Chatsworth, CA 91311

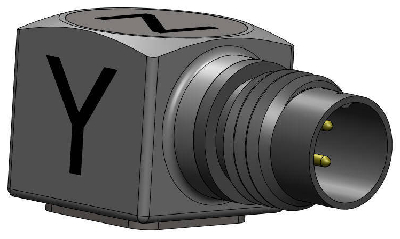

Feb 25, 2009 Weighing 2.7 g, 3273A series features laser-welded titanium design with ceramic sensing elements coupled to JFET electronics; noise floor is 0.0012 or 0.0002 Grms depending on model. Labels of axes X, Y, and Z are laser-marked in large font size on 3 orthogonal faces, which aids the user in orienting sensor. Designed for modal analysis testing, these IEPE accelerometers are available in sensitivities of 10, 50, and 100 mV/g and offer low end frequency response of -10% down to 0.31 Hz.

Michell Instruments    Rowley, MA 01969

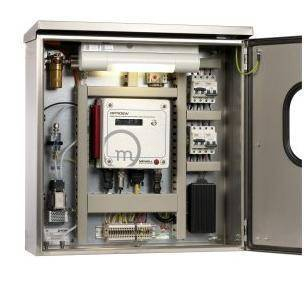

Feb 25, 2009 Optidew Hygrometer incorporates Optidew chilled-mirror principle that provides repeatable, drift-free measurement from -50 to +90°C dew point over -10 to +90°C. Rugged with minimal maintenance required, chilled mirror hygrometer also includes Dynamic Contamination Correction (DCC) system. Interfacing software enables configuration of two 4-20 mA output signals and RS232 provides custom data logging with Windows-based configuration software.

Allegro MicroSystems Inc.    Worcester, MA 01615
Feb 25, 2009 Models A1220 and A1221 include dynamic offset cancellation for high-temperature performance. Each unit features silicon chip with voltage regulator, Hall-voltage generator, small-signal amplifier, chopper stabilization, Schmitt trigger, and short-circuit protected open-collector output that can sink up to 25 mA. On-board regulator permits operation with supply voltages of 3.0-24 V. Package types include LH for surface mounting and UA for through-hole mounting.

E Instruments International LLC    Langhorne, PA 19047
Feb 24, 2009 GreenLine 8000LBH simultaneously measures stack gas concentrations, velocity, and temperature to then calculate, record, graph, and report mass emissions in lb/hr for gases including CO, NO, NO2, True NOx, SO2, CO2, and H2S. It has low NOx and true NOx (NO+NO2) capabilities and offers CO sensor dilution with auto-ranging up to 10%. Other features include built-in peltier chiller with automatic water drain, heated probe and hose, and Bluetooth based remote control and display unit.

Lloyd Instruments Ltd. Forum House    Hampshire Hants  United Kingdom
Feb 24, 2009 Using solvent-free process, Davenport PETPlus Intrinsic Viscosity Measurement Instrument enables polymers to be tested at all stages of process to eliminate scrap. MPU-controlled, stand-alone system can complete Intrinsic Viscosity (IV) tests in less than 20 min, stores up to 600 test results, and provides temperature control to +0.1°C. Supplied with integral nitrogen regulation valve, unit requires only power and pressurized nitrogen supply for operation.

Rockwell Automation    Milwaukee, WI 53204
Feb 24, 2009 Dedicated safe-speed monitoring relay, Guardmaster Minotaur MSR57P, lets personnel enter hazardous areas while motion is present without hindering plant productivity. It supports various input devices - E-stops, light curtains, enabling switches, interlock switches - that detect demands on safety system and initiate motion stop request. Programmable to accommodate application-specific variables, relay also monitors personnel in hazardous area while machine is in safe-speed condition.

Kistler Instrument Corp.    Amherst, NY 14228 2119
Feb 24, 2009 Used to measure pressure in diesel engine glow plug adapters, 6056AU20 operates over -20 to +350°C range and withstands pressures up to 300 bar. Reinforced diaphragm makes unit suited for applications where nominal pressure exceeds 200 bar and extreme pressure increases are also to be expected. Exhibiting natural frequency of 160 kHz, sensor delivers non-linearity of less than ±0.4 FSO.

American Sensor Technologies, Inc.    Mt. Olive, NJ 07828
Feb 23, 2009 Featuring single seal approval and all-stainless steel construction, media-isolated AST46HA comes in one-piece, non-oil filled design that enables continuous operation at extreme ambient temperatures from -40 to +185°F. It also offers compensated temperature range of -22 to +131°F and media temperature range of -40 to +250°F. Optimized for linearity and repeatability, product delivers standard ±0.1% BFSL accuracy and EMI/RFI protection of 100 V/m.

Cornell Communications, Inc.    Milwaukee, WI 53223
Feb 23, 2009 Providing centralized monitoring of alarms and calls for assistance, data logging, and broadcast notification, AURA 2.0 alerts staff by e-mail, instant text messages to cellular phone, and in-house paging to pocket pagers. Annunciator directs staff to specific resident or room that needs assistance, while system allows for use of both wired and wireless devices to monitor. Product integrates seamlessly with existing systems providing fully connected monitoring and alert system.
