eV Products    Saxonburg, PA 16056
Feb 03, 2010 Based on Cadmium Zinc Telluride detector technology, eValuator(TM)-1000 Solid State X-ray and Gamma-ray detector features energy range of 20-130 keV and operates in temperatures from 5-50°C. Measuring 2.5 x 1.25 x 3.25 in., unit includes high-voltage power supply and power/count/error LED indicator. CdZnTe detectors offer power input of 5-15 V and positive TTL pulse analog bipolar signal of ±4 V max. Vertically or horizontally mounted, it is suitable for various gauging and inspection applications.

TURCK, Inc.    Plymouth, MN 55441
Feb 03, 2010 Measuring 2.9 x 4.6 x 18 mm, BIM-UNR magnetic position sensor mounts within C-groove cylinders with no accessories required. It incorporates 1.5 mm hexagon mounting screw to securely mount sensor, and screw is located near cable exit to ensure sensor remains fastened even if cable is pulled. Active sensing element is located at bottom of groove to provide reliable detection on short-stroke cylinders. Unit features EMC immunity in accordance with EN 60947-5-2.

Hunter Industries    Cary, NC 27511
Feb 03, 2010 Hard-Wired Rain/Freeze-Clik(TM) Sensor has Quick Response(TM) feature that shuts irrigation system down as soon as it starts raining. Enclosed in polycarbonate housing, device also offers freeze detection that shuts off system when temperatures fall below 37°F to avoid ice build up on landscapes, walkways, or roadways. Slots on side of housing let air flow around sensor to enable accurate temperature readings. Metal extension arm and 25 ft of wire are included.

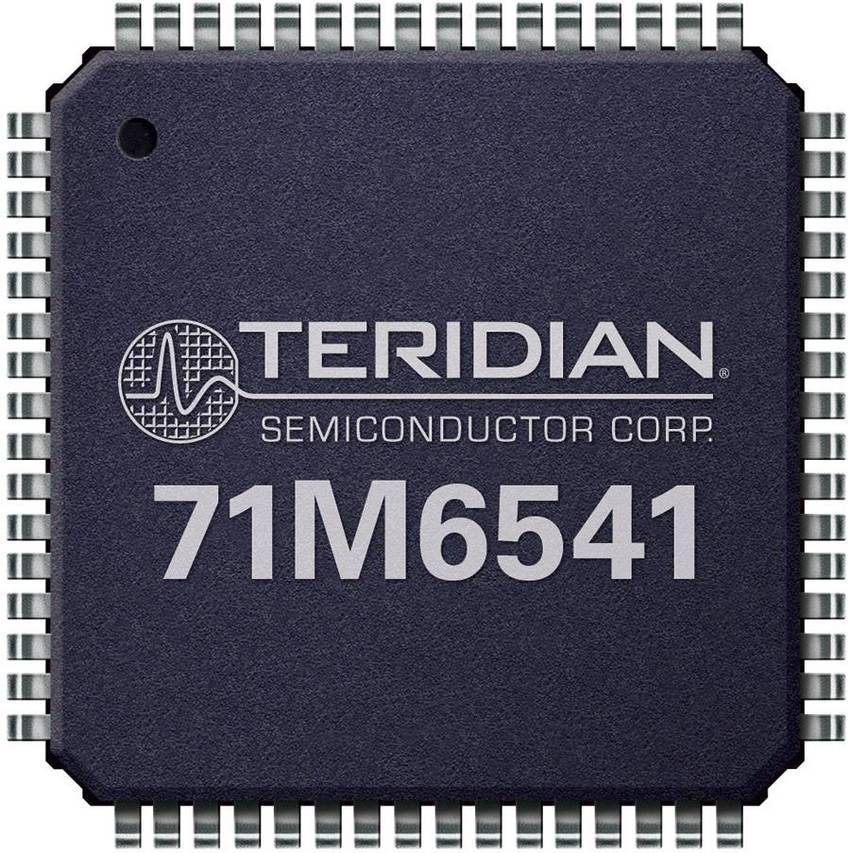

Teridian Semiconductor    Irvine, CA 92618-5201
Feb 03, 2010 Offered in 64-pin LQFP with 32/64 KB Flash options, 71M6541x series is comprised of stand-alone meter SoCs for single-element meters. Supplied in 8-pin SOIC packages, 71M6xx1 isolated sensor ICs offer up to class 0.2 accuracy and eliminate current transformer and associated copper wiring in 2-element residential meters. Single Converter Technology(TM) delivers better than 2000:1 dynamic range, and 32-bit programmable metrology engine can be adapted to meet changing customer requirements.

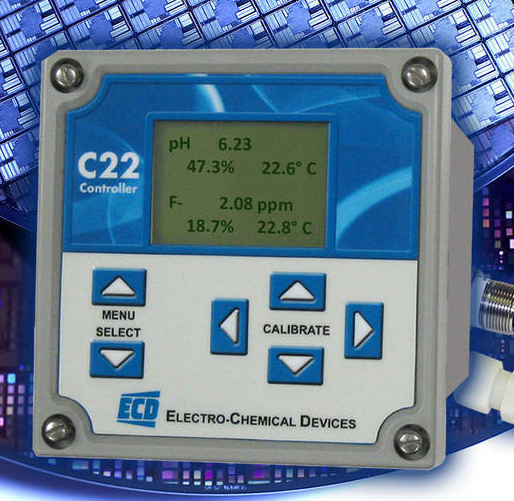

Electro-Chemical Devices, Inc.    Yorba Linda, CA 92887
Feb 02, 2010 Fluoride Monitoring System includes System C22 Smart Controller with multi-Bus design, which enables customization of up to 4 inputs and 6 outputs in ½ DIN NEMA 4X enclosure. Product also includes S10 and S17 Fluoride pIon Sensors with cartridges that measure fluoride ions in concentrations from 0.02-2,000 ppm over pH range from 5-8 pH. Replaceable electrode cartridges can be selected to measure pH as well as ORP, dissolved oxygen, conductivity, and resistivity.

Ophir-Spiricon Inc.    Logan, UT 84321
Feb 02, 2010 Available in 4 models, PD300-R Circular Photodiode Sensors feature round geometry and SM-1 threads for mounting/centering on collinear optical bench systems. They include filter that minimizes light level on detector and allows for measurements up to 30 mW without saturation, while second, removable filter allows measurements up to 3 W. Low-noise energy detectors measure wavelengths up to 1,800 nm and work with all Ophir smart meters and PC interfaces.

Integrated Device Technology, Inc.    Santa Clara, CA 95054
Feb 02, 2010 Targeting DDR2/DDR3 memory modules, as well as SSDs and computing motherboards, TS3000B3 and TSE2002B3, with integrated 256-byte EEPROM array, measure local temperature of various subsystems in computing systems. Products enable system controllers to respond if temperature rises above pre-determined levels by adjusting system bandwidth, memory refresh rates, or fan speeds. Sensing accuracy is ±1°C over -20 to +125°C range, and full support is provided for SMBus and I²C interfaces.

HD Electric Co.    Waukegan, IL 60085
Feb 01, 2010 Designed to read voltage on conductor from 0.1-500 kV line-to-ground, direct contact DVI-500 displays voltage on large 3-digit ultra-bright LED display. Compact unit provides audible indication when voltage is detected, allowing user to distinguish between nominal and induced voltages. Display is easy to read on end of long hotstick and can be used on overhead lines or in underground applications.

Control Co.    Houston, TX 77258 8307
Feb 01, 2010 Facilitating unattended filling of any container, Liquid Alarm detects when containers are close to overfilling, and sounds high-decibel alarm and flashes red LED light until liquid no longer touches sensor. It can also be placed on floor to detect spills and can be used with aqueous solutions and liquids that don't attack plastic. Measuring 1 13/16 x 3 x ¾ in. and weighing 2½ oz, battery operated unit can alarm constantly for 30 hr and comes with 10 ft long cable and 9 V battery.

Sherborne Sensors Limited    Hampshire RG21 6YH  United Kingdom
Feb 01, 2010 Available with single, biaxial, and triaxial measurement capabilities, A545 series solid state accelerometers feature advanced MEMS sensor, incorporating air damping. They feature lightweight alloy package with solder pin connectors and provide shock resistance and over-ranging protection. Designed to operate from unregulated DC power source, units have usable frequency responses from DC to several kHz. Applications include DAQ systems, crash testing, and structural surveying.

E+E Elektronik GmbH    Engerwitzdorf A-4209  Austria
Feb 01, 2010 EE46 serves as early alarm system against forming of moisture in HVAC and technical installations that operate close to dewpoint temperature. Able to be installed on pipelines, walls, and ceilings, sensor is exposed to temperature of surface of unit via thermal conducting foil; if 90% RH is exceeded, EE46 provides both signal and LED indication to alert users of situation. Device is powered by 24 Vac/dc .

Omron Scientific Technologies Inc.    Fremont, CA 94555
Feb 01, 2010 Sensorless G9SX-SM monitors standstill status for machines with varied hazardous part stop times. Device detects back electromagnetic force generated when motor rotates to determine whether motor is rotating or in standstill condition. System operates on 24 Vdc, but can monitor motors up to 480 Vac. Available with spring-cage or screw terminal blocks, it provides 3 safety standstill detection outputs and 2 auxiliary outputs. Detailed LED indicators enable fault diagnosis.

QuadTech, Inc.    Maynard, MA 01754
Feb 01, 2010 With Hybrid 2000 4-Wire, companies can test multiple components and automate sub-testing. DCR Balance feature compares resistance within test and compares each point to one another. If failure occurs during multi-point test, Hybrid 2000 uses sub-step feature to automatically re-test each point individually and determine where failure is. Optional temperature compensation eliminates manual recording and testing of multiple limits due to temperature dependency.

Dytran Instruments, Inc.    Chatsworth, CA 91311
Jan 29, 2010 Model 3092C piezoelectric charge output accelerometer is designed for use in vibration studies in high-temperature environments. Operating in temperatures from -60 to +900°F, unit has nominal sensitivity of 5 pC/g and upper frequency range of 5,000 Hz. It features 10-32 radial connector, 10-32 mounting hole, stainless steel construction, and hermetic seal and mates with Model 6894AXX hardline cable assembly.

ifm efector, Inc.    Exton, PA 19341
Jan 29, 2010 Housed in cube-shaped, 32 x 30 x 42 mm package, Model PQ7809 offers measuring range of -14.5 to 14.5 psi, while Model PQ7834 measures from -14.5 to 145 psi. Units feature 2 programmable switching outputs or 1 switching output and 1 diagnostic output. Based on piezo-resistive technology, silicon measuring cell is insensitive to liquids and deposits and provides accuracy of ±0.5%. Sensor can be connected to air lines through G-1/8 port using 6 or 8 mm tubing adapter or 1/8 in. NPT adapter.

Valco Instrument Co., Inc.    Houston, TX 77255
Jan 28, 2010 Designed for plug-and-play installation on Agilent 6890 and 7890 GCs, Model D-3 is optimized for trace level work in helium photoionization mode, and utilizes electronics and power supply of host GC. System includes detector cell, pulser, and FID board, plus standard and mini helium purifiers for optimal sensitivity. Suitable for use with columns from 50 micron capillaries to 1/8 in. packed, Model D-3 is non-radioactive and non-destructive.

Baumer Ltd.    Southington, CT 06489 1534
Jan 28, 2010 Intended for flush-face installation, IP67-rated IFRH Series consists of 2-part proximity switches available in M8, M12, and M18 designs with chromium nickel steel housings. Overall length is 30 mm, and nominal switching distance ranges from 1.5-5 mm depending on housing size. Used in process and OEM applications, inductive high temperature sensors survive -25 to +180°C conditions and feature FEP jacketed cable that connects temperature-sensitive processing electronics to sensor head.

Seiffert Industrial    Richardson, TX 75081
Jan 28, 2010 With Trummeter Pro, users can measure belt tension of pulley-driven transmissions and adjust it accordingly. Device displays tension reading and also indicates if tension is too high or too low. When user induces slight vibration on drive belt, meter will detect vibration and estimate natural frequency of belt assembly. Together with belt mass and length of free belt strand, true force is calculated. Optional evaluation software lets user store and report measured values.

Masoneilan Division, Dresser Flow Solutions    Avon, MA 02322
Jan 28, 2010 Integrating level transmitter, controller, and switch functions in single device, 12400 Series provides process control for refining, petrochemical, and energy industries. Unit includes smart filtering, HART® communication protocol compatibility, optional 4-20 mA analog output, and ability to record and store recent data continuously in non-volatile memory. Controller meets SIL2 compliance and is certified in full hazardous areas, including ATEX, IECEx, FM, and FMc/CSA.

RAE Systems    San Jose, CA 95134
Jan 28, 2010 MeshGuard system, suitable for gas detection in stationary applications, is designed for use in hazardous industrial locations. Wireless system is available as system component or as preconfigured Rapid Deployment Kit. Kit includes FMC 2000 wireless controller, which supports up to 24 sensors and includes wireless modem that communicates with each. It also integrates routers, battery-powered monitor, and accessories such as FA-200 Alarm Bar and rechargeable RAE Power Pak.
