Green Edge Systems, Inc    Woodland Hills, CA 91364
Jan 26, 2010 Intended for use by school food services, Freshloc HACCP Wireless Temperature Monitoring Systems reads temperatures every minute, up to 1,440 readings daily, to keep schools fully compliant with USDA guidelines. Dashboard allows monitoring of entire district, organized by location, type of equipment, or both, from one screen. With one click, users can review any alert and its actual status, reconfigure any sensor or group of sensors, generate report, and more.

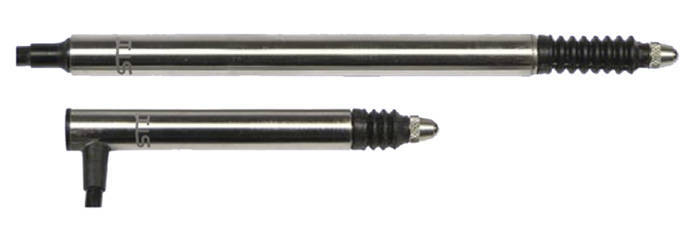

Stellar Technology, Inc.    Amherst, NY 14228
Jan 26, 2010 Constructed of stainless steel, Model LPS60X AC/AC LVDT is designed for precision displacement and position measurement for quality assurance applications in industrial environments. Unit measures displacement from ±0.02-±0.2 in., with 0.25% linearity, and infinite resolution. Model features 6 ft integral polyurethane insulated cable, resistant to oils and chemicals. Mounting brackets, alternative electrical connectors and variety of probe tips are optionally available.

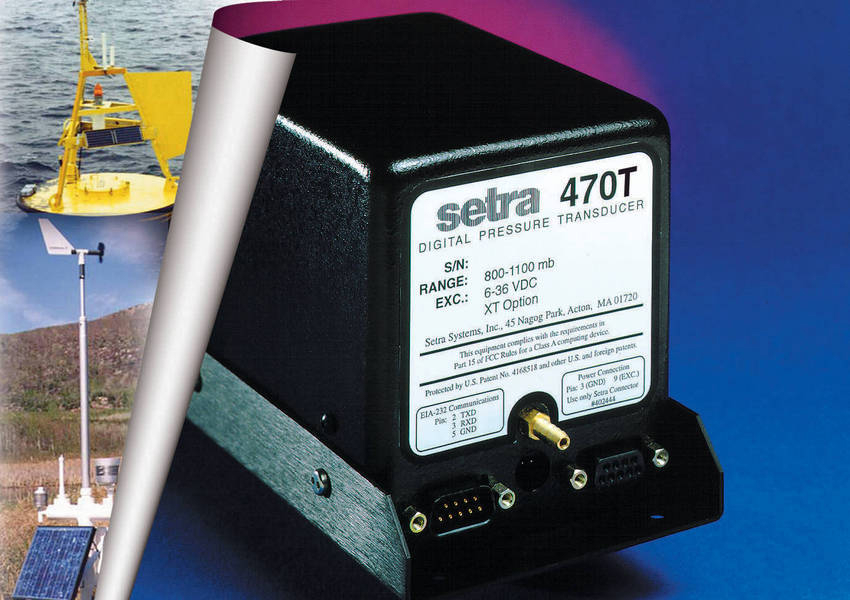

Setra Systems, Inc.    Boxborough, MA 01719
Jan 26, 2010 With compensated temperature range between -20 and 65°C and operating temperature range from -40 to 75°C, model 470T digital pressure transducer suits weather observation applications in extreme environmental conditions. Utilizing Setra's Setraceram (TM) sensor, and advanced digital electronic circuitry, microprocessor based instrument achieves system accuracy of better than +0.02% full scale, in pressure ranges from 0 to 10, 20, 50, and 100 psia; 600-1,100 or 800-1,100 mbar.

Axiomatic Technologies Corp.    Mississauga, ON L4Z1Z8  Canada
Jan 25, 2010 Providing output via CAN bus, RS232 port, or as three 0-5 V signals, IP67 rated AX06025X series measures inclination angle in 2 orthogonal sensing directions in range up to ±90º, or in one direction ±180º when installed vertically. Series also supports SAE J1939 CAN interface (AX0602XX), which is configurable using Axiomatic Electronic Assistant® programming tool. All units are packaged with M12x2 5-pin connectors or M12 x1 5-pin. Mating plug with CAN termination resistor is available.

Ophir-Spiricon Inc.    Logan, UT 84321
Jan 22, 2010 PE25BF-DIF has broadband absorber that measures from 193 nm to 2.2 µm at pulse rates to 150 Hz; pulse energies are measured up to 10 J. PE100BF-DIF measures from 193 nm to 2.0 µm at pulse rates to 40 Hz; pulse energies are measured to 40 J. Both use single, removable diffuser to cover UV, visible, and mid-IR wavelengths and work with most types of pulsed lasers. They provide data about pulse energy, average power, frequency, min/max values, missing pulses, time jitter, and standard deviation.

Ashcroft Inc.    Stratford, CT 06614
Jan 22, 2010 Equipped with 4-20 mA analog output, 4-digit LED display, and programmable switch contacts, GC35 provides remote signaling, local reading, and pressure control. Multifunctional instrument performs functions of transducer, digital indicator, and pressure switch. Supplied in nickel-plated cast aluminum housing, RoHS- and CE-compliant unit is offered in 0/50-0/7,500 psig ranges and compound ranges to 300 psi. Back- or bottom-located pressure connection is available.

Avago Technologies    San Jose, CA 95131
Jan 22, 2010 Operating from single 5 V supply, RoHS-compliant AEAT-601B is supplied in protective plastic housing and can be used for speed detection, knob control, and rotary encoder applications. It provides 3-channel output, 360° angular detection, and resolution of 256 cycles per revolution (cpr) and does not require any signal adjustment. Use of magnetic technology for motion control and sensing activities enables non-contact operation free from mechanical wear and tear.

Oliver IGD Ltd    Cheshire SK7 5BW  United Kingdom
Jan 21, 2010 Measuring 50 mm in dia x 80 mm long, ATEX-Certified Tocsin 102 PID can be applied close to sources of risk and can be combined with passive sampling options for inline applications. Unit is designed as normal diffusion device requiring no pump or moving parts, minimizing maintenance requirements. Available in analog and addressable versions, detector has built-in duty cycle option that enables users to initiate alternating period of detection and rest, extending lamp and sensor life.

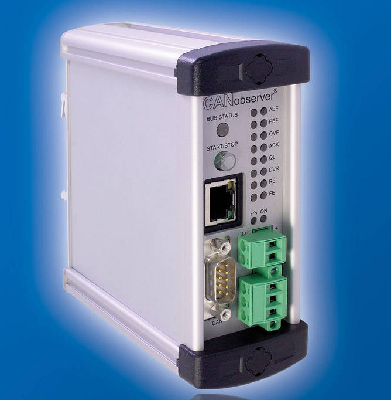

IXXAT Automation GmbH      Germany
Jan 21, 2010 Permanently integrated into network, CANobserver provides physical and logical long-term monitoring of CAN, CANopen, and DeviceNet systems. Device can continuously monitor and record data transfer for up to several years. Connecting CANobserver to PC, Ethernet interface enables operation of device by web interface. Programmable error outputs can be used to trigger external devices and signalers. Powered by 9-36 Vdc, CANobserver comes in IP20 aluminum housing for DIN rail mounting.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Jan 21, 2010 Series 670 Fume Hood Monitor continuously senses air flow through face of fume hood, ensuring safe levels of fresh air are exhausting potentially hazardous fumes. Featuring hot-wire sensor to detect low flows common on fume hoods, it also includes LED safe and alarm status indicators, audible alarm with temporary or permanent horn silence, relay alarm output, and input for night set-back. Mounting bracket, 2 in. of tubing, and 120 Vac power adapter are included.

SensorDynamics AG    Graz-Lebring   Austria
Jan 21, 2010 Available for 3.3 and 5 V supply voltage, micromechanical inertial sensors can be distinguished by number of independent integrated sensor elements (degrees of freedom). Product types SD721/751/752/757/758 include one-dimensional gyroscopes, with sensitive axis in or perpendicular to assembly plane of component, while SD755 combines one-dimensional gyroscope and one-dimensional accelerometer. Models SD777/778/787/788 combine one-dimensional gyroscopes with 3D accelerometers.

Kistler Instrument Corp.    Amherst, NY 14228 2119
Jan 20, 2010 Based upon strain gage technology, type 4520A torque sensor measures torques in accuracy class 0.5 at speeds up to 10,000 rpm. It is offered with torques of 1, 2, 5, 10, 20, 50, 100, 200, 500, 1,000 Nm and features ±10 V torque signal, speed output with 60 pulses/rev, and externally switchable control signal. Suited for use in production, quality control, and laboratory, sensor is maintenance-free in continuous use.

Datacom Systems, Inc.    East Syracuse, NY 13057
Jan 20, 2010 SINGLEstream(TM) Quad Link Aggregation Tap features 4 duplex RJ45 taps and 2 SFP any-to-any ports for monitoring full-duplex conversations across meshed, channelized, and/or load-balanced links using single monitoring device. LINKprotect(TM) feature closes one side of link if other side of tap loses link status, so routers/switches can bypass failed link. To share data sources, unit allows copies of traffic to be sent to multiple connected tools. Dual redundant power supplies are included.

Quest Technologies Inc.    Oconomowoc, WI 53066 4828
Jan 20, 2010 Designed for EVM Series environmental monitors, 10.6 eV PID ppb high-sensitivity sensor enables users to sense hundreds of VOC gases. It offers rapid response time, humidity compensation, and contamination resistance. Detector can be easily accessed using removable sensor bar on EVM monitor. Monitor allows users to measure and log particulates, VOCs, toxic gas, CO₂, RH, temperature, and air velocity.

Micronor    Newbury Park, CA 91320
Jan 19, 2010 Based on modular sensor and control technology, MR200W series monitors position, direction, speed, and cable twist while providing necessary feedback to directional motor drive and brake control system. Multifunctional unit can integrate any combination of geared limit switches, rotary encoder, resolver, or potentiometer. For increased accuracy, unit can be supplied with external anti-backlash POM (polymer) pinion gear, which optimizes coupling to wind turbine's large yaw bullgear.

United Electronic Industries    Canton, MA 02021
Jan 18, 2010 DNA and DNR versions of DNx-AO-358 boards are suited for use with PowerDNA Cubes and rack-mounting in PowerDNR RACKtangle/HalfRACK chassis, respectively. Both versions provide 8 channels of simulated strain gage output, with update rate of 0-5 kHz, based on signals from real variable resistor bridges that duplicate behavior of strain gages simulated. Each version may also be ordered in full or half/quarter bridge configuration with 120, 350, or 1000 ohm bridge completion resistances.

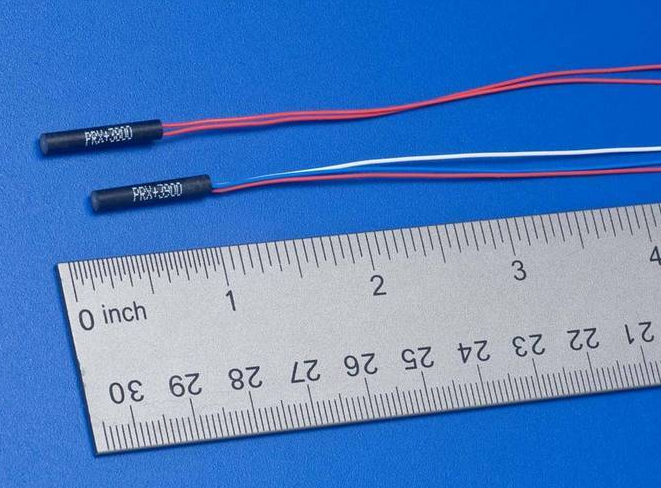

HSI Sensing, Inc.    Chickasha, OK 73023
Jan 18, 2010 Model PRX+3800 is Form B SPST, NC reed switch contained in temperature-resistant cylindrical housing and PRX+3900 is Form C, SPDT or change-over reed switch. Both have 0.125 in. dia and are .750 in. long and operate using permanent magnet or electromagnetic coil. Units operate at distances of .250 in. and are rated at 2 W, with maximum operating temperature of up to 105°C. Insensitive to ESD, they are suitable for automation, control, or detection in various applications.

RISCO Group, Inc    Melville, NY 11747
Jan 18, 2010 Featuring Anti-Cloak Technology (ACT) to detect intruder camouflage attempts, UL listed Industrial LuNAR detector can be installed up to 28 ft high, offering 360° coverage area emanating in cone-shaped pattern from detector to 60 ft dia. It incorporates 3 independently adjustable photo infrared (PIR) channels, along with one microwave channel. Bi-directional IR remote control programming tool enables adjustments and diagnostics of detector, while 3 tri-color LEDs aid walk-testing.

Pepperl + Fuchs, Inc.    Twinsburg,, OH 44087 2245
Jan 15, 2010 Econo-Vue photoelectric sensors are available in AC/DC versions as well as in 5 sensing modes and over 100 models. They include flush-mount bracket for simplified mounting of sensor on conveyor, while ball-and-swivel and half-clamp mounting brackets are also available. Suitable for material handling and packaging applications, sensors feature status LEDs, placed in dual positions 180° apart on housing, that indicate if unit is powered as well as actual signal strength.

Honeywell International, Inc.    Morristown, NJ 07960
Jan 15, 2010 Housed in 3 x 3 x 0.9 mm surface-mounted chip, 3-axis Model HMC5883 delivers up to 1° heading accuracy, enabling directional pointing and location features in consumer electronics. Device includes built-in offset cancellation circuit and auto calibration software, as well as 3-axis AMR sensors, signal conditioning and amplification circuitry, 12-bit ADC, and I2C serial bus interface. IC has selectable dynamic range up to ±10 gauss and provides better than 0.05% non-linearity.
