Toyoda Machinery USA Inc.    Arlington Heights, IL 60004
Mar 03, 2010 CNC Monitoring System is web interface system that provides real-time machine updates from factory floor to laptop or cell phone. It offers customizable lists of total number of parts produced on shop floor during specified date range, with comparison lists to help identify inconsistencies in production efficiency. Daily reports can be modified to specify machine, number of parts produced/machine, specified date range, alarms, and other recorded events.

Meggitt Sensing Systems (Endevco Corp.)    San Juan Capistrano, CA 92675
Mar 03, 2010 Endevco® 6237M70 has sensitive axis located in-line with mounting screw, while 6237M71 has axis perpendicular to mounting screw, both enabling installation in tight locations with minimal structural support. Ground-isolated, charge output units feature 10 pC/g output and operate in temperatures of up to 1,200°F. They offer resonant frequency of 11 kHz, with frequency response to 3 kHz. Sensing elements and shield are case-isolated and contained within hermetically sealed housing.

Phidgets, Inc.    Calgary, AB T2M3R7  Canada
Mar 03, 2010 Model 1120 - FlexiForce Adapter connects to one of analog inputs on 1018 - PhidgetInterfaceKit 8/8/8. It is designed for use with FlexiForce sensor, which can measure force between almost any two surfaces and is durable enough for most environments. Featuring supply voltage range of 4.5-5.25 Vdc, adapter has current consumption at maximum load of 3.20 mA and consumes 10.9 mA at overload. Unit is accurate to ±5% of full scale.

View Systems    Baltimore, MD 21223
Mar 03, 2010 Portable wireless watchdog communication device, Mini (Mobile Intelligent Network Informer) Sim Cam checks for intrusion into uninhabited areas like foreclosed houses, storage spaces, and vacation homes, and sends text messages to user's cell phone upon sensing motion. Product does not require any plug-in electricity, physical phone line, or monitoring service. Camera settings can be controlled and changed via SMS commands.

Flow Line Options Corp.    Macedonia, OH 44056

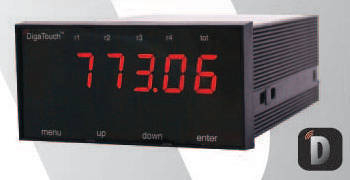

Mar 02, 2010 With 4-digit DigaCom(TM) and 6-digit DigaTouch(TM), users can locally and remotely monitor process applications through Ethernet connection. DigaCom features analog input and universal 90-265 Vac or 12-28 Vdc supply voltage, while DigaTouch offers universal I/O and isolated 4-20 mA output. Allowing users to connect and monitor process applications worldwide, DigaLink(TM) PC software interface delivers real-time information through secure industrial communication protocol with military encryption.

Dytran Instruments, Inc.    Chatsworth, CA 91311

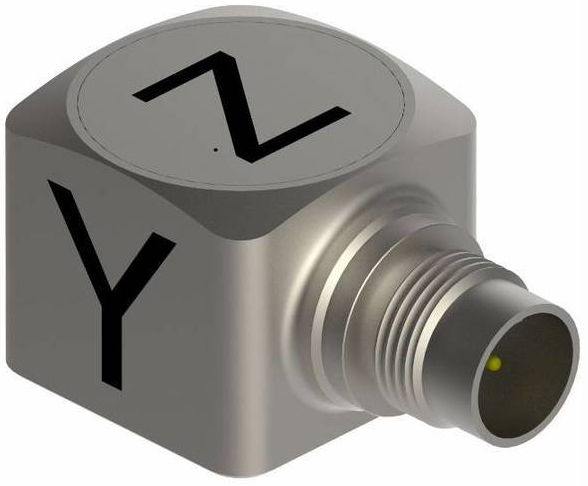

Mar 02, 2010 Featuring laser-welded titanium housing, 3333A series miniature triaxial accelerometers include ceramic sensing elements and ultra low noise JFET electronics. Products offer low-end frequency response of -10% down to 0.31 Hz and are available in sensitivities of 10, 50, and 100 mV/g. Weighing 2.3 g, they also have ultra miniature 4-pin connector, hermetic seal, and adhesive mount. Accelerometers are suited for modal analysis testing and general purpose vibration testing.

Cal Sensors, Inc.    Santa Rosa, CA 95403
Mar 02, 2010 Housed in hermetically sealed TO-8 package, Lead Selenide and Lead Sulfide Integrated Detector Assemblies cover 1.0-5.5 µm infrared region and provide sensitivity of 1.5 E10 Jones. Housing electronic drivers within detector package optimizes noise performance since detector is close to first stage of amplification. Available in 1 and 2 mm square sizes, detectors are suited for industrial and auto and aviation emissions analysis, environmental monitoring, IR spectroscopy, and thermal imaging.

Mitutoyo America Corp.    Aurora, IL 60504
Mar 02, 2010 Featuring 2.4 in. color LCD display with backlighting, over-size fonts, and ability to re-orient screen content to be read vertically or horizontally left and right-handed, Surftest® SJ-210 has measurement speed of 0.75 mm/sec, max. Up to ten measurement conditions can be registered, while up to 10,000 results can be stored on micro-SD card. Offering self-timed measurement and selection of 9 exchangeable detector tips, tester displays evaluation curves and data in one of 16 languages.

Baumer Ltd.    Southington, CT 06489 1534
Mar 02, 2010 With max switching frequency of 20 kHz,, wear-free Hall sensors are designed for detecting moving ferromagnetic objects such as toothed wheels, gears, or racks. Front face of M12 full metal jacket is made of stainless steel to protect sensor's electronics from aggressive environments. Suited for harsh environments exposed to vibration, shock, and contaminants, such as dust and oil, high resolution sensors withstand temperatures from -40 to 120°C and operate from 8-28 Vdc.

L & J Technologies, Inc.    Hillside, IL 60162
Mar 01, 2010 Mounted in tank or in line, Model 96330 provides automatic, quick-acting shutoff of product flow. Bi-directional valve is held in normally closed or open position by spring loaded piston, and checks closed in either direction when operating pressure is removed. Balanced piston design resists opening due to tank or line pressure.

Baumer Ltd.    Southington, CT 06489 1534
Mar 01, 2010 MAGRES Redundant Encoder features CANopen fieldbus interface and 12-bit single-turn or 18-bit multi-turn resolution, while cable-pull MAGRES Redundant Encoder also has 5 m cable. Offering speed, rotation, and position monitoring, products have 2 magnetic positioning systems and electronic monitoring system that compares values from encoders and warns of malfunction. Units have no moving parts, light sources, or breakable components and are resistant to shock/vibration.

Paine Electronics, LLC    East Wenatchee, WA 98802
Feb 26, 2010 Consisting of microprocessor-based pressure and temperature transducer, Digital True Pressure Series can perform in highly corrosive environments. Unit is designed for pressure ranges of 0-5,000 to 0-30,000 psia and temperature measurement from -40 to +350°F. Featuring all-welded Inconel construction, device provides memory-based user access; RS-232, RS-485, I2C, or SPI interfaces; and programmable temperature output in °K, °F, or °C.

SICK, Inc.    Minneapolis, MN 55438
Feb 26, 2010 Using linear bar code tape, OLM Distance Measurement Positioning Sensor enables fine positioning of overhead cranes, rail and transfer cars, monorails, shuttles, elevators, and other vehicles, even around curves and inclines where traditional laser measurement systems cannot be used. Vehicles can be positioned with 0.1 mm resolution at distance up to 10 km. Long range, non-contact solution employs 4 LEDs and CMOS camera for operational longevity.

Monroe Electronics, Inc.    Lyndonville, NY 14098
Feb 26, 2010 DASDEC(TM)-IR enables broadcasters multicasting more than one channel from one location to distribute and monitor EAS messages, on up to 5 stations, regardless of where they originate. By eliminating need for encoder/decoder set dedicated to each station, solution helps conserve resources while ensuring efficient equipment upgrades and FCC compliance. Combination of DASDEC-II with MultiStation(TM) software supports simultaneous or sequential forwarding of emergency alerts to all channels.

SICK, Inc.    Minneapolis, MN 55438
Feb 25, 2010 With 8 mm of space for optics, SLG series can be hidden inside machines, frames, doors, and other places where space and aesthetics are desired when detecting objects as they move through specific area. Non-safety, through-beam light grids are available in SGS, SAS, and SPL versions respectively suited for large area, smaller area, and pick-to-light applications. Sensor can be configured and adjusted without PC, and cross beam function enables increased resolution to 25 mm.

BEI Sensors (BEI Industrial Encoders)    Goleta, CA 93117

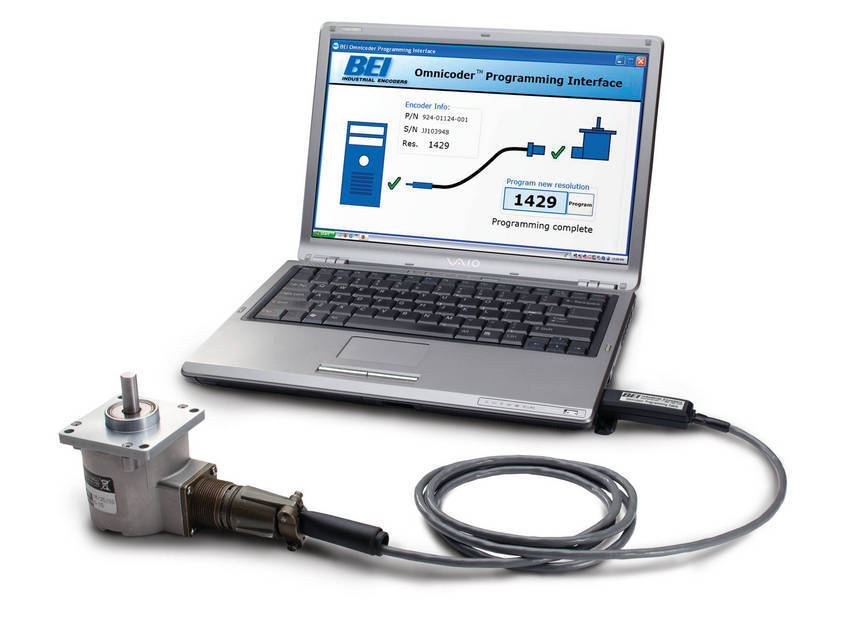

Feb 25, 2010 Enabling users to program resolution anywhere from 1-10,000 counts per turn, Omnicoder® allows unlimited resolution variations and can be reprogrammed as needed over M18 connector. Packaged in Model H25® encoder, unit plugs into PC via M18-to-USB programming cable and is automatically detected by programming software that lets users type in desired resolution.

Sherborne Sensors Limited    Hampshire RG21 6YH  United Kingdom
Feb 25, 2010 Suited for materials testing and high-speed load measurement applications, U2000 series provides precision measurement capabilities in either tension or compression mode, with 3 mV/V full scale output. Design incorporates multiple strain gages, strategically placed to counteract and minimize errors due to unwanted side or axial forces. Corrosion-resistant stainless steel housing and IP54 rated environmental sealing ensure performance in harsh environments over -20 to +80°C.

Huntingdon Fusion Techniques-USA Inc.    Melbourne, FL 32936-1175
Feb 25, 2010 Argweld® Critical Weld Purge Monitor measures residual oxygen levels as low as 0.001% in inert weld purge gases. Automatic pump extracts gas samples, and device is menu-driven by 2 adjustable buttons. Internal alarm alerts operator if oxygen level rises above preset limit, and system's low-maintenance sensor has 5 yr life expectancy. Monitor can be used and interfaced with all manual and automatic welding techniques.

LCM Systems Ltd.    Isle of Wight PO30 5GY  United Kingdom
Feb 24, 2010 Used for lifting and weighing applications, Self Indicating Link Load Cell (SILL) and Radio Telemetry Wireless Link Load Cell (RILL) are manufactured from aluminum and feature steel brushed shackle holes. SILL has 2.5-200 ton range and integral display that shows applied weight/force in selectable engineering units. Also, built-in alarm warns operator when applied level is met. RILL uses 2.4 GHz radio and is supplied with battery-powered handheld indicator that displays load in tons.

Lock Inspection Systems, Inc.    Fitchburg, MA 01420 6094
Feb 24, 2010 Designed to occupy minimal footprint, INSIGHT PH features integrated digital head with OPTIX detector management software and offers sensitivity to all types of metal. Plug-and-play architecture offers various communications options - USB, SCADA, wireless, and standard Ethernet - to accommodate installer and user needs. Other features include stability to vibration and complex product signals as well as keypad with DDS (Direct Digital Signal) viewer.
