Dwyer Instruments, Inc.    Michigan City, IN 46361
Feb 07, 2011 Utilizing electrochemical carbon monoxide sensor, Model 450A-1 measures ambient concentration of carbon monoxide in environment and displays measurement on 2-line digital LCD screen. Unit also displays maximum recorded CO value since last reset and has audible alarm that warns of CO levels above 25 ppm. Operating on three AAA batteries, Model 450A-1 offers response time of less than 60 sec and includes built-in backlight for viewing in poorly lit environments.

Acorn Energy, Inc.    Montchanin, DE 19710
Feb 07, 2011 In face of aging infrastructure, LineIQ(TM) transmission and distribution line monitoring system assists utilities in improving reliability. Real-time reporting capabilities enable utilities to pinpoint line faults and restore service to all but affected area. With voltage measurement and parameter monitoring capabilities, system addresses essential smart grid and distribution automation applications such as outage management, line balancing, and capacity optimization.

J-Works, Inc.    Sylmar, CA 91342
Feb 03, 2011 Used in test, control, monitoring, and measurement applications, model JSB375 monitors 4 AC lines and features four 15 A, SPST relays. AC monitor inputs sense AC voltage, and current state of each input can be read from USB port. SPST relays outputs provide host control between common line and normally open connection point. In addition to supporting 2 or 4 monitors and relays, product accommodates any programming or test language that supports USB communications.

Associated Research, Inc.    Lake Forest, IL 60045
Feb 03, 2011 Designed to help medical device manufacturers comply with agency specifications for electrical safety compliance testing, LINECHEK II 620L includes MD Voltage Display, which allows manufacturers to measure voltage drop across measuring devices as called out in IEC60065 and IEC60990. Leakage Current Display enables unit to comply with specifications requiring AC, DC, and AC+DC leakage measurements. Automated control is possible via Ethernet, USB/RS-232, or GPIB communication interfaces.

VEGA Controls Ltd    West Sussex RH15 9NF  United Kingdom
Feb 03, 2011 Utilizing radar electronics, VEGAPULS WL 61 performs measurement independent of temperature, high winds, fog, or rain, and can be deployed into crowded pumping chambers. Featuring sealed cable and IP66/68 rated housing, sensor can directly connect to existing fieldbus systems or be loop-powered from signal conditioning instrument for pump control. Integrated sensor linearization curves can be programmed using FDT/DTM software, allowing direct output of flow rate in open channels.

HBM, Inc.    Marlborough, MA 01752 3014
Feb 02, 2011 Available with ATEX approval II 2G EEx d e q IIC T4 for nominal measuring ranges up to 150 kNm, Model T10FH-ATEX is suitable for controlling gas engines for gas compressor systems. Data transmission between rotor and stator is digital, so that secure, error-free measured value acquisition and transmission is possible even under difficult ambient conditions, such as EMI or fluctuating temperatures.

Heidenhain Corp.    Schaumburg, IL 60173-5337
Feb 02, 2011 With 92 mm OD, 19 mm height, and 30, 38, or 50 mm through shaft, ECI 119 single-turn, absolute encoder offers 524,288 positions per revolution (19-bit). Unit has bearingless design and uses EnDat serial data interface with choice of 2 outputs: purely serial data (EnDat21) or serial data with 1 Vpp incremental signals (EnDat 01). Adjusting and Testing Software comes standard and SSI interface is optionally available,

Omron Scientific Technologies Inc.    Fremont, CA 94555

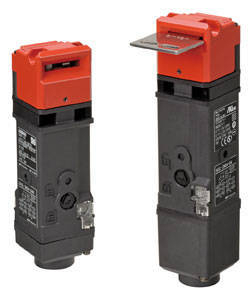

Feb 01, 2011 Model D4SL Guard Lock Safety Door Switch includes durable metal-head as well as key slot that accommodates misalignment and instability of real-life door applications. Featuring minimum key holding force of 1,300 N, unit can be mounted in 4 different directions by inserting mounting screws in appropriate direction. Product allows users to independently monitor door open/closed status, as well as solenoid on/off status. It is available in connector-type wiring and terminal block-type models.

Berkeley Varitronics Systems    Metuchen, NJ 08840-1217
Feb 01, 2011 Wolfhound(TM)-PRO handheld cellphone detector alerts security and correctional professionals to nearby cellphone activity with OLED screen and vibration notification. Operating for up to 4 hr on Li-Iom rechargeable power system, it enables users to continuously scan for cellular voice, text, or data transmissions. Unit has one-button illuminated trackball and multi-band direction finding antenna, as well as nonvolatile memory and real-time clock for data logging with time-stamp.

ROHM Semiconductor USA LLC    San Diego, CA 92121
Feb 01, 2011 Surface mount SIM-030/031ST and SIM-040/041ST IR LEDs feature wavelength technology that provides peak output of 850/870 nm, which is close to peak wave sensitivity of phototransistors, enabling high efficiency proximity sensing and energy savings. SIM-030/031ST measures 2.3 x 1.95 x 0.9 mm and with forward current of 100 mA delivers typical emission strength of 30 mW/sr, while SIM-040/041ST measures 3.1 x 2.25 x 1.6 mm and provides 40 mW/sr typical emission strength.

Stratophase Ltd    Hampshire   United Kingdom
Jan 31, 2011 Providing built-in touch-screen interface, SpectroSens monitoring and data analysis control unit is designed to monitor SpectroSens sensors, which interpret changes in refractive index to provide real-time process monitoring. Multichannel capabilities allow benchtop device to be connected to number of sensors, whether in single, multi-stage process or in situations where multiple processes are running in parallel.

Banner Engineering Corp.    Minneapolis, MN 55441
Jan 28, 2011 Comprised of adjustable-field and retroreflective models, R-GAGE(TM) QT50R sensors utilize Frequency Modulated Continuous Wave radar to detect moving or stationary objects such as trains, cars, trucks, and cargo. Adjustable-field model emits defined beam of high-frequency radio waves from internal antenna, which processes signal reflected back to receiving antenna. Detecting objects located in user-defined distance, retroreflective sensor ignores any objects and background beyond setpoint.

SICK, Inc.    Minneapolis, MN 55438
Jan 28, 2011 Supplied in VISTAL(TM) housing, W9-3 has over-molded connector and custom ASIC that incorporates OES3 technology, which optimizes background suppression at extended range. Teach-in or potentiometer adjustment is available, and complementary (light and dark operate) outputs are standard. Exhibiting immunity to ambient light, sensor is capable of ignoring stray background reflections and detecting multicolored/shiny objects. Several mounting options are available.

Meggitt Sensing Systems (Endevco Corp.)    San Juan Capistrano, CA 92675
Jan 27, 2011 Designed to operate over temperature range of -55 to +177°C, Endevco® Model 2228C provides vibration measurements on 3 orthogonal axes with 10-32 receptacles to allow data collection from 3 separate output connections. Self-generating device requires no external power source for operation. Weighing just 15 g, triaxial accelerometer minimizes mass loading on small structures and objects, and includes low-noise, flexible coaxial cables for error-free operation.

Baumer Ltd.    Southington, CT 06489 1534

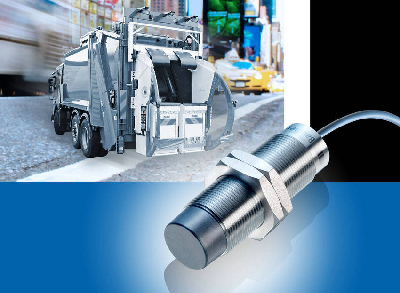

Jan 27, 2011 Designed for object detection and distance measurement up to 12 mm, IWRR/IFRR Sensors are completely sealed against moisture and contaminants and withstand temperature ranges from -40 to +80°C. Units come in digital and analog versions and have expected MTTF greater than 100 years. Sensors with IP69-rated V4A stainless steel housings meet requirements of strenuous offshore wind turbine environments, while models with IP67-rated nickel-plated brass housings are suitable for onshore applications.

Polygon    North Andover , MA 01845
Jan 26, 2011 With ExactAire System, technicians can monitor and configure operation of temporary dehumidification, cooling, and heating equipment remotely via secure website. System records climate control conditions on onboard memory chip and transmits conditions to website every hour. Detailed messages include recorded conditions, and location, make, model, and serial number of unit involved. With customizable alerts, users can have messages delivered via pager, email, or text message.

Dytran Instruments, Inc.    Chatsworth, CA 91311
Jan 26, 2011 Measuring 0.49 in. tall, Model 1022V offers precision force measurement capabilities up to 50 lbf, with 100 mV/lbf sensitivity and unloaded natural frequency of 50 kHz. Design features quartz sensing element, operating in compression mode and packaged in titanium housing with integral 5 ft coaxial cable, terminating to 10-32 coaxial connector. Series of 10-32 tapped holes, located at top and bottom of sensor housing, facilitate mounting of sensor on driving rods and test specimen.

Cyberoptics Semiconductor, Inc.    Beaverton, OR 97075 0276
Jan 26, 2011 Moving through semiconductor process equipment, Airborne Particle Sensor monitors airborne particles, reporting back information in real-time to allow engineers to validate and analyze wafer contamination. Vacuum-compatible unit can detect 0.1 µm particles in multiple Bin schemes and does not require engineers to open chambers or expose ultra-clean process areas. Using companion software, particle data can be recorded to compare past to present operations as well as one tool to another.

Allegro MicroSystems Inc.    Worcester, MA 01615
Jan 25, 2011 Targeting automotive market, A1152/3/5/6 Switches employ 4-phase, chopper-stabilized technique to achieve magnetic stability over temperature and to eliminate offset inherent in single-element devices. On-chip transient protection allows devices to survive ISO 7637-2 and 40 V load dump for less than 0.5 sec with minimal or no protection from discrete components. Two-wire unipolar units can sense seat track position, seat belt buckle presence, hood/trunk latching, and steering lock position.

BinMaster    Lincoln, NE 68507
Jan 25, 2011 Designed for operations with multiple, smaller storage and process bins containing powders or bulk solids, SmartBob-TS1 weighs less than 10 lb and works in environments where airborne dust and filling noise are present. Cable-based sensor gathers data that can be viewed from control console mounted at base of bins via eBob software loaded onto PC or Web-based BinView software. Communications options include 4-20 mA outputs, RS-485 wired network capabilities, or optional wireless modem.
