New Imaging Technologies (NIT)    91370 Verrières le Buisson   Canada

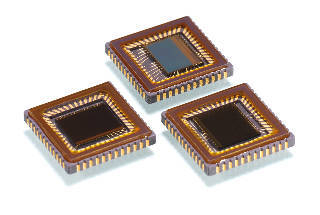

Apr 25, 2011 Model NSC1005 operates in 720p mode and has 1,280 x 720 pixels of 5.6 µm in size. Operating in rolling shutter mode up to frame rate of 60 Hz, unit also offers sharp color images without need of white balance. It includes Native WDR(TM) pixel technology that provides dynamic range of more than 140 dB, logarithmic response of signal to illumination, and no need for exposure time. Product is useful for security and surveillance applications, smart IP cameras, and traffic control.

Net Safety Monitoring Inc.    Calgary, AB T1Y7J7  Canada
Apr 25, 2011 Available as stand-alone, dual-sensor detector, or networked system, SiteShield Detection System can be configured and reconfigured for any site's specific energy demands, environmental conditions, and safety requirements. Autonomous package, compatible with entire proprietary range of sensing technologies, provides simultaneous gas and flame detection and can communicate with 16 remote sensors from one controller. Also, detectors can be added to and subtracted from network at any time.

Bell & Gossett    Morton Grove, IL 60053
Apr 25, 2011 Designed to continuously measure vibrations and temperature at pump power end, i-ALERT(TM) uses 2 red blinking LEDs to alert personnel when pump exceeds pre-set vibrations and temperature limits so that action can be taken before permanent damage occurs. Single green LED indicates when monitor is operational and has sufficient battery life. Operating in ambient temperatures of -40 to 212°F, i-ALERT(TM) provides ±15% accuracy across temperature range.

OmniVision Technologies, Inc.    Sunnyvale, CA 94089
Apr 25, 2011 Built on 1.4-micron OmniBSI(TM) pixel architecture, 12.6 megapixel Model OV12825 offers high-resolution still photography and 1080p HD video at 60 fps with electronic image stabilization and low-light sensitivity of 650 mV/lux-sec. Unit includes binning capability and has active array of 4,224 x 3,000 OmniBSI pixels operating at 15 fps in full resolution. Sensor comes with industry-standard connectivity including 4-lane MIPI, LVDS, and DVP interfaces.

FREE2MOVE AB    HALMSTAD S-302 48  Sweden
Apr 25, 2011 Ison(TM) sensors, part of FS800 family of sensors, store up to 10,000 log-points with simultaneous humidity and temperature measurements. Log-intervals and alert threshold values are configurable, while units are self-calibrating and maintenance-free. Logged sensor data can be uploaded to USB-, Wi-Fi-, or LAN-compliant reading devices at range of up to 300 ft in free air. Products can used to monitor building structures, machinery, and sensitive goods.

Safeline Metal Detection, Inc.    Tampa, FL 33634 3009
Apr 25, 2011 Pharma GF-PRO units utilize Profile software, which is tailored to meet needs of inspecting fine powders under gravity fall conditions in pharmaceutical industry. Multi-channel inspection technology and UHF operation promote sensitivity and performance needed for detection of non-magnetic stainless steel and irregularly shaped contaminants. Condition Monitoring feature and PVR software deliver proactive advice to ensure proper performance, operation, and quality.

Kawasaki Microelectronics America, Inc.    San Jose,, CA 95131
Apr 25, 2011 Available in 65 nm and 40 nm process technologies for ASIC integration, burst-mode CDR SerDes PHY chip can lock to upstream data burst at 2.488 Gbps in less than 16 bits. Device is also available as standalone chip for supporting reference designs. In addition, CDR SerDes can be configured to optimize burst-mode lock time in OLT solutions for GPON standards operating at 1.25 Gbps. With high-jitter tolerance of 0.6 UI in burst mode operation, chip suits variety of optical transceivers.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Apr 25, 2011 Enabling low-power touch sense capabilities on MSP430 devices, 16-bit MSP430 MCU capacitive touch portfolio includes hardware and software solutions. Open source software library eliminates need to develop complex touch sensing algorithms and supports various capacitive touch sensor types. MSP430 Value Line G2xx2 and G2xx3 devices include capacitive touch IOs, which enable developers to interface directly with capacitive touch pads without external components.

TRIATEK    Norcross, GA 30093
Apr 22, 2011 Available in surface mounted or stainless steel flush mounted versions, Model FMS-1650-x-R connects directly to controller in room to be monitored and is updated instantly as room conditions change. Unit features full color LCD touchscreen that can be configured to display pressure, temperature, humidity, air changes, and room state simultaneously, or only those room parameters that require close monitoring. In addition to password protection, monitor provides both audible and visual alarms.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Apr 20, 2011 Offering 8% accuracy, Series AVUB operates by measuring heat loss from sensing element in air-stream and calculating air velocity by reading local temperature of air on probe. Models are available in 3 ranges of 0-785 fpm, 0-1,575 fpm, and 0-3,150 fpm with 0-10 Vdc output. Offering 10 sec response time, Series AVUB is suited for wide range of HVAC measurement and control applications, particularly in complete building control and energy management systems.

Morgan Technical Ceramics    Fairfield, NJ 07004
Apr 20, 2011 Tube contact sensor provides non-invasive detection of pressure changes in flexible, 4-4.7 mm OD x 0.8 mm wall thickness medical-grade silicone rubber tubing. Comprised of MEMS components as well as lid and catch, clip-on sensor is able to detect both negative and positive changes in pressure from -0.5 to +1 bar with accuracy of ±0.05 bar. Included flexi-circuit enables connection via 6-pin, 0.5 mm pitch ZIV connector, and sensor can be mounted in any orientation.

Thermadyne Holdings Corporation    St. Louis, MO 63017
Apr 19, 2011 Suited for use when purging HVAC or refrigerator lines prior to brazing process, TurboTorch® Nitrogen Flow Meter (Model NFM-TT, P/N 0386-0849) monitors flow of nitrogen gas through lines so that oxygen can be displaced. This prevents oxidation as well as resulting scale that would otherwise be picked up by refrigerant and cause contamination. Able to measure outflow of gas from 0-75 scfh or 0-35 Lpm, meter has brass body construction, ¼ in. MF outlet, and ¼ in. FF inlet.

Eaton Corp.    Cleveland, OH 44114
Apr 19, 2011 Designed for OEMs, ESR5 monitors signals from safety devices and switches off quickly if emergency occurs to enhance plant machinery reliability and safety. It detects faults - ground, cross connection, wire breakage - that occur in control circuit and switches off enable paths. Available in single- and dual-channel versions, relay employs redundant features and is compatible with various safety devices, such as emergency stops, rope pulls, and 2-hand control stations.

Phoenix Contact    Harrisburg, PA 17111 0100

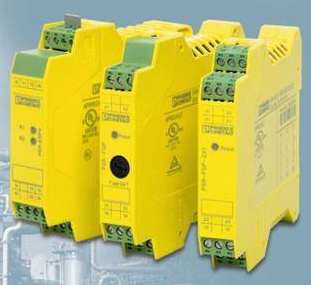

Apr 18, 2011 Designed to operate with fail-safe controls in process applications, PSR-FSP2/2x1 and PSR-FSP/2x1, respectively, support use in situations requiring up to Safety Integrity Level (SIL) 3 and SIL 2. Both safe interposing relays have 2 NO safe outputs, but only those for PSR-FSP/2x1 are internally redundant. Also, NC status contact on both 17.5 mm wide safety process relays can be wired to SIL-rated controller to perform automated proof test to ensure targeted SIL level is maintained.

Thermo Fisher Scientific    Waltham, MA 02454
Apr 18, 2011 Installed by user on laboratory equipment, Smart-Vue(TM) protects samples by monitoring laboratory parameters such as temperature, CO2 concentration, humidity, and differential pressure. Full audit trail traceability facilitates regulatory compliance, and immediate remote alarm notifications help protect sensitive laboratory samples. Continuously monitoring ambient conditions 24/7, system creates record of all readings, alarms, and acknowledgements with responder's personal identification.

Mettler Toledo, Inc.    Columbus, OH 43240
Apr 18, 2011 Tablex-PRO, powered by Safeline PowerPhasePRO software, detects particles smaller than 0.2 mm in dia, including stainless steel and irregular shaped contaminants such as slithers of metal and broken sieve wires. Dual level electronic signature log-in system captures and stores all access activities, providing full regulatory compliance with 21 CFR part 11. Inspection process traceability is supported through barcode and batch code information within the data collection and storage system.

Advanced Thermal Solutions Inc.    Norwood, MA 02062
Apr 15, 2011 Used to profile heat sinks, components, and PCBs, iQ-200(TM) simultaneously measures temperatures for solid materials and surrounding air in addition to tracking air velocity and air pressure at multiple points. Laboratory instrument accommodates inputs from up to 12 J-type thermocouples, 16 air temperature/velocity sensors, and 4 DP sensors. USB interface allows PC-based data management, storage, and sharing, while software manages incoming data and provides graphic presentation.

Televac/ETI    Huntington Valley, PA 19006

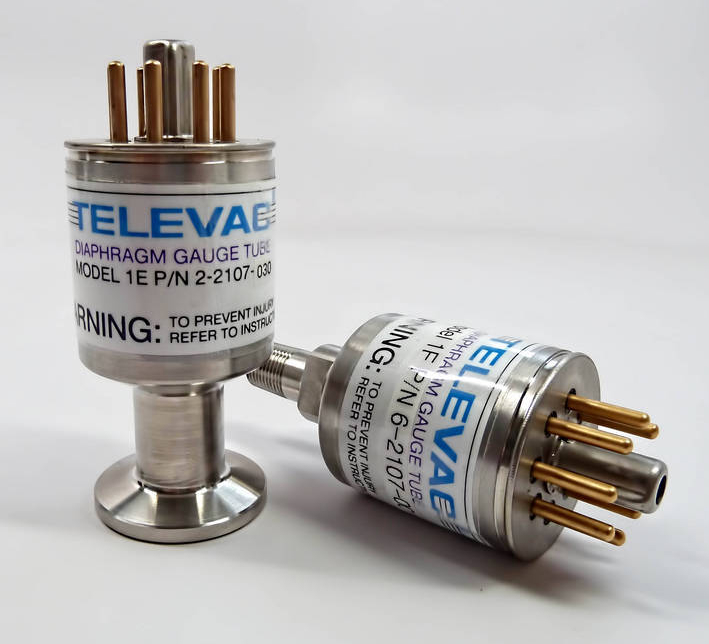

Apr 14, 2011 Direct, gas independent 1E Piezo Diaphragm Vacuum Sensors provide vacuum range of 1-1,000 Torr, while 1F sensors have range of 1-7,600 Torr. Both units feature nickel plated brass or stainless steel bodies with choice of 1/8 in. NPT, NW, or CF connections. They can be used with Televac's MM200 dual display, half-rack Modular Vacuum Gauge, which can include combinations of hot and cold ionization, thermocouple, convection, diaphragm, set point relays, and RS232/485 digital communications.

SightLogix, Inc.    Princeton, NJ 08540
Apr 12, 2011 Suited for temporary and long-term security applications, self-contained Video Security Trailer accurately detects pedestrians or other intrusions. Ruggedized system comes equipped with long-range SightSensor video analytic detection cameras, electronic pan/tilt positioning units, solar panels, backup batteries, and optional wireless communications. Onboard power generation works in wide range of operating environments, from desert to arctic deployments.

General Monitors    Lake Forest, CA 92630
Apr 11, 2011 Able to detect 0-500 ppm hydrogen levels, TS4000H employs electrochemical hydrogen sensor with T90 response of under 30 sec and minimal zero shift. Unit is unaffected by short-term, less than or equal to 2.5 min, exposure to hydrogen concentrations up to 50% LEL. Features include 4-20 mA output, 8 A relays, HART or Modbus communications, and 3-digit LED display for concentration readings and fault codes. Unit can also be configured to detect other toxic gases.
