CMM Dynamics Inc.    Apollo, PA 15613
Oct 20, 2011 Vision Slide® is suited for locating part or fixtured parts on CMM, CNC, or multi-sensor vision systems used for manual and/or automatic dimensional measurement. Solution ensures part is secure against working surfaces by using shielded concentrated earth magnets, which facilitates locating part precisely and repeatably on machine staging surface. Adjustable slide scale in X and Y axes lets operator/programmer choose multiple coordinate positions: A-G in Y-axis and 1-9 in X-axis.

HaydonKerk Motion Solutions    Waterbury, CT 06705
Oct 20, 2011 Allowing small-footprint linear actuator system for precision motion applications, Kerk® RGS/RGW linear rail platform features 180° folded-over motorized design. It contains all components needed for complete motion subassembly, including stepper motor, belt and pulley, precision lead screw, bearing supports, and rail with load carriage. Standard drive ratios available from motor to screw are 2:1, 1:1, and 1:2, and available screw leads range from 0.050-1.2 in./rev.

Lowell Corp.    West Boylston, MA 01583
Oct 20, 2011 Designed with ¾-14 threads to accommodate most professional quality slide hammers with self-tightening pull clamp, Model CL0199SH features conical base that is compatible with many clamps from other manufacturers in addition to Porter-Ferguson clamps. USA-made adapter gives auto body repair technicians more precise control over pulling operations that is possible with standard tightening pull rings.

Hyde Industrial Blade Solutions    Southbridge, MA 01550
Oct 19, 2011 Suited for knives used by professionals to cut, sheer, trim, slit, or slice materials on line or in field, Heat Resistant Hand Knife Handles are made from composite nylon-based material and will not transfer heat to hands when used on blades heated to 500°F. These plastic/resin handles will not crack or splinter, and non-absorbent nature prevents spread of contamination. Products can be utilized on most square point, v-trim, ply, and hook knives and fitted for custom-shaped blades.

J. W. Winco, Inc.    New Berlin, WI 53151
Oct 18, 2011 Featuring parabolic shape, GN 353 Vibration/Shock Absorption Mounts absorb most accumulated kinetic energy on impact, act as dampers, and prevent damaging shock and rebound. Mounts also serve as sound dampers and can be used as leveling feet. Available with tapped hole or threaded stud, mounts have vulcanized, 55 durometer, natural rubber body with zinc-plated, blue passivated steel cover plate and tapped inserts/threaded studs.

Eriez Magnetics    Erie, PA 16514
Oct 18, 2011 In addition to electromagnetic design that provides near silent operation, HS-8 features E-Z Tune(TM) technology that lets those who build their own trays reduce time spent tuning feeders. Low-profile design facilitates installation in areas where space is limited, and wedge-shaped body allows feeder arrangement in small diameter weigh scale systems. System can be provided with all stainless steel hardware and also offers rubber isolators and threaded insert to aid mounting.

Unirac, Inc.    Albuquerque, NM 87102-1545
Oct 18, 2011 Constructed of roll formed C-channel beams, ISYS(TM) Ground Mount (IGM) 2.0 is engineered to accommodate many foundation options. Design minimizes material use while maintaining structural integrity. Beams can also be stacked interlocked, conserving space and allowing more beams to be transported on fewer trucks. Also, design allows pre-assembly of module columns prior to installation, or parallel installation of foundations and racking simultaneously.

Schunk    Morrisville, NC 27560
Oct 17, 2011 Made of hardened stainless steel with dual clamping stroke and integrated turbo function, VERO-S Module clamps workpieces, pallets, existing fixtures, and tombstones with one or more clamping pins. Radial aligned clamping slides pull in clamping pin and lock it. Radial location is done via diamond pin, assuring repeat accuracy of less than 0.0002 in. Maintenance-free module is completely sealed and protected against penetration of chips, dust, and coolant.

Schunk    Morrisville, NC 27560
Oct 17, 2011 Featuring multi-tooth jaw guidance that accommodates needs of rough environments, PHL is equipped with roller bearings and profiled rail guidance to promote efficiency. Guiding carriage of gripper fingers have ball bearings that minimize friction and evenly distribute forces. Design engineer can choose among 3 strokes per size, covering entire range of strokes from 30-160 mm. Jaw guide is sealed and permanently lubricated.

Remstar International, Inc.    Westbrook, ME 04092
Oct 13, 2011 Megamat RS employs customized drive motors working in coordination with frequency inverters to minimize energy consumption during operation. Enclosed system of carriers rotate vertically, delivering stored goods to operator for maximized productivity and storage density. As standalone installation, unit can be operated using pushbutton drive and view function. For detailed applications, FastPic5 inventory management software can provide integration with existing WMS, ERP, and host systems.

Baker Hughes, Inc. (BHI)    Houston, TX 77210
Oct 13, 2011 Installed and released prior to cement job, TORXS(TM) Expandable Liner Hanger System eliminates risk of running tools becoming fixed in place during cementing, requiring fishing or well abandonment. System enables seamless 1-trip, 2-stage hanger and packer setting for cemented liner applications. Advanced torsion capability allows casing to be worked to depth in challenging zones, and there is no need to add retarders that compromise cement formulation or extend cement pumping time.

Amcor PET Packaging    Manchester, MI 48158
Oct 12, 2011 Suited for food products filled at temperatures up to 205°F, 24 oz round, wide mouth, polyethylene terephthalate (PET) jar weighs 51 g and mimics appearance of glass. Stock hot fill container features 4 horizontal ribs and stiff walls that resist vacuum as product cools in order to maintain jar shape. Performance Widemouth technology delivers panel-less design, and blow-trim technology ensures consistent finish dimensions as well as optimum closure performance and sealing integrity.

Video Mount Products    Stevensville, MD 21666
Oct 11, 2011 Featuring 4-post design, ER-S1U4P fits components up to 16.85 in. wide nominally or 17.4 in. when inverted and has total load capacity of up to 200 lb. This one space rack high (1.75 in.) solution, with adjustable tray depth from 14.75-25 in., includes 10-32 and 12-24 rack screws and has black, static-resistant powder coat finish.

Norbar Torque Tools, Inc.    Willoughby, OH 44094
Oct 07, 2011 Offering adjustable pressure control for pneumatic tools, Multi Channel Lubro allows operator to undertake multiple applications without continually referring back to air pressure graphs and manually adjusting pressure setting. Up to 15 programmable channels are available, and settings are protected by supervisor key control. Operated from mains or battery, regulator records output pressure up to 100 psi and provides supply of controlled oil feed to lubricate connected tool.

DaimlerChrysler Corporation    Auburn Hills, MI 48326-2766
Oct 07, 2011 Developed for Ram pickup trucks with 6 ft, 4 in. bed lengths, RamBox® measures 60 in. in length, providing interior volume of 8.6 ft³. System includes 2 weatherproof, lockable, drainable, lighted storage bins that run length of pickup bed and are as wide as wheel well. Adjustable bed divider/extender fits on lowered tailgate and adds 2 ft of additional length to secure longer loads, while cargo rail system with sliding, adjustable cleats enables infinitely adjustable tie-down versatility.

SAS Automation, Ltd.    Xenia, OH 45385
Oct 06, 2011 Designed to distribute forces evenly over entire contact area, Internal Diameter Grippers include Model IDG 16 with 26-38 mm diameter range and 40 N force per jaw, Model IDG 25 with 36-56 mm range and 100 N force per jaw, and Model IDG 44 with 60-132 mm range and 400 N force per jaw. Units require one compressed air line and utilize 1/8 in. diameter Neoprene rubber cord stock inserts for secure grip. Nose adapter can be customized for locating or part stabilization.

Sealed Air Corp.    Saddle Brook, NJ 07663-5291
Oct 05, 2011 Available in tabletop or stand-alone models that fit in work cell packaging environment, FasFil® EZ(TM) operates by activating footswitch, allowing operator to dispense continuous length of paper void-fill material. System also offers programmed length output mode option, which sets timer to stop paper flow, eliminating excess paper usage per pack. Built-in cutting mechanism allows for desired lengths of paper material to be dispensed without risk of repetitive motion injuries.

O.BERK Co.    Union, NJ 07083
Oct 04, 2011 Laboratory Syrup Bottles are suited for storing and handling viscous fluids, such as cough and other syrups, as well as concentrated flavors and fragrances. With 28 mm necks that facilitate filling/pouring, heavy-duty bottles come in 13 capacities from 30 ml to 1 L and feature interchangeable screw-on plastic closures. While tamper-proof design keeps contents safe and secure, amber color suits light-sensitive liquids. At 1.33 lb, 1 L bottle has 3.8 in. dia and stands 8.86 in. tall.

Industrial Magnetics, Inc.    Boyne City, MI 49712
Oct 04, 2011 With adjustable, locking handle and marked detents every 45° for accuracy, Pivoting Welding Angle lets welders set up and hold steel in angles from 22° to 270°. Magswitch® On/Off technology eliminates effects of magnetic field during setup while also promoting placement precision and non-marring hold on workpiece. Tool offers work holding capability on 3 sides of each magnet, with 200 lb holding value, and accommodates flat or round steel.

TE Connectivity Ltd.    Berwyn, PA 19312

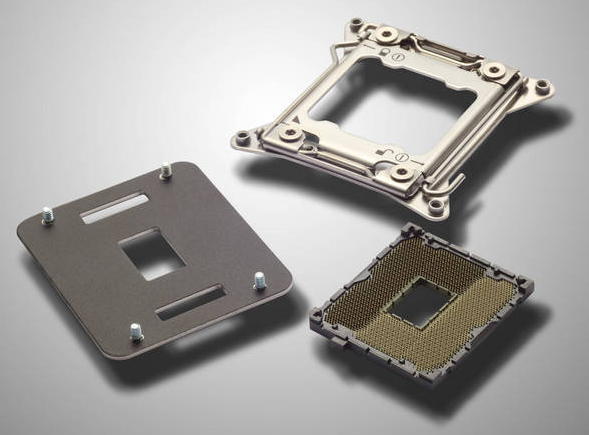

Oct 03, 2011 Validated to Intel® design guides, SMT LGA 2011 socket is designed for Intel® Core(TM) i7 and Xeon 5 CPUs. Contacts include solder balls for surface mounting onto PCB, and hex-ball array promotes housing strength while minimizing occupied space. Integrated lever mechanism generates Z-axis compression load, and bolster plate limits PCB bowing during compression. Product is available with either 15 or 30 µin. gold contact plating.
