Rotary Broach Kit increases machine shop productivity.

January 20, 2015

Offered in 2 versions to suit preferences of those who want to be able to continue to use older style broaches, all-in-one kit includes holder, case, instructions, and multiple broaches to make most common sizes specified for Allen wrenches or hex keys. GT Series rotary broach holder features sealed bearings and uses .500 in. dia x 1.75 in. or 8 mm dia x 1.25 in. broaches. Pressure relief holes in each broach allow fluid or air trapped in blind holes to escape through center. Read More

Machinery & Machining Tools

Rotary Broach facilitates in-lathe/-machine part stamping.

July 23, 2014

Made in USA rotary broach features multiple text letters, allowing machinists to stamp or mark their part in lathe or milling machine without removing part from machine. Typically used for making hexagon or square holes in precision machined products, broaches have letters or numbers and are inserted into broach holder to mark parts. Different identifying marks improve quality to distinguish between mixed lots of parts made in same machines. Read More

Material Handling & Storage, Machinery & Machining Tools, Fasteners & Hardware

Tooling System supports broaching applications.

June 19, 2014

Comprising single point inserts and holders, Minute Man Tooling System is suited for CNC lathes and machining centers as well as conventional lathes, shapers, and slotting machines. System supports grooving, toothing, positioning, and timing of internal keyways and cutting keyways in tapered bore and cornering operations. Users can complete broaching applications as additional step while part remains in place on machine and within same coordinate system as previous operations. Read More

Machinery & Machining Tools

Micro Punch Broach is made of high speed steel.

July 23, 2013

Able to be used with pecking or punching technique, micro rotary broaching tools consist of cutting tools used in precision machining industry to make hexagon, square, and custom shapes in various materials using lathe, mill, or other turning machine. When punching, broach can be removed, chips can be drilled out, and then broaching can be completed. Broaches are made from M-42 high speed steel and feature .25 in. shank diameter. Read More

Machinery & Machining Tools

Marking Broach creates letters or numbers in metal parts.

October 24, 2012

Designed to fit inside most rotary broach tool holders, Letter Broach is driven in rotary motion around fixed pivot point, minimizing wear on cutting tool and eliminating secondary operations. Marking method eliminates impact of high powered press or hammer, and gently displaces material until desired depth is achieved. Suitable for use on soft materials such as aluminum and brass, cutting tool supports nominal broach depth of .005–.010 in. Read More

Machinery & Machining Tools

Rotary Broaching Brake aligns forms in machined products.

October 2, 2012

Designed as attachment to GT Series rotary broach holder, rotary broaching brake can be used to hold orientation for single or multiple parts. Hardware consists of standard screws and nuts that can be replaced. Brake mounts to tool holder using set screws, and additional screws are included at opening of brake to gently tighten against spindle. When broach is engaged with part, brake is loose enough to allow spindle to turn without interfering with broaching operation. Read More

Machinery & Machining Tools

Broaching Attachments machine military parts.

April 10, 2009

With HexMaster(TM) Rotary Broaching Attachments, users can machine Hex, Double Hex, and other ID and OD shapes in seconds on most CNC lathes, mills, or screw machines with feed rates up to .012 ipr and speeds to 2,000 rpm. Attachments are suited for manufacturing military fasteners and defense parts. Read More

Machinery & Machining Tools

Rotary Broaching Attachment works with Swiss screw machines.

May 22, 2008

HexMaster(TM) ELITE can make ID hexes, broaches, splines, and other shapes on Swiss, Davenport, and small CNC lathes or screw machines where space is of concern. Available with shank sizes of 12 or 22 mm and 5/8 or ¾ in., this holder offers quick-set fixturing and is suited for broaching forms less than 3/8 in. dia. Solution enables manufacture of shapes in nearly any metal on nearly any machine. Read More

Machinery & Machining Tools, Fasteners & Hardware

Broach Inserts feature 6-lobe recess design.

November 13, 2007

Available for all Rotary Broaching Tool Holders, hexalobular inserts can be used on lathe, horizontal or vertical mill, or screw machine to create hexagon, square, and other polygon forms in precision metal products. Available in custom lengths, including 28 mm, broaches can be produced from hardened high-speed M2 steel, PM4, or T15 cobalt. They are useful in aircraft applications and in medical applications, such as manufacture of bone screws. Read More

Machinery & Machining Tools

Rotary Broaching Tool Holders do not require centering.

June 8, 2007

Available with .625 in., .750 in., 12 mm, or 22 mm shank, Adjustment Free Rotary Broaching Tool Holder is designed for Swiss type lathe and screw machines. Design lets operator use tool holder without need for centering. It also eliminates interference and clearance problems while facilitating access to grease fitting for maintenance. Product can be used for any type CNC, Swiss, or manual turning, milling, drilling, or screw machine. Read More

Machinery & Machining Tools

Rotary Broach Head helps accelerate machine setup.

February 21, 2007

Model 2160 features no center indicating, which facilitates setups for CNC Swiss-type machines and gang style lathes. With 1.1 in. head dia and length of 2.42 in., product can withstand 2,200 lb of push force and fits into tight tooling areas without loosing adjacent ID stations. Size also permits use in limited-space sub-spindle applications. Each holder has extended shank, eliminating need to add bushing while reducing vibration and promoting rigidity and tool life. Read More

Machinery & Machining Tools

Rotary Broach Head suits limited-space applications.

October 2, 2006

Designed for CNC Swiss-type and gang style lathes, PCM® 2160 eliminates need to indicate broach to center and thereby facilitates setups. Product, which measures 1.1 in. in dia and 2.42 in. long, is suited for sub-spindle applications. Each holder has extra long shank, eliminating need for bushing and minimizing vibration. Capable of withstanding 2,200 lb of push force, broach head is offered with shank sizes of 16, 20, 22, and 25 mm as well as 5/8, ¾, and 1 in. dia. Read More

Machinery & Machining Tools

Keyway Broach Set cuts 36 keyway combinations.

August 21, 2006

Suited for cutting 1/8, 3/16, ¼, and 3/8 in. keyways, Minute Man No. 10-10A Combination Set includes 4 broaches, shims, and 18 bushings with diameters increasing in 1/16 in. increments from ½ to 1 9/16 in. Supplied in varnished hardwood box, broaches are high-speed steel, push-type units that can be used with any hydraulic press with adequate throat depth. Read More

Material Handling & Storage, Machinery & Machining Tools

Broaching Tool Holder suits swiss type machines.

August 3, 2006

Featuring adjustment-free design, Rotary Broaching Tool Holder can be used without centering. It uses standard 1.25 in. length rotary broaches, which allow for deeper broaching than non-adjustable rotary broaches and tool holders. Broaches are available as squares, hexagons, splines, serrations, and other polygon forms. Tool Holder is suited for any type CNC, swiss, or manual turning, milling, drilling, or screw machine. Read More

Machinery & Machining Tools

External Rotary Broach fits swiss-type broach tool holders.

September 1, 2005

Available in standard hexagon forms as small as 1.5 mm, as well as in smaller custom sizes, external rotary broaches are suited for swiss-type tools that can be used to manufacture precision machine products and other micro fastener products. Sizes range from .056-1 in. dia, and broaches are available as squares, hexagons, splines, serrations, and other polygon forms. Read More

Machinery & Machining Tools

Utility Keyway Broach Set cuts standard metric keyways.

April 5, 2005

Designed to cut ISO standard metric keyways in commonly encountered, metric size bores, Minute Man No. 80 Keyway Broach Set contains 3 broaches and 12 bushings that can be used interchangeably to cut 10, 12, or 14 mm keyways in 12 bore sizes from 32-52 mm. Steel, push-type broaches can be used with any hand-operated arbor press or hydraulic press with adequate throat depth. Product is suited for machine maintenance, erection, or parts production work. Read More

Material Handling & Storage, Machinery & Machining Tools

Broaching Holder is suited for Swiss-type automatics.

January 1, 2005

Designed for use on any type of CNC or manual turning, milling, drilling, or screw machine, Swiss-type Rotary Broach Tool Holder is built on proprietary design of 8 mm broach holder. Fully adjustable, 12 mm shank broaching tool provides users of smaller Swiss-type automatics with tooling type normally used in larger automatics. Read More

Machinery & Machining Tools

Broach Set handles wide range of keyway cutting.

January 9, 2004

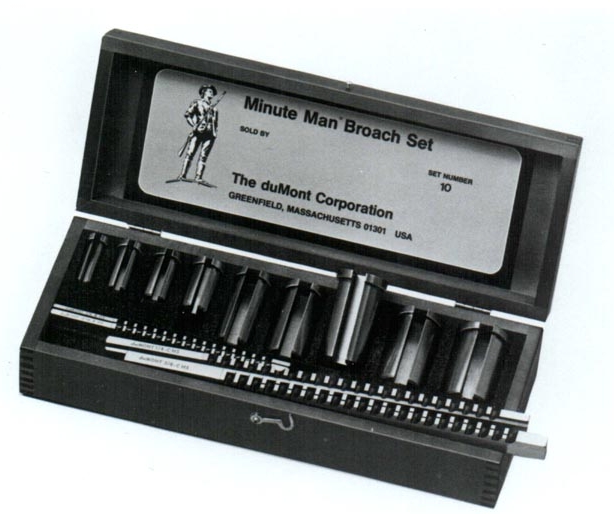

Minute Man No. 10 Set consists of high-speed steel broaches, bushings, and necessary shims for cutting 1/8, 3/16, 1/4, or 3/8 in. keyways in 9 bore sizes from ½ to 1½ in. Push-type broaches can be used with either hand-operated arbor press or hydraulic press with adequate throat depth. Read More

Machinery & Machining Tools

Keyway Broach Set cuts keyways in large bores.

October 25, 2002

Minute Man heavy-duty keyway broaches, bushings, and shims cut 1/2, 5/8, or 3/4 in. keyways in 17 bore sizes from 2 to 3 in. Set No. 50 can be used to cut keyways in pulleys, gears, collars, and similar pieces in experimental, maintenance, machine assembly, or limited production work. Broaches are push-type and can be used with hand operated arbor presses or hydraulic presses with adequate throat opening. Other sets are available in range of 1/16 to 3/4 in. in bores from 1/4 to 3 in. Read More

Machinery & Machining Tools

Broach Set cuts keyways in all popular sizes.

August 13, 2002

Minute Man® 100 Heavy Duty Combination Set of 9 high speed steel broaches, 44 bushings, and necessary shims can cut 102 keyway combinations. It can cut keyways from 1/8 to 3/4 in. in pulleys, gears, and collars. Broaches are push-type and can be used with any hand operated arbor press or hydraulic press having adequate throat opening. Set is packaged in 3 hardwood varnished boxes for convenient handling and storage. Read More
