Sunnen Products Co.    St. Louis, MO 63143
Apr 18, 2011 Designed to handle parts with bore ID of 2.5-21 in. and max OD of 24 in., all-electric Models HTA-2100 and HTA-4100 support part lengths up to 6.9 and 13.5 ft, respectively. Width of steel-impregnated polyurethane belt is 1.9 in., providing 20:1 safety factor. Suited for bore resurfacing and repair work, machines feature electronically controlled, 3 hp AC gear motor that powers spindle at 20-300 rpm and servo-driven stroking system with speed range of 5-90 fpm.

Standard-Knapp, Inc.    Portland, CT 06480
Apr 15, 2011 PikMore Uncaser features gripper heads that revolve around center carousel to lift empty glass bottles from their cases. Bottles are then placed on conveyor as they leave machine. Continuous motion machine includes graphic operator interface screen that enables mostly automatic operation. Programmed for auto lubrication, product also times all operations through trigger on main carousel, and is suited for use in wine and beverage industries.

IRWIN Industrial Tool Company    Wilmington, OH 45177-0829
Apr 15, 2011 Available in packs of 5, 10, 50, and 100, 4-Point Snap Blade enhances accuracy and productivity during work for tradesmen using utility knives by giving them instant access to sharp new point without need to change blades. Product snaps on score to create 4 cutting points, while 4 notches on blade's top edge allow for full blade extension despite of how many tips have been snapped off previously.

Cyril Bath Co.    Monroe, NC 28110
Apr 14, 2011 High-pressure rubber pad forming press utilizes elastoforming process based on one male or female tool that is pressurized against stack of elastomer pads. Under elevated pressure, forming pad forces blank around or into die cavities. Process is particularly suited for low- and medium-volume production and features purely vertical force that induces blank holder effect. Elastomer pad fills contour without need for second die.

Primera Technology, Inc.    Plymouth, MN 55447-4446
Apr 13, 2011 Available with 100 disc capacity and either 2 high-speed CD/DVD or CD/DVD/BD drives, Bravo 4102 XRP Disc Publisher prints full-color, 100% coverage disc in 6 sec. Built-in high-speed recorders, direct-to-disc printing, and robotics automate burning and printing of CDs, DVDs, and Blu-ray Disc(TM) media. Used for archival and distribution of video and audio, rack-mountable products feature individual CMYK ink cartridges, 18 gauge steel case with locking front door, and 4,800 dpi resolution.

Robert Bosch GmbH    Waiblingen D-71332  Germany
Apr 13, 2011 With production rates of up to 120 pieces/min, ARF 1010/1020 offers pharmaceutically safe filling and closing of ampules and injection bottles. Unit includes 2 gassing stations, 2-position filling station, and digital flowmeter for reproduction of flame regulation to close ampules. Pivoting motion of removal grippers is towards back of machine, minimizing disturbance of laminar flow over opened ampule during melting. Optionally, unit can fill ampules and injection bottles in combination.

Seco Tools Inc    Troy, MI 48083
Apr 11, 2011 Feedmax(TM) -N solid carbide drills, suited for drilling in aluminum and non-ferrous materials, feature low-silicon coating that suits machining of aluminum with less than 10% silicone, as well as brass, zinc, and magnesium. Tools have conical front clearance with 12° relief angle and 140° point angle, with narrow land margins to minimize friction and buildup of material on edges. They are available in diameters ranging from 0.1-0.551 in. and have 3xD drilling depth.

AZCO Corp.    Fairfield, NJ 07004
Apr 11, 2011 Requiring only 110 V and air, SUR-SIZE(TM) TS-54 Sheeter accommodates any material, including films, foils, paper, nonwovens, corrugated, and rubber products. Once roll is placed onto unwind support, material is fed to traveling knife assembly. Operator enters length and number of pieces on color touchscreen, and unit automatically feeds out and cuts to predetermined length and number. As material leaves unit, it exits to takeaway conveyor for manual stacking.

The David Round Co., Inc.    Streetsboro, OH 44241
Apr 07, 2011 Suited for cleanroom material handling, Lab-Lift(TM) Strap Hoist features highly polished finish and urethane-coated, lubrication-free lifting strap, which eliminates particulate contamination associated with chain hoists or wire rope hoists. Hoist mechanism is enclosed in smooth-sided polished 304 stainless steel enclosure for washdown. To further reduce potential contamination, welds are smooth-ground, faces are flush-mounted, and fasteners are plugged.

The Union Tool Corporation    Warsaw, IN 46580
Apr 07, 2011 Able to produce up to 120 x 60 x 4 in. panels, veneer/vinyl laminating system incorporates hot melt roller coater, powered lay-up conveyor, and rotary laminator. Unit accepts hand-fed core materials and applies adhesive in smooth, even, controlled amount. While common edge guide ensures proper positioning of veneer top layer and delivers core to backstop, upper veneer rack conveyor is angled and adjustable to help ensure proper delivery of top laminate layer.

Cincinnati Incorporated    Cincinnati, OH 45211 0111
Apr 07, 2011 Combining fiber laser source with 12,000 ipm linear motor drive system, CL-900 Series is available with bed sizes of 5 x 10 ft and 6 x 12 ft. PC-based HMI control comes with Programming and Nesting Software and is available with web cam for monitoring of cutting process. Delivering beam via flexible glass fiber, solid state lasers eliminate laser gas, internal optics, glassware, blowers, and vacuum pumps, as well as external mirrors, bellows, and beam purge gas needed with CO2 lasers.

Universal Instruments Corp.    Binghamton, NY 13902 0825
Apr 06, 2011 Powered by VRM linear motor with closed-loop 1 µm positioning, Genesis Series 2 is available 1-, 2-, and 4-beam configurations with throughputs up to 140,000 cph. Unit features 30-spindle Lightning® head, which places passives down to 01005, CSPs, WSPs, µBGAs, eCAPs, DPAKs, and MELFs at full speed. Vertical part sensor verifies part presence immediately prior to placement, while dual on-the-head cameras support components up to 30 x 30 mm and up to 6 mm tall.

Metabo Corp.    West Chester, PA 19380 4243
Apr 05, 2011 Suited for large area concrete surface grinding applications, 7 in. Angle Grinder Surface Prep Kit includes W24-230 large angle grinder as well as 7 in. dust control shroud and optional vacuum. Model W24-230, at 15 A, has rated speed of 6,600 rpm and loaded speed of 4,600 rpm and delivers 150 lb-in. of torque and 2,400 W of power. Made from virgin polyurethane, dust control shroud opens to let operators work flush against wall and features molded vacuum ports for vacuum connections.

Mountain Secure Systems    Longmont, CO 80501
Apr 05, 2011 Built for outdoor video, voice, or data applications, Summit Series provides coverage for point-to-point, point-to-multipoint, and wireless mesh networks in 2.4 and 5.8 GHz unlicensed frequency bands as well as licensed 4.9 GHz public safety band. Options include FIPS 140-2 validation, which provides highly secure, end-to-end encryption, as well as 802.11n MIMO technology, which offers connection speeds to 150 Mbps. Software allows Web-based configuration and management.

Seco Tools Inc    Troy, MI 48083
Mar 31, 2011 Available in diameters from 4-10 mm, Feedmax(TM) SD230A features 4-facet point geometry that provides optimal centering capability, with primary and secondary relief angles and point angle of 136°. Four land margins provide stability and maximize hole quality. Featuring low-friction, TiAIN + TiN coating, drill is suited for applications found in automotive, oil and gas, mold and die, medical, and general engineering industries.

Welex Inc.    Blue Bell, PA 19422
Mar 31, 2011 Broadening abilities of thermoformers producing form, fill, and seal containers, 9-extruder, 5-layer sheet extrusion system is intended for production of multi-colored striped sheet for thermoformed yogurt cups. It produces sheet up to 60 in. wide, with thicknesses from 0.020-0.060 in., at rate of 3,000 lb/hr. Also able to run PP, mobile-mounted system features color touchscreen control interfaces, x-ray gauging system, and individual roll drive sheet take-off system.

U. S. Polychemical Corporation    Chestnut Ridge, NY 10977
Mar 31, 2011 Offering direct replacement for solvents such as acetone, MEK, xylene, toluene, and methylene chloride, Polychem Acrastrip® 600 B and G Mod Auto cleans, strips, and flushes both solvent-borne and waterborne coatings. Surfactant-based product is non-flammable, non-hazardous, and HAPS-free. Also reusable and recyclable, Acrastrip 600 can clean pumps, guns, bells, disks, and recirculation lines. Product is available in 1, 5, and 55 gallon containers as well as textured wipes.

Sugino Corp.    Itasca, IL 60143
Mar 30, 2011 Comprised of 5 modular and fully programmable machines, JET CLEAN CENTER line is designed for precision washing and deburring of simple and complex parts. Products include CLEANRISER automated Millipore patch reading system as well as JCC drying equipment that uses plant or regenerative air or vacuum technology. Depending on machine, common base, stainless steel enclosure, and internal 3-axis module is used to streamline use of part handling automation.

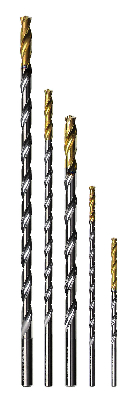

Widia Inc.,    Latrobe, PA 15650
Mar 30, 2011 Available with 15XD, 20XD, 25XD, and 30XD length ratios, WIDIA-Rubig(TM) deep-hole drills come in 3.0-13.0 mm diameters and do not require special drivers or guide bushings. Products can also be used in machining centers and are engineered to enhance material removal rate, hole quality, and cycle times. With 132° cone-point geometry, drills provide thrust and centering ability that lend to hole quality. Also, 4-margin design improves stability in cut.

Elscint Automation    Pune 411026  India
Mar 29, 2011 Used with vibratory bowl feeder, automatic stacking machine allows o-rings with 8-60 mm dia to be stacked on same machine. Metal magazines are mounted to an indexing table, and when sensor detects magazine is full, feeder is stopped and indexing table is advanced to bring empty magazine to loading station. Basic machine works with electrical controls, and PLC controlled version is also available. Indexing table can be either mechanical or pneumatically operated.
