Dynomax, Inc.    Wheeling, IL 60090
Dec 26, 2011 With profile that accommodates use in tight areas, DynoSpindle Model 1860 series weighs 12 lb and is designed for precision finishing operations. High-torque, 2.5 hp motors are available with max speeds of 30,000, 40,000, or 60,000 rpm. Suited for robotic and non-robotic applications, U.S.-manufactured product comes equipped with standard collet tool holders and air purge bearing protection system. Spindle can be air or liquid cooled, and several mounting options are available.

LVD Group    GULLEGEM 8560  Belgium
Dec 22, 2011 Midrange 20 metric ton press, Strippit M-1525, handles workpieces up to 60 x 98.4 in. nominally or 60 x 157 in. with one sheet repositioning. Features include 47-station turret, three 3.5 in. auto-index stations, and four 2 in. stations. Able to accept diverse tooling, system also features hardened steel guide bushings, hardened shot pins, bi-directional turret rotation, and servo-driven hydraulic press drive. Axis speeds reach 400 and 850 hits/min on 1 and 0.04 in. centers, respectively.

Genevieve Swiss Industries, Inc.    Westfield, MA 01085
Dec 21, 2011 Furnished in shank and hub configuration, GenSwiss Saw Arbors accommodate small live tool positions such as ER11 collet. Ultra Precision Combination Arbors provide added flexibility to hold extra tool such as end mill, drill, engraving tool, or spot tool. Made to gauge quality standards with hardened and ground hub mount, GenSwiss Ultra Precision Saw Arbors offer run-out less than .0001 in. TIR. Nut design applies gripping pressure on outside edge, eliminating eccentricity from high spots.

INDEX Corporation    Noblesville, IN 46060
Dec 21, 2011 Suitable for machining complex parts in industries ranging from automotive to medical technology, Multiline MS22C-8 can be configured to operate as 8-spindle machine, double 4-spindle machine, or machine with double rear end machining. Each of 8 spindles, arranged in spindle drum, are assigned 2 cross-slides which can travel on both X and Z-axis. Speed of liquid-cooled spindles can be controlled separately. When operated as 8-spindle machine, drum indexing angle from spindle to spindle is 45°.

C. R. Laurence Co., Inc. (CRL)    Los Angeles, CA 90058
Dec 19, 2011 Able to edge flat glass from 3-12 mm thick at speeds to 1.6 m/min, single-spindle EU11 makes Pencil, Miter, and Flat with Seam edges using diamond grinding wheels and polishing wheels. Coolant system is self-contained and includes recirculating tank and pump. Featuring .75 kw motor, 3300RP wet belt sander uses 102 x 2,692 mm sanding belts and is equipped for no-tool belt changes. Main power switch activates water spray to minimize glass grind dust and keep sanding belt cool.

Torchmate    Reno, NV 89502
Dec 19, 2011 Comprising 3-axis motorized system with 2 x-axis drives and 1 y-axis drive and motor, 4X4 CNC Prototyping System is large enough to fabricate medium-sized components. Relay turns plasma torch and other closed circuit tools on and off, while water table upgrade controls dust and airborne particulate. Outfitted with Torchmate 4x4 Driver Software, machine is compatible with CAD/CAM programs that let user create chassis and suspension components, engrave metal, and fabricate metal parts.

Schunk    Morrisville, NC 27560

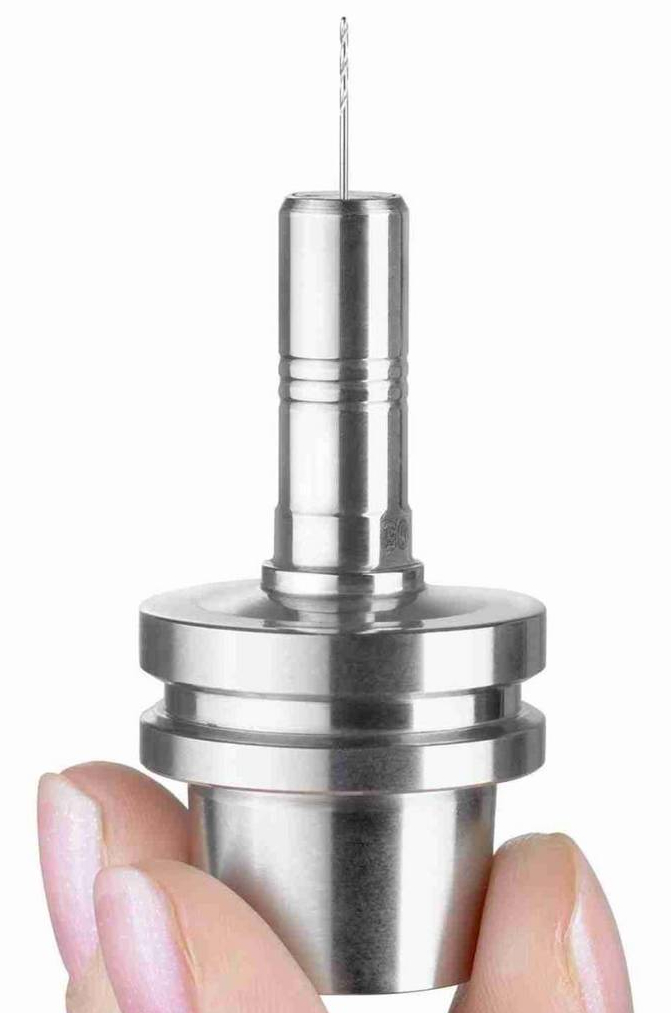

Dec 16, 2011 Directly clamping small tool shanks consistently along entire axis, TRIBOS-Mini eliminates collets, collet nuts, and inconsistent tool clamping for medical, dental, and micro level parts machining. Run-out accuracy is less than 3 microns, and balance grade is G2.5 at 25,000 rpm. Offering direct clamping via material elasticity, product utilizes polygon form in clamping bore to generate clamping. Holder is inserted into TRIBOS press, and cutting tool is released in less than 30 sec.

Wolf Robotics    Fort Collins, CO 80525
Dec 16, 2011 Standard robotic press brake systems include all components, less press brake, and can accommodate common sizes and weights of typical parts. Providing robotic automation of press brake operation, most press brake equipment is capable of integration into Wolf standard cells. Components include virtual station offline programming, squaring tables, regrip stations, gripper racks, incoming/outgoing pallet stations and quick-change grippers.

PDC International Corp.    South Norwalk, CT 06854
Dec 15, 2011 Custom-engineered for cutting and perforating operations in tamper-evident banders and shrink sleeve labelers, PDC blade assemblies are manufactured from tool steels for wearability, toughness, flatness, and edge profile uniformity. Blades operate dust-free; eliminate hairs typical of spinning knife systems while delivering precise cuts for months, even under continuous, high-speed conditions; and can be re-sharpened multiple times. Double-edged (reversible) versions are available.

Thomas & Betts Corp.    Memphis, TN 38125
Dec 15, 2011 Providing couplings, adapters, reamers, and plugs, Carlon® PVC Conduit Repair System facilitates and accelerates repair of broken polyvinylchloride (PVC) conduit. Design lets contractors maintain conduit ID, reducing repair time to less than 2 min. Available in sizes from ½-2 in., system eliminates task of chipping away and re-pouring concrete around conduit. Included nonmetallic couplings, adapters, and plugs will not rust or corrode.

Walter USA, Inc.    Waukesha, WI 53188

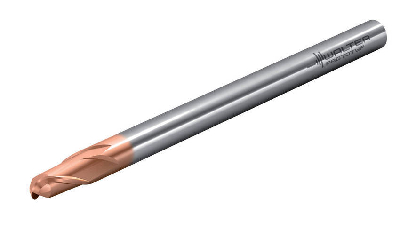

Dec 14, 2011 Featuring heat-resistant TiAlSiN-based coating for extended tool life, Prototyp Protoomax(TM) Ultra End Mills come in standard versions from 3-12 mm diameter and mini versions from 0.1-2.5 mm for small to extremely small contours. All diameters have 2 cutting edges and helix angle of 30°. Solid carbide tools are suited for machining hardened materials up to 70 HRC in die and moldmaking, as well as similar operations in general machining and heavy construction applications.

Putnam Plastics Company, LLC    Dayville, CT 06241
Dec 12, 2011 Tri-Tie(TM) guide catheter shaft manufacturing replaces traditional hand lay-up manufacturing process of multiple components with continuous processing that creates 3-layer composite shaft, with maximum adhesion between layers for optimal performance. Solution also provides gradual transition of varying durometer outer layer without bonding or hinge points.

CTC International, Inc.    West Caldwell, NJ 07006
Dec 09, 2011 Engineered for non-stop packaging and converting, CS1214 Splicer has clamshell mechanism that opens 90° into horizontal plane to provide flat work table for prep work. Dual unwind shafts for supply rolls are located at bottom of machine, and 36 in. length allows placement in space-restricted areas. Able to accommodate 2 full 14 in. dia rolls, machine also employs Splice-at-any-speed System to ensure that change in line speed during splice will not affect registration of preprinted materials.

EV Group Inc.    Tempe, AZ 85284
Dec 08, 2011 Addressing high-volume manufacturing (HVM) requirements, XT Frame accommodates up to 9 process modules and delivers flexibility by accommodating various combinations on single tool platform. Features include equipment front-end module with speed-optimized handling system, enough module spaces for parallel processing of several wafers, as well as up to 4 FOUP (front opening unified pod) load ports. Additionally, local FOUP storage system allows efficient, continuous mode operation.

Techno Educational    New Hyde Park, NY 11042
Dec 07, 2011 In addition to all-steel construction, HD Series precision cutting system features precision THK rails and bearings, precision rack-n-pinion drives on X- and Y-axes, and ballscrew-driven Z-axis. Handheld controller, also included, facilitates installation and training. Additional features include brushless micro-stepper motors and controls, 5 hp HSD high-frequency spindle, 6 zone adjustable vacuum table, and 10 hp rotary vane vacuum pump.

BIG Daishowa Seiki Co., Ltd.    Hoffman Estates, IL 60192
Dec 06, 2011 Intended for plunge-chamfering of holes, fixed-angle C-Cutters include two 30° tools for 16-85 mm dia holes and three 60° tools for 14-65 mm dia holes. Adjustable nozzles direct coolant efficiently to point of cutting, allowing feed rates to 0.6 mm/rev and speeds to 240 mm/min. Also available, Universal C-Cutter enables chamfers as shallow as 5° with minimum hole diameter of 5.5 mm and as steep as 85° with minimal hole diameter of 38.8 mm.

Kennametal, Inc.    Latrobe, PA 15650-0231
Dec 06, 2011 Specifically engineered for machining carbon fiber reinforced polymer parts, Beyond(TM) KCN05(TM) Routers possess solid carbide substrate and HP diamond coating. Four models are available, including ball-nose router dedicated for pocketing and profiling, down-cut style with left-hand flutes that compress fibers as it cuts, compression-style router with left-hand flutes on shaft and right-hand flutes at bottom, and burr-style model with many thin flutes for optimized productivity.

Centerline (Windsor) Ltd.    Windsor, ON N9J3T8  Canada

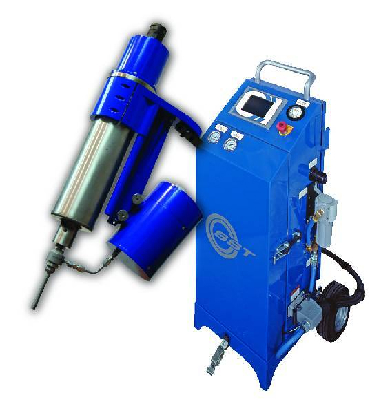

Dec 01, 2011 With SST(TM) Series EP Cold Spray System, metal coatings can be applied at operating pressures from 100-500 psi. Material choices include aluminum and aluminum alloys, Inconel, Invar, MCrAIY, nickel and nickel alloys, stainless steel, titanium, and titanium alloys. System comes complete with portable cabinet, HMI controls, pressurized feeder, and robotic style spray gun.

Walter USA, Inc.    Waukesha, WI 53188
Dec 01, 2011 Offered as special tool with diameters from 5-12 mm dia, Walter Titex XD70 can produce holes up to 70xD in one operation and does not require pecking. Cooling is provided via internal coolant channels, and no special coolant equipment, such as an external high-pressure system, is required. Standard cooling unit, such as those available with any machining center, is sufficient. Respectively, TTP and XPL tip coatings are available for steel and cast iron workpiece materials.

Sodick    Schaumburg, IL 60173
Nov 29, 2011 Featuring respective X, Y, and Z travels of 23.7, 15.8, and 20 in., AG600LH helps large-part manufacturers accommodate tall workpiece capacities. Linear motors on X, Y, U, and V axes allow Wire EDM to machine at maximum speeds without any backlash or lost motion. Along with glass scale feedback, additional features include Super Jet Annealing High Speed AWT, ceramic components, and energy saving circuit.
