Davis-Standard, Killion Specialty Systems    Pawcatuck, CT 06379

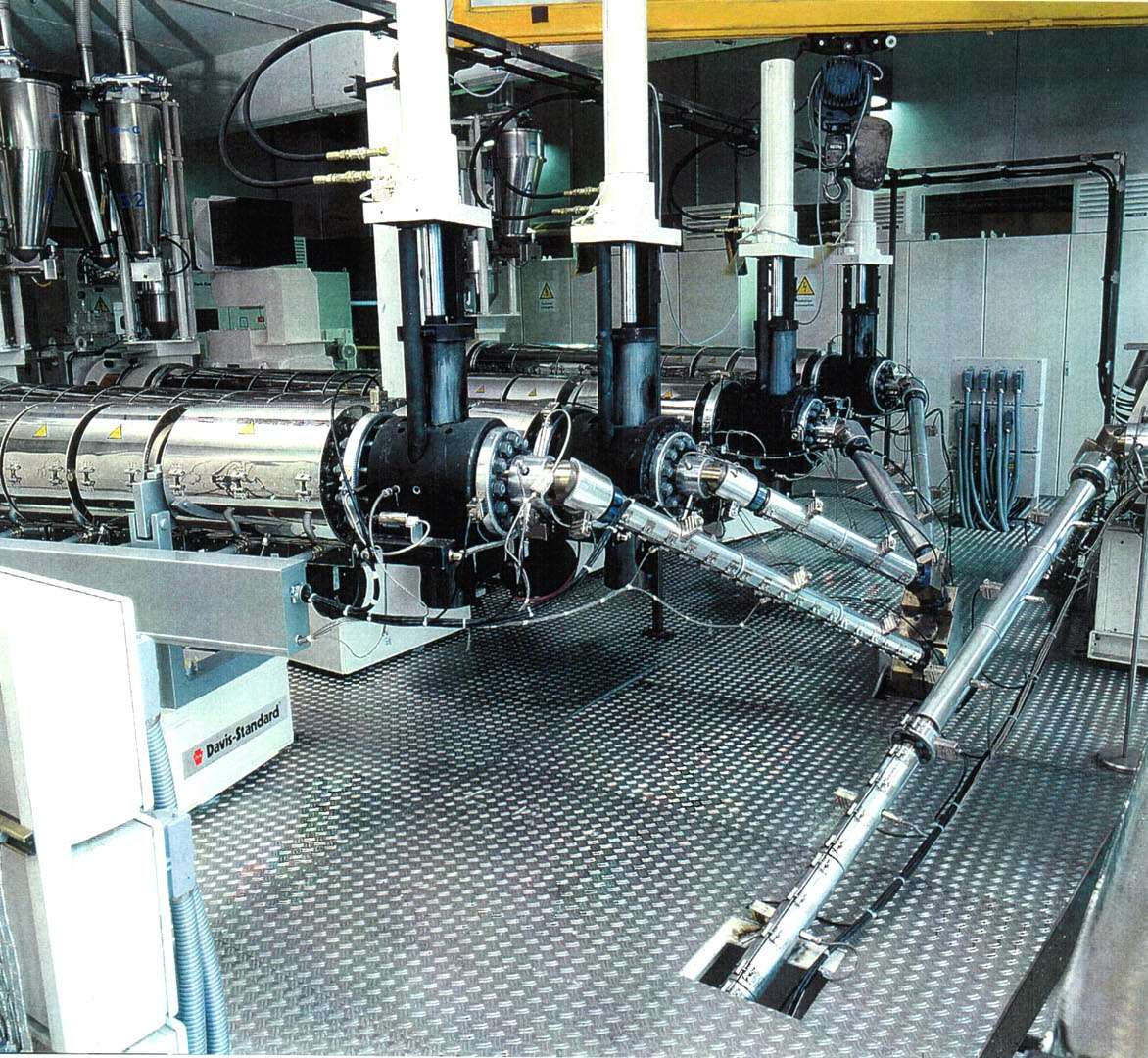

Sep 30, 2002 Large, 4 meter, cast film line processes industrial pallet stretch-wrap film at speeds from 1,470 to 1,960 ft/min, with outputs between 5,500 and 6,200 lb/hour. Faster cycle times eliminate off-line rewinding for hand wrap, and single roll handling system simplifies winding logistics. Process control system incorporates automatic die-control software and provides management reporting and recipe system with remote access for maintenance and monitoring purposes.

TMP, Technical Machine Products    Cleveland, OH 44102 4431

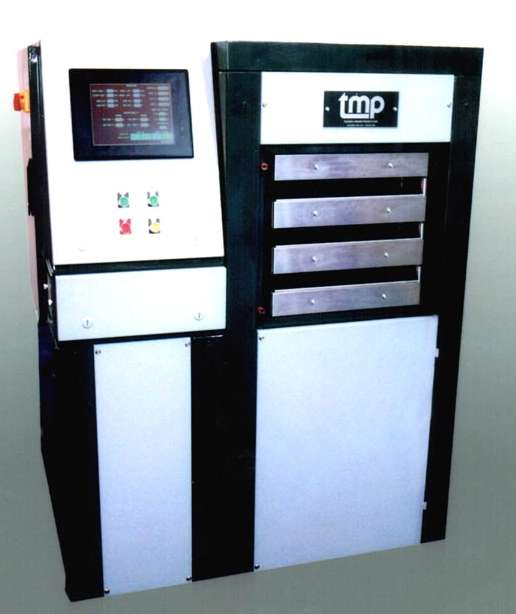

Sep 27, 2002 Model 1826-3 plastic laminating press utilizes 18 x 26 in. aluminum platens, and produces up to 2640 plastic cards/hr. Self-contained package includes laminator, closed-loop cooling system, trays, polished lamination plates, and pads. Advanced Control Package provides storage of 5 recipes, temperature and pressure ramping, actual vs setpoint data display, and visual and audible alarms, including heater failure detection. Controls use 10 in. touchscreen.

Applied Plastics Co.    Norwood, MA 02062
Sep 27, 2002 APC Teflon® Coated Mandrels have uniform, non-flaking coating that provides smooth, slippery surface which is chemically inert and withstands up to 500°F operating temperatures. Made from stainless steel or nitinol, mandrels are tested in accordance with ASTM-1894. Wire is grit blasted before Teflon® coatings are applied from 0.00005 to 0.0008 in. thick onto wire from 0.005 to 0.45 in. dia, with ±.0001 in. final dia. tolerances.

Kontron    Poway, CA 92064
Sep 27, 2002 Model XL-LP42 4U/8-slot CompactPCI high-density packet switched platform allows users to route signals across 2.16 compliant backplane without cables. Seven CompactPCI slots support 32-bit/33 MHz or 64-bit/66 MHz system and peripheral processor boards; and 1 slot is dedicated for PICMG 2.16-compliant switched fabric processor. Two PCI bus segments with H.110 telephony bus are routed to peripheral slots on each segment.

Cincinnati Machine, A UNOVA Company    Cincinnati, OH 45209

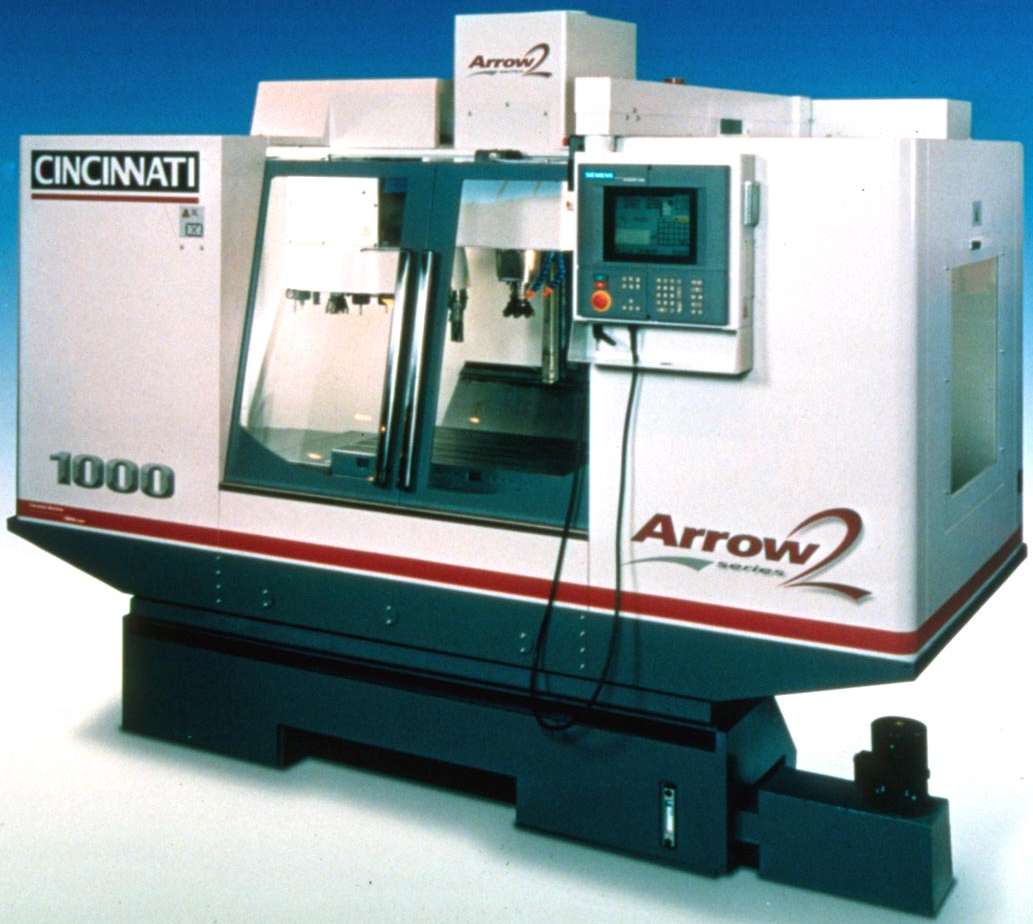

Sep 25, 2002 Arrow Series 2 VMC-1000 includes Profibus I/O interface technology and digital vector spindle drive that provides 30 hp (max), 25 hp MTDR. Spindle acceleration allows 40 series spindle to reach 8,000 rpm in 1.8 sec, while drive system provides constant torque, regardless of load. Process matching feedrates of 590 ipm are combined with traverse rates of up to 1,416 ipm. Operator convenience features include high intensity lighting and end panel windows.

Cincinnati Machine, A UNOVA Company    Cincinnati, OH 45209
Sep 25, 2002 Fixed Table Vertical (FTV) Machining Centers both provide 40 and 50 taper, multi-tasking machining with 40 m/min rapid traverse rate in all axes (6 m/sec² on X-axis), and 4 m/sec² acc/dec rate. With 3,700 x 815 x 800 mm X-Y-Z machining envelope, FTV 840-3700 models allow machining of 4,300 mm long parts weighing up to 11,574 lbs. FTV 850-2500 models have X-Y-Z machining envelope of 2,540 x 815 x 800 mm and allows machining of 3,140 mm long parts to 8,250 lbs.

Cincinnati Machine, A UNOVA Company    Cincinnati, OH 45209

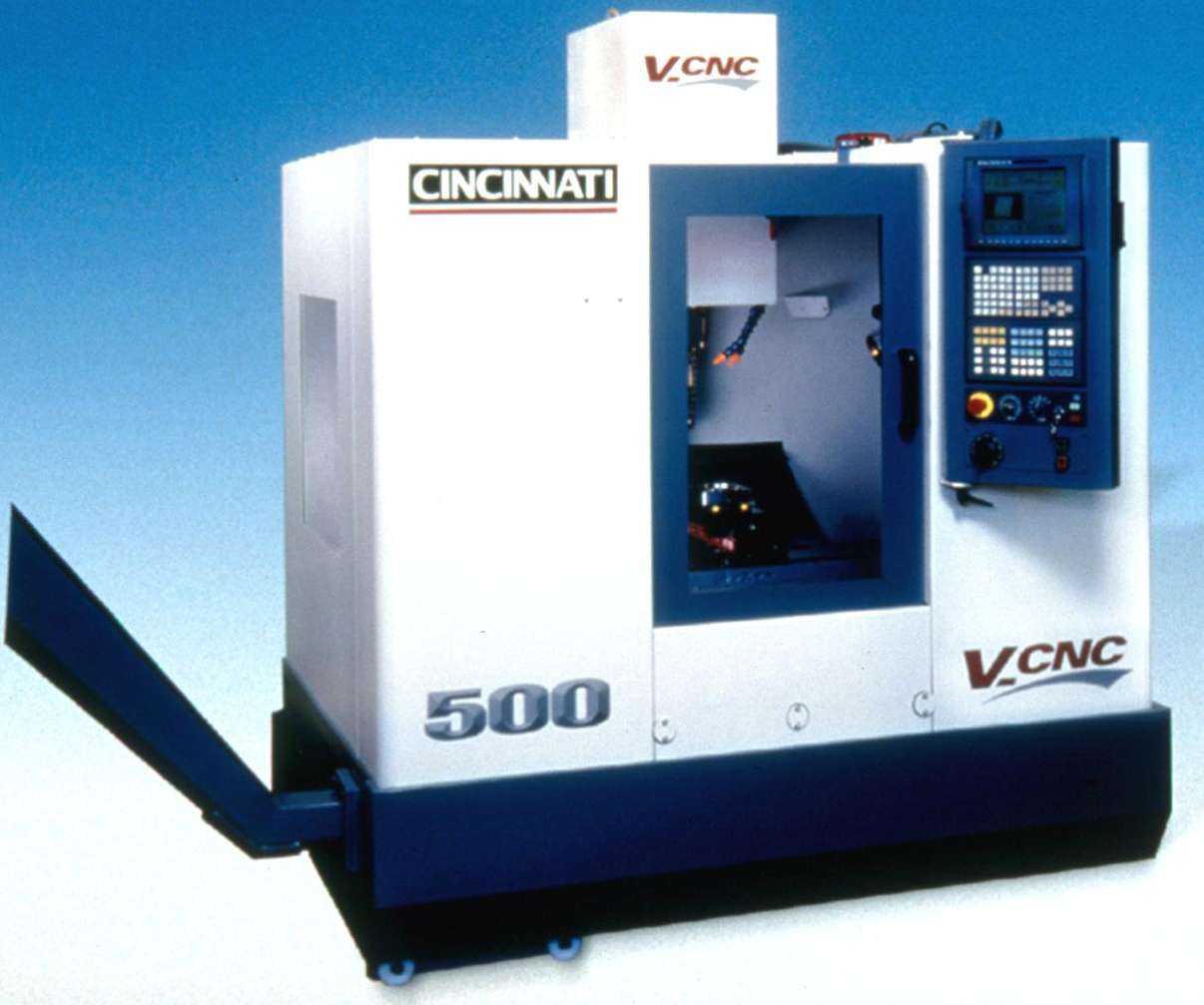

Sep 25, 2002 Models V-CNC 750 and V-CNC 500 utilize GE Fanuc 21i-B CNC control. V-CNC 750 models offer X-Y-Z travel of 762 x 510 x 510 mm, and V-CNC 500 models offer 510 mm of X-Y-Z-axis travel. Both models provide acc/dec rate of 3 m/sec², rapid traverse in X-Y-Z axes of 20 m/min, and max feed rate of 15 m/min. Both offer ±5 micron positioning accuracy and ±1 micron repeatability.

Cincinnati Machine, A UNOVA Company    Cincinnati, OH 45209

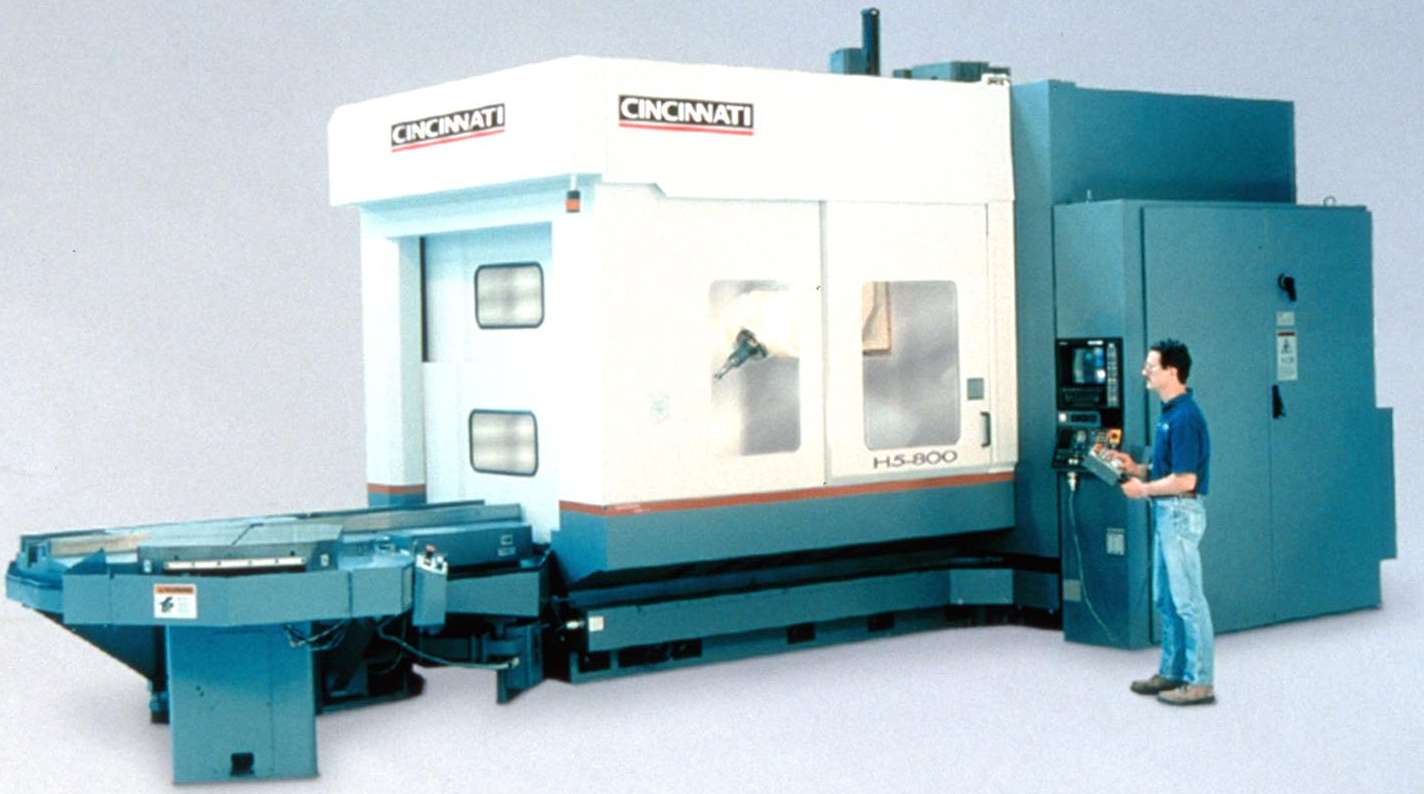

Sep 25, 2002 Available in 800 and 1000 mm pallet sizes, model H5-800 provides 5-axis contouring capabilities. With 180° A-axis tilt spindle sweep, H5-800's A-axis spindle works simultaneously with X-Y-Z-B axes. Machine has X-Y-Z travel of 61.0 x 47.8 x 47.2 in. and is capable of machining parts 51.2 in. in diameter and 53.1 in. high. It handles workpieces up to 4,847 lbs. H5-800XT is equipped with 6,000 rpm, geared spindle while H5-800AP is equipped with 15,000 rpm motorized spindle.

Cincinnati Machine, A UNOVA Company    Cincinnati, OH 45209

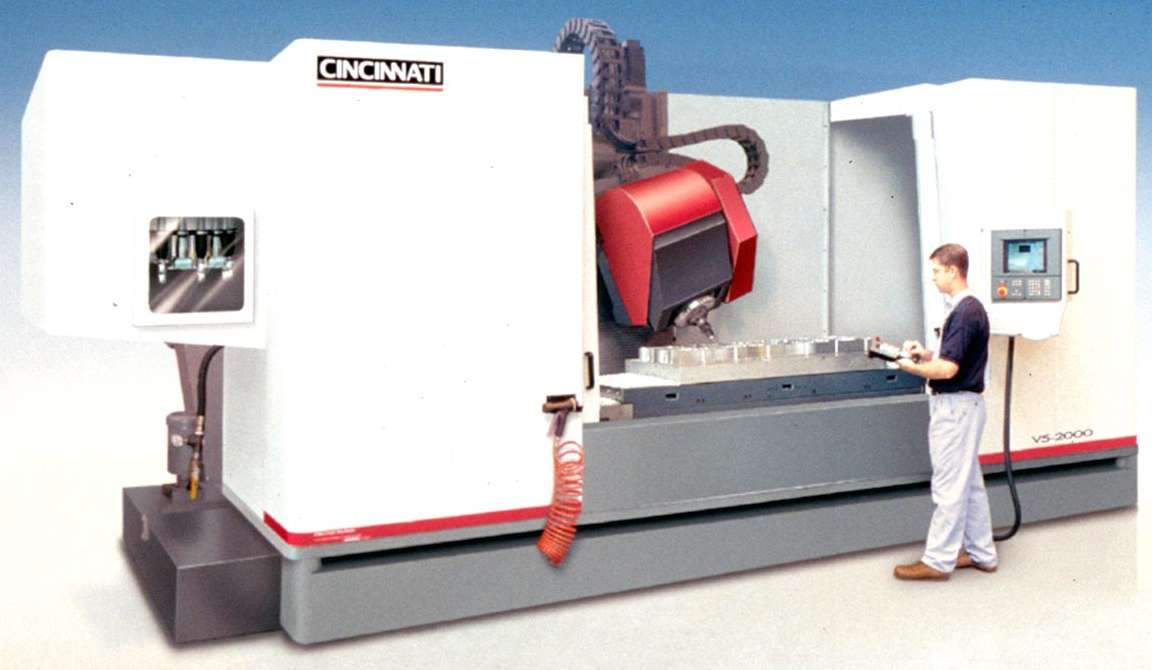

Sep 25, 2002 Powered by SINUMERIK 840D digital NC system, V5-2000 performs 5-axis machining of complex parts. It includes HSK 63A taper, 15,000 rpm, twin-tilt spindle with ±40° sweep in A and B axes. Ballscrew-driven, 2-axis head provides dynamic stiffness necessary for machining of aluminum parts. X-Y-Z machining range is 2,032 x 762 x 770 mm with 24 m/min rapid traverse and 15 m/min feed rates. Its 2,286 x 765 mm work table sustains up to 3 tons of parts and fixtures.

Cincinnati Machine, A UNOVA Company    Cincinnati, OH 45209

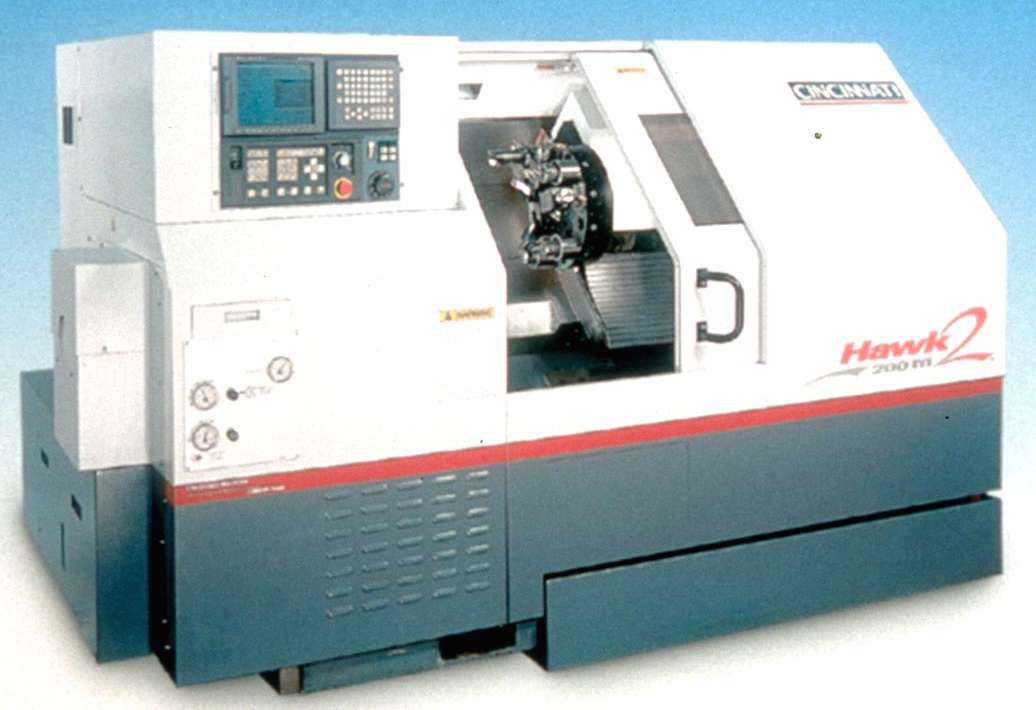

Sep 25, 2002 Hawk® TC-200M 8 in. CNC Turning Center combines digital vector servo-axis drives, digital Heidenhain X-axis linear scales, and live rotary tooling for round parts processing at ±0.0004 in. repeatability. Servo-driven 12 station VDI turret provides bi-directional indexing with 0.3 sec chip-to-chip times. Through-hole capacity allows processing of 2.5 in. dia bar stock. Max swing is 24.4 in. with max machining dia of 11.61 in.

Cincinnati Machine, A UNOVA Company    Cincinnati, OH 45209

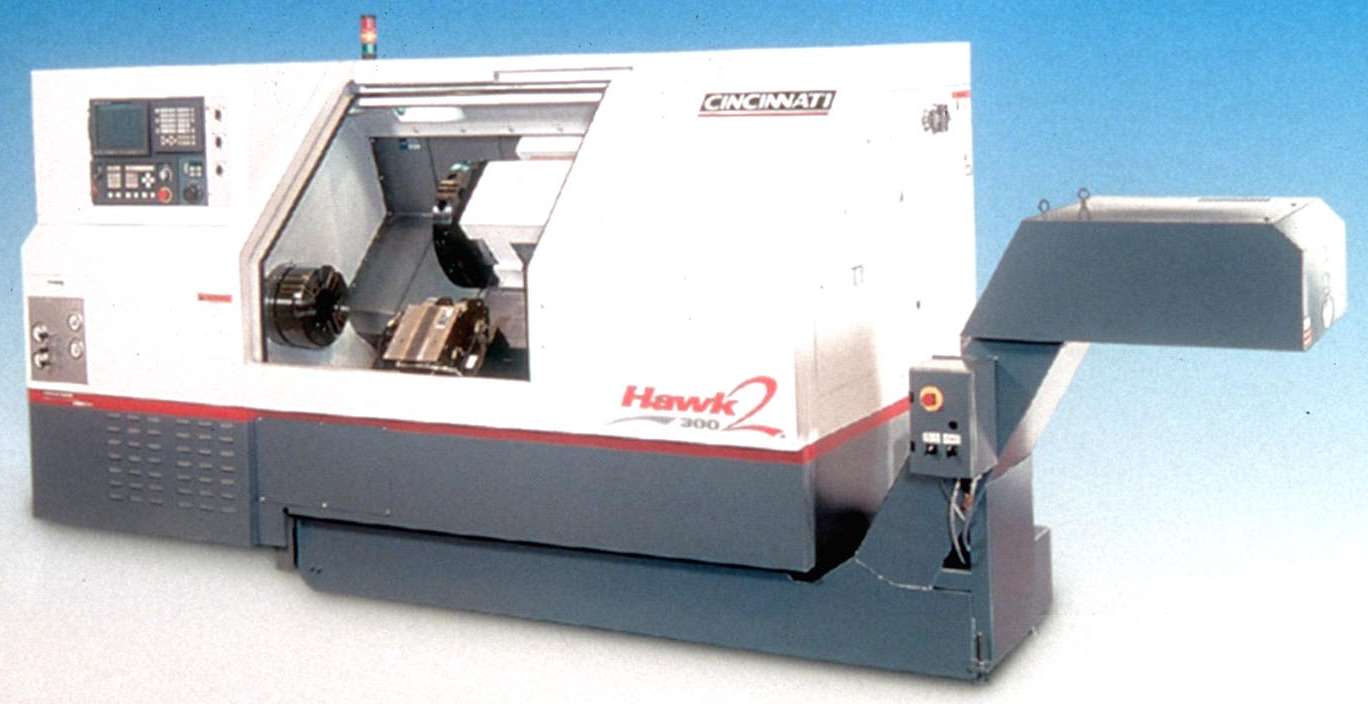

Sep 25, 2002 Digital-featured Hawk® TC-300 Turning Center offers large thru-hole bar stock capacity of 3.5 in., max turning swing of 26.8 in., turning dia of 16.6 in. and turning length of 39.9 in. Hydraulically actuated 12 in. chuck is powered by single-range, gearless spindle drive. Standard 3000 rpm spindle drive motor delivers full 60 MTDR hp. Digital scale feedback, standard on X-axis, delivers part consistency with repeatability of ±0.00004 in.

Lamb Technicon Inc.    Warren, MI 48091
Sep 25, 2002 To hog cast iron and aluminum on same machine, CNC Jaguarâ„¢ horizontal machining center (HMC), with optional spindle, performs both high-speed and high-torque cutting without changing spindles. HMC utilizes 50% of spindle torque when cutting 6061-T6 aluminum with 2 mm depth-of-cut at 8000 rpm and 15840 mm/min feed. Conversely, it can cut cast iron at 463 rpm and 940 mm/min feed rate with 5 mm depth-of-cut and requires less than 80% of torque.

Cincinnati Machine, A UNOVA Company    Cincinnati, OH 45209
Sep 25, 2002 Hawk® TC-200CX is equipped with Siemens A2100Di digital controls, drives, and motors that include Profibus interface for I/O communications. It maintains positioning accuracy of ±3 microns in X-axis and ±4 microns in Z-axis. Reliability accuracy of ±1 micron is achievable in both axes. Universal 12-station turret disk is standard, allowing for any combination of OD and ID tools. Tool-to-tool index time is 0.4 sec.

Scotchman Industries, Inc.    Philip, SD 57567
Sep 24, 2002 Operating on 110 V power, Porta-Fab 45 incorporates 45-ton punch with 4¼ in. throat depth. Unit's 3-in-1 tool includes flat bar shear that can shear 3 x 3 x 5/16 in. at 90° and 2 x 2 x ¼ in. at 45° and ¾ in. rod shear. Its tool table accepts optional tooling such as 8 and 12 in. Press Brakes, Pipe Notchers, Rectangular Notcher, and Picket Tool Attachment. Portable unit has bushed pivot points, hydraulic system with electric valve, stroke control, and remote foot pedal.

Scotchman Industries, Inc.    Philip, SD 57567
Sep 24, 2002 Grit belt grinders and tube and pipe fabricators include deburring machine and centerless grinder for external cleanup and finishing of tubes with diameters up to 8 in. Grit grinders and notchers offer 5 hp drive motors and rubber drive and backup wheels for aggressive grinding and efficient cooling of belt. Available with 3 and 6 in. belt widths, tube and pipe notchers can notch up to 6 in. material. Clamping system allows infinite adjustment of angles between 30° and 90°.

Lamb Technicon Inc.    Warren, MI 48091
Sep 24, 2002 Bobcatâ„¢ Horizontal Machining Center (HMC) utilizes hybrid kinematic design to deliver high acceleration (1.5 g in X and Y axes and 2.0 g in Z axis) and rapid traverse rates (80 m/min). It also provides ±0.005 mm accuracy and ±0.0015 mm bi-directional repeatability. Unit features baseline spindle of 16,000 rpm and its saddle-on-pivot construction eliminates mass of travelling column, increasing acceleration using AC servo motors and ball screws.

Thomson Industries Inc.    Port Washington, NY 11050 2214
Sep 24, 2002 Ball Screws are assembled, packaged, and nitrogen purged inside laminar flow, Class 10 clean room environment. They are lubricated, bagged, and sealed to eliminate contamination and enhance shelf life. Custom clean room hollow and telescoping screws can be designed and built, in addition to stainless steel and chrome plated assemblies. Inch and metric sizes are available with preloaded and non-preloaded ball nuts.

Liquid Control Corp.    North Canton, OH 44720
Sep 24, 2002 The C500 3D Contour Motion Platform provides heavy-duty robotic dispensing. Operator selects programs through flat panel control. Programming selections can be made by choosing program name or photos of part to reduce potential for operator error. System delivers dots, lines and contours in 2D and 3D. P200 Point to Point Motion Platform is designed for fast dispensing placement accuracy and repeatability without coordinated XY movement. Five pallet programs can be stored.

Scotchman Industries, Inc.    Philip, SD 57567
Sep 23, 2002 Horizontal Model FH 1016 includes 1 in. blade, controlled with carbide guides, and pre-set blade tensioning, along with power blade-cleaning brush. Its 2 hp, infinitely variable-speed drive motor offers speeds from 105 to 275 fpm. Capacity is 10 x 16 in. at 90° and 10 x 10¾ in. at 45°. Hydraulics feature fine adjustment of head feed control, quick approach, and head hold for easy line up of marks. Flood coolant system includes wash-down hose for clean up.

Scotchman Industries, Inc.    Philip, SD 57567
Sep 23, 2002 Model SH 1016 horizontal band saw includes 1 in. blade, which is controlled with carbide guides and pre-set blade tensioning, along with power blade-cleaning brush. Its 2 hp, infinitely variable-speed drive motor offers speeds from 105 to 275 fpm. Capacity is 10 x 16 in. at 90° and 10 x 10¾ in. at 45°. Hydraulics feature fine adjustment of head feed control, quick approach, and head hold for easy line up of marks. Flood coolant system includes wash down hose.
